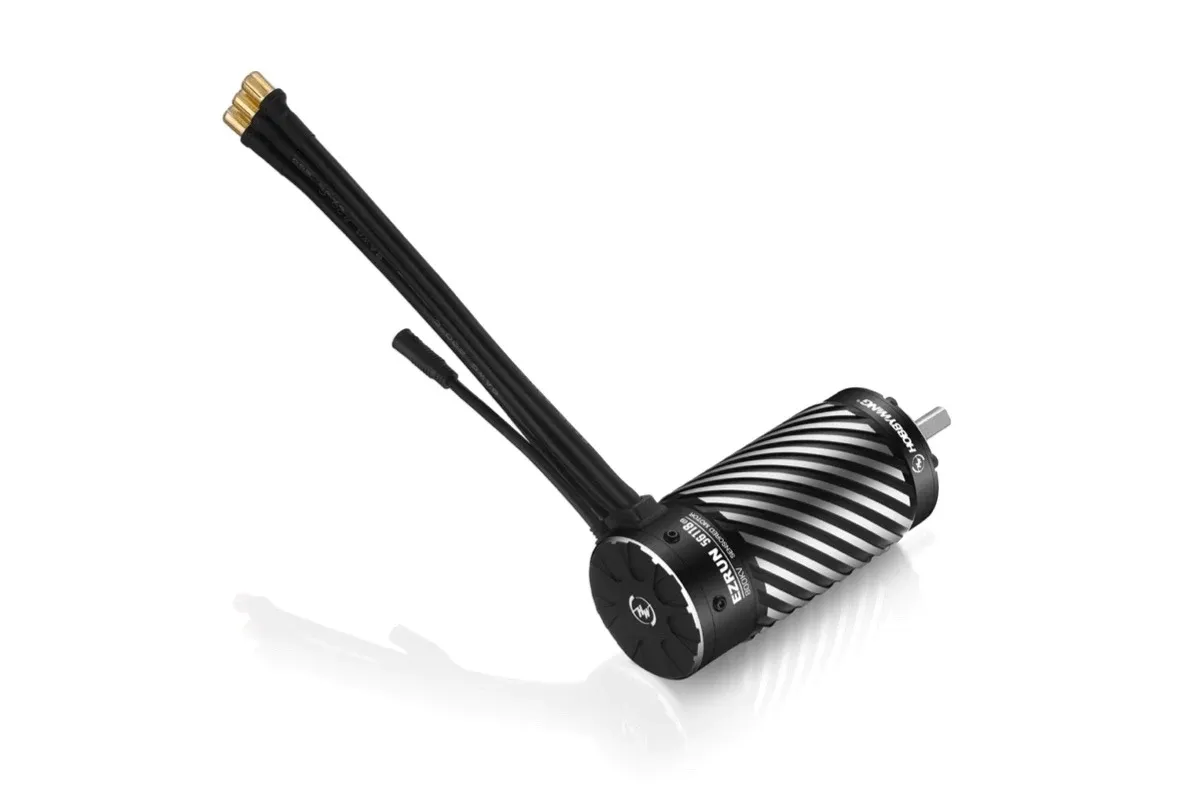

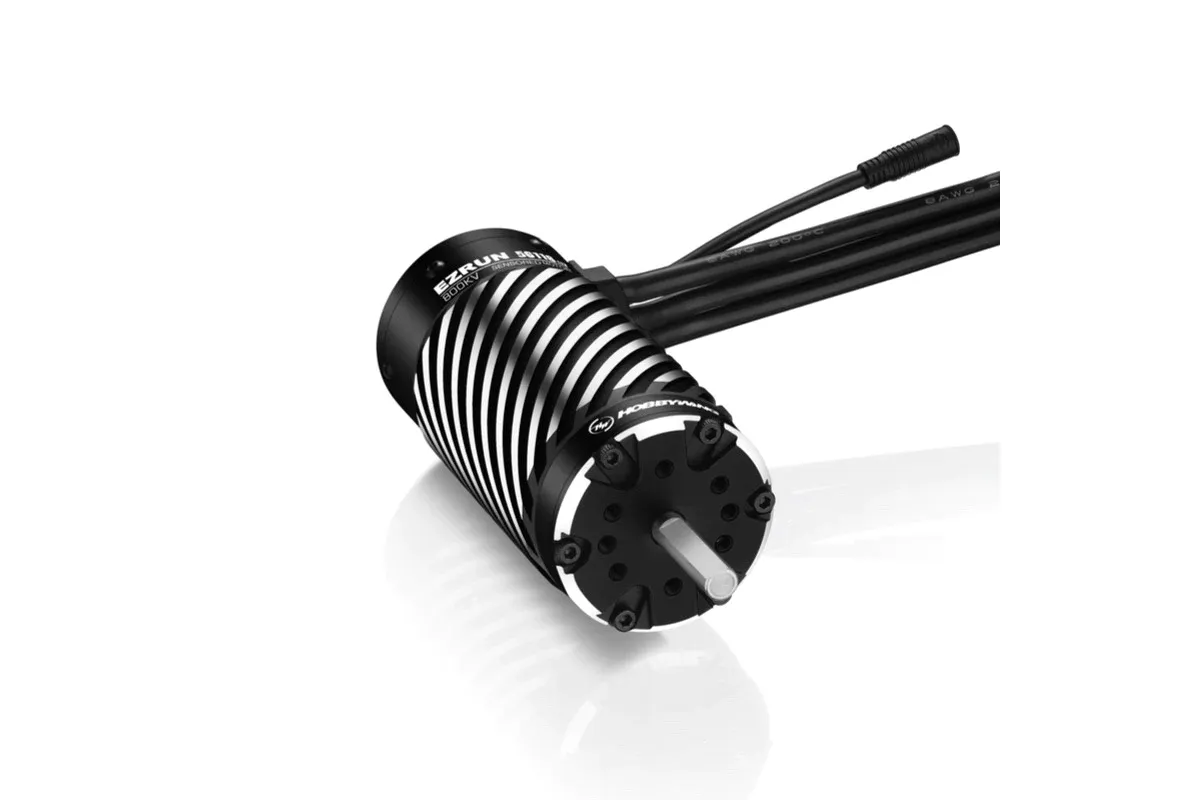

Hobbywing EzRun Max 56118SD G2 650Kv Sensored Brushless Motor

  • Brushless

Part no. 30402902

1 in stockWrite a review
1 / 4
1 / 4

$337.79

or 4 fortnightly payments of $84.45 with afterpay

Hobbywing EZRUN MAX 56118SD G2 650Kv sensored brushless motor with waterproof sensor cable and auto-pairing for MAX5 G2 ESC.

  • 650Kv sensored brushless motor for 1/5-scale and large-format RC
  • Waterproof sensor cable and rubber cover bearing for wet/dusty conditions
  • Auto full-sensor-mode pairing with EZRUN MAX5 G2 ESC
  • CNC aluminium housing with stainless steel shaft and precision bearings
  • Significant upgrade over previous generation in acceleration and response

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The Hobbywing EZRUN MAX 56118SD G2 represents a significant generational upgrade. The new waterproof sensor cable ensures reliable operation in wet conditions, while the upgraded sensored system delivers improved acceleration linearity and more powerful explosive force. When paired with the Hobbywing EZRUN MAX5 G2 ESC, the motor and ESC automatically recognise each other and establish full sensor mode, resulting in enhanced control, performance, and protection against overheating. An independent high-precision encoder consistently provides a pure rotor position signal, eliminating sensor signal interference for stable sensored operation. The CNC machined aluminium housing, high-purity copper windings, high-strength explosion-proof rotor, ultra-thin silicone steel lamination, high-quality stainless steel output shaft, and high-precision bearings guarantee durability and smoothness. The innovative sensor interface and rubber cover bearing also deliver superior waterproofing and dustproofing compared to traditional sensor motors.

Features

  • New waterproof sensor cable ensures reliable operation in wet conditions
  • Upgraded sensored system improves acceleration linearity and explosive force
  • Auto-pairs with Hobbywing EZRUN MAX5 G2 ESC in full sensor mode
  • Enhanced control, performance, and protection against overheating
  • Independent high-precision encoder provides pure rotor position signal
  • Sensor signal interference eliminated for stable sensored operation
  • CNC machined aluminium housing for durability
  • High-purity copper windings and explosion-proof rotor for reliability
  • Ultra-thin silicone steel lamination for smooth operation

In the box

  • 1x EZRUN MAX 56118 G2 SD Brushless Motor

Specifications

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt650KV
LengthLength of the motor can in mm119.2mm
DiameterDiameter of the motor can56mm
Shaft Diameter8mm
