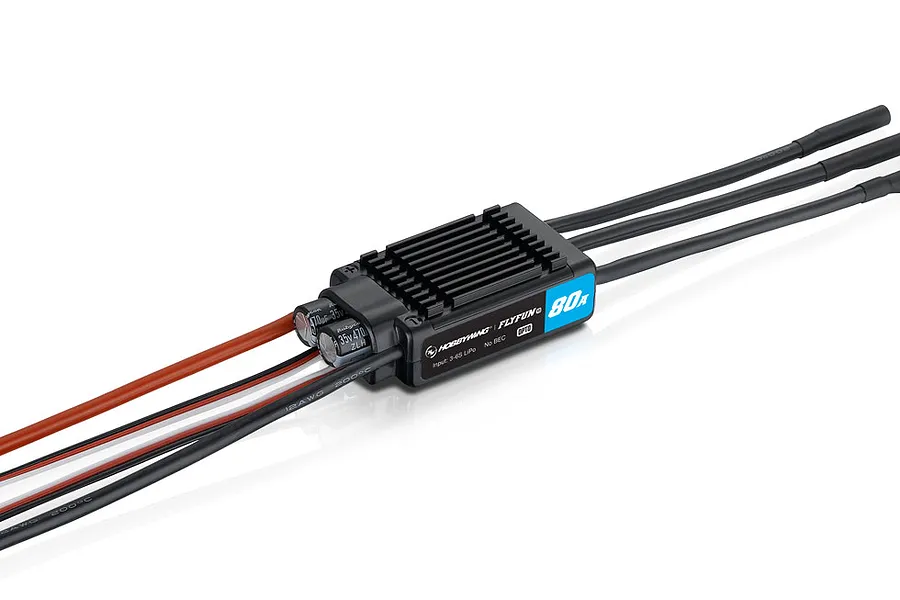

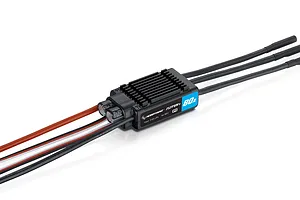

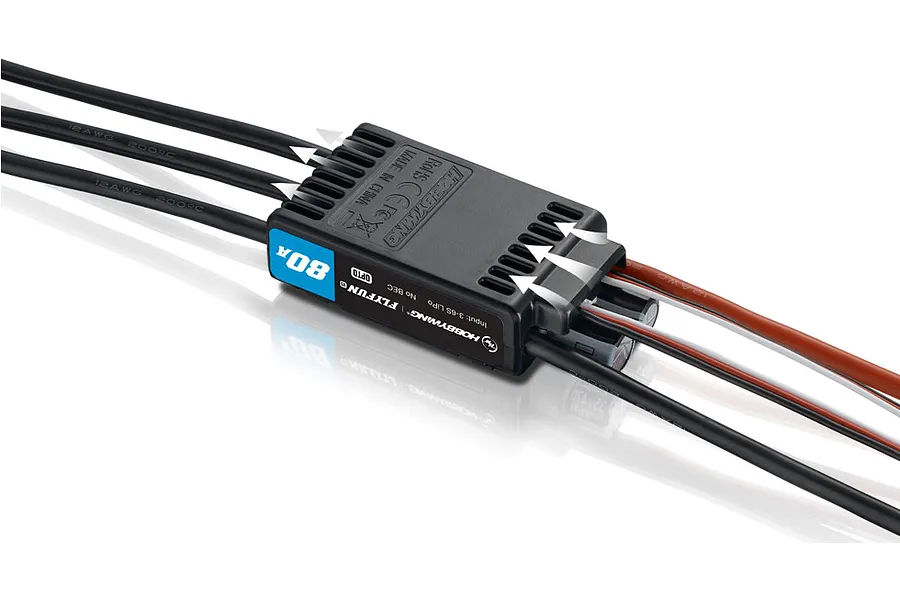

Name: Hobbywing Flyfun V5 80A Brushless ESC
Brand: Hobbywing
SKU: HW-30214201
Price: 122.88 AUD
Availability: Discontinued

Overview

The Hobbywing Flyfun V5 80A Brushless ESC features DEO (Driving Efficiency Optimisation) technology, delivering smooth throttle response, stability, and flexibility during flight. Its improved driving efficiency results in longer flight times and lower ESC temperatures. The ESC supports soft start-ups and reverse brake modes, making it suitable for regular propeller aircraft and EDF aircraft of different sizes. The high-power switch-mode BEC allows use of more electronic devices or higher-power devices such as servos or flight controllers. Multiple protection features — including over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (Fail Safe), and abnormal input voltage protection — ensure a long service life. Programmable parameters can be adjusted for different fixed-wing aircraft setups via transmitter or the Hobbywing LED program box.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

Compatible with 11.1v - 29.6v (3-8S) LiPo batteries
High-quality ESC suitable for different aircraft models
DEO technology for smooth throttle response, stability, and flexibility during flight
Improved driving efficiency for longer flight times and lower ESC temperature
Soft start-ups and reverse brake modes for regular propeller and EDF aircraft
Proportional brake mode automatically allots brake force
Normal brake mode allows adjustable brake amount
High-power switch-mode BEC for more electronic devices with higher power
Multiple protection features ensure a long service life
Exquisite look and good heat-dissipating performance
Available in high-voltage/regular version with different Amps
Programmable parameters adjustable for setups of different fixed-wing aircraft
Reliable and versatile ESC for use in various aircraft models
Suitable for use in different hobbyist applications
Designed with high-quality materials for durability
Allows for smooth and precise control during flight
Offers improved driving efficiency for extended flight times

In the box

1x Flyfun V5 80A Brushless ESC

Specifications

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	29.6V
Waterproof Design	No
Continuous Amps	80A
Motor Connectors	Bare Wires
Battery Connector	Bare Wires
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Air
BEC Voltage	5.2V, 6V, 7.4V
Dual Motor	No
