Hobbywing

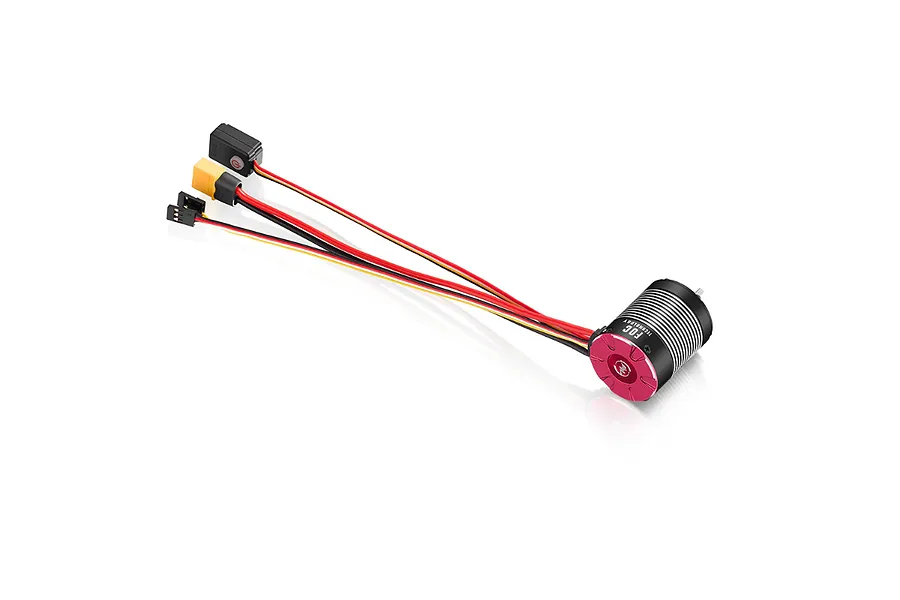

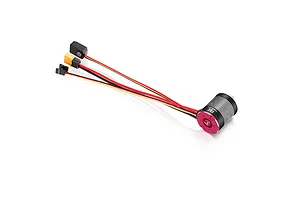

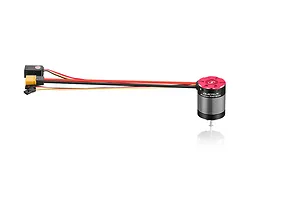

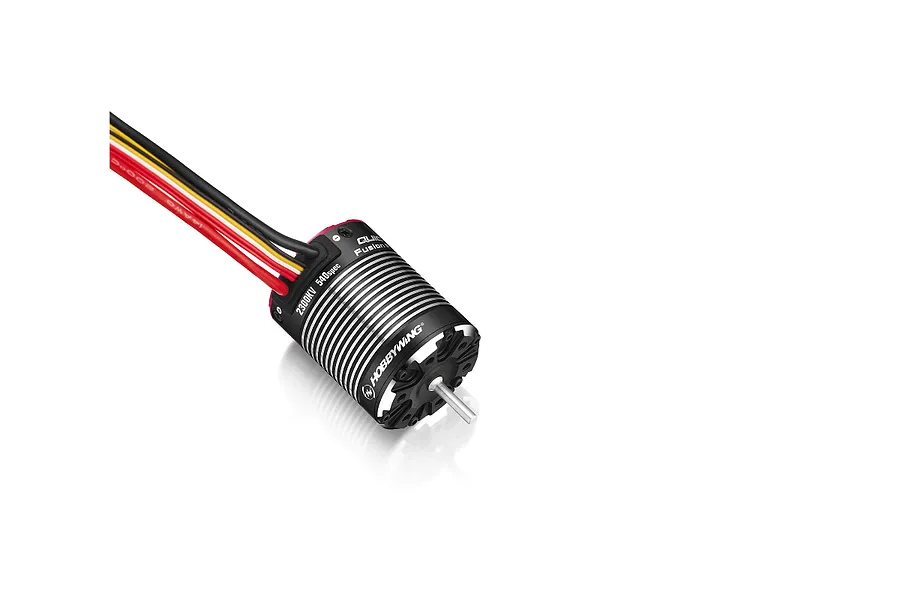

Hobbywing QuicRun Fusion 2-in-1 2300Kv FOC-Sensored Brushless Motor and 50A ESC

  • Brushless

Part no. 30120500

3+ in stockWrite a review
1 / 3
1 / 3

$234.93

or 4 fortnightly payments of $58.73 with afterpay

Select Connector

Pay later with afterpay zip PayPal

  • 3+ in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Specifications

Motor

Max Voltage4S HV (14.8V)
TypeBrushless
KVRPM (Revolutions Per Minute) per Volt2300KV
SensoredUses sensors for precise speed and position controlYes
LengthLength of the motor can in mm48.5mm
DiameterDiameter of the motor can37mm
Shaft Diameter3.175mm (1/8")

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage4S (14.8V)
Waterproof DesignYes
Burst Amps150A
Continuous Amps50A
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodAir
BEC Voltage7.4V
Dual MotorNo
