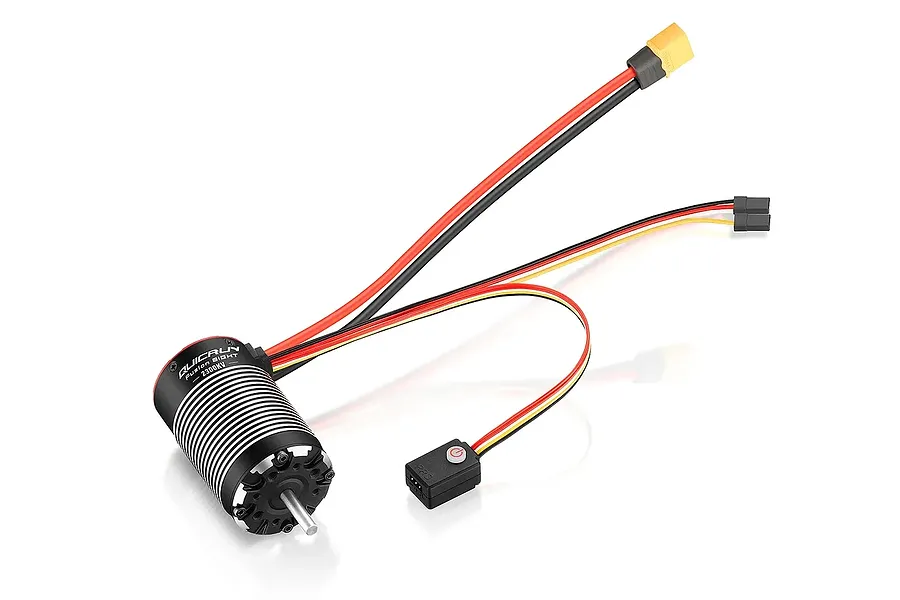

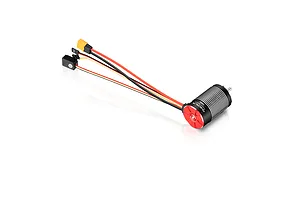

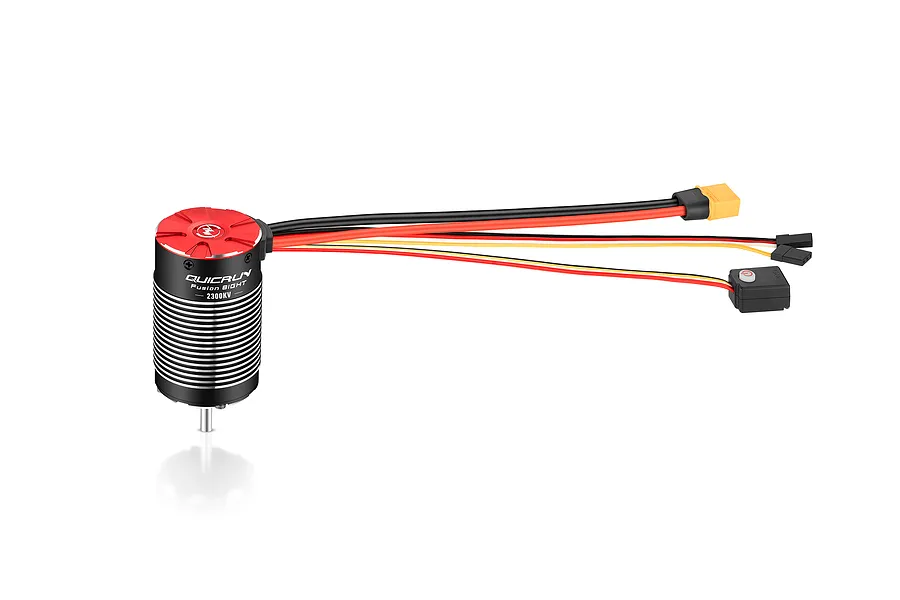

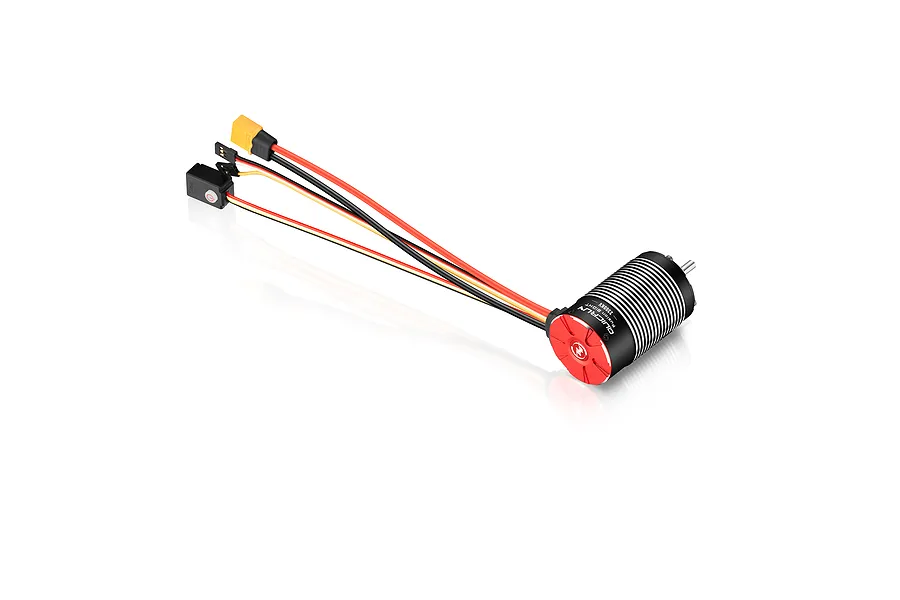

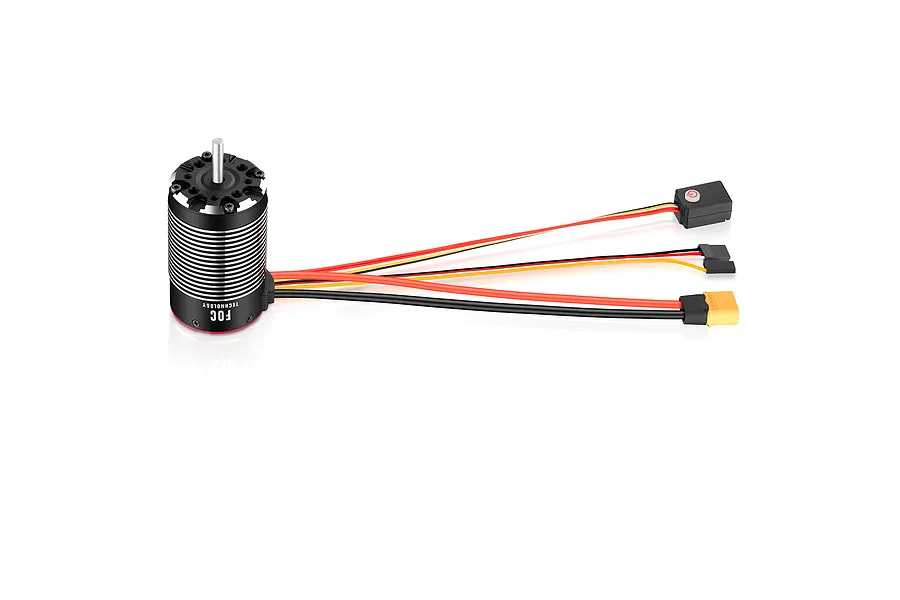

Hobbywing Quicrun Fusion 8IGHT 80A 2300kV Brushless 2-in-1 Motor/ESC

Hobbywing Quicrun Fusion 8IGHT 80A 2300kV Brushless 2-in-1 Motor/ESC

Hobbywing Quicrun Fusion 8IGHT 80A 2300kV Brushless 2-in-1 Motor/ESC

Brand: Hobbywing | SKU: 30120404
sold out
5.0

1 out of 5 stars

2 out of 5 stars

3 out of 5 stars

4 out of 5 stars

5 out of 5 stars

1 reviews
$275.40
Hobbywing QuicRun Fusion 8IGHT: The Compact and Powerful Solution for Rock Crawling Adventures!
  • Integrated ESC and motor unit for 1/8th scale rock crawlers.
  • FOC drive technology for smooth, precise, and quiet operation.
  • High-power output with 80A continuous current.
  • Intelligent torque output and speed control for optimal climbing performance.
  • IP67 waterproof and dustproof rating for all-weather adventures.
Add to Wishlist
On Order Since
1 day ago
The date we ordered this product from our supplier.
Description

The Hobbywing QuicRun Fusion 8IGHT 80A 2300kV Brushless 2-in-1 Motor/ESC is a revolutionary power system designed specifically for 1/8th scale rock crawlers. This integrated unit combines a high-performance ESC and a powerful motor in a compact and lightweight package, offering smooth control, high torque, and nearly silent operation. The Fusion 8IGHT is equipped with Hobbywing's unique Field-Oriented Control (FOC) technology, providing ultra-smooth control and a responsive driving experience that surpasses traditional brushless systems. The ESC supports up to 4S LiPo batteries, delivering a maximum output current of 80A, making it suitable for powering even large-scale trucks and demanding builds.

The Fusion 8IGHT also features smart torque management, intelligently adjusting torque output to match driving conditions. This ensures precise speed control and smooth performance, whether you're climbing steep inclines or navigating tricky descents. The entire power system is IP67 waterproof and dustproof, allowing you to tackle challenging terrains with confidence. With its super internal BEC, adjustable drag brake force, and support for various programming boxes and parameters, the Hobbywing QuicRun Fusion 8IGHT offers a truly versatile and powerful solution for rock crawling enthusiasts.

Features
  • Integrated design with a compact 42x69mm footprint and lightweight 338g construction.
  • FOC drive technology delivers exceptional throttle linearity, high torque, and near-silent operation.
  • Smart Torque Output and Closed-loop Speed Control automatically adjust torque for optimal performance on inclines and declines.
  • IP67 waterproof and dustproof rating for reliable performance in various conditions.
  • Super Internal BEC with a continuous current of 6A and adjustable output voltage (6V/7.4V/8.4V).
  • Supports three running modes: fixed speed mode, normal mode with brake, and normal mode without brake.
  • Compatible with various LED/LCD programming boxes for easy parameter adjustment.
  • Genuine Hobbywing product.
Specifications
  • Length: 69mm (2.72")
  • Width: 42mm (1.65")
  • Weight: 338g (11.92oz)
  • Continuous/Peak Current: 80A/240A
  • Waterproof: Yes (IP67)
  • BEC: 6V/7.4V/8.4V adjustable, continuous current 6A (Switch mode)
  • Voltage Limit: 2-4S LiPo, 6-12 Cells NiMH
  • Programmable: Yes (via LED Program Box, LCD G2 Program Box/LCD PRO)
  • Scale: 1/8th
  • Sensored: Yes
Included Items
  • 1x Hobbywing Quicrun Fusion 8IGHT 80A 2300kV Brushless 2-in-1 Motor/ESC
Note
  • Requires 30850501 to fit into vehicles such as the SCX6
Specifications
Motor
Diameter
Diameter of the motor can
42mm
KV
RPM (Revolutions Per Minute) per Volt
2300KV
Length
Length of the motor can
69mm
Type
Brushless
Sensored
Uses sensors for precise speed and position control
Yes
Shaft Diameter (mm)
5
ESC (Electronic Speed Controller)
Battery Connector
XT60
Dual Motor
No
BEC Voltage
7.4V, 8.4V, 6V
Burst Amps
240A
Waterproof Design
Yes
Cooling Method
Air
Programmable
Yes
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Max Voltage
14.8V
Continuous Amps
80A
For Motor Type
Brushless Sensored
