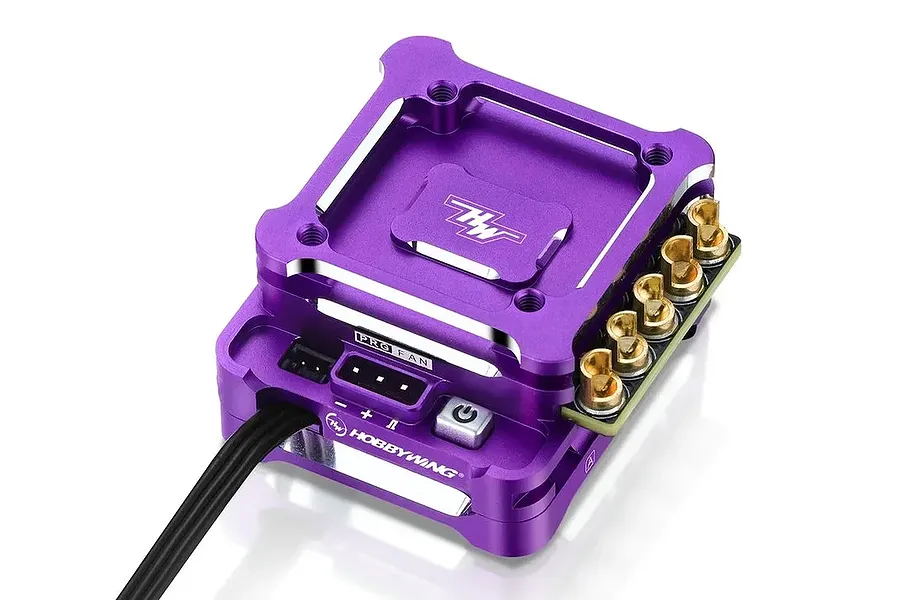

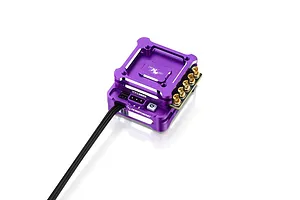

Hobbywing Xerun XD10 Pro Drift 100A Brushless ESC - Purple Spirit Edition

  • Brushless

Part no. 30112616

1 in stockWrite a review
1 / 9
1 / 9

$286.52

or 4 fortnightly payments of $71.63 with afterpay

Select Male Connector

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

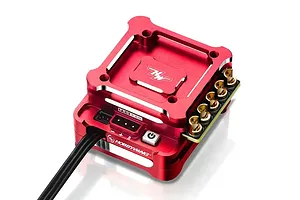

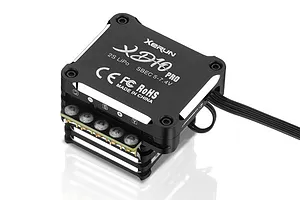

Elegantly designed for drift The Xerun XD10 Pro ESC provides the ideal colours to perfectly match your drift machines. They are available in black, red and purple.Equipped with a powerful fan The stylish aluminium fan is powerful and helps to massively cool down the ESC. Moreover, the texture of the materials have been carefully selected to give you a great overall satisfaction.Ultra-soft 13AWG silicone wire The ultra-soft 13AWG silicone wire will be included in the XD10 Pro ESC. They are ultra-flexible and low in resistance. Maximum performance is guaranteed.Reverse Polarity Protected The Xerun XD10 Pro is reverse polarity protected. In an event when a user makes a mistake by reversing the polarity, the ESC will not be broken.Supports high-voltage BEC The built-in BEC is able to support both high torque and high voltage servos and can be adjustable at 5.0-7.4V (adjusted to 0.1V/step).New communication protocol for quick setup of parameters, firmware upgrades The new communication protocol is used to set parameters and significantly increase the speed of firmware upgrades, and the LCD G2 is twice as fast as the OTA Programmer speed is 3-4 times faster.Programmable parameter optimized for drift The 32-bit M4 processor is equipped with powerful software, features new programmable parameters and it is optimized for drift applications. The new parameters such as, initial start-up force adjustment, 48K ultra-high drive frequency, and 24K ultra-high brake frequency ensures excellent drivability. It is tailored to extract and maximize performance for high-end drifters.Real-time data log makes it easy to access operating status After connecting the OTA module box, turn on real-time data recording function to access the operating status.Seamless connectivity with OTA module box and mobile phone Simple and convenient, parameter settings, firmware upgrading and other operations can be established using Hobbywing's OTA Bluetooth module and your mobile phone via the Hobbywing app.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).Multiple protections: low-voltage cut-off protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

In the box

  • 1x XD10 PRO ESC2x Input wires3x Output wires (PRE-SOLDERED)2x cooling fan (comes with one backup fan)1x Decals1x heat tubes, double tape, nylon cable zap traps set

Highlights

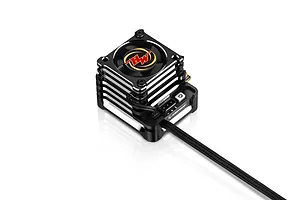

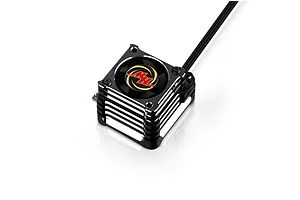

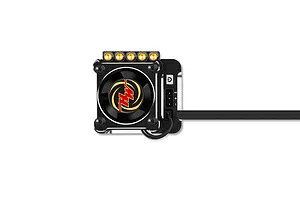

Aluminium Cooling Fan

Aluminium Cooling Fan

The stylish aluminium fan is powerful and helps to massively cool down the ESC.

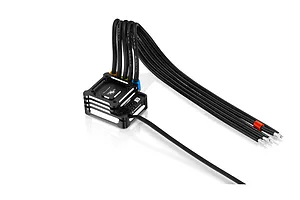

13AWG Silicone Wire

13AWG Silicone Wire

The ultra-soft 13AWG silicone wire will be included in the XD10 Pro ESC.

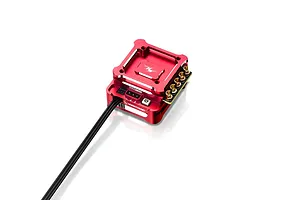

Drift-Optimised Colour Design

Drift-Optimised Colour Design

Elegantly designed for drift, the Xerun XD10 Pro ESC provides the ideal colours to perfectly match your drift machines.

Hobbywing Xerun XD10 Pro ESC detail view (image 6)

Hobbywing Xerun XD10 Pro ESC detail view (image 6)

The stylish aluminium fan is powerful and helps to massively cool down the ESC, with materials carefully selected to give great overall satisfaction.

Hobbywing Xerun XD10 Pro ESC detail view (image 7)

Hobbywing Xerun XD10 Pro ESC detail view (image 7)

The ultra-soft 13AWG silicone wire included with the XD10 Pro ESC is ultra-flexible and low in resistance for maximum performance.

Hobbywing Xerun XD10 Pro ESC detail view (image 8)

Hobbywing Xerun XD10 Pro ESC detail view (image 8)

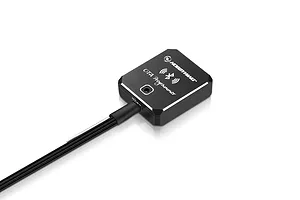

Simple and convenient parameter settings and firmware upgrading can be established using Hobbywing's OTA Bluetooth module and mobile phone via the Hobbywing app.

Specifications

For1/10 Drift CarCont./Peak: 100A / 800AInput Voltage: 2S LiPo / 4-6S NiMHBEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)Programming Device: LCD program box, OTA programmer (Available through Firmware update)Firmware: LCD Program box via USB software (PC only), OTA (iOS / Android)Size: 40.7x35.0x32.0mm (w/Fan)Weight: 95g (w/ wires)Motor Limit: Brushless Motor Limit with 2S LiPo/6S NiMH: KV Rating/T Count ?8.5T

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage7.4V
Waterproof DesignNo
Continuous Amps100A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage7.4V
Dual MotorNo
