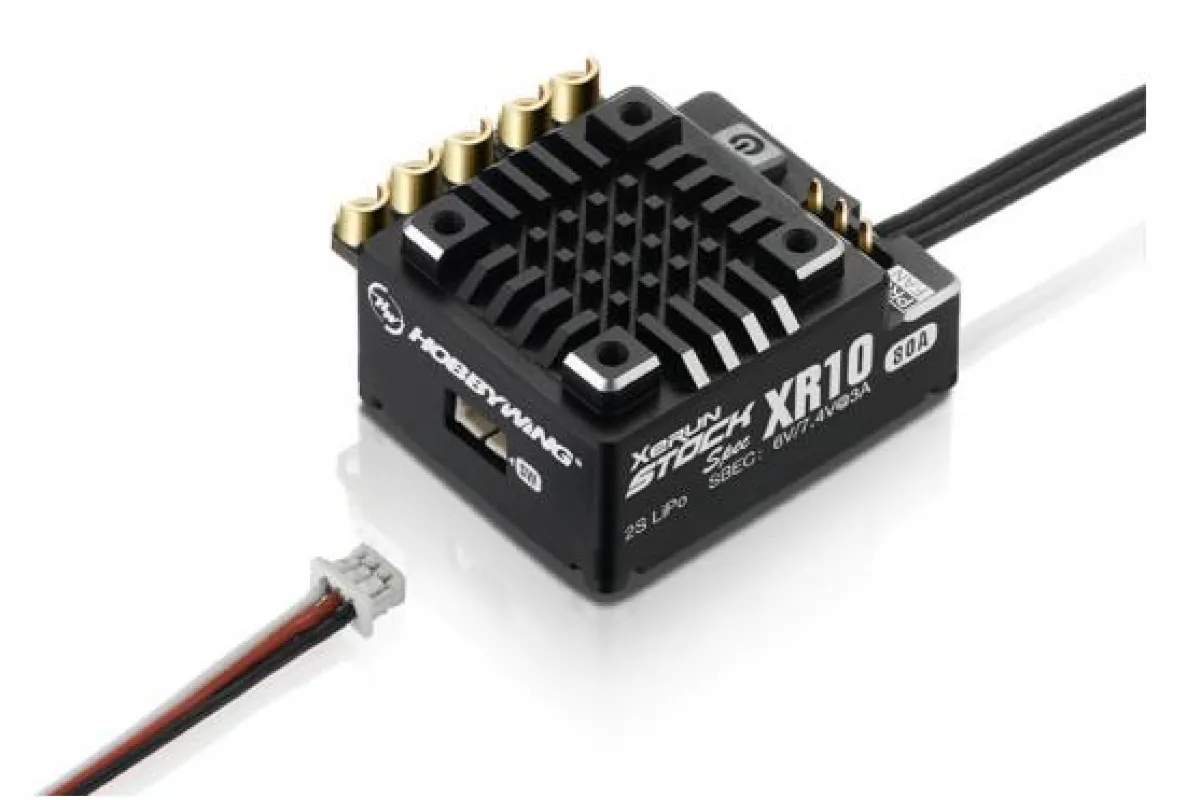

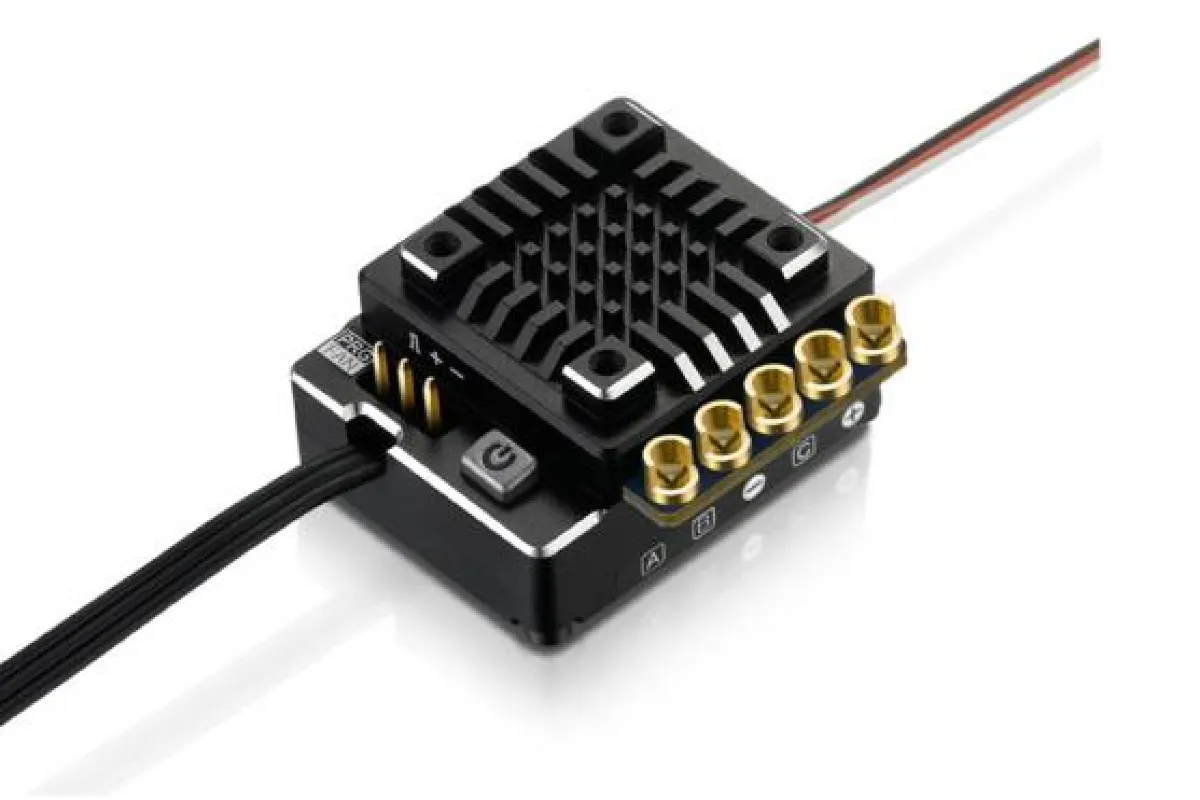

Hobbywing ultra lightweight 2S LiPo ESC — smallest size and lightest weight in the world for Stock spec races. A built-in electronic switch combined with an external detachable switch helps the XR10 Stock Spec avoid the flaws of ordinary or single-switch ESCs: the internal switch makes wiring convenient, while the external switch is accessible when the car shell is installed and the built-in switch is no longer reachable.

Reliable hardware combined with software containing 5 common ready-to-use profiles creates an ideal power solution for the STOCK class of 1/10 scale touring car and buggy racing. The small size (31.5 x 25.6 x 16.1mm) makes installation convenient and the light weight (only 28g without wires) provides more weight margin when adjusting chassis balance.

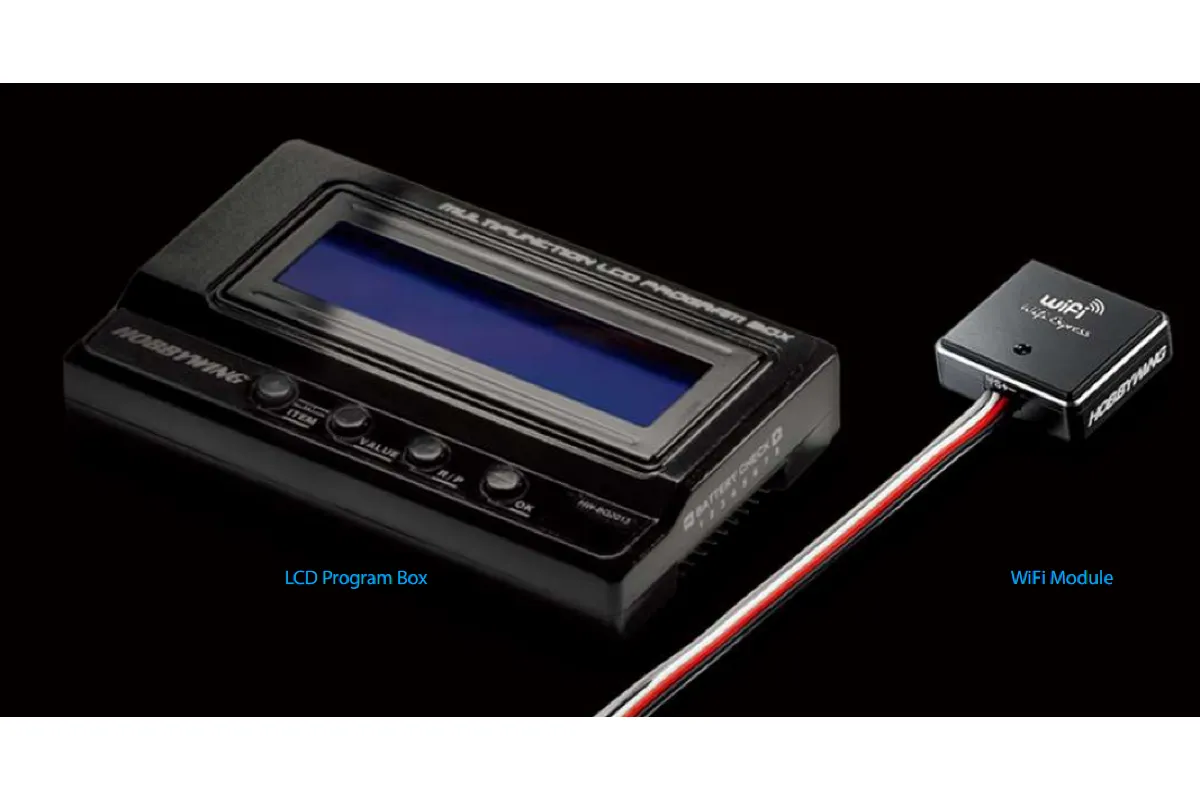

The built-in switch mode BEC has a maximum output of 6A and voltage adjustable between 6V and 7.4V, allowing use of various high voltage servos. Independent and adjustable throttle and brake PWM frequencies guarantee precise and accurate throttle and brake control for all competition classes. The data-logging function records maximum ESC and motor temperatures, minimum battery voltage, and maximum motor RPM in real time, viewable via a LCD program box or WiFi module after each use (not included).

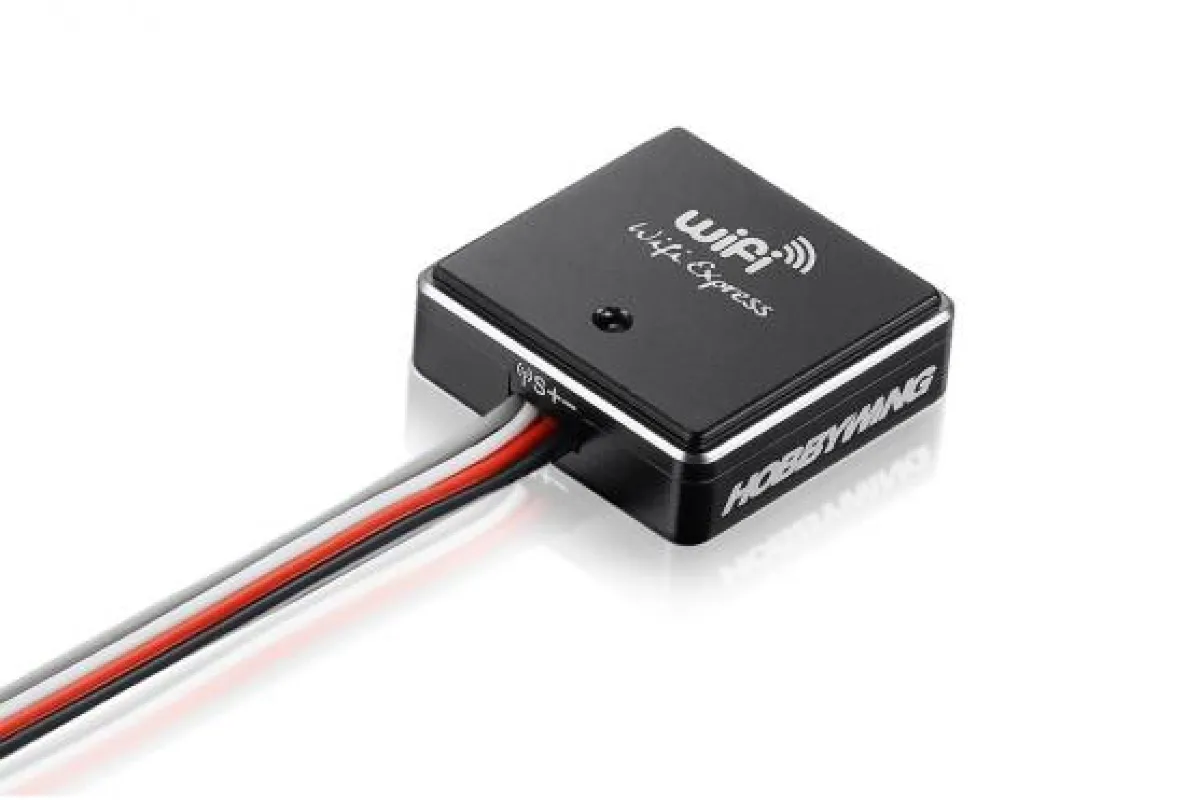

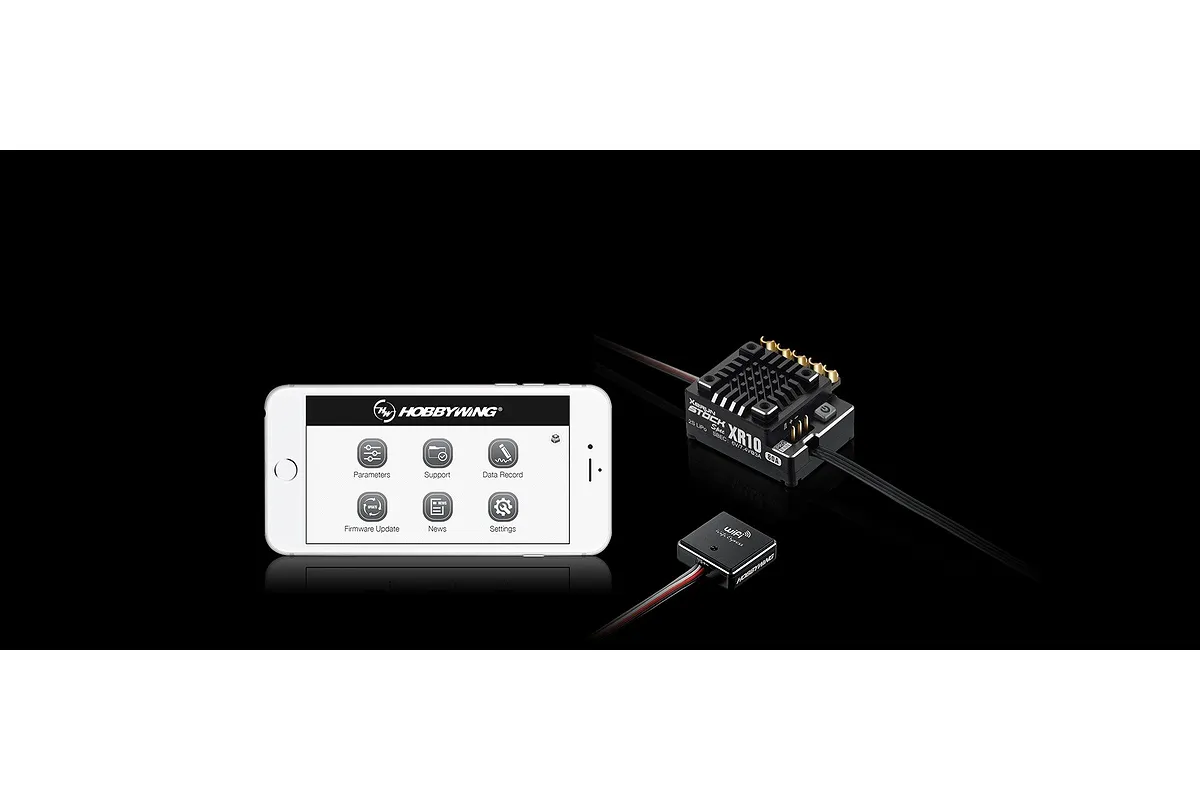

With Hobbywing's WiFi Express module (not included) and an iPhone or Android phone with the Hobbywing WiFi Link software installed, users can remotely program parameters, upgrade firmware, and check ESC data without leaving the control stand. This ESC is the mini version of the XR10 Pro 160A.

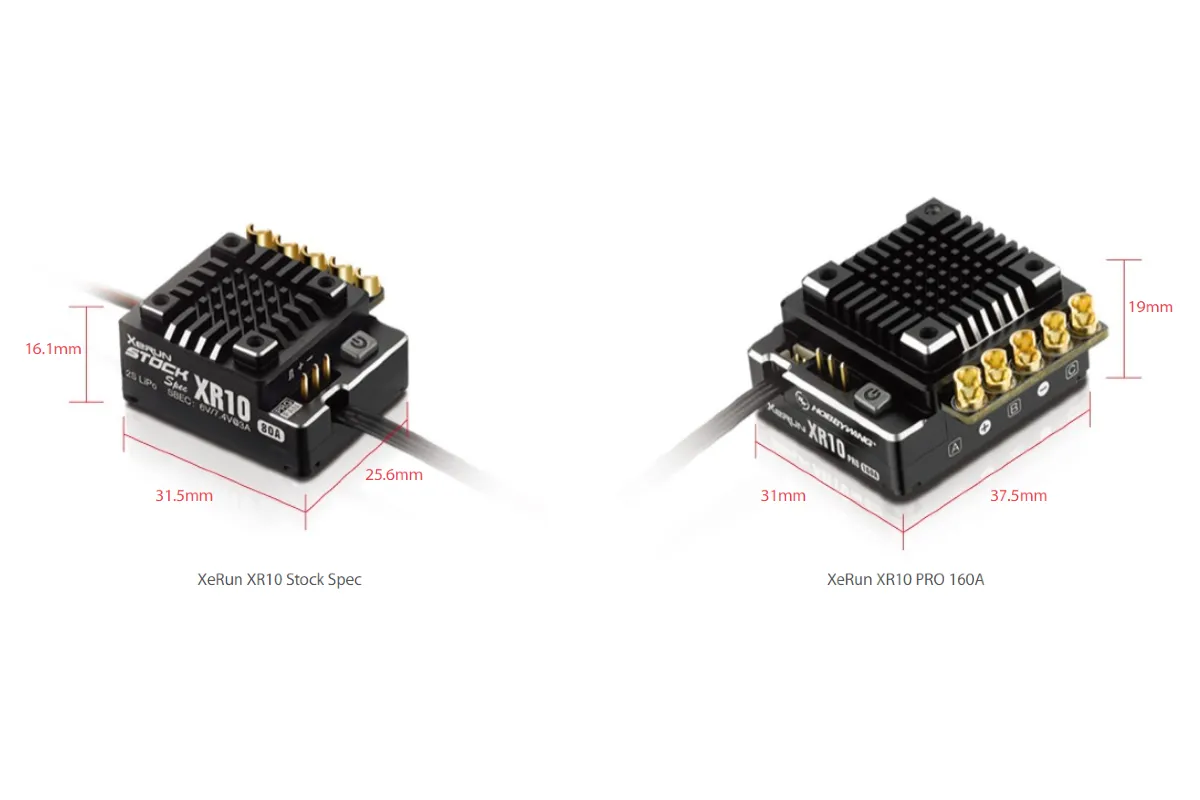

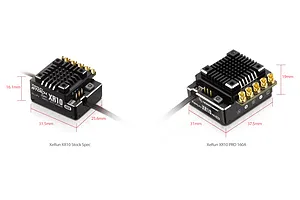

Compact Lightweight Design

The small size (31.5x25.6x16.1mm) makes the installation convenient and the light weight (only 28g w/o wires) provides more weight margin when adjusting the balance of the chassis.

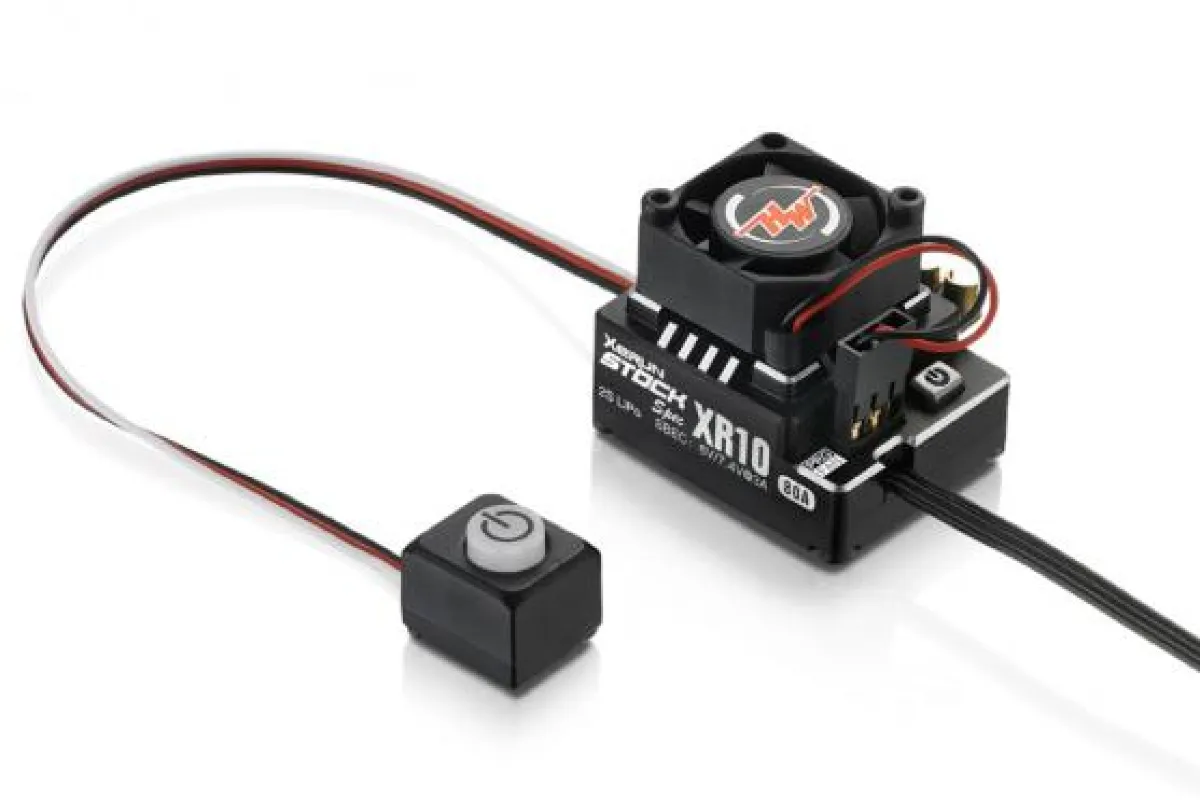

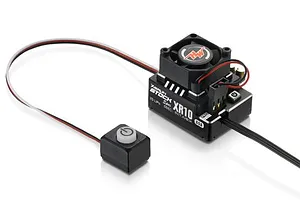

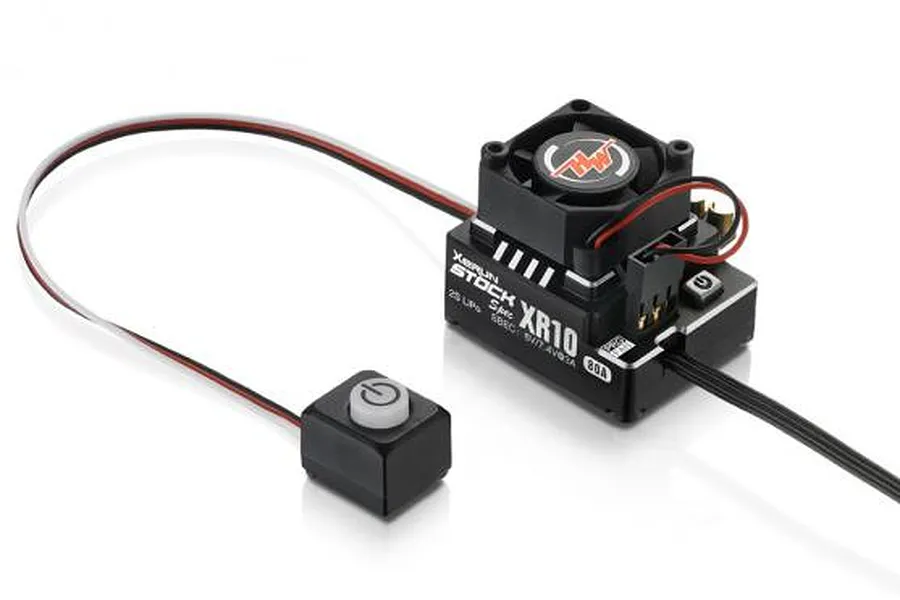

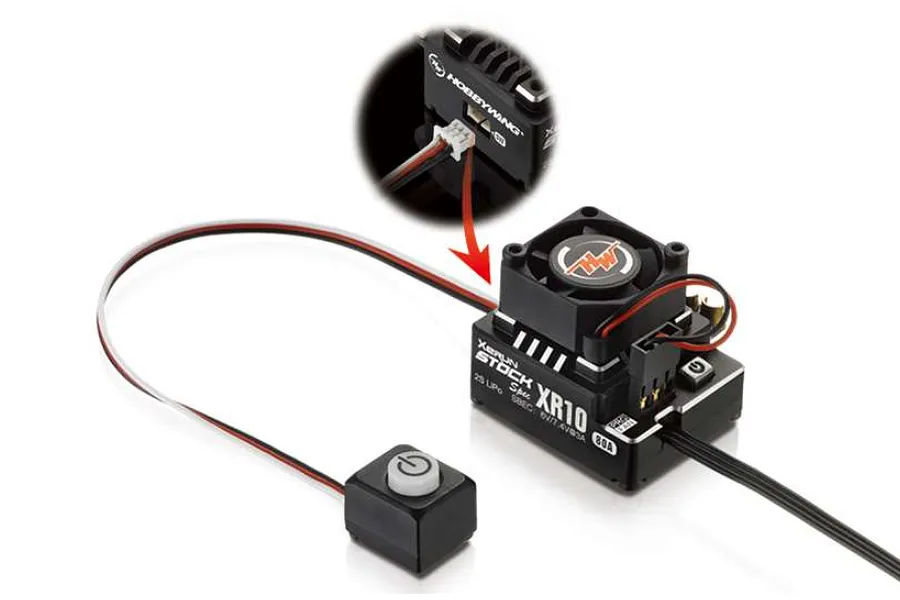

Detachable Electronic Switch

A built-in electronic switch combined with an external detachable switch effectively helps the XR10 Stock Spec avoid some flaws of ordinary or one-switch ESCs.

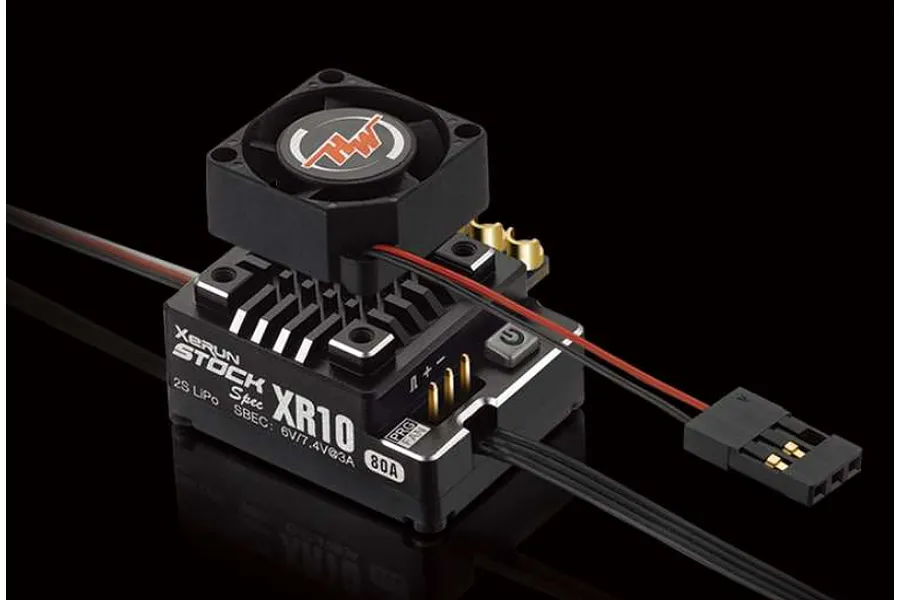

High Voltage BEC Output

The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the user to use various high voltage servos.

Real-Time Data Logging

This ESC features the data-logging function which can record the maximum ESC and motor temperatures, the minimum battery voltage, the maximum motor RPM etc. in real time.

• Ultra lightweight — 28g without wires; smallest size in class for Stock spec racing
• Dual-switch design: built-in electronic switch plus external detachable switch
• 5 common ready-to-use software profiles for Stock class 1/10 touring car and buggy racing
• Built-in switch mode BEC: 6A max output, adjustable 6V–7.4V for high voltage servo compatibility

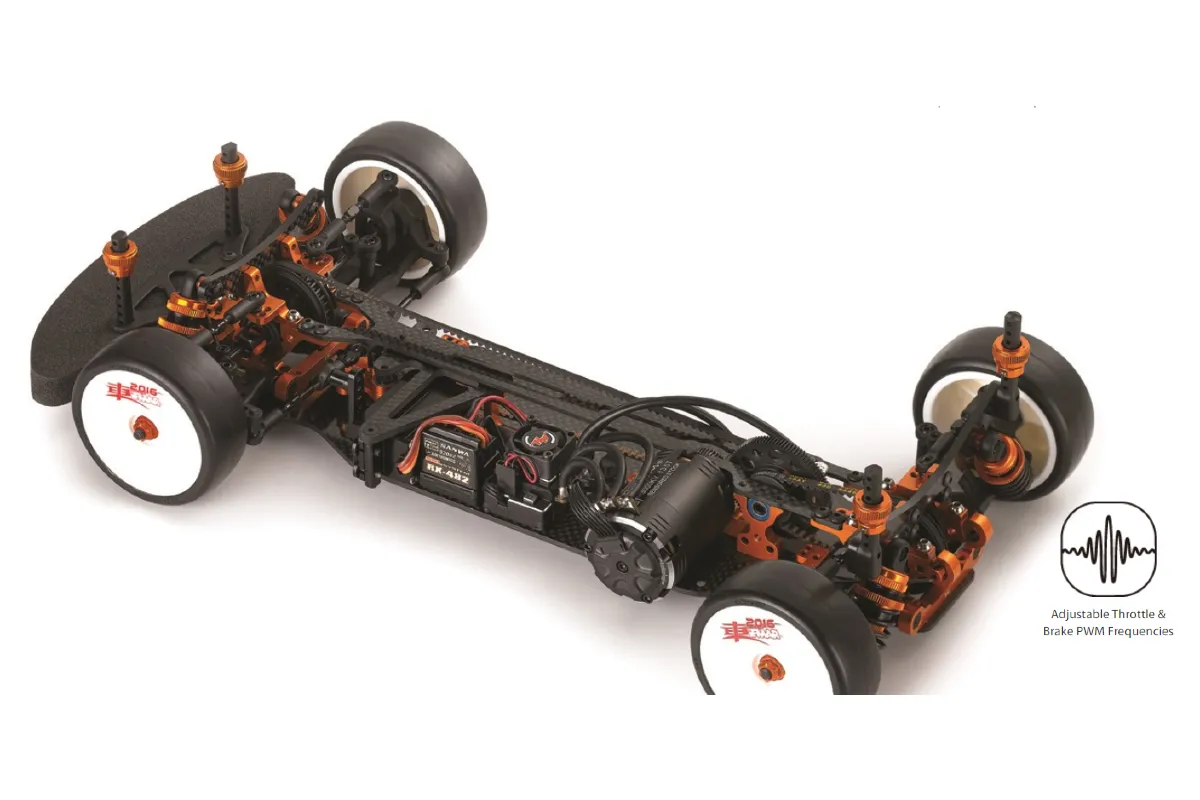

• Independent and adjustable throttle and brake PWM frequencies for precise control
• Data-logging records max ESC and motor temperatures, min battery voltage, max motor RPM in real time
• WiFi Express module compatible for remote programming, firmware upgrades, and data checking (module not included)
• Mini version of the XR10 Pro 160A

Notice: Brushless motors and ESCs have huge amounts of torque at any RPM. Using too-tall gearing or a vehicle that is too large or heavy can result in damage and/or product failure. Always consult your manual and select gearing suitable for the vehicle and terrain. Damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor ESC and motor temperatures closely after modifying your system. The LCD program box and WiFi Express module are sold separately and are not included.
