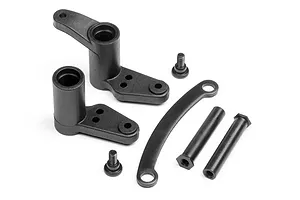

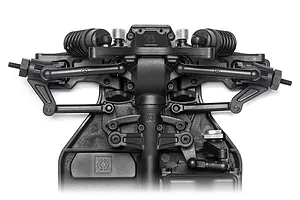

Double-Bellcrank Steering
Optimised Ackermann Geometry for Enhanced Handling and Confident Control with an Adjustable Double Bell Crank System and Durable Metal Drag Link Plate.
Next Dispatch:
Part no. 120094

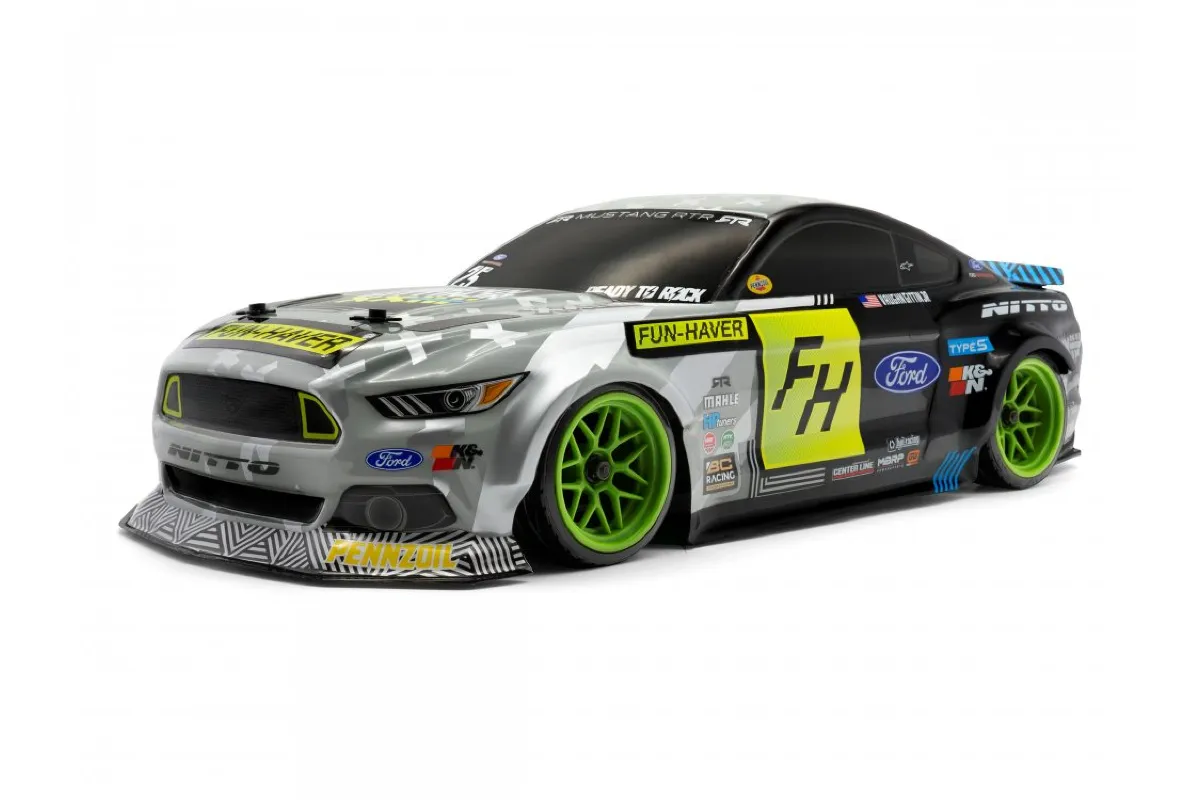

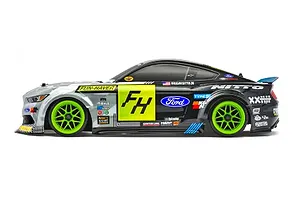

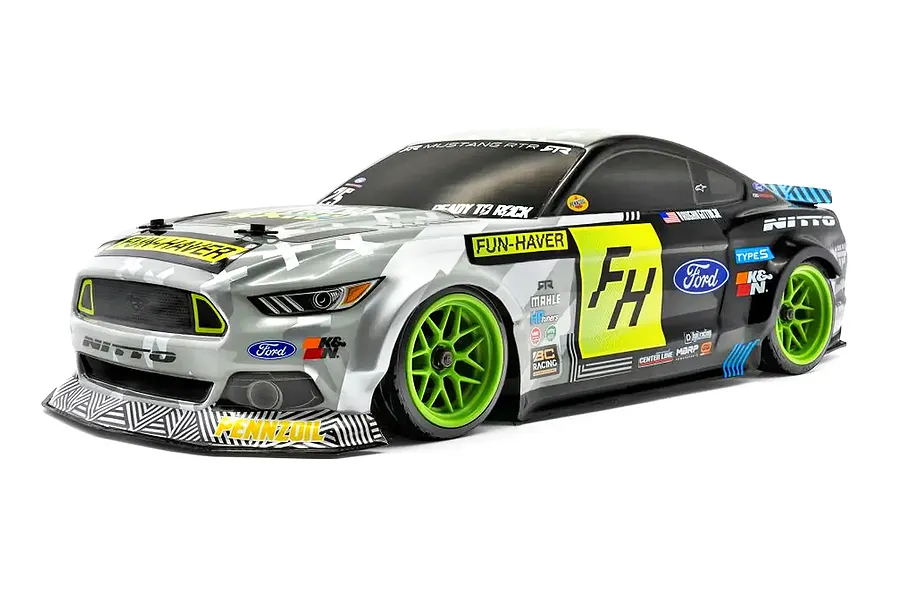

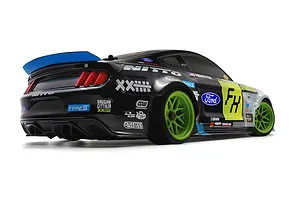

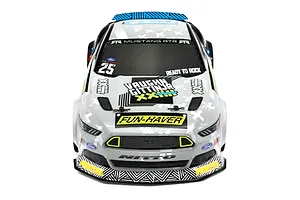

Vaughn Gittin Jr., the original Professional Fun-Haver and double Formula D Champion, is taking a break from competition to focus on making epic content and running Team RTR. To celebrate this legendary icon of motorsport, the Sport 3 Drift has been updated with a Ford Mustang RTR replica in a brand new look. Featuring a wild colour scheme emblazoned with Vaughn's signature Fun-Haver logos and his "Ready to Rock" motto, it's a can't-miss edition for fans of Vaughn Gittin Jr. The Fun-Haver V2 is packed with tough, waterproof electronics and is super-easy to drive for hours of sideways fun.
Note
Please refer to the instruction manual for specific waterproof standards, safety precautions, and operating instructions.

Optimised Ackermann Geometry for Enhanced Handling and Confident Control with an Adjustable Double Bell Crank System and Durable Metal Drag Link Plate.

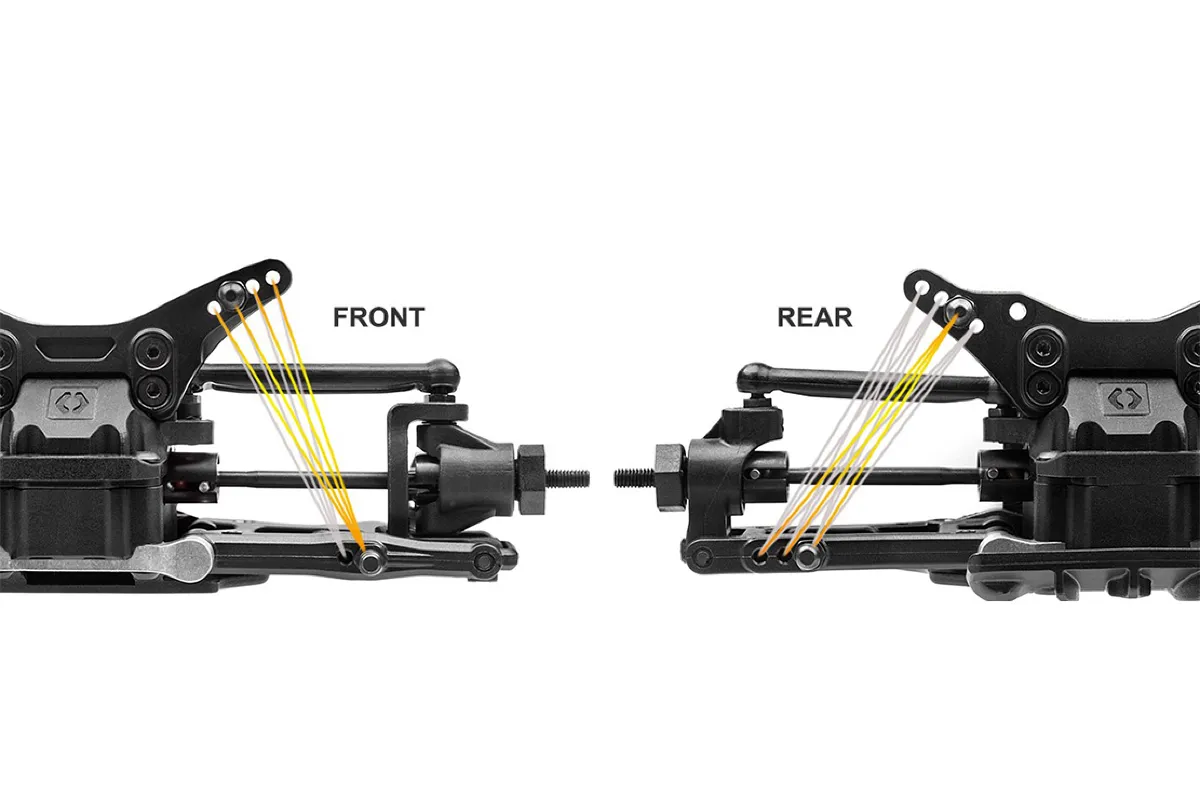

The RS4 Sport 3's suspension boasts a race-proven double-wishbone design, mirroring the setup of modern race cars. Fine-tune anti-squat and anti-dive using standard pivot blocks, while optional parts offer control over sweep and toe angles. Achieve precise roll centre adjustments front and rear with vertical ball stud mounting on both inner and outer camber links. Multiple shock mounting positions ensure adaptability to various road conditions with a comprehensive range of shock suspension angles.

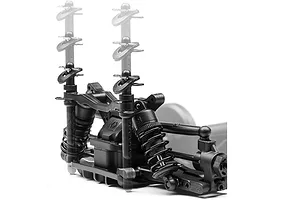

The RS4 Sport 3 boasts adjustable-height body mounts, allowing you to install any 1/10th scale touring car body from HPI Racing onto the chassis. Simply adjust the front and rear mounts to ensure proper clearance for the wheels and chassis components beneath the body. Body pins secure the mounts in place, while multiple mounting hole positions provide fine-tuned body fitment for a personalised look.

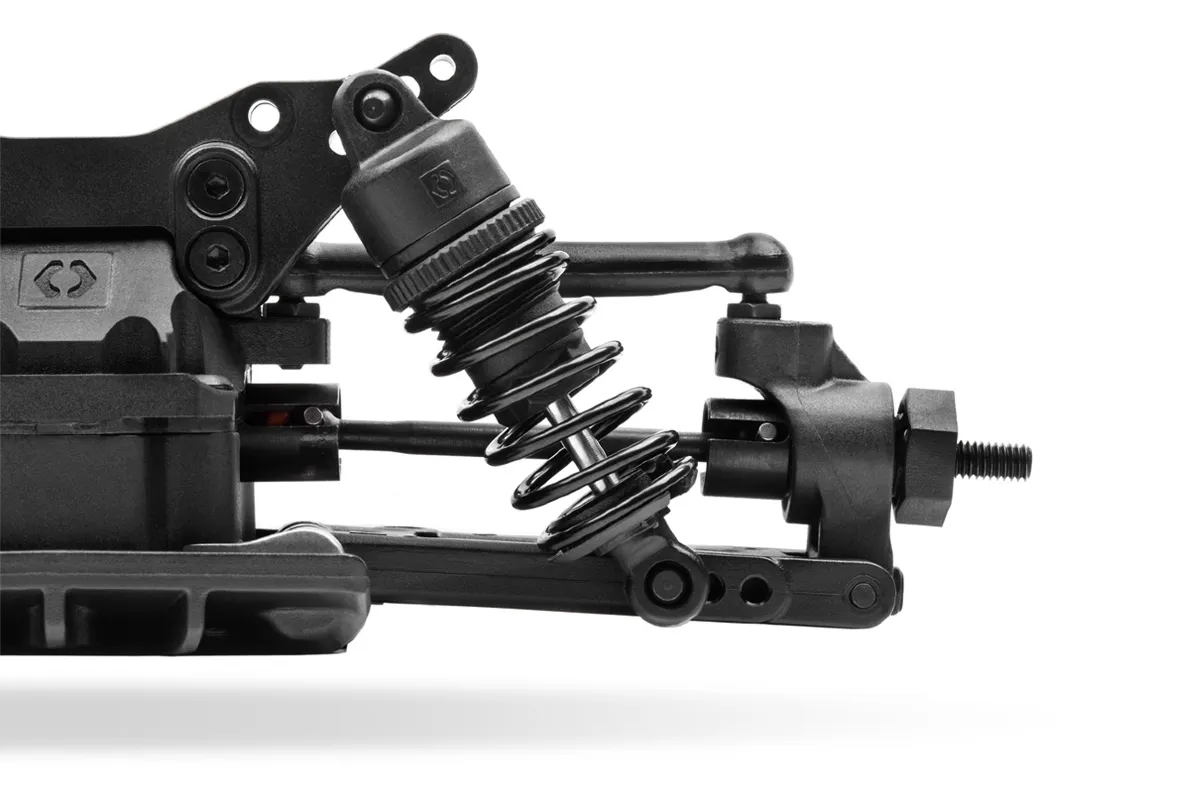

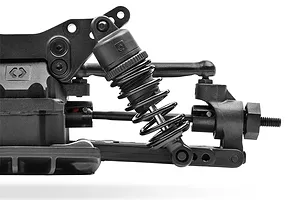

The rear hub features a vertical ball stud adjustment, enabling effortless rear roll centre customisation. Adjusting the ball stud height with optional spacers directly influences rear-end traction as the car navigates corners. Additionally, the suspension arm offers three distinct shock mounting holes for convenient shock angle fine-tuning.

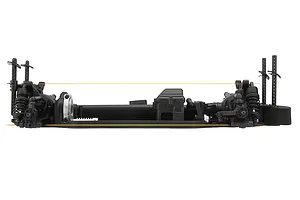

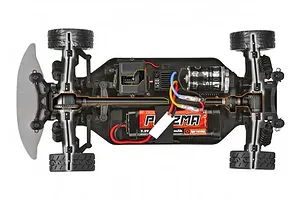

HPI achieved exceptional handling in the RS4 Sport 3 by strategically positioning components as low as possible in the chassis. This design results in an ultra-low centre of gravity, significantly enhancing cornering performance.

In contrast to multipart plastic tub chassis prone to flex, the RS4 Sport 3's one-piece moulded chassis delivers exceptional rigidity and torsional stability. This translates to enhanced handling precision and responsiveness, giving you a competitive edge on the track.

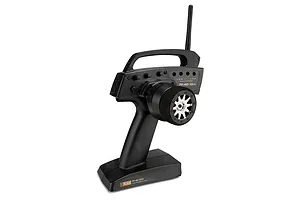

The HPI Racing RS4 Sport 3 is incredibly easy to drive and control. Simply plug in the battery, switch on the radio and car, and you're ready to go! The included steering wheel controller provides a natural and intuitive driving experience, just like a real car. Steer with the wheel, and use the trigger for forward, brake, and reverse. You'll be mastering the track in no time!

An adjustable cam-style servo saver protects the steering servo from crash damage. This spring-loaded servo saver absorbs impact forces, preventing damage to the servo gears during collisions. Drive with confidence knowing your steering system is protected, even during aggressive driving.

This durable bumper provides protection for the suspension, chassis, and body during impacts, ensuring your car can withstand the rigours of on-road and off-road driving.

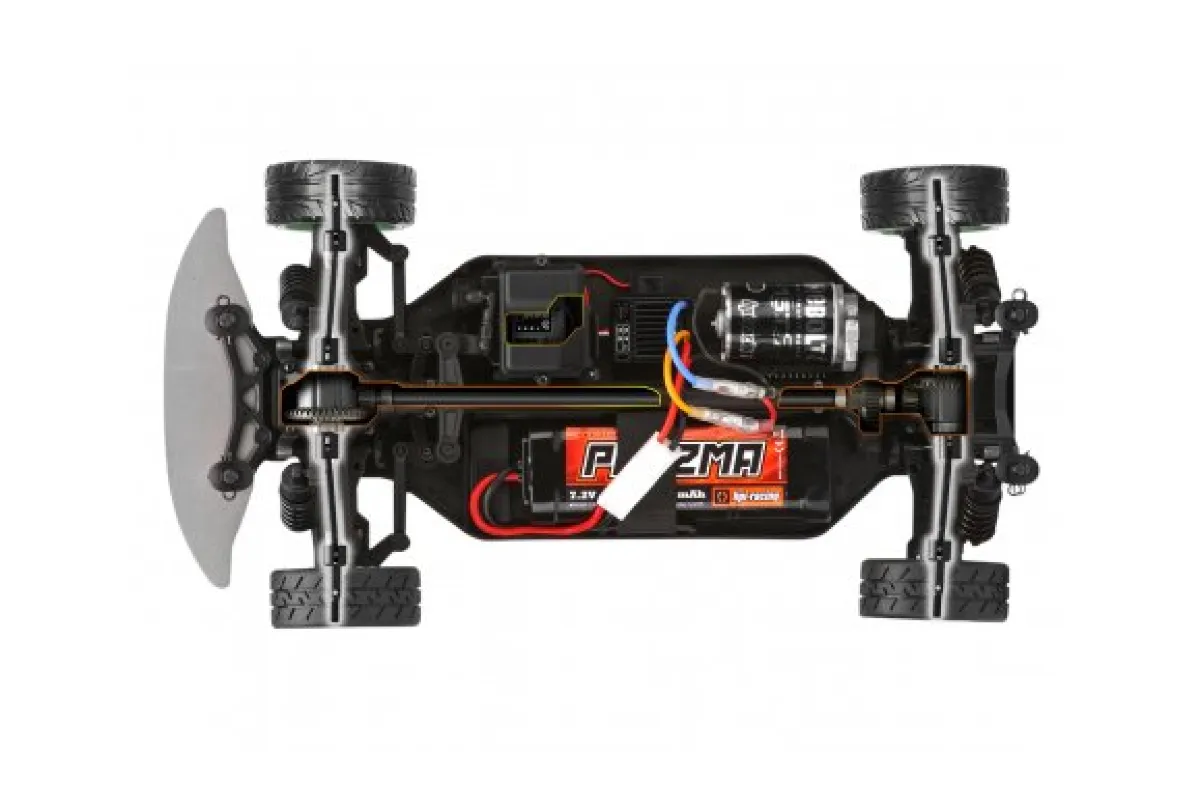

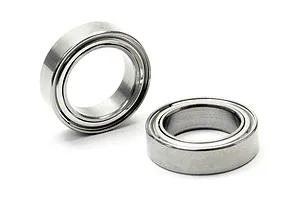

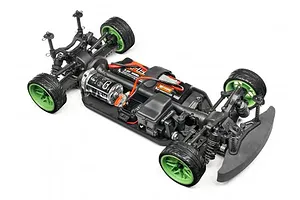

The drivetrain is sealed for optimal performance and durability. The motor is mounted longitudinally alongside a central driveshaft that runs the length of the car. This entire drivetrain, including the driveshaft and gear differentials, is fully sealed to protect it from dirt, rocks, and debris. Ball bearings throughout the drivetrain maximise efficiency and ensure smooth operation.

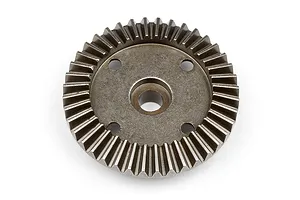

The HPI Racing RS4 features easy-access differentials for quick and convenient maintenance. Simply remove 4 screws to access the differentials, allowing you to change the grease, inspect the gears, or perform general service with ease.
| Length | 431mm (17") |
|---|---|
| Width | 200mm (7.9") |
| Height | 127mm (5") |
| Wheelbase | 254mm (10") |
| Chassis | On Road Plastic |
| Drivetrain | 4WD |
| Suspension | Oil Filled Adjustable Shock Absorbers |
| Motor | HPI Firebolt 15T 540 Sized Brushed Motor |
| ESC | HPI SC-3SWP2 60A Brushed ESC |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Ready to Run |
| Skill Level | Intermediate |
| Power Source | Electric Brushed |
| Chassis Type | Drift |
| On/Off Road | On Road |
| Drivetrain | 4WD |
| Battery Connector | Tamiya |
|---|---|
| Front Shock Oil | 50wt |
| Rear Shock Oil | 50wt |
| Pinion Gear | 27T 48dp/0.5Mod |
| Spur Gear | 75T 48dp/0.5Mod |
| Wheel Hex Size | 12mm |
