Kyosho

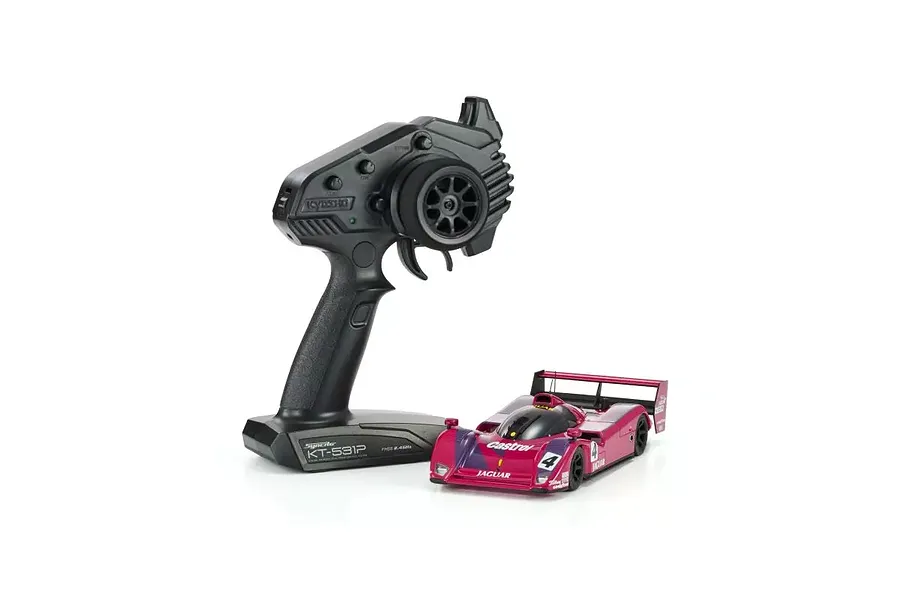

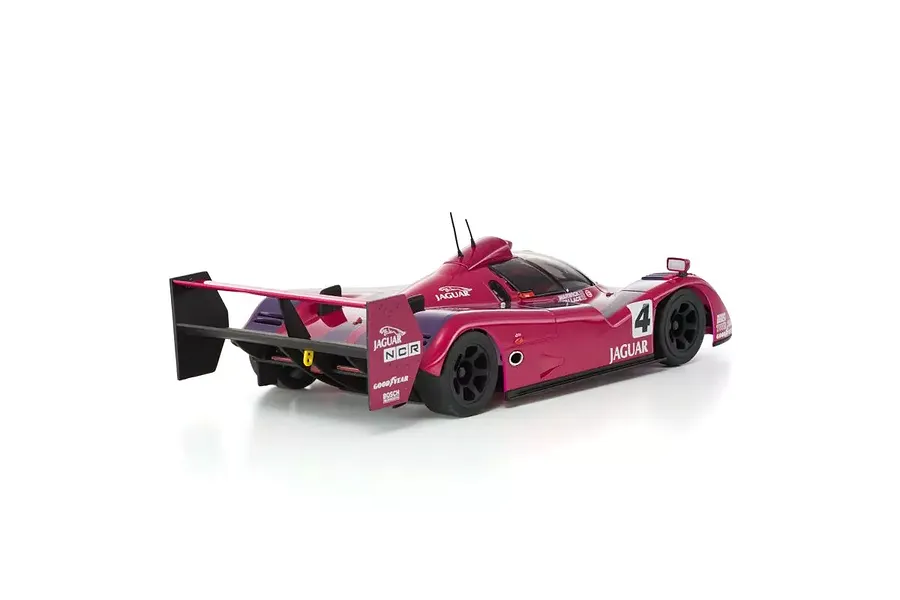

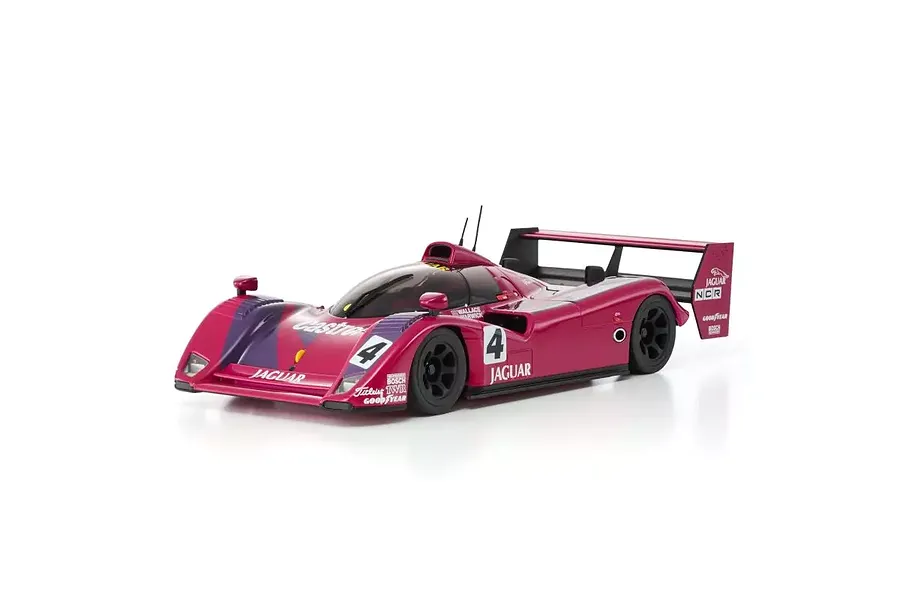

Kyosho Mini-Z MR-04 1991 Jaguar XJR-14 LM RC Car Electric RWD Mini-Z Scale - Number 4

  • RTR
  • Brushed

Part no. 32369LE

Sold outNo reviews yet
1 / 3
1 / 3

Now $299.99was $333.83 You Save $33.84

Sale now on

or 4 fortnightly payments of $75.00 with afterpay or PayPal, or zip

Kyosho Mini-Z MR-04 1991 Jaguar XJR-14 LM RC Car: Ready To Run With A Lowered Centre Of Gravity, Syncro Transmitter And A Stunning Scale Body!

  • Next Generation MR-04 Chassis Delivers Blistering Speed
  • Ultra Low Centre Of Gravity Maximises Tyre Grip
  • Turns Heads with A Highly Detailed Jaguar XJR-14 Body
  • Full Ball-Bearing Drivetrain Reduces Internal Rolling Friction
  • Ideal For All Skill-Level Drivers And Racers

Overview

The Kyosho Mini-Z MR-04 1991 Jaguar XJR-14 LM delivers a high-speed adrenaline rush right out of the box. Building on a legendary lineage, this next-generation RC Car platform introduces a vastly lower centre of gravity and a completely redesigned steering system to provide blistering speed alongside incredible handling. Whether you are aiming to set record lap times or just want an accessible way to enjoy motorsport at home, the MR-04 chassis is engineered to perform straight from the factory. The gorgeous 1991 Jaguar body looks like the real deal, matching track-ready mechanics with stunning display model looks.

Getting this racing powerhouse onto the circuit is an absolute breeze thanks to the fully assembled Readyset format. Simply install standard AAA batteries, and the highly reliable Syncro KT-531P transmitter will have you hitting the apex with precision control. The upgraded front suspension setup dynamically aligns the camber angle to ensure your tyres stay planted during aggressive cornering, while full ball bearings minimise friction for maximum top speed. With endless tuning options available, this chassis is ready to take on anything and keep the action exciting for years to come.

Note

Note: Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.

Features

  • A Revolutionary MR-04 Chassis Layout Significantly Lowers The Overall Centre Of Gravity
  • An Included Syncro KT-531P Transmitter Provides Pinpoint Steering And Throttle Control
  • A Redesigned Front Suspension System Maximises Tyre Contact During High Speed Cornering
  • A Factory Finished Jaguar XJR-14 LM Body Shell Delivers Show Stopping Detail
  • A Full Ball-Bearing Drivetrain Dramatically Reduces Friction For Maximum Top Speed
  • An Adjustable Rear Tread And Wheel Offset System Adapts To Different Body Styles
  • A Reliable 130 Sized Brushed Motor Offers Exciting Straight-Line Acceleration
  • Genuine Kyosho Product

In the box

  • 1x Kyosho Mini-Z MR-04 1991 Jaguar XJR-14 LM RC Car Electric RWD RTR
  • 1x Syncro KT-531P 2.4GHz Transmitter
  • 1x Front Tread Adjustment Parts Set
  • 4x Pinion Gears (6T, 7T, 8T, 9T)
  • 1x Wheel Wrench And Pinion Gear Tool
  • 1x Spare Wheel Nut Set
  • 1x Instruction Manual

You'll need

  • 4x AAA Alkaline Or NiMH Batteries For Chassis
  • 4x AAA Alkaline Batteries For Transmitter

Highlights

Better Front End Controll

Better Front End Controll

New front knuckles with integrated kingpins reduce scrub by 1.5mm on each side compared to the MR-03. This gives you a much sharper and more direct feel in your steering. The switch to 3mm inner diameter ball bearings also means the wheels spin with less friction, giving you smoother and faster control.

Changeable Wheel Offset

Changeable Wheel Offset

The MR-04 is designed for easy customisation. A parts set is included that lets you easily change the front tread to fit different bodies. You can also adjust the rear tread by changing the wheel offset. This gives you the freedom to build a car that is truly unique.

Coil Over Rear Suspension

Coil Over Rear Suspension

The rear suspension uses a coil spring damper to absorb bumps from the road and give you a much more stable drive. You can also upgrade it to an optional oil-filled shock absorber, which can give you even better performance and more tuning options to suit your driving style and the track con

Flexible Rear T-Bar

Flexible Rear T-Bar

The rear suspension features a flexible T-bar plate that supports the motor and rear axle. The flexible design gives the car great suspension effects, which helps to keep the tyres firmly on the track. This gives you more traction and a more stable feel in corners.

Lower Battery Mount

Lower Battery Mount

This car is powered by four AAA batteries, which are mounted lower than in the MR-03. This design choice gives the entire chassis a lower centre of gravity. The result is better stability in corners and a more predictable, planted feel when you're driving at speed.

New Chassis Design

New Chassis Design

While keeping all the great parts of the MR-03, the new MR-04 chassis has a lower centre of gravity. This gives you some serious boosts in performance. The MR-04 is also much easier to control, making it the perfect way to get into the exciting world of RC cars without a steep learning curve.

New Front Suspension

New Front Suspension

The car's front suspension is all about getting the most out of your tyres. It dynamically changes the camber angle with the movement of the upper arm, which helps to maintain optimal tyre contact during cornering. A revised caster angle also gives you a better steering feel and faster response.

Smooth and Fast

Smooth and Fast

All axles are equipped with low rotational resistance ball bearings as standard. These ball bearings are the same size for both the front and rear axles, which makes it easier to keep spare parts on hand. The low resistance means you get smoother and faster performance from the car.

Specifications

Length177.0mm (6.97")
Width79.5mm (3.13")
Height44.0mm (1.73")
Wheelbase102.0mm (4.02")
Weight168g (0.37lbs)
ChassisMR-04W-LM RWD
SuspensionFront Independent With Rear T-Bar And Coil Spring Damper
DrivetrainRWD
Motor130 Sized Brushed Motor
ESCKyosho Mini-Z Brushed ESC And Receiver Combo

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
Drivetrain2WD

Factory Specs

Battery ConnectorAAA
Pinion Gear6T
