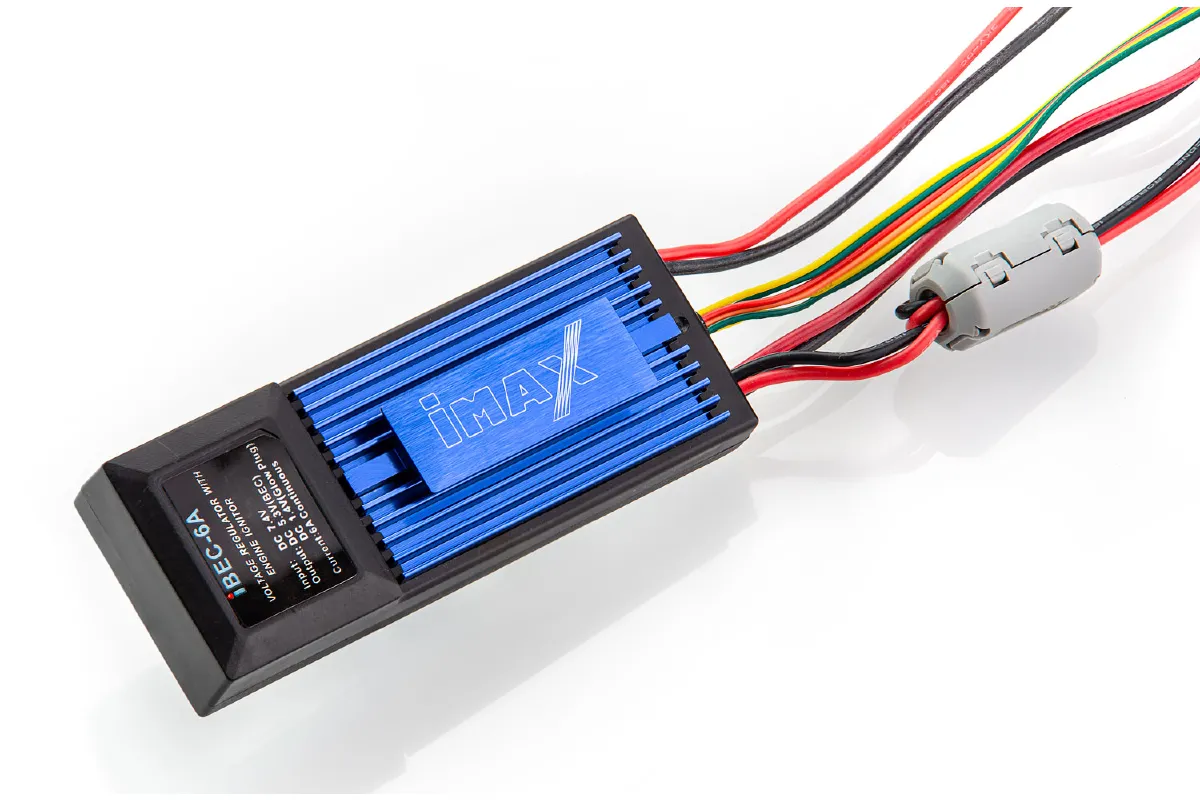

SkyRC iMAX iBEC-6A 7.4v Input 5.3v Output BEC w/ Glow Plug Ignition Starter
SkyRC iMAX iBEC-6A 7.4v Input 5.3v Output BEC w/ Glow Plug Ignition Starter
Brand:
SkyRC
|
MPN: GS90001S
$117.98
or 4 fortnightly payments of $29.50 with
6A BEC with built-in glow plug ignition for 2-cell Li-Ion/LiPo batteries, supplying a noise-free 5.3V to receiver and servos.
- Supplies constant voltage to receiver and servos without noise
- Internal glow plug ignition — no clip lead movement required
- LED indicators for battery voltage and ignition status
- Linear regulator with no receiver interference
- Requires 2-cell Li-Ion or LiPo input (DC 7.4V)
Pay later with
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
The iMAX iBEC 6A supplies a constant voltage to your receiver and servos using a 2-cell Li-Ion or LiPo battery without noise. An ignition button is included for the glow-plug starter feature.
Features
- Provides power to the receiver and servos

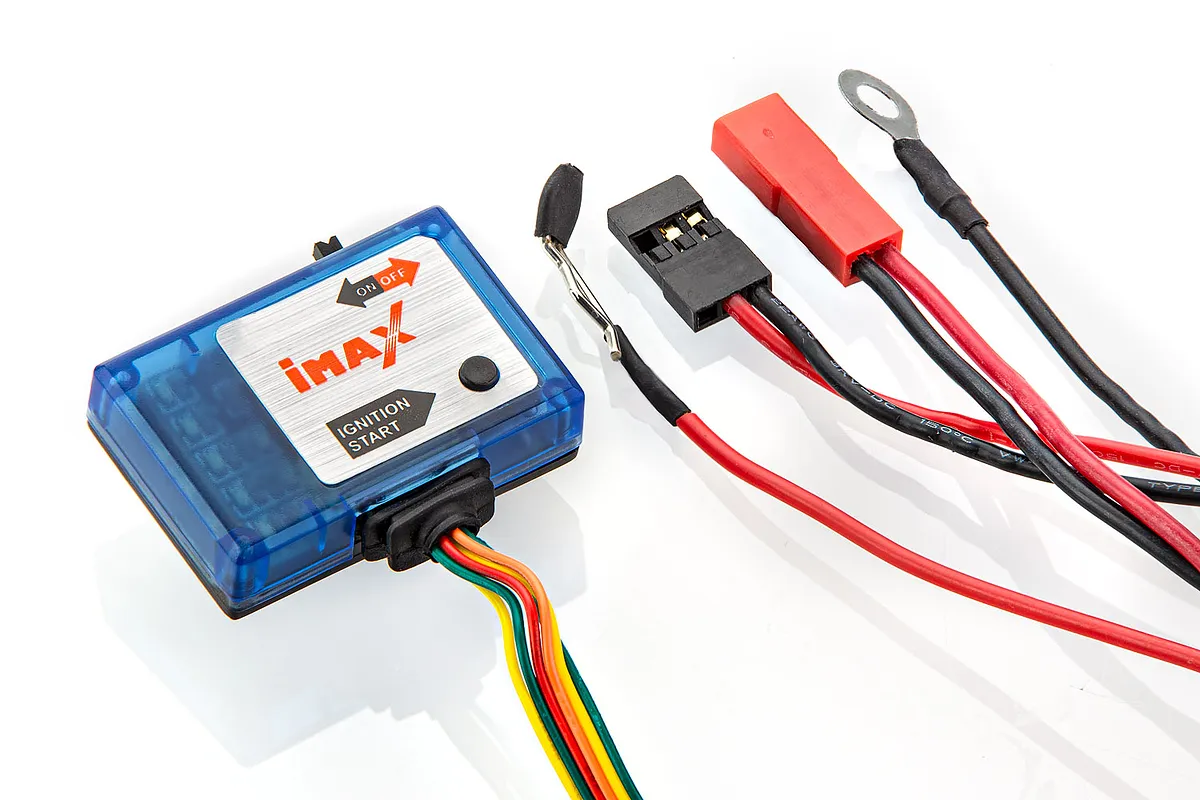

- Internal glow plug ignition system that does not require moving of the clip lead
- Voltage indicating LEDs and ignition indicating LEDs illuminate to show the status of the battery voltage and plug ignition function when the integrated power is switched on
- Linear regulator design results in no interference to the receiver
- Required input power must be a 2-cell Li-Ion or LiPo battery
Included Items
- 1x iMAX iBEC-6A
- 1x Colour Manual
Specifications
-
Input Voltage
- DC 7.4V 2-Cell Li-Ion or LiPo battery
-
Output Voltage
- DC 5.3V (BEC) / 1.4V (Glow Plug)
-
Max Current
- 8A
-
Continuous Current
- 6A
-
Weight
- 58g (inc wires)
-
Regulator Size
- 82x31x14mm
-
Control Board Size
- 35x25x10mm
