Spektrum 11.1V 4000mAh 30C 3S Soft Case LiPo Battery
Spektrum 11.1V 4000mAh 30C 3S Soft Case LiPo Battery
Spektrum 11.1V 3S 4000mAh 30C Smart LiPo battery with IC3 connector — auto-uploads charge parameters for one-press charging on compatible Smart chargers.
- 11.1V 3S 4000mAh 30C Smart LiPo for aircraft applications
- Smart microchip auto-uploads charge parameters — just press Start
- Stores charge/discharge cycles, temperature, and internal resistance data
- Error log tracks over-heat, over-discharge, and over-charge incidents
- IC3 connector with charge protection and short circuit protection

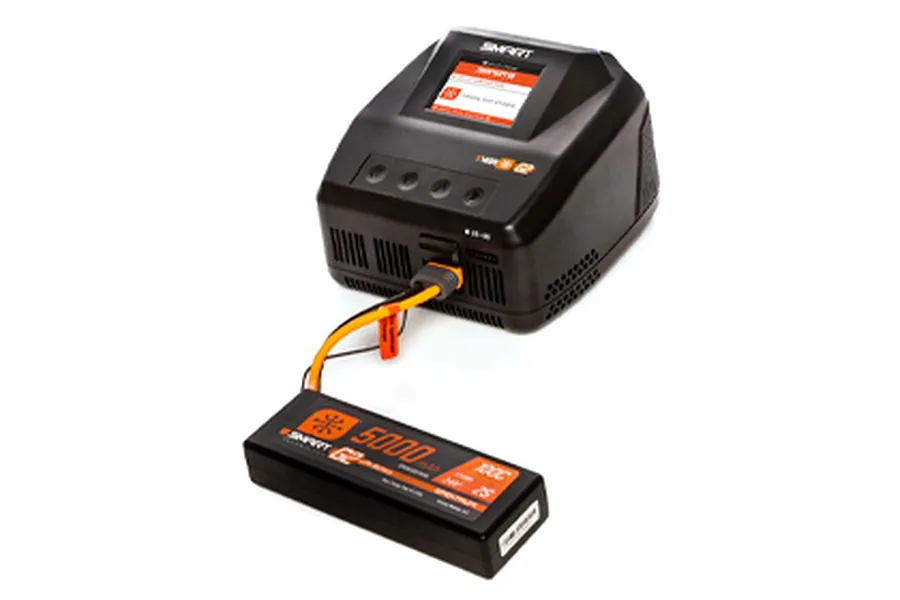

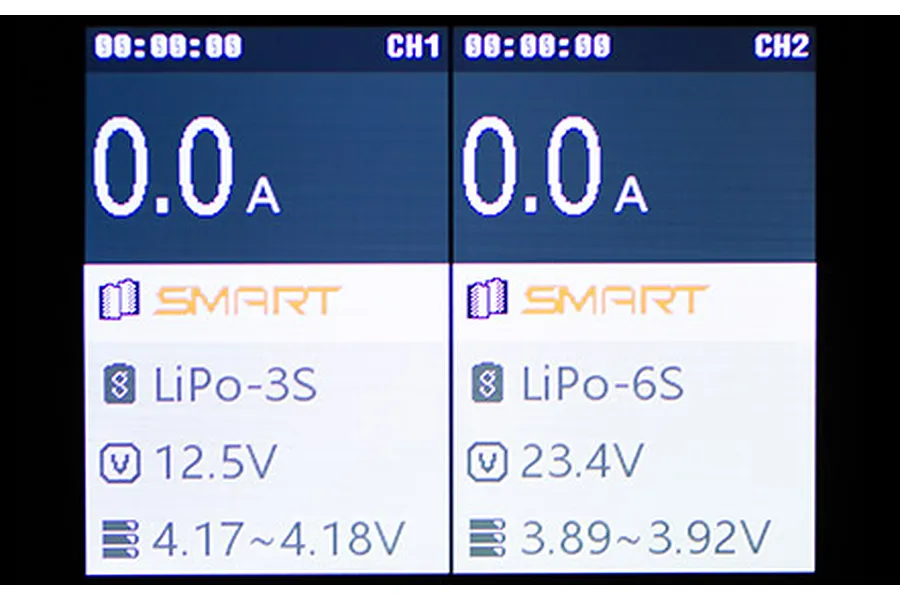

Spektrum Smart LiPo batteries eliminate manual charge setup. When connected to a Spektrum Smart charger, the battery's integrated microchip automatically uploads its unique parameters — chemistry, capacity, C rating, cell count, charge cycles, temperature history, and internal resistance — so charging is as simple as pressing Start. Preset charge, discharge, and storage parameters are relayed automatically, and the charger remembers the last charge rate you set.
Smart LiPo batteries also maintain an error log of over-heat, over-discharge, and over-charge incidents, giving you the data to make informed decisions about each pack. The charge rate is user-customisable, allowing you to take full advantage of packs with faster charge ratings.
These are the perfect packs for high performance models and power systems and a great upgrade to get more punch and power on nearly any setup.

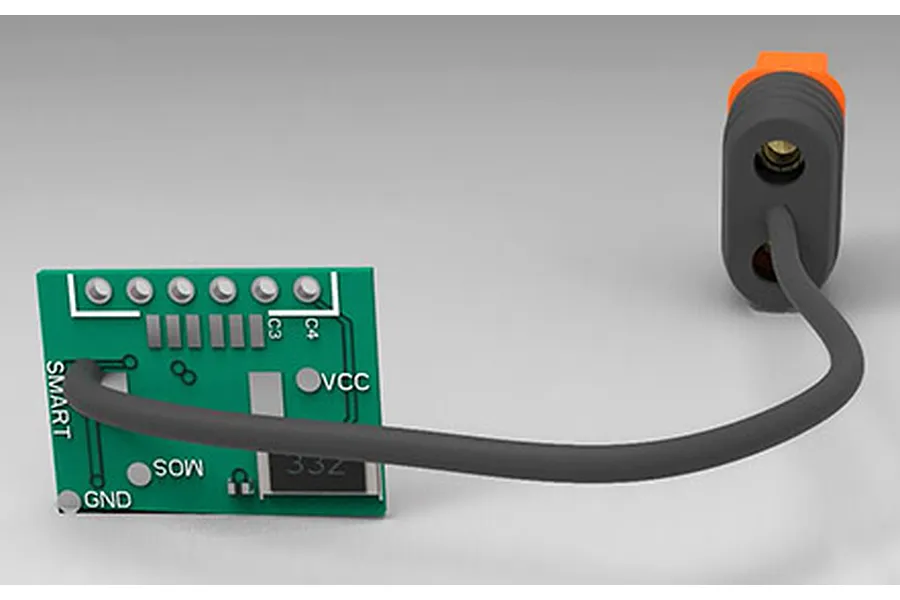

An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, and internal resistance.
Every Smart LiPo battery is factory assembled with the next-generation IC3 output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.
- Integrated Smart memory microchip stores battery brand, chemistry, cell count, capacity, C rating, charge/discharge cycles, temperature, and internal resistance
- Automatically uploads charge parameters to a Spektrum Smart charger — press Start to charge
- Error log records over-heat, over-discharge, and over-charge incidents
- User-customisable charge rate; charger remembers last charge rate set
- Charge protection circuitry included
- Short circuit protection
- Auto storage function
- Soft case construction
- 12 AWG wire gauge
- JST_XH balance connector
- IC3 connector with data transfer wire
-
Capacity
- 4000mAh
-
Voltage
- 11.1V
-
Battery Voltage
- 11.1V
-
Number of Cells
- 3
-
Battery Type
- LiPo (3.7V per cell)
-
Maximum Burst Discharge Rate
- 30C
-
Maximum Charge Rate
- 5C
-
Normal/Standard Charge Rate
- 1C
-
Normal/Standard Charge Current
- 4A
-
Maximum Charge Current
- 20A
-
Connector Type
- IC3
-
Battery Balance Connector
- JST_XH
-
Wire Gauge
- 12 AWG
-
Watt Hours
- 44.4Wh
-
Material
- Soft Case
-
Hard Case
- No
-
Charge Protection Circuitry
- Yes
-
Short Circuit Protection
- Yes
-
Technology
- Smart
-
Application
- Aircraft
-
Product Length
- 5.5" (140mm)
-
Product Width
- 1.69" (43mm)
-
Product Height
- 0.94" (24mm)
-
Product Weight
- 8.1oz (230g)
-
Discharge Lead Length
- 2.36" (60mm)
-
Balance Lead Length
- 1.37" (35mm)
-
Cell VoltageVoltage produced by each individual cell in the battery
- 3.7V
-
Total Voltage
- 11.1V
-
CapacityHow much energy is stored; higher mAh gives longer run times
- 4000mAh
-
Discharge C RatingHow fast the battery safely delivers power to your motor
- 30C
-
ChemistryBattery type that affects power, performance, and feel
- LiPo
-
ConnectorPlug style that determines what the battery connects to
- IC3
-
Length
- 140mm
-
Width
- 43mm
-
Height
- 24mm
-
WeightInfluences handling, balance, and runtime
- 230g
-
ConfigurationShape of the battery that determines how it fits
- Flat
-
Main Connector Wire GaugeAmerican Wire Gauge - Wire thickness that affects how much current it carries
- 12AWG
-
Case TypeChoose 'Hard Case' for protection or 'Soft Case' for weight saving
- Soft Case
-
R.O.A.R ApprovedCertified for use in official R.O.A.R. sanctioned racing events
- No
