Name: Tamiya M-06 Volkswagen Type 2 T1 RC Van Electric 2WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58668
Price: 257.30 AUD
Availability: OutOfStock

Recommended products

FlySky FS-GT2 2.4Ghz 2ch Radio w/ Receiver
9 reviews
$57.39
Power HD Standard LF-13MG 13kg Metal Geared Servo
9 reviews
$39.99
G.T. Power N802 NiMH/NiCad Charger
8 reviews
$31.52
Sold out
Gens Ace 7.2v 3000Mah NiMH Battery
$54.16

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

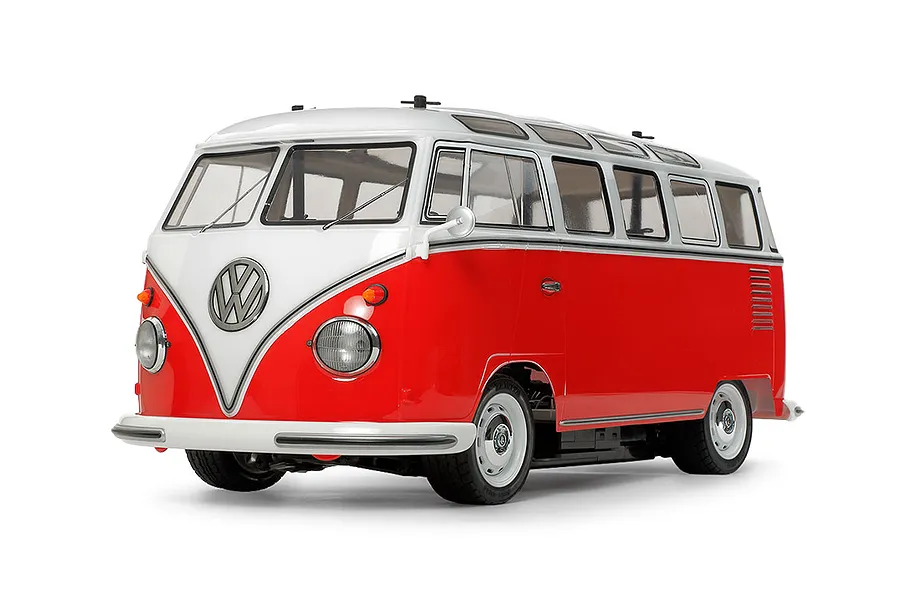

This Tamiya R/C model assembly kit depicts the 1st-generation (T1) variant of the Volkswagen Type 2 van, which was introduced in 1950 and also known as the Volkswagen Bus. Production of the actual van continued through until 1967. The iconic body is paired with the rear-wheel drive M-06 chassis for realistic fun driving, just like the real RR Type 2 T1.

The M-06 chassis features a rear-mounted motor, rear-drive setup with a longitudinally-mounted battery pack, and R/C radio gear positioned on either side for optimum balance and low centre of gravity. 4-wheel double wishbone suspension is equipped with 60D radial tyres at the front and 60D super grip tyres at the rear. A 3-piece steering linkage offers nimble handling response.

Install separately sold LEDs in the front and rear lights for super realism. Three different wheelbase lengths are accessible by switching the position of rear section parts.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Highly detailed polycarbonate body with separate moulded plastic parts included to create bumper, light cases and side mirrors
Rear-motor, RWD setup
Longitudinal battery mount for optimum balance and low centre of gravity
Metal-plated dish type wheels
Adjustable wheelbase (three lengths)
3-piece steering tie-rod system for superior handling
4-wheel double wishbone suspension
Front/rear friction dampers
Includes Tamiya TBLE-02S ESC
Turn signals are separate parts
Separate round side mirrors and slimline stalks
Separate rear bumper part

In the box

1x Tamiya M-06 Volkswagen Type 2 (T1) Electric RC Car Kit (requires assembly)

You'll need

7.2V NiMH Battery & Compatible Charger
4 x AA Batteries
Standard Sized Servo
2-Channel Transmitter & Receiver
Tamiya PS Polycarbonate Paint

Highlights

Adjustable Wheelbase for Versatility

Customise your model's handling and appearance with access to three different wheelbase lengths. Easily switch the position of the rear section parts to achieve your desired setup, offering versatility for different driving styles.

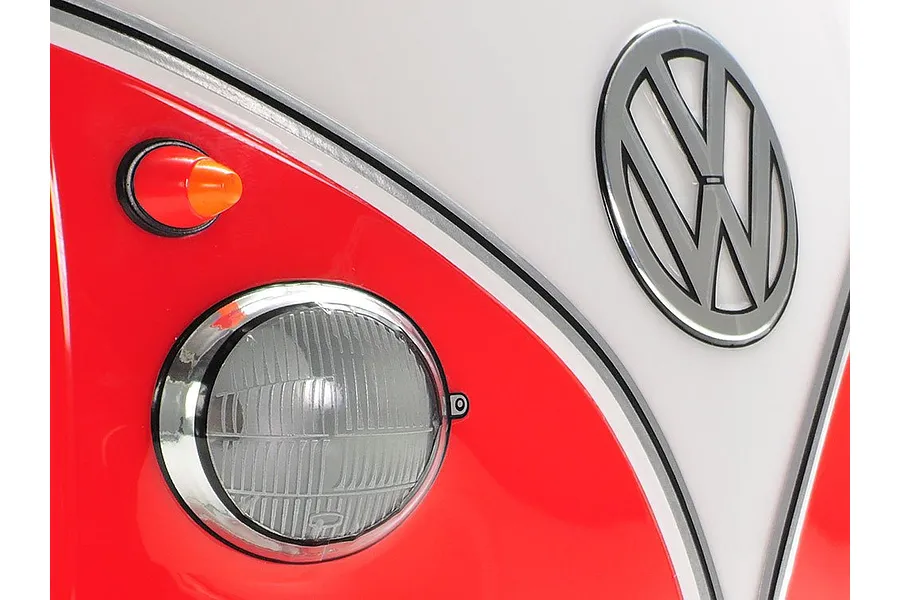

LED-Ready Lighting & Turn Signals

Achieve super realism by installing separately sold LEDs in the front and rear lights. Even the turn signals are separate parts, allowing you to truly bring your Volkswagen Type 2 T1 to life.

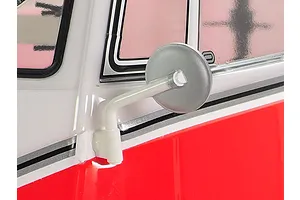

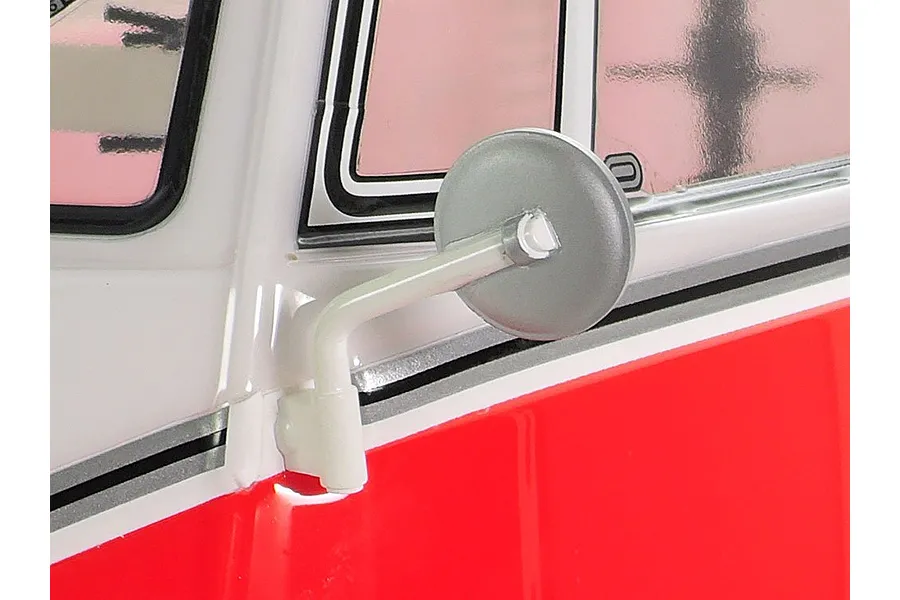

Authentic Side Mirror Detail

Separate parts are cleverly employed to accurately depict the distinctive round side mirrors and their slimline stalks. This attention to intricate detail ensures your model perfectly captures the classic look of the iconic Volkswagen Type 2 T1.

Highly Detailed Rear Section

The rear of the model showcases excellent attention to detail, including a separate bumper part. This meticulous reproduction ensures the classic Volkswagen Type 2 T1 looks stunning from every angle, capturing its iconic charm.

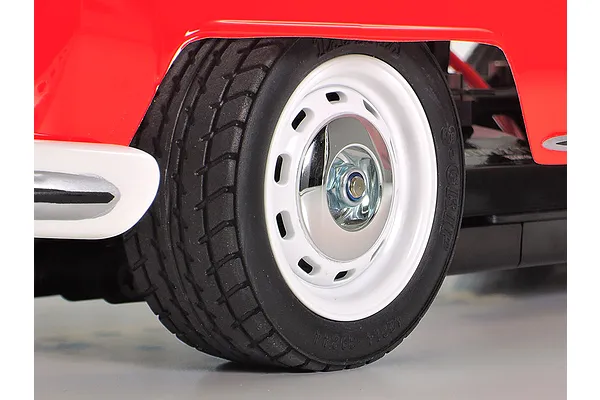

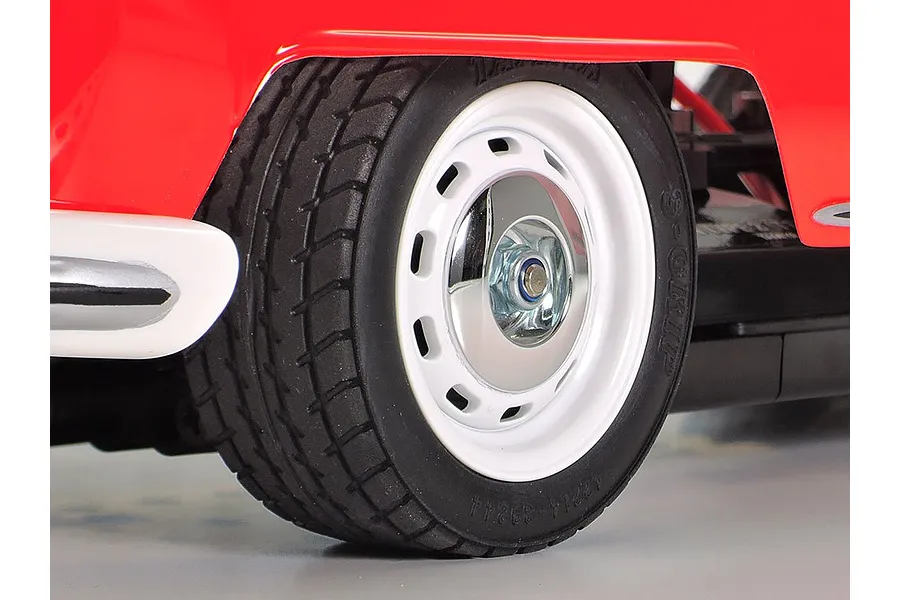

Realistic Plated Dish Wheels

The dish wheels feature gleaming plated components, adding a touch of classic realism. For a perfect finish, simply paint the rim sections with TS-26 Pure white, enhancing the authentic look of your Volkswagen Type 2 T1.

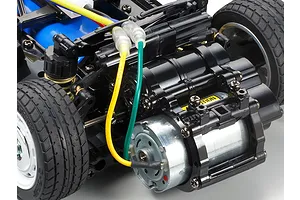

Excellent Rear Traction Drivetrain

The distinctive rear-mounted motor and rear-wheel drive setup provides your model with excellent traction at the rear. This classic configuration ensures agile handling and superb power delivery for an enjoyable driving experience.

VW Type 2 T1 On M-06 Chassis

The iconic Volkswagen Type 2 T1 body is paired with the rear-wheel drive M-06 chassis for realistic fun driving.

Product photo 1 — body overview

Highly detailed polycarbonate body with separate moulded plastic parts included to create bumper, light cases and side mirrors.

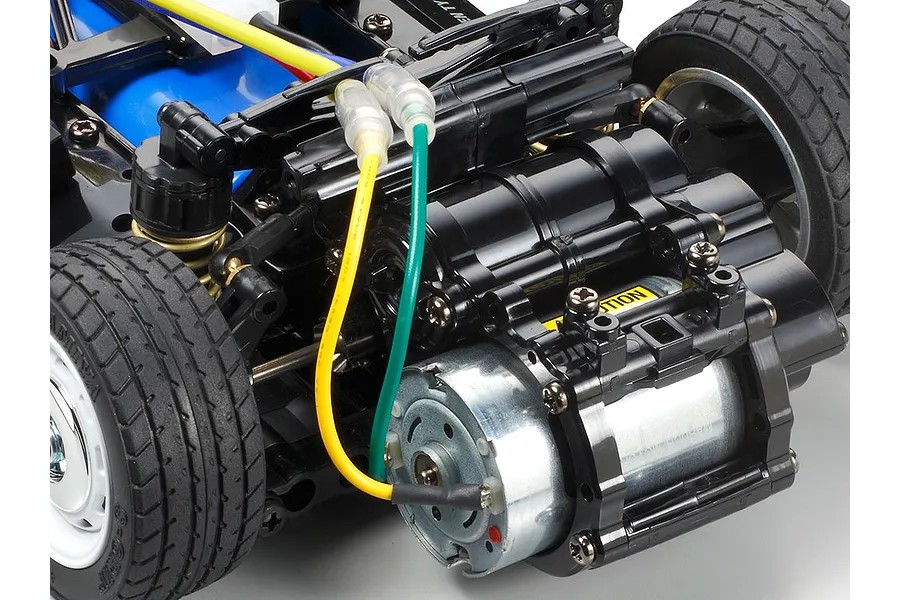

Product photo 2 — wheels and chassis detail

Dish wheels feature gleaming plated components; the rear-mounted motor, rear-wheel drive setup provides exceptional traction.

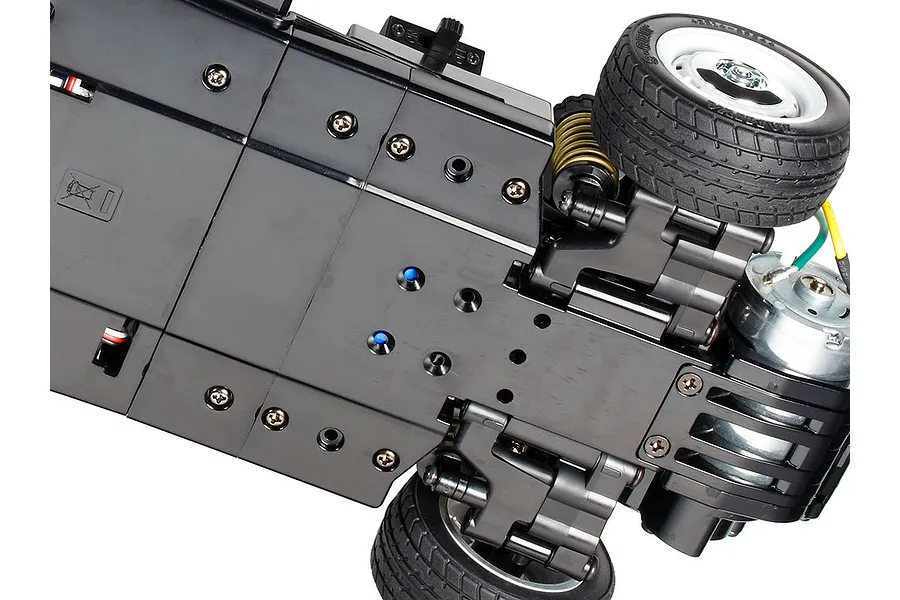

Product photo 3 — chassis layout

M-06 chassis features a rear-mounted motor, rear-drive setup with longitudinally-mounted battery pack for optimum balance.

Product photo 4 — steering and suspension

A 3-piece steering linkage offers nimble handling response; 4-wheel double wishbone suspension is fitted with radial tyres.

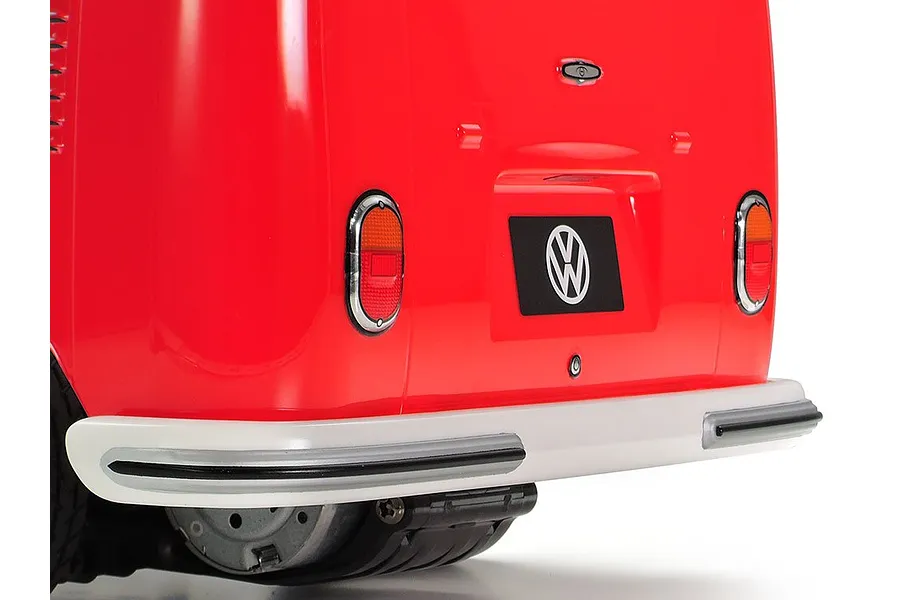

Product photo 5 — rear detail

The rear of the model shows excellent attention to detail, including a separate bumper part and separate round side mirrors.

Separate LED Turn Signal Parts

Install separately sold LEDs in the front and rear lights for super realism; turn signals are separate parts.

Specifications

Length	453mm (17.8")
Width	189mm (7.44")
Height	119mm (4.68")
Wheelbase	239mm (9.40")
Body Shell	Clear Polycarbonate
Chassis Type	M-06
Construction Type	Assembly Kit
Motor	Type 540 Brushed
Electronic Speed Control (ESC)	Tamiya TBLE-02S
Motor Mount	Rear
Wheel Drive	2WD
Gear Ratio	5.8:1
Friction Shocks	Front & Rear
Suspension	4-Wheel Independent Double-Wishbone
Terrain Use	On Road
