Tamiya MB-01 Fiat Abarth 1000TCR Berlina Corsa RC Rally Car Electric 2WD 1/10 Scale Kit (no ESC)

Tamiya MB-01 Fiat Abarth 1000TCR Berlina Corsa RC Rally Car Electric 2WD 1/10 Scale Kit (no ESC)

Videos

Tamiya MB-01 Fiat Abarth 1000TCR Berlina Corsa RC Rally Car Electric 2WD 1/10 Scale Kit (no ESC)

Brand: Tamiya | SKU: 58721A
discontinued
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

The MB-01 is the latest addition to the M-chassis series, which has been popular among users of all levels since its inception in December 1994. The series is known for its cost-effective kits, a wide variety of bodies to choose from, and ease of maintenance and control.

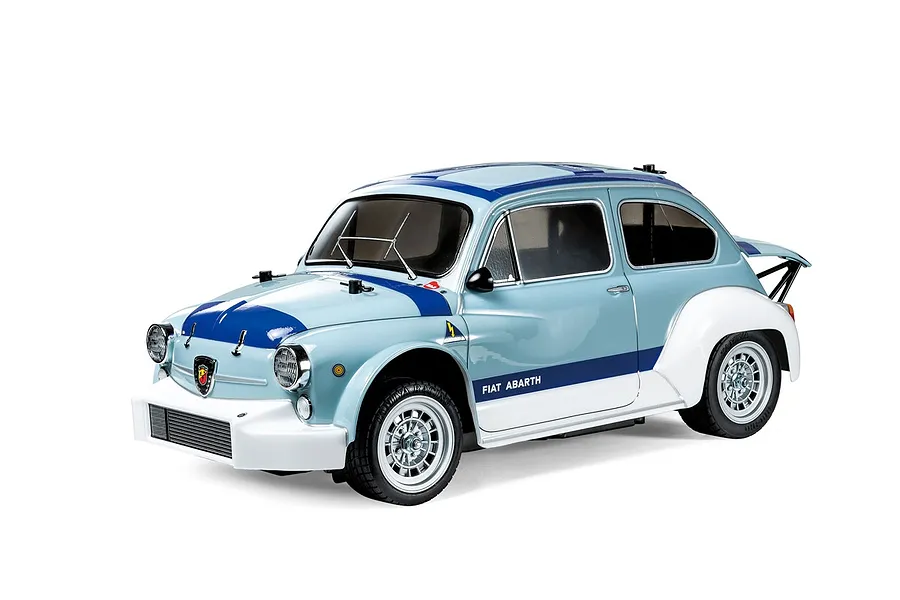

The all-new MB-01 chassis offers a continuation of the popular M-chassis series by providing cost-effective kits with easy maintenance and control for users of all levels. With the ability to choose from three types of wheelbases and a front or rear-wheel drive system, the MB-01 allows for six unique setups. Additionally, it comes with the option to recreate the Fiat Abarth 1000 TCR Berlina Corse, a compact 2-door car that was developed with high-level tune-ups.

Incredible Scale Detail

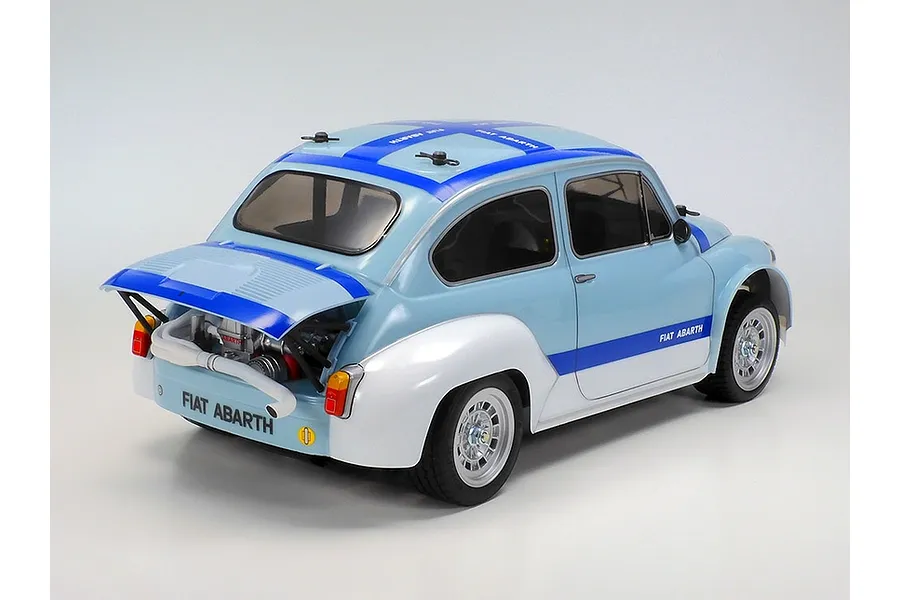

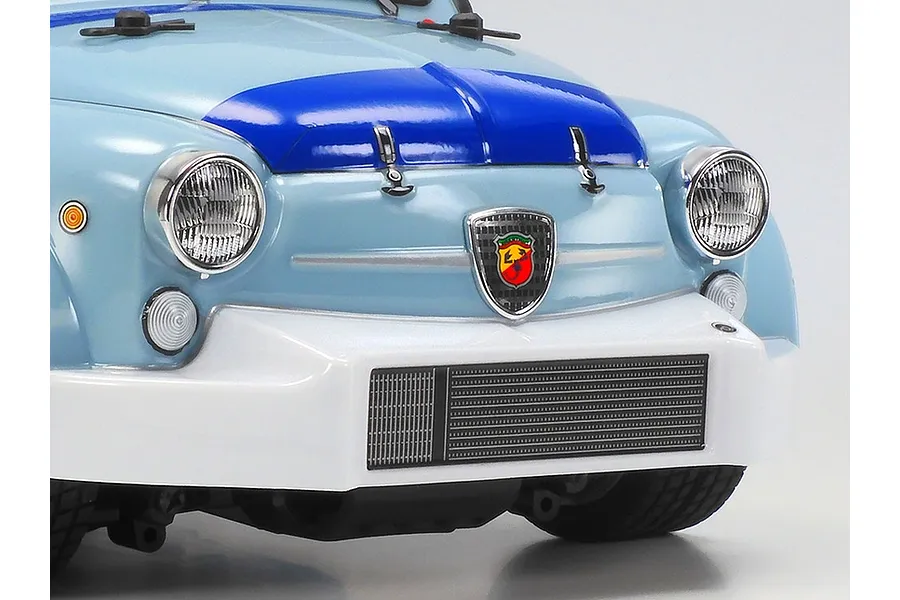

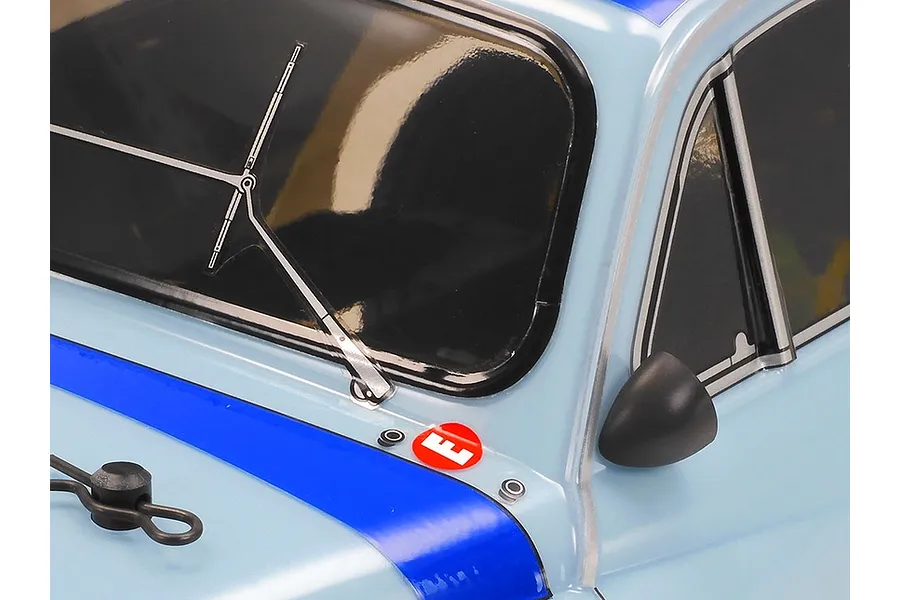

This MB-01 features an incredible level of scale detail. The Fiat Abarth is a legendary rally car, and Tamiya have spared no expense in making sure that this model lives up to the name.

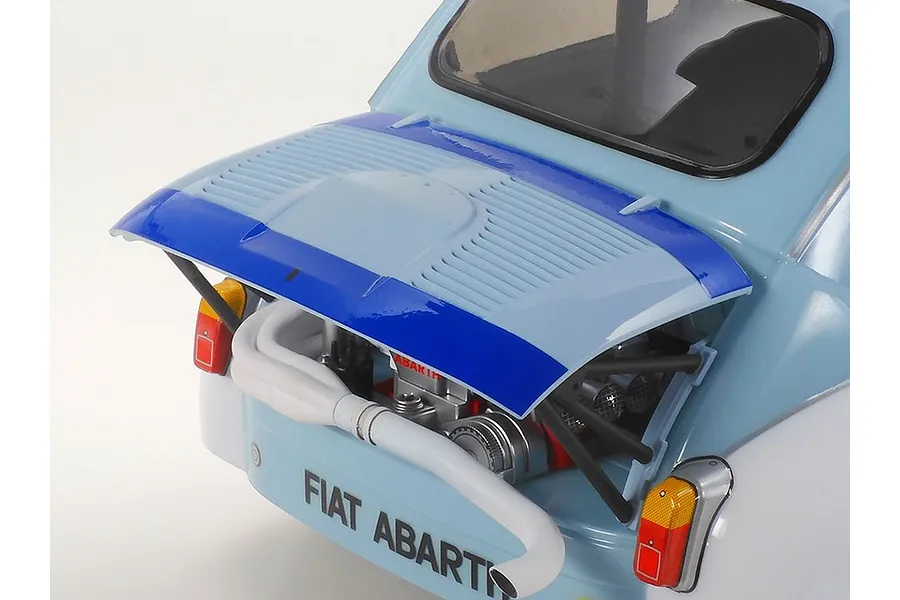

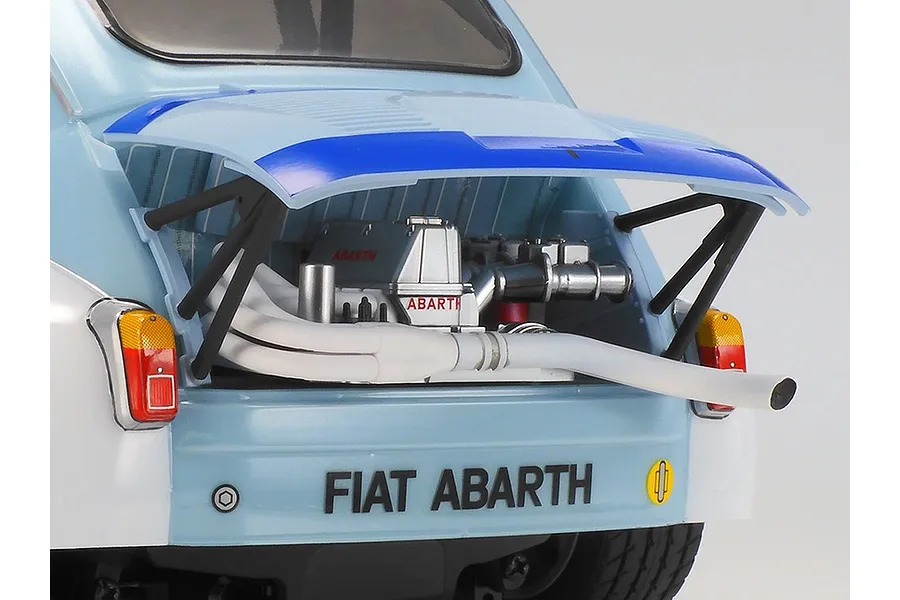

With powerful over fenders, rear open engine hood, engine head and exhaust pipes, and much, much, more.

Compact Design

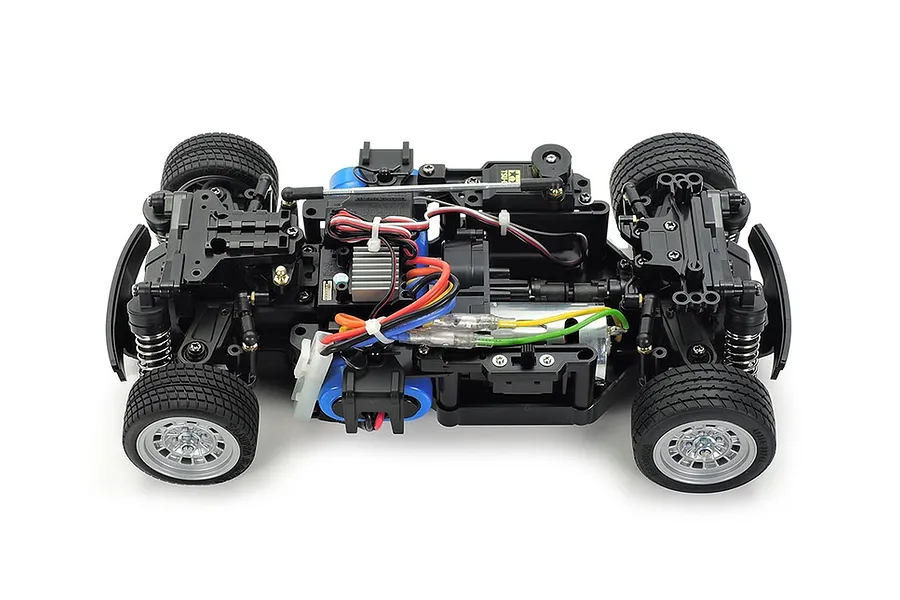

The MB-01 chassis is built with performance and customisability in mind. The MB-01 has a highly adjustable platform that's perfect for a variety of driving styles and can be adjusted to a wide range of wheelbase options, 209mm for short, 224mm for medium, and 239mm for long.
Additionally, you can set this versatile chassis up in a front wheel drive or rear wheel drive setting, making the MB-01 one of the most customisable machines!

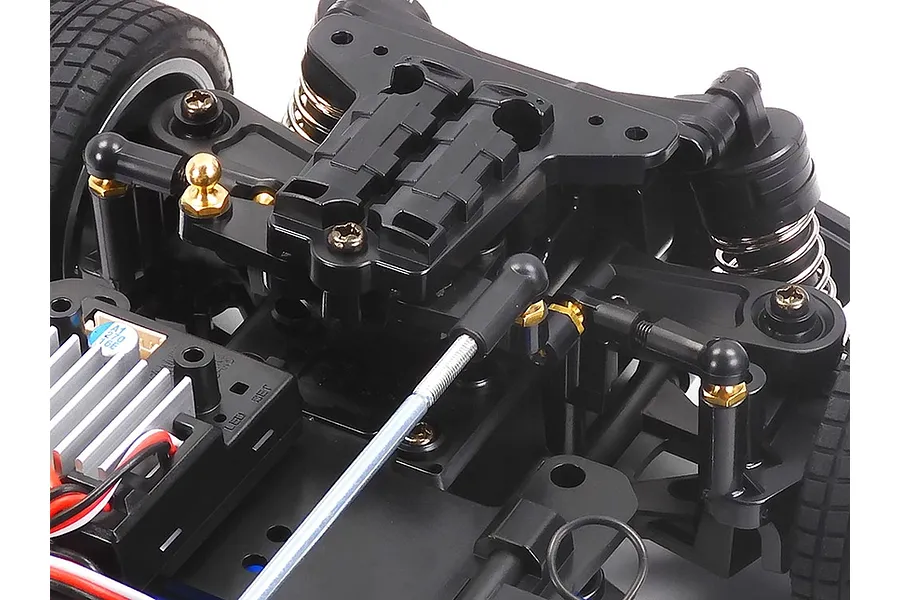

Three Section Steering System

The three-section steering system, operated by a long link rod connected to a rear-mounted servo, provides precise and responsive steering control for confident handling on a wide range of terrains.

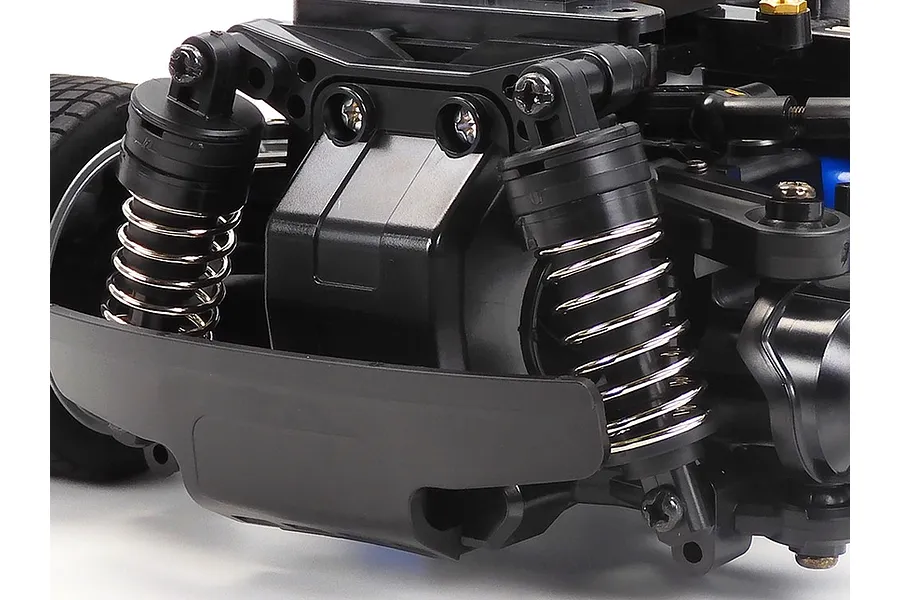

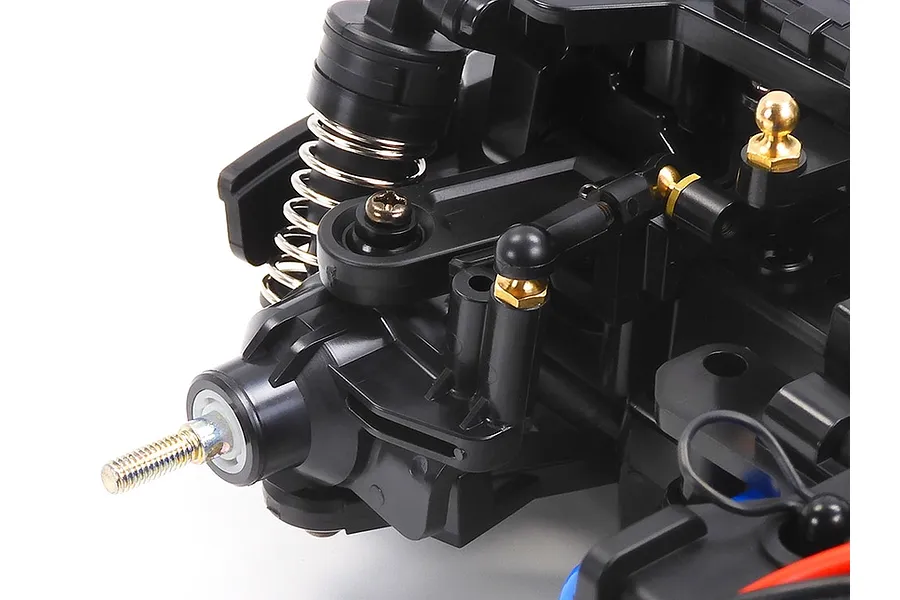

Double Wishbone Suspension

The double wishbone suspension, with its symmetrical suspension arms, provides balanced handling and predictable performance. This design ensures consistent response and control, allowing you to hit the apex everything time.

Easy Maintenance

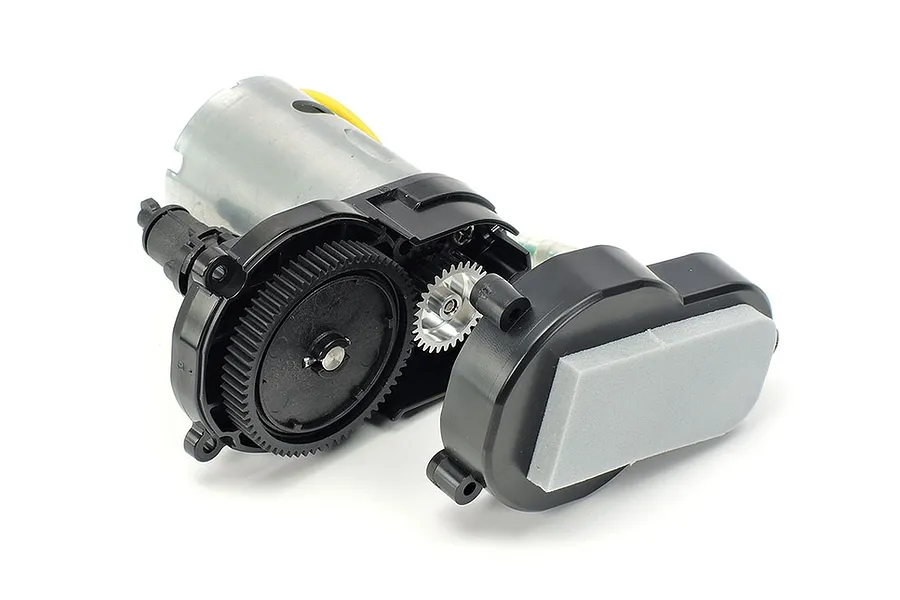

Maintenance is a breeze thanks to the MB-01's unitised motor mount. Secured with just two screws, it allows for quick and easy access to the motor for adjustments or upgrades.

Centre Motor Mounting

The rear left mounted motor delivers power directly to the rear wheels via a driveshaft, providing a classic rear-wheel-drive driving experience with fast and responsive acceleration and exciting handling.
Additionally, this central motor mounting position creates better weight bias.

Quick Battery Swaps

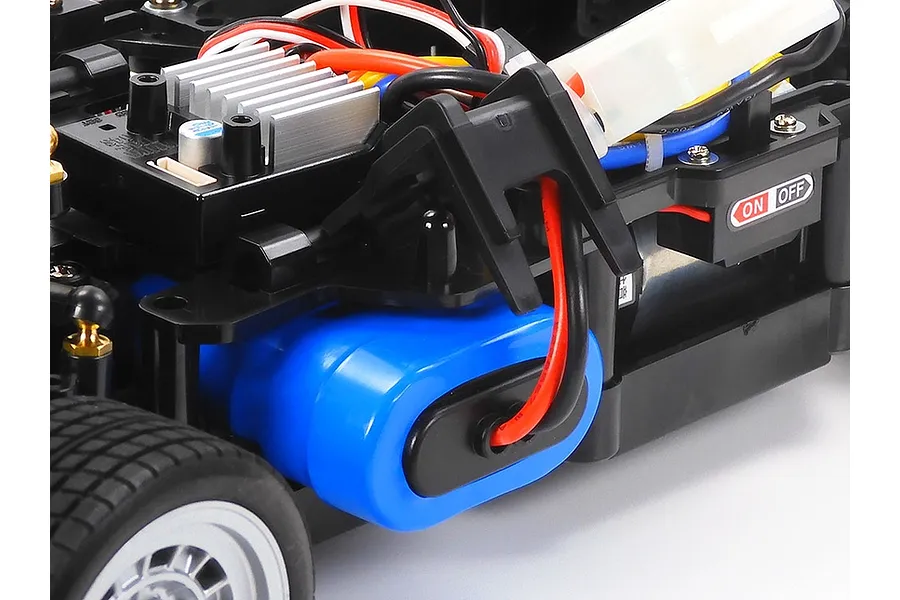

Designed for hassle-free battery replacement, the MB-01 features an innovative flip-up battery holder. This clever design allows you to quickly swap out batteries without any fuss, keeping the action going.

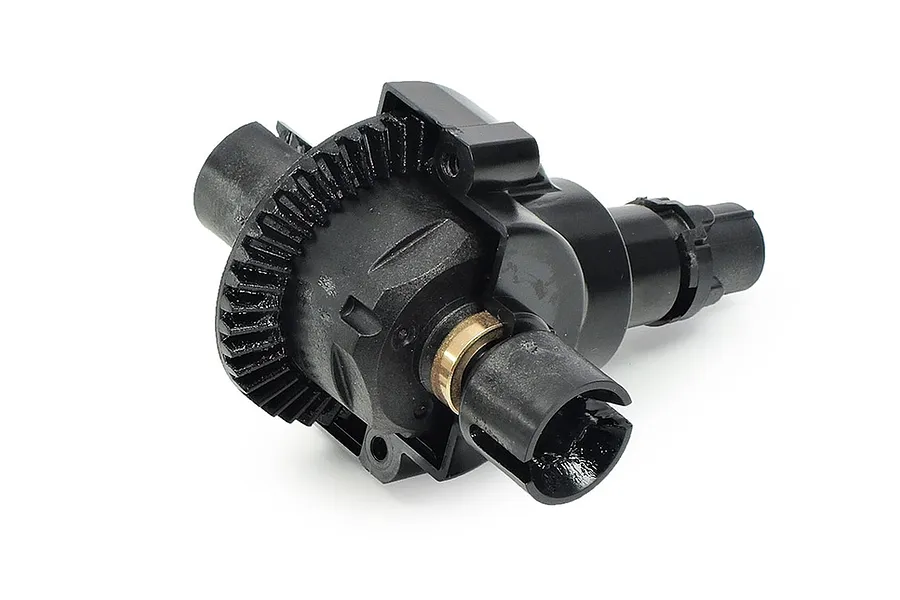

TT-02 Differentials

The MB-01 chassis utilises the same durable 4-bevel differential gear as the TT-02 chassis, making access to replacement parts much easier.  For those seeking further customisation, the differential can be upgraded with optional TT-02 ball differentials or oil-filled gear differentials.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

Features
  • The MB-01 chassis is 2WD and offers three options for wheelbases and front- or rear- wheel drive system
  • The attachment directions of final gears and steering linkage can be changed to switch between front- and rear- wheel drive
  • The rear-wheel drive cars can choose a low or high motor position
  • Motor mount and final gears sections are designed to facilitate assembly and maintenance
  • The 4-wheel double wishbone suspension has a symmetrical structure and friction shocks
  • Multi-link suspension is compatible with tyres featuring the same compound and rear tyre with toe-in as 4WD models, despite being a 2WD model
  • It features a gear ratio of 5.83:1 (when using kit-standard 29T pinion gear)

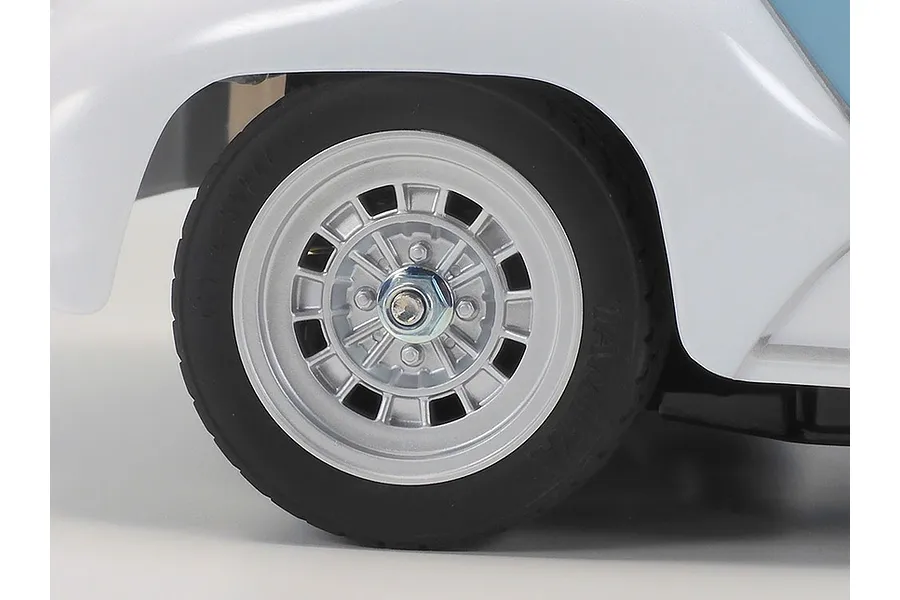

  • The model has 55mm diameter front tyres and 60mm diameter rear tyres, creating an authentic car stance
  • Fully licensed Fiat Abarth bodyshell
  • Genuine Tamiya Product
Specifications
  • Length: 374mm (14.72")
  • Width: 168mm (6.61")
  • Height: 140mm (5.51")
  • Wheelbase: 210mm (8.27")
  • Weight: Varies
  • Chassis: On Road
  • Drivetrain: 2WD
  • Suspension: Coil Over Shock Absorber
  • Motor: 540 Sized Brushed Motor
  • ESC: Not Included
Included Items
  • 1x Tamiya 1/10 MB-01 Chassis Kit
  • 1x 540 Sized Brushed Motor
  • 1x 1/10 Unpainted Fiat Abarth 1000 Body Shell
Required Items
  • 1x Compatible 7.4V LiPo or 7.2V NiMH Battery
  • 1x Compatible Charger
  • 1x Compatible Servo
  • 1x Compatible ESC
  • 1x 2+ Channel Transmitter & Receiver
  • Polycarbonate Compatible Paint
  • AA Batteries For Transmitter
Videos
Specifications
Factory Specs
Pinion Gear
29T
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Wheel Hex Size
12mm
RC Car
Max LiPo Power
2S (7.4v)
Completion
Kit
On/Off Road
Off Road, On Road
Drivetrain
2WD
Chassis Type
Car
Power Source
Electric Brushed
Skill Level
Intermediate
Scale
1/10
