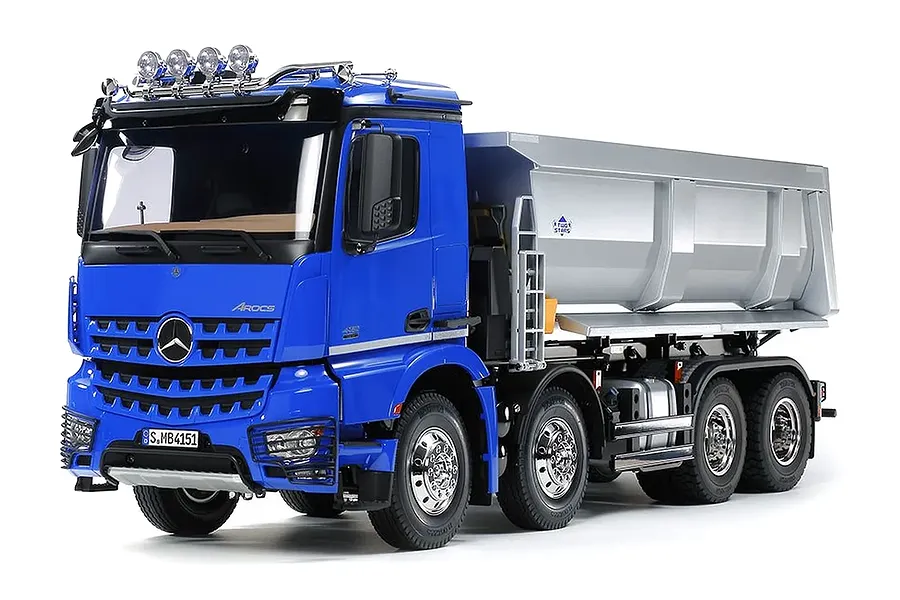

Tamiya Mercedes-Benz Arocs 4151 8X4 RC Tipper Truck Electric 4WD 1/14 Scale Kit

  • 1/14
  • 4WD
  • Kit

Part no. 56366

Sold outNo reviews yet
1 / 19
1 / 19

Videos

$1,103.91

or 4 fortnightly payments of $275.98 with afterpay or PayPal, or zip

Tamiya Mercedes-Benz Arocs 4151 8X4 RC Tipper Truck: Highly detailed kit with 3-speed transmission, optional tipping, lights, sounds, and vibration.

  • 3-speed transmission for realistic gear changes via transmitter
  • Durable ladder frame chassis with aluminium and polycarbonate construction
  • Leaf spring suspension with aluminium friction shocks and tandem die-cast front axles for enhanced realism
  • Realistic bucket tooth front grille and detailed interior
  • Compatible with the optional Actuator & MFC for remote-controlled tipping, lights, sounds, and vibration

In stock now: similar

Ready to send today if you order before 1pm.

Videos

$1,103.91

Overview

Tamiya MFC-03 Multi Function Control Unit

This truck is compatible with the Tamiya MFC-03 Multi Function Control Unit Kit.

ABS Body Shell

This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.

The Tamiya Mercedes-Benz Arocs 4151 8X4 RC Tipper Truck brings the power and functionality of a heavy-duty 8x4 dump truck to your RC experience. This 1/14 scale kit replicates the Arocs 4151, featuring a highly detailed body with a distinctive bucket tooth front grille and a realistic interior. The robust ladder frame chassis, constructed from aluminium and polycarbonate, provides a solid foundation. The leaf spring suspension with tandem die-cast front axles and reinforced resin rear axles ensures smooth handling. An optional Actuator & Multi-Function Control Set allows for remote-controlled tipping of up to 10kg loads, realistic lights, sounds, and vibration.

This kit is designed for enthusiasts who appreciate detailed scale models and functional realism. The 3-speed transmission and robust chassis offer a realistic driving experience. The optional tipping functionality adds a unique and engaging element to the model. The accurate reproduction of the cabin and exterior details, including the front grille, side mirrors, and display options, makes this truck a standout model.

Note

Assembly is required. Actuator & Multi-Function Control Set sold separately.

Features

  • 3-gear transmission with gear shifting operated via transmitter
  • Aluminium & polycarbonate resin ladder frame
  • Front/rear leaf spring rigid suspension
  • Aluminium friction shocks (front/rear)
  • Dual rear axle drive
  • 3-bevel differential gears
  • TR Mighty Tuned (35T) motor
  • Realistic bucket tooth front grille
  • Tandem die-cast front axles with individual leaf springs
  • 22mm/83mm (front) and 22mm/84mm (rear) tyre width/diameter
  • Optional Actuator & Multi-Function Control Set for remote-controlled tipping, lights, sounds, and vibration
  • ABS Plastic Body Material
  • Metal and Plastic Bushings
  • Genuine Tamiya Product

In the box

  • 1x Tamiya Mercedes-Benz Arocs 4151 8X4 RC Tipper Truck Electric 4WD 1/14 Scale Kit

You'll need

  • 1x 4-Channel Transmitter
  • 2x Servos
  • 1x Electronic Speed Control (ESC)
  • 1x 7.2V Battery with Compatible Charger
  • 1x Tamiya TS & Acrylic-Lacquer Bottle Paints
  • 4x AA Batteries (for Transmitter)
  • 1x Actuator & Multi-Function Control Set (Optional)

Highlights

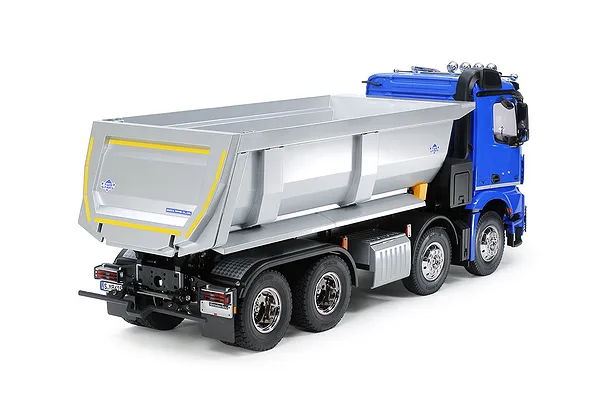

Durable ABS Plastic Bed with Aluminium Frame

Durable ABS Plastic Bed with Aluminium Frame

The single-piece ABS plastic bed, reinforced with an aluminium frame, offers exceptional durability and realistic appearance.

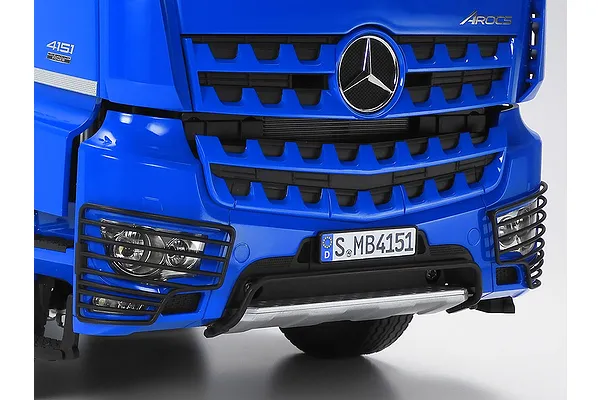

Detailed Front Grille and Plated Emblem

Detailed Front Grille and Plated Emblem

The distinct Arocs front grille is recreated with separate parts, while the emblem features a plated finish for added authenticity.

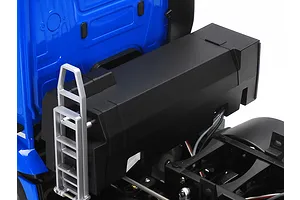

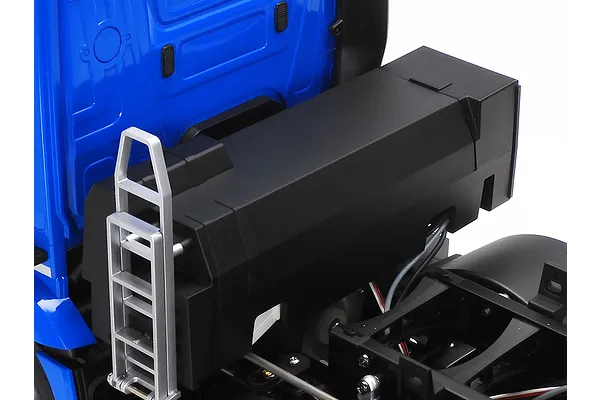

Accessible Battery Compartment

Accessible Battery Compartment

The battery pack is conveniently housed in a dedicated case over the second axle, allowing for easy battery changes even with a loaded bed.

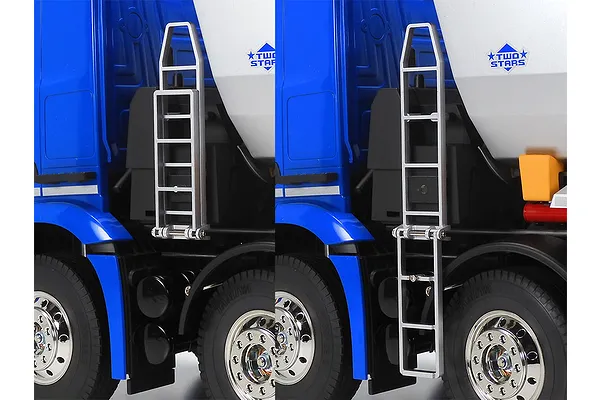

Display Options with Deployable Rear Ladders

Display Options with Deployable Rear Ladders

Enhance your display with the option to depict the cab rear ladders in either deployed or stowed positions.

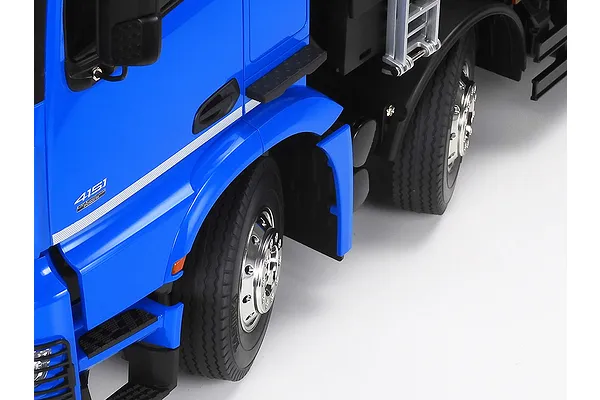

Coordinated Front Axle Steering

Coordinated Front Axle Steering

A single steering servo controls both front axles, accurately capturing the subtle difference in wheel angles.

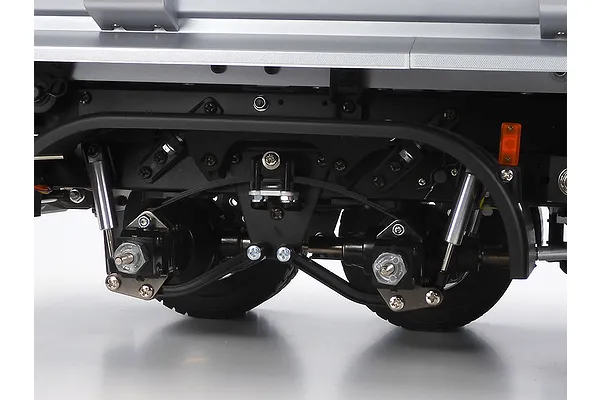

Trunnion Design Suspension with Metal Leaf Springs

Trunnion Design Suspension with Metal Leaf Springs

The trunnion design suspension, inspired by full-size trucks, features reinforced plastic axles and durable metal leaf springs.

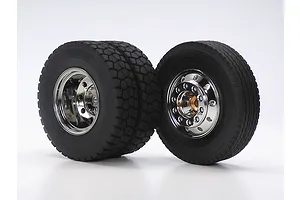

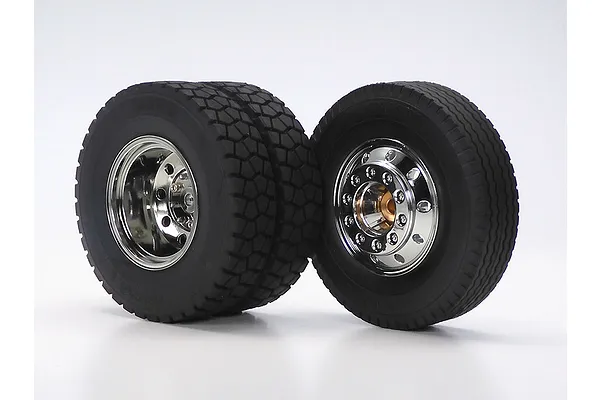

Metal-Plated Wheels with Single and Dual Tyres

Metal-Plated Wheels with Single and Dual Tyres

Enjoy a premium look with metal-plated wheels, featuring single tyres on the front and dual tyres on the rear.

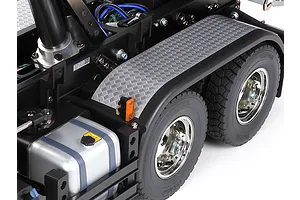

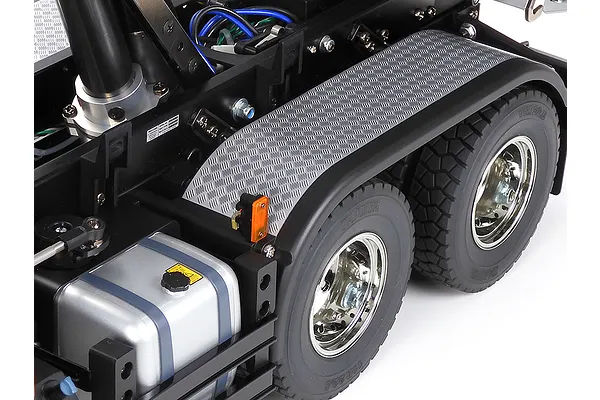

Detailed Rear Fenders with Anti-Slip Decals

Detailed Rear Fenders with Anti-Slip Decals

The rear fenders, covering both axles, feature a flat top with anti-slip markings recreated by included decals.

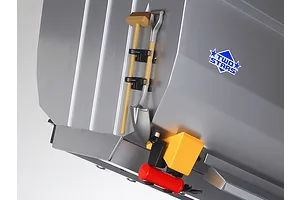

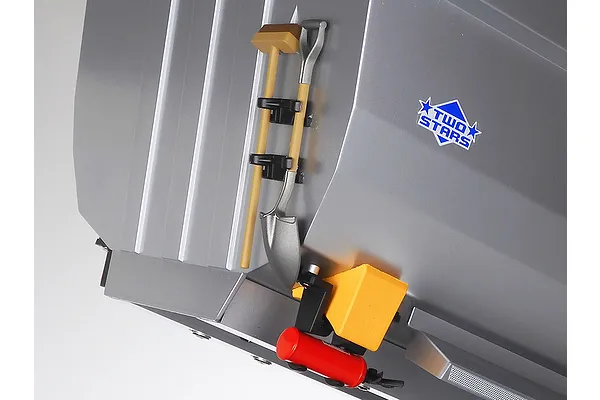

Realistic Bed Accessories

Realistic Bed Accessories

Enhance the model's realism with included shovel, brush, and fire extinguisher accessories for the bed's front end.

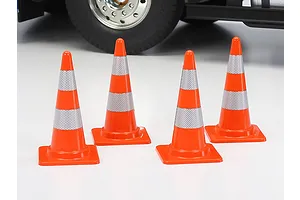

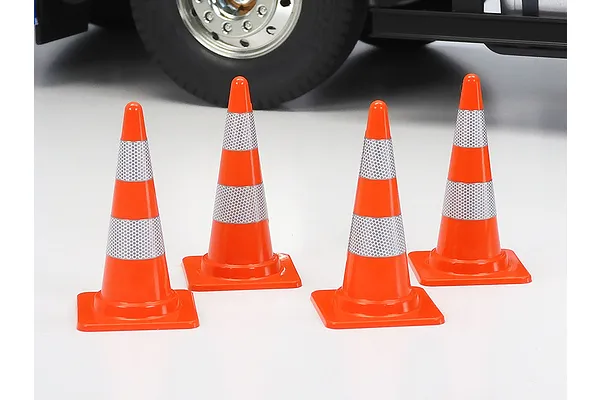

Included Display Cones

Included Display Cones

Add a touch of realism to static displays with the four included cones.

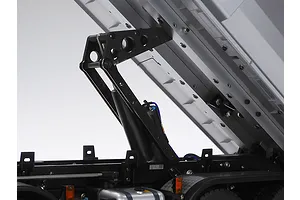

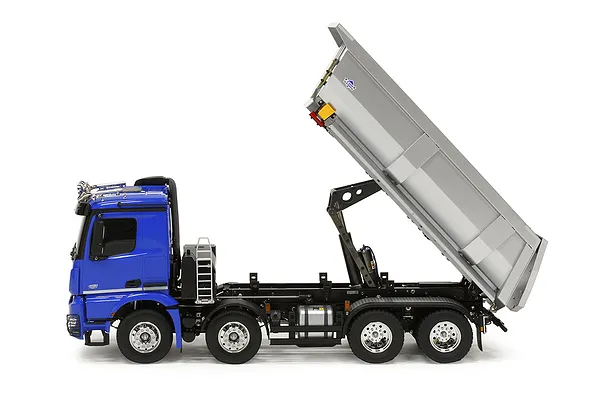

10kg Load Capacity with Transmitter Control (Actuator Required)

10kg Load Capacity with Transmitter Control (Actuator Required)

The model can handle and lift loads up to 10 kilograms, with bed motion controlled via the transmitter (requires actuator set).

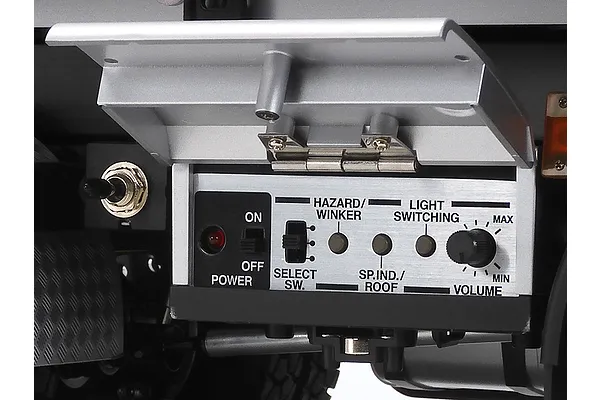

MFC Unit Housing in Exhaust Box

MFC Unit Housing in Exhaust Box

The exhaust box provides a convenient location for housing the MFC-03 control unit.

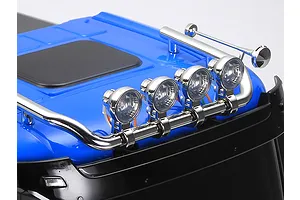

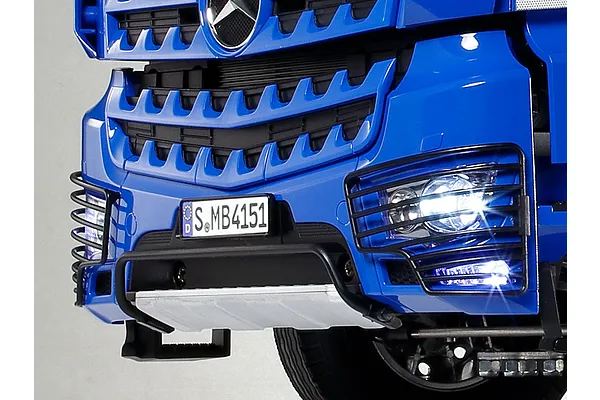

Headlight and Fog Lamp Illumination (MFC Unit Required)

Headlight and Fog Lamp Illumination (MFC Unit Required)

Illuminate the headlights and fog lamps behind their distinctive grilles with white LEDs using the separately sold MFC unit.

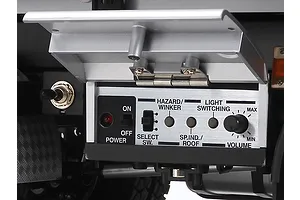

MFC Unit - Multi Function Control Unit (Sold Separately)

MFC Unit - Multi Function Control Unit (Sold Separately)

Transform your Tamiya 1/14 semi-truck into a true-to-life masterpiece with the must-have Multi-Function Control Unit (MFC Unit). This incredible unit adds a symphony of realistic sounds, synchronised vibrations that react to the truck's movement, and dazzling LED lights that illuminate every manoeuvre. With 24 different sounds, 9 types of lights, and vibrations that mimic engine idle and acceleration, the MFC Unit brings an unparalleled level of realism to your RC experience.

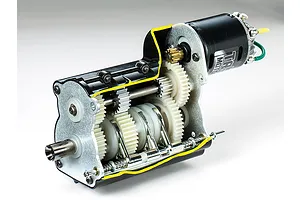

3 Speed Gearbox

3 Speed Gearbox

Experience the versatility of a 3-speed gearbox! Shift between low, medium, and high gears on the fly to create realistic big rig performance for different terrains and driving styles. Enjoy the flexibility of forward and reverse in each gear, giving you complete control over your RC adventures.

Specifications

Wheelbase133mm + 215mm + 103mm (5.24" + 8.46" + 4.06")
Tread156mm (6.14") (front), 138mm (5.43") (rear)
WeightApprox. 5.1kg (11.24 lb)
ChassisAluminium & Polycarbonate Resin Ladder Frame
SuspensionFront/Rear Leaf Spring Rigid
DrivetrainDual Rear Axle Drive
MotorTR Mighty Tuned (35T) Brushed

Dimensions

Length667mm (26.26")
Width196mm (7.72")
Height268mm (10.55")

Construction Vehicle

Scale1/14
Skill LevelExperienced
Construction Vehicle TypeDump Truck
CompletionKit
Drivetrain4WD

Factory Specs

Max LiPo Power2S (7.4v)
