Tamiya TT-02 Nissan Motul Autech Z RC Touring Car Electric 4WD 1/10 Scale Kit - Red

Name: Tamiya TT-02 Nissan Motul Autech Z RC Touring Car Electric 4WD 1/10 Scale Kit - Red
Brand: Tamiya
SKU: TAM-47503
Price: 307.94 AUD
Availability: InStock
Rating: 5 (1 reviews)

1/10
4WD
Kit
Brushed

Part no. 47503

1 in stock5.0

1 review

1 / 12

Videos

$307.94

or 4 fortnightly payments of $76.98 with afterpay

Tamiya TT-02 1/10 kit recreating the 2023 Super GT champion Nissan Motul Autech Z — factory painted body, shaft-driven 4WD, 10 gear ratio options. Requires ESC, servo, battery, charger and transmitter.

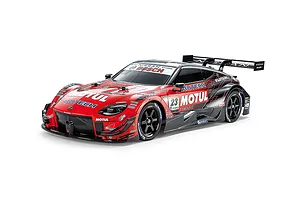

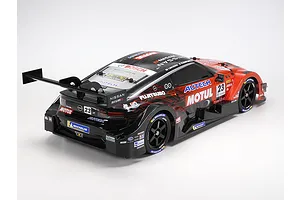

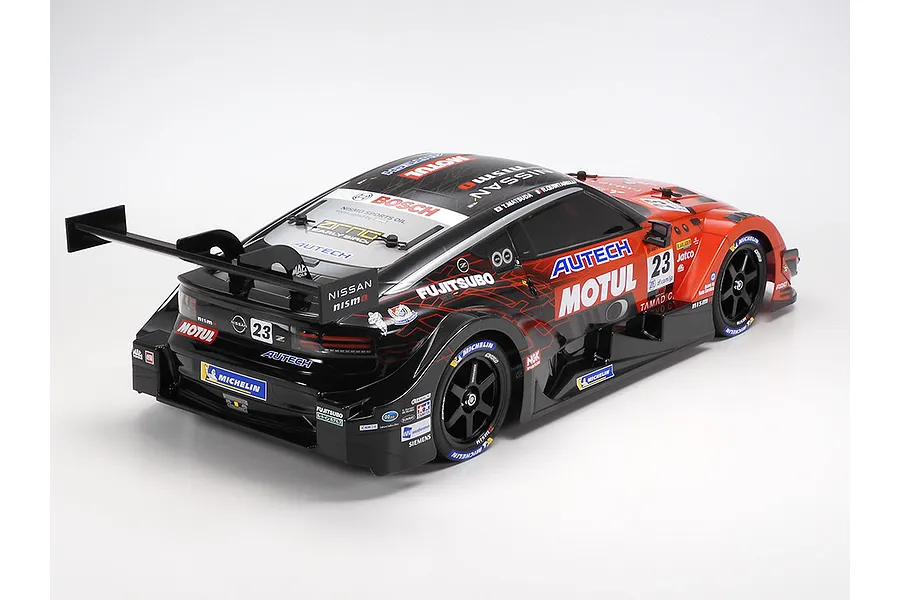

1/10-scale replica of the 2023 Super GT champion Nissan Motul Autech Z
Shaft-driven 4WD TT-02 chassis with 10 possible gear ratios and 2 wheelbase options
Factory painted and officially licensed Nissan polycarbonate body shell
Polycarbonate light buckets included for easy LED installation
Among the most upgradeable and adjustable chassis in the Tamiya line-up

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

1 in stock · Order in 9h 39m, dispatched today
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

You'll need

Not included: Compatible 7.4V LiPo or 7.2V NiMH Battery, Compatible Charger, Compatible 1/10 Scale ESC, Compatible 1/10 Scale Motor, Compatible 1/10 Scale Servo, 2+ Channel Transmitter & Receiver, AA Batteries for Transmitter.

BatteryTornado 7.2V 5000mAh NiMH Battery
$53.84
Steering ServoPower HD Standard LF-13MG 13kg Metal Geared Servo
$39.99
Transmitter & ReceiverFlySky FS-GT2F 2.4Ghz 2ch Radio w/ FS-A3 Receiver
$51.92
ChargerSkyRC S100 Neo AC/DC Smart Charger
$89.99
LiPo Safe Charging BagAtrek 180x80x60mm LiPo Safe/Protection Bag
$19.95
Transmitter BatteriesFujitsu 1.5v AA Alkaline Batteries 4Pcs
$6.99

This item + 4 required$426.79

Not added until you choose its options: Battery, Charger.

Videos

Overview

Please Note

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with a painted body that may require cutting and drilling.

Experience the thrill of the 2023 Super GT series with this Tamiya R/C car kit, recreating the fearsome Motul Autech Z, the weapon of choice for the NISMO team. While drawing inspiration from the NISSAN Z road car design, this model stands apart with its cutting-edge carbon fibre body and a heart-pounding front-mounted 550+ horsepower 2-litre turbocharged engine. Its dominance was evident from the beginning, claiming victory in the first race of the season at Okayama.

The TT-02 chassis is a shaft-driven 4WD platform that offers great stability with its longitudinal layout of the battery and motor. It is also easy to assemble and maintain, thanks to its symmetrical suspension arms and uprights and simple gearboxes. You can customise the chassis with 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios.

Note

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with a painted polycarbonate shell that may require cutting and drilling.

Features

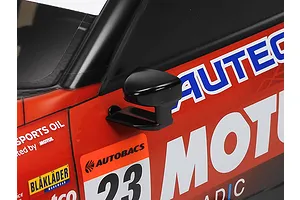

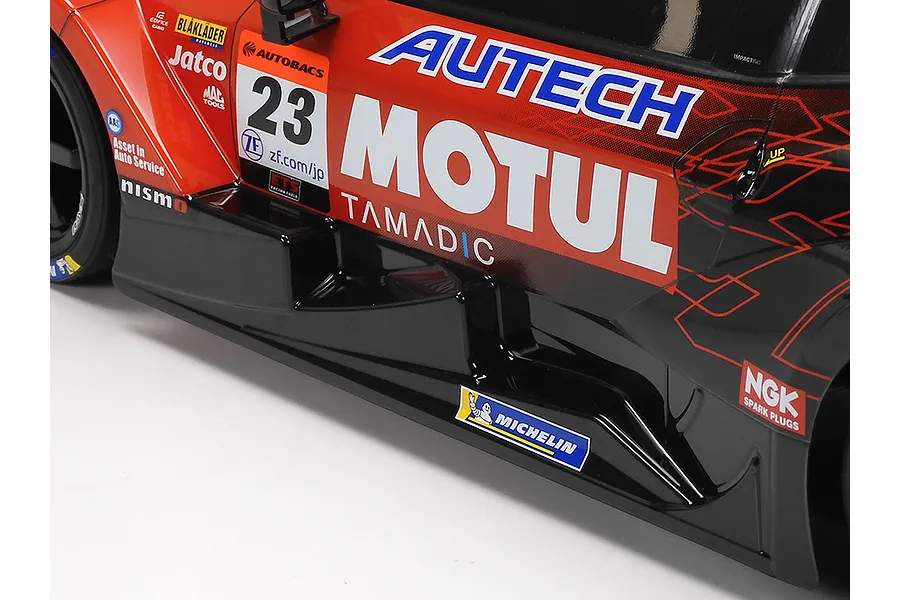

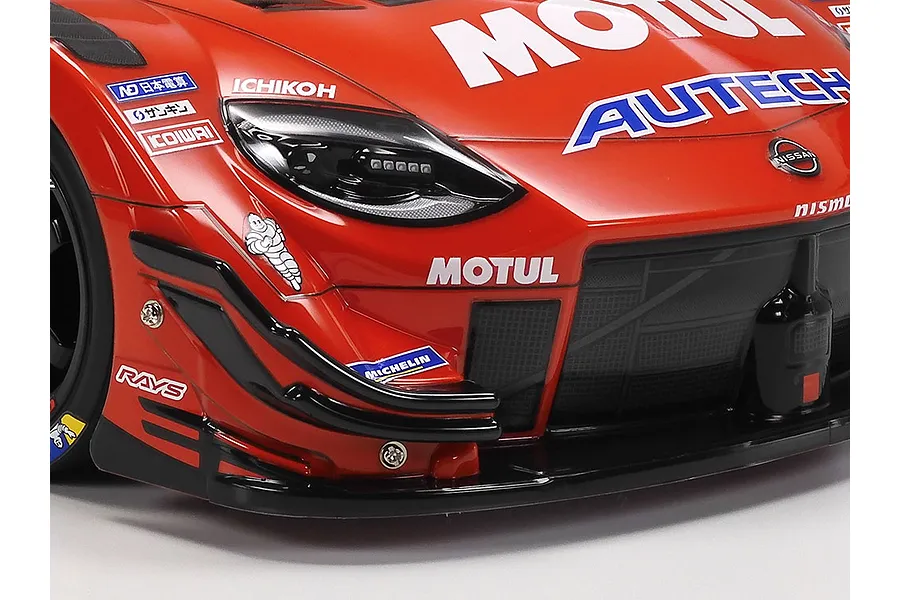

Carefully crafted polycarbonate shell recreating the Nissan Z
Chassis designed to be among the easiest to work on, making it perfect for beginners
Decal sheet included to help recreate the Nissan Motul Autech Z
Shell sits on the ever reliable TT-02 chassis, one of Tamiya's most recognisable chassis
Comes with a factory painted body shell
Officially licensed by Nissan
Comes with polycarbonate light buckets ready to make installing LEDs much easier

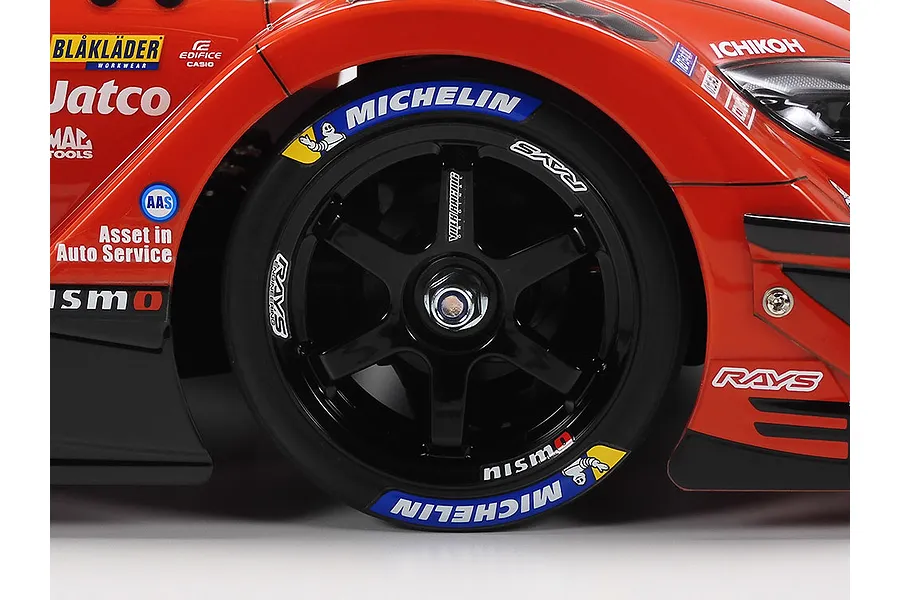

6-spoke rims that faithfully capture the look of the real car
The TT-02 boasts one of the most upgradeable and adjustable chassis in the Tamiya line-up
Genuine Tamiya Product

In the box

1x Tamiya 1/10 TT-02 Nissan Motul Autech Z RC Touring Car Electric 4WD Kit
1x 540 Sized Brushed Motor

You'll need

Compatible 7.4V LiPo or 7.2V NiMH Battery
Compatible Charger
Compatible 1/10 Scale ESC
Compatible 1/10 Scale Motor
Compatible 1/10 Scale Servo
2+ Channel Transmitter & Receiver
AA Batteries for Transmitter

Add them from the buy box

Highlights

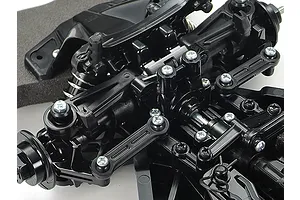

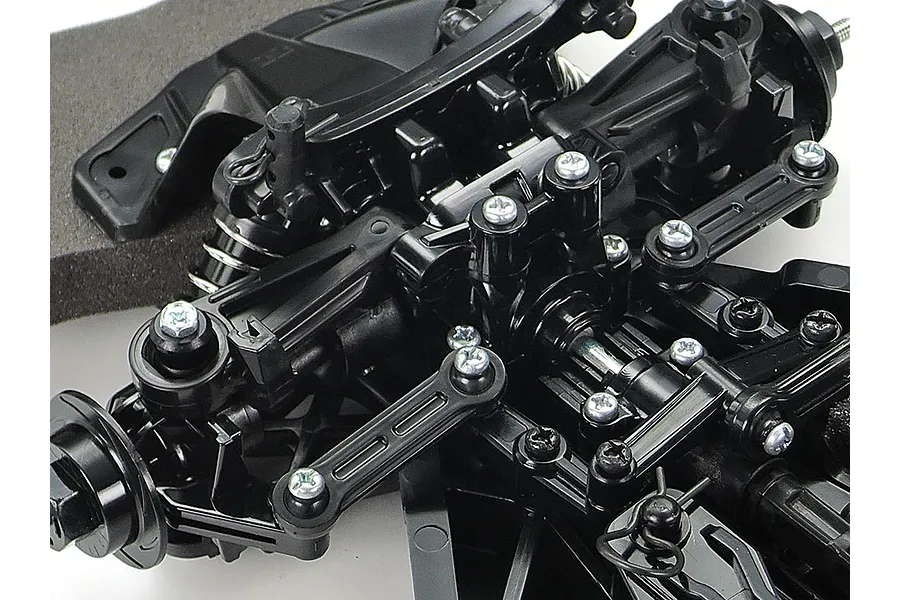

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

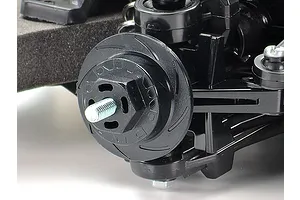

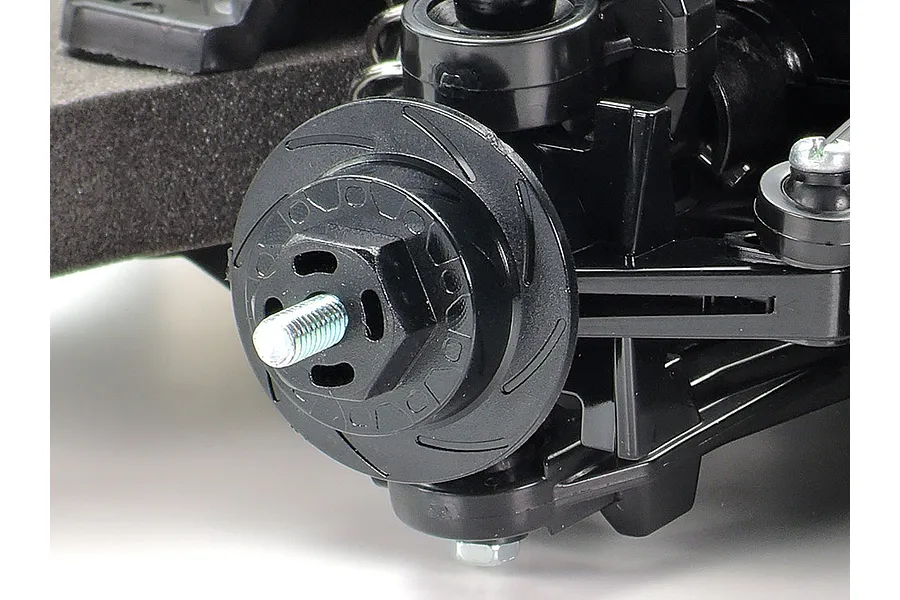

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

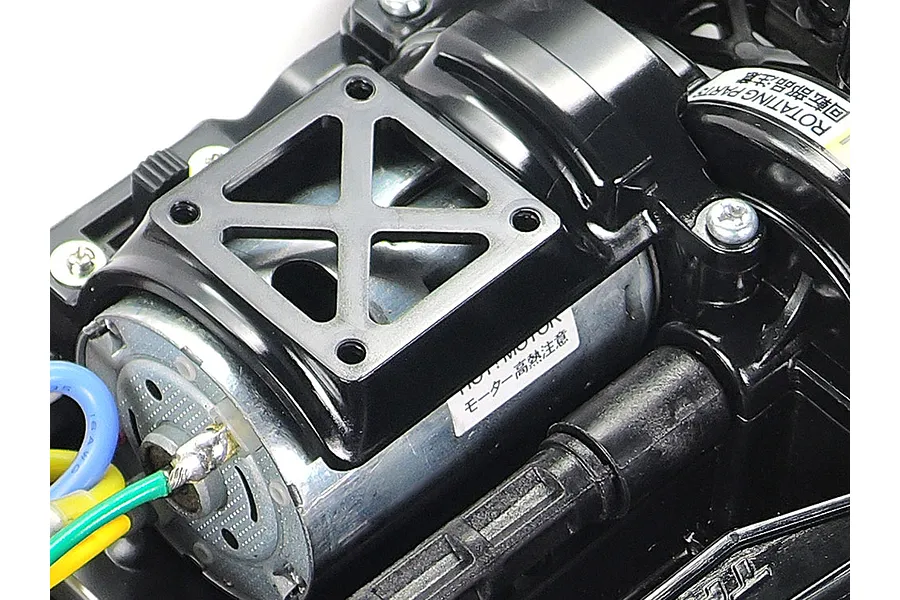

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

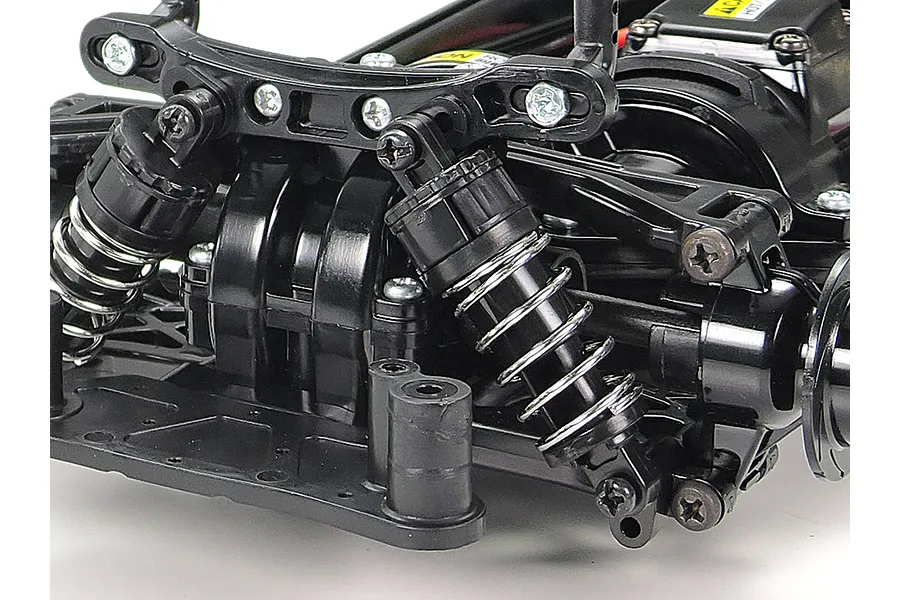

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Specifications

Length	468mm (18.42 in)
Width	188mm (7.40 in)
Height	120mm (4.72 in)
Wheelbase	257mm (10.12 in)
Weight	Varies
Tyre Diameter	66mm (2.59 in)
Chassis	Bathtub Type Plastic Chassis
Drivetrain	4WD
Gears	8.27:1
Suspension	Coil Over Shock Absorbers
Motor	540 Sized Brushed Electric
ESC	Not Included
