Name: Tamiya TT-02 1991 Audi V8 RC Touring Car Electric 4WD 1/10 Scale Kit (no ESC)
Brand: Tamiya
SKU: TAM-58682A
Price: 191.05 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

This Tamiya R/C kit recreates the classic Audi DTM racing car as raced during the 1991 DTM season. The Audi V8 touring car had a 456hp 3.6-litre V8 engine and Audi's famed Quattro four-wheel drive. In that season, it took four victories overall and carried Frank Biela to the drivers' title.

This model depicts the 4-door sedan body in polycarbonate with front and rear spoilers. With its imposing body, the Audi overcame significant ballast handicaps and stiff competition from the likes of BMW and Mercedes-Benz to bear driver Frank Biela to four wins and a superb Driver's Championship.

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right for excellent stability. It features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Lightweight and durable polycarbonate body
Stickers included to recreate the markings for the no.45 car driven by 1991 champion Frank Biela; window masking stickers included to aid painting
Two-piece mesh wheels (Item 50548 design) with silver colour rims and gold colour spokes, paired with racing slick tyres
4-bevel differential gears and 4-wheel double wishbone suspension for smooth driving
Includes 540 Torque-Tuned motor
Resin ball links in steering linkage joints for smooth, comfortable motion
Wheel hubs shaped to look like brake discs
Motor cover includes removable cooling duct

In the box

1x Tamiya 1/10 TT-02 1991 Audi V8 Touring Electric RC Car Kit
1x 540 Torque-Tuned Motor
1x Clear Polycarbonate Body Shell
1x Marking Sticker Sheet (no.45 Frank Biela livery)
1x Window Masking Stickers

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
Electronic Speed Controller (ESC)
2-Channel Transmitter & Receiver
Tamiya PS Polycarbonate Paint

Highlights

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

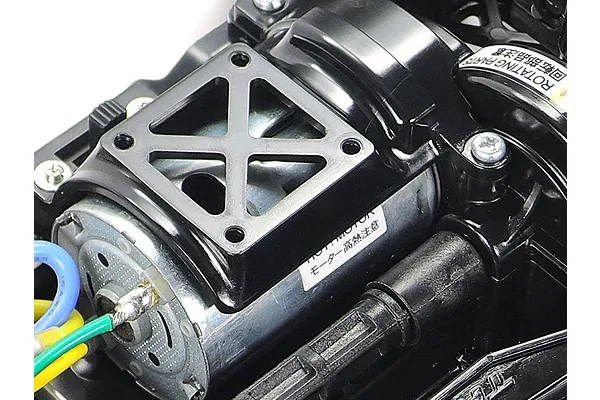

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

TT-02 chassis overview

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right to give excellent stability.

Audi V8 DTM body — side profile

This model depicts the 4-door sedan body in polycarbonate with front and rear spoilers.

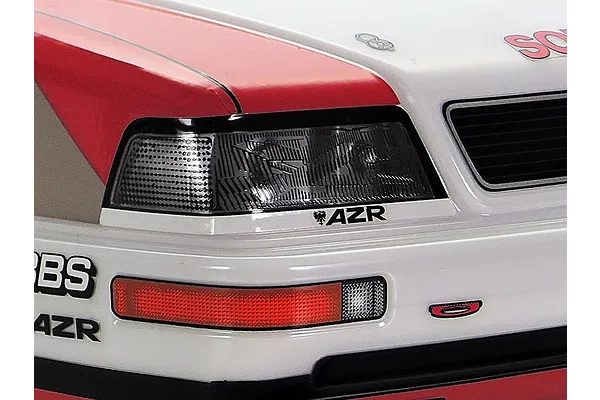

Polycarbonate headlight cases

Depictions of headlights with polycarbonate light cases and stickers.

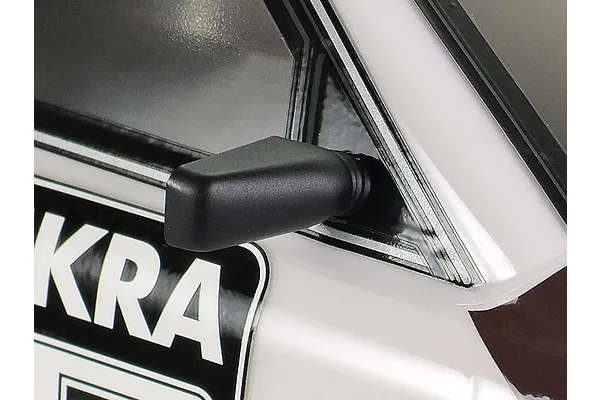

Audi-specific square side mirrors

Design of small square side mirrors is specific to Audi.

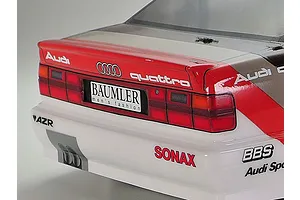

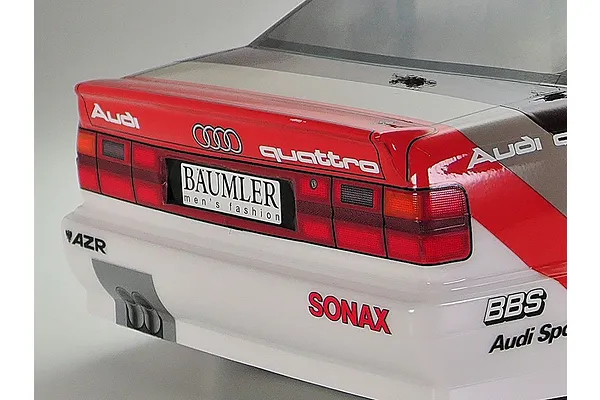

Polycarbonate taillight cases

Depictions of taillights with polycarbonate light cases.

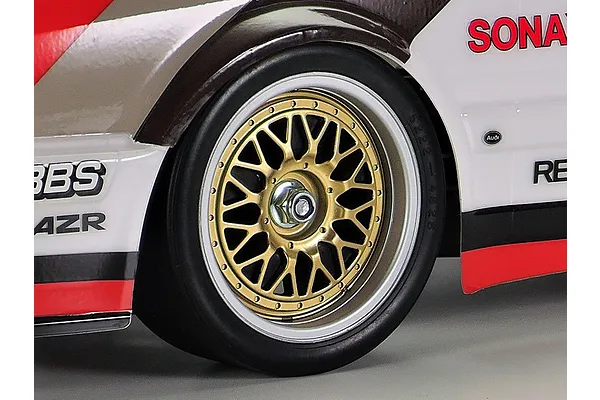

Gold-spoke slick-tyre wheels

Wheels use slick tyres with gold spokes and silver rims.

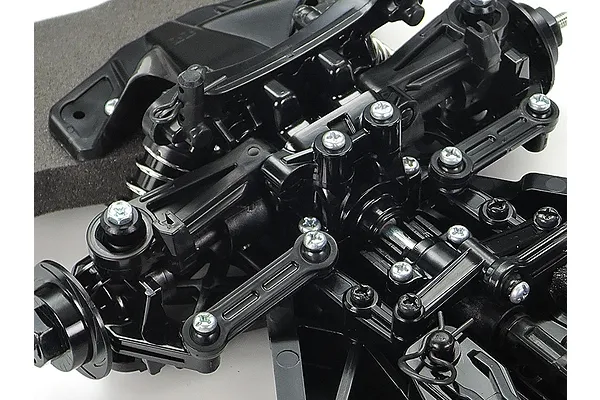

Resin ball-link steering joints

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

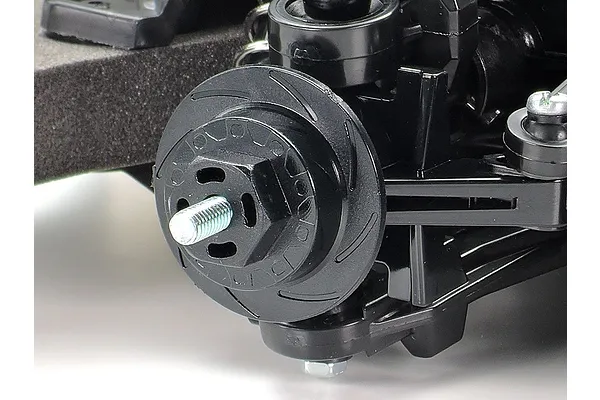

Brake disc-shaped wheel hubs

Wheel hubs are shaped to look like brake discs.

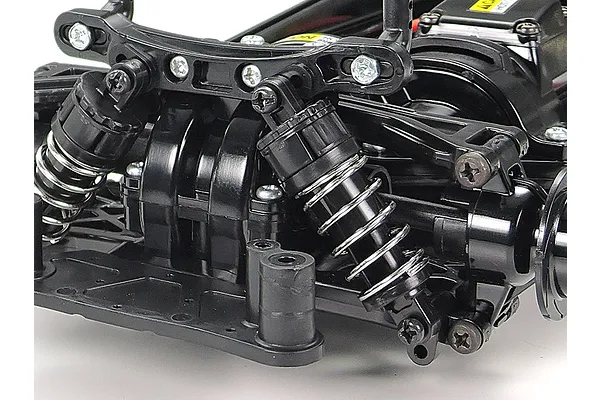

Rear double-wishbone suspension detail

This image gives a closer look at the rear double-wishbone suspension with friction dampers.

Specifications

Length	463mm (18.2")
Width	188mm (7.40")
Height	138mm (5.43")
Wheelbase	257mm (10.1")
Tyre Width/Diameter	26/66mm (Front & Rear)
Chassis Type	TT-02
Construction Type	Assembly Kit
Drive Type	Shaft-Driven 4WD
Differential	Front/Rear 4-Bevel Resin Differentials
Steering	3-Piece Steering Tie-Rod
Suspension	4-Wheel Fully Independent Double Wishbone with Friction Dampers
Gear Ratio	8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with separately-sold pinion)
Bearings	Plastic Bushing
Body Material	Polycarbonate
Motor	Brushed 540 Type
Scale	1/10
Terrain Use	On-Road
ESC	Not Included
