Name: Team Associated DR10M Team Kit RC Drag Race Car Electric 2WD 1/10 Scale Kit
Brand: Team Associated
SKU: ASS-70029
Price: 489.49 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

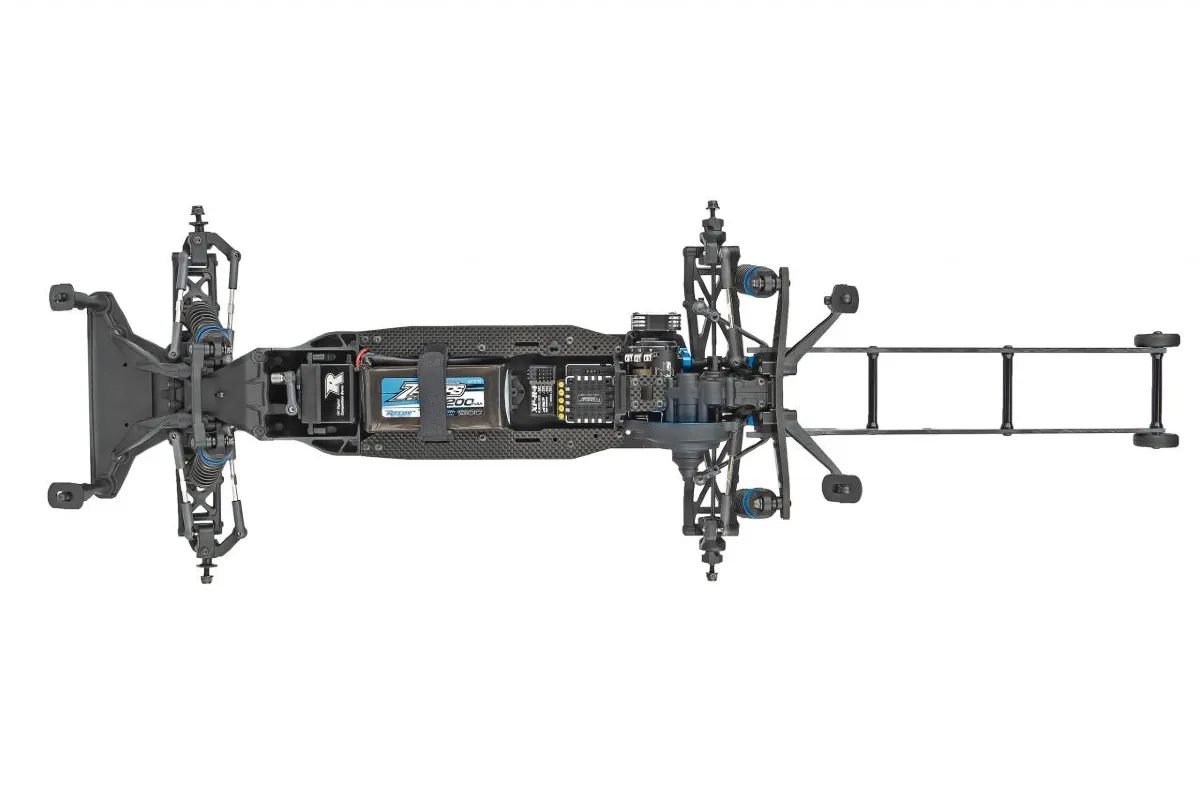

The mid-motor, 4-gear transmission in the all-new DR10M RC Drag Race car offers the advantage of using motor torque rotation to apply downward force to the rear tires. These forces generate additional rear end squat for off-the-line acceleration, giving the DR10M additional rear traction. The mid-motor set up shifts the weight distribution forward, reducing front-end lift. Additionally, the motor and tires share the same rotational direction, which produces quicker forward momentum. The DR10M Drag Race Team Kit is based on the successful DR10 drag race platform. The DR10M Team Kit features a rear anti-roll bar, 28 precision ball bearings, fully adjustable suspension, vertical ball ends for roll center adjustments, 2.6:1 ratio gearbox with heavy-duty sealed gear differential, and externally adjustable V2 slipper clutch. The new Octalock spur gear and 11mm Octalock pads provide maximum consistency and higher torque capacity.

Note

This is a kit and requires assembly. Additional components are required for operation.

Features

Mid-motor design creates improved traction and control in the vehicle's weight distribution
Durable front and rear wide body mounts
Rigid, 4mm thick carbon fiber rear shock tower

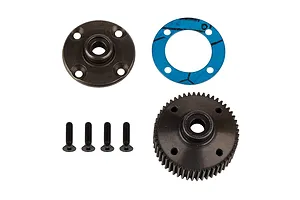

Heavy-duty sealed silicone-filled gear differential
Stiff rear anti-roll bar
Full adjustable double-ladder wheelie bar
Ball bearing wheelie bar wheels with rubber tires for increased straight-line stability
Height adjustable rear gearbox provides the ability to adjust drive shaft angle
All metal gear transmission with hardened steel top shaft
Octalock spur gear and 11mm Octalock pads for maximum consistency and higher torque capacity
4-gear rear transmission configuration aids in controlling weight movement providing more traction under acceleration
Rear CVA drive shafts for more reliability
V2 12mm Big Bore threaded aluminum shocks
Low center-of-gravity chassis with multiple battery and electronics mounting configurations
Rigid twin deck chassis design
Machined aluminum rear bulkheads
Machined aluminum rear suspension mounts
Rugged steel turnbuckles for adjustable camber and front toe-in
Adjustable suspension geometry
Vertical ball ends for roll center adjustments, front and rear
Many Factory Team options already available
28 precision ball bearings
Metric hardware throughout

In the box

1x Team Associated DR10M Team Kit

You'll need

1x 1:10 scale electric motor
1x Electronic speed control
1x 2S LiPo battery
1x Battery charger
1x 2-channel surface transmitter
1x 2-channel receiver
1x Steering servo
1x Body and paint
1x 1:10 scale 2.2" front tires and wheels
1x 1:10 scale 2.2" or 3.0" rear tires and wheels
1x Pinion gear
Optional: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors, Reamer or Hole Punch, FT Wrench Set, Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler

Specifications

Power Source	Electric
Terrain	On-Road
Body Style	Other
Scale Size	1:10 Scale
Assembly Level	Kit
Length	Varies
Width	272mm (10.71in)
Wheelbase	327mm (12.87in)
Weight	Varies
Gear Ratio	2.6:1
Drive	2WD
