Team Powers Radon Mini Spec V2BT 1S 105A Brushless ESC

Team Powers Radon Mini Spec V2BT 1S 105A Brushless ESC

Team Powers Radon Mini Spec V2BT 1S 105A Brushless ESC

Brand: Team Powers | SKU: TPRMSRADONV2BT-1S
discontinued
Description

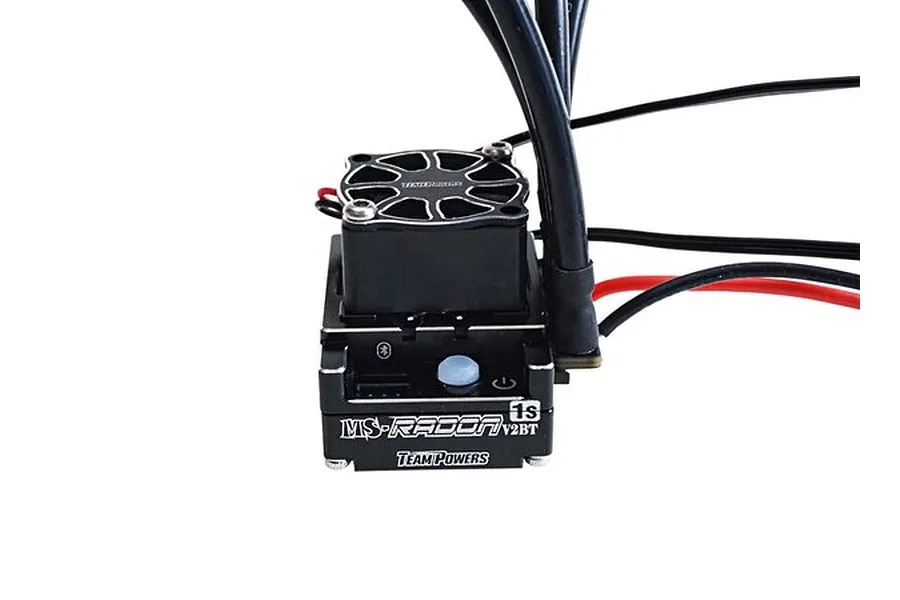

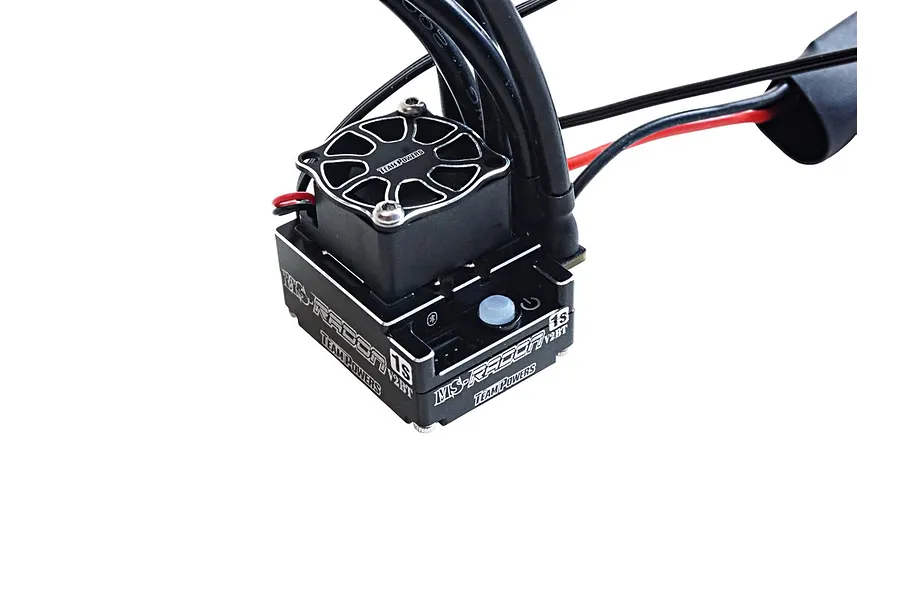

The Team Powers Mini Spec Radon V2BT 1S ESC is a compact yet powerful speed controller designed for 1S LiPo applications. It offers the same advanced functions as the Radon Pro V5BT 1S but in a significantly smaller footprint, approximately 25% smaller. This makes it ideal for applications where space is at a premium. The integrated Bluetooth support allows for convenient programming and firmware updates using mobile apps on iOS and Android devices.

The Mini Spec Radon V2BT boasts a 32-bit MCU, which provides ultra-smooth throttle and braking response, giving drivers precise control over their vehicle. With a maximum current draw of approximately 105A per phase, this ESC can handle demanding motors. It also features reverse polarity protection, a built-in one-touch on/off switch, and includes a new 20mm fan with a CNC aluminium fan guard for efficient cooling. The included 13AWG high-density copper soft wire ensures efficient power transfer. This ESC requires an external Bluetooth module (sold separately) for Bluetooth functionality.

Features
  • Approximately 25% smaller than Radon V5BT 1S
  • Bluetooth support for programming and firmware updates (requires separate module)
  • 32-bit MCU for ultra-smooth throttle and brake control
  • Supports 1S LiPo batteries (3.7V)
  • 6V/7.4V selectable BEC with max ~8A draw
  • Motor limit: 6.5T or higher (motor timing at 0 degrees)
  • Max ampere drawn: ~105A per phase
  • Reverse polarity protection
  • Built-in one-touch on/off switch
  • Includes new 20mm fan with CNC aluminium fan guard
  • Includes 13AWG high-density copper soft wire
  • Same functions as Radon Pro V5BT 1S
  • Genuine Team Powers Product
Specifications
  • Controls: Forward/Brake/Reverse
  • Input Voltage: 1S LiPo (3.7V)
  • BEC: 6V/7.4V selectable, ~8A max draw
  • Motor Limit: 6.5T or higher (0-degree timing)
  • Max Ampere Drawn: ~105A per phase
  • Size: ~31.5x25x15.5mm (1.24x0.98x0.61")
  • Weight: ~22g (0.78oz) without wiring and fan
Included Items
  • 1x Team Powers Mini Spec Radon V2BT 1S ESC
  • 1x 20mm Fan with CNC Aluminium Fan Guard
  • 1x 13AWG High-Density Copper Soft Wire
Note
  • An external Bluetooth module is required for Bluetooth functionality and is sold separately. Consult the user manual for detailed setup and programming instructions.
Specifications
ESC (Electronic Speed Controller)
For Motor Type
Brushless
Burst Amps
A
Battery Connector
Continuous Amps
105A
Dual Motor
No
Motor Connectors
BEC Voltage
7.4V, 6V
Cooling Method
Fan
Waterproof Design
No
Programmable
Yes
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Max Voltage
3.7V
