Yeah Racing

Yeah Racing Tritronic 4X Waterproof Brushed 120A ESC

  • Brushed

Part no. ESC-4X

1 in stockWrite a review
1 / 2
1 / 2

$115.78

or 4 fortnightly payments of $28.94 with afterpay

Waterproof brushed 120A ESC with dual XT90 inputs, aluminium case, and programmable BEC for serious monster trucks.

  • 120A continuous / 720A peak current handling
  • Waterproof design for all-terrain use
  • Dual XT90 plugs for series battery connection
  • Full aluminium case for heat dissipation
  • 6V or 7.4V BEC output, fully programmable
Select Male Connector
Select Wiring Configuration

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

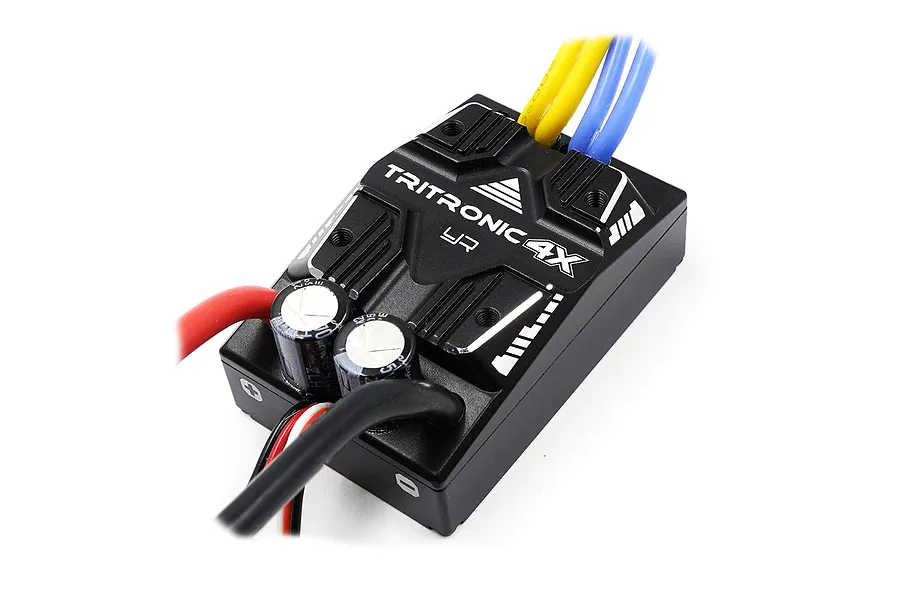

The Yeah Racing Tritronic 4X Waterproof Brushed 120A ESC is designed for serious monster trucks and high-voltage applications. This heavy-duty speed controller offers dual battery inputs, waterproof protection, and massive current handling for big rigs.

Note

Important: Electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

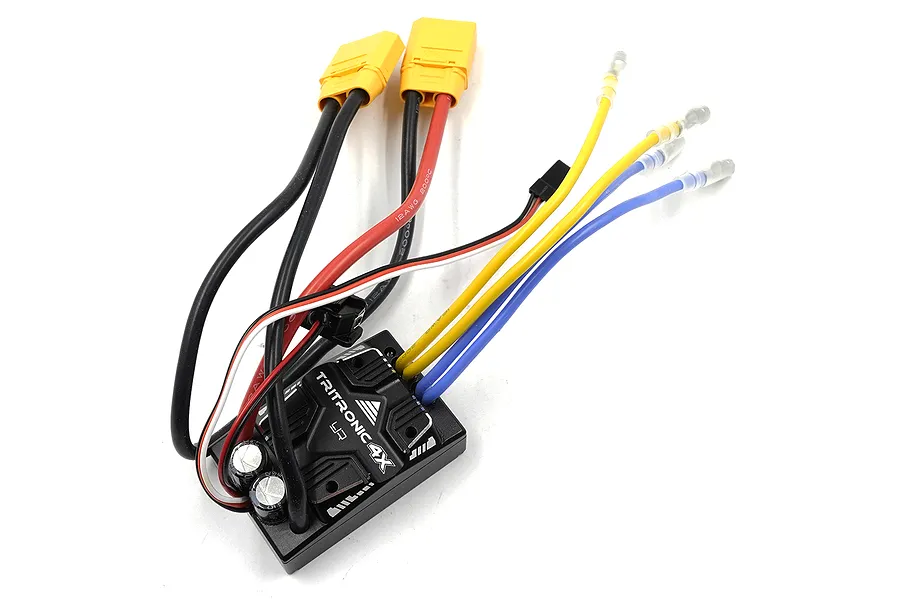

  • Dual XT90 plugs for running two batteries in series
  • Waterproof design for all-terrain adventures
  • 120A continuous current handling for demanding applications
  • Full aluminium case for superior heat dissipation
  • Choice of 6V or 7.4V BEC for versatile servo compatibility
  • Adjustable PWM and programmable parameters for fine-tuning
  • Double motor connectors for dual-motor setups
  • Genuine Yeah Racing product

In the box

  • 1x Yeah Racing Tritronic 4X Waterproof Brushed 120A ESC

Specifications

Continuous/Peak Current120A/720A
WaterproofYes
BEC5A Output (6V or 7.4V)
Voltage Limit2-6S LiPo / 5-18 Cells NiMH
ProgrammableYes
Scale1/10th
SensoredNo

ESC (Electronic Speed Controller)

For Motor TypeBrushed
Max Voltage22.2V
Waterproof DesignYes
Burst Amps720A
Continuous Amps120A
Motor ConnectorsBasic Bullet
Battery ConnectorXT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodAir
BEC Voltage6V, 7.4V
Dual MotorYes
