Tamiya M-07R RC Touring Car Electric 2WD 1/10 Scale Kit
Tamiya M-07R RC Touring Car Electric 2WD 1/10 Scale Kit
Tamiya M-07R RC Touring Car: The Ultimate RC Chassis for Precision Handling and Versatility!
Perfect for intermediate and experienced kit builders
Compatible with a wide range of aftermarket and OEM upgrade parts
Compatible with brushed and brushless electronics
Aluminium Hop up parts are included as standard
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$238.63
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$244.35
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$243.78
This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

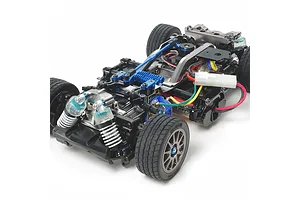

The Tamiya M-07R Chassis Kit is a high-performance front-wheel-drive chassis designed for serious racers and enthusiasts who demand the best. This innovative chassis features a rigid monocoque construction with lower deck and upper frame sections, providing exceptional durability and responsive handling. The M-07R is designed for easy maintenance, with features like an easy-access differential that can be removed from the underside with minimal disassembly.
The chassis boasts a range of advanced features that enhance its performance and versatility. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension, with dedicated long arms and steering linkage components, offers a wide range of setup options for fine-tuning the car's handling characteristics. The drivetrain is incredibly smooth thanks to full ball bearings, an oil-filled gear differential unit, and universal drive shafts. The M-07R can be assembled with either a 225mm (M) or 239mm (L) wheelbase, making it compatible with a variety of existing Tamiya M-chassis body parts sets. With its combination of performance, versatility, and ease of maintenance, the Tamiya M-07R Chassis Kit is the perfect choice for serious RC enthusiasts.
The suspension arms and linkages are designed for maximum articulation, with an optimised damper lever ratio and adjustable camber angle for precise handling and control.
The car is designed for easy maintenance, with convenient access to the differential gear from the bottom of the chassis. This simplifies differential servicing and reduces the time spent on repairs.
The car comes standard with an oil-filled gear differential and universal shafts, ensuring smooth and efficient power transfer for optimal performance and durability.

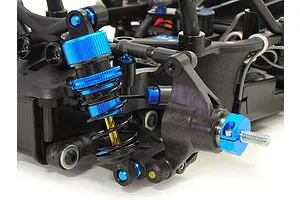

The front suspension is engineered for precision and performance, featuring TRF special dampers, double cardan drive shafts, aluminium cup joints, and aluminium hexagonal hubs. Reinforced suspension arms and uprights enhance durability, while the rear suspension includes a stabilizer for added stability. A dedicated carbon battery holder provides a secure and lightweight mounting solution.
The car's chassis features a high-traction lower deck that optimizes grip and handling. This design promotes controlled twisting, improving road tracking and allowing the car to maintain speed through corners.
The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro It is designed to offer excellent rigidity with easy maintenance
Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction
Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components Rear toe can be adjusted simply using spacers
4-wheel double wishbone suspension is fitted with CVA oil shocks
The TA06 oil-filled gear differential is used to drive the M-07 It is paired with universal drive shafts and full ball bearings
Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs
Compatible with Low-Profile servos
Aluminium hop up parts included as standard
The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack
Body mounts have a new reinforced design for more secure body attachment
The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact
Monocoque frame chassis (with detachable lower section)
Long suspension arms
CVA oil dampers
Full ball bearings
Gear differential unit
Universal drive shafts
Hi-torque servo saver
Genuine Tamiya Product
Length: 332mm (13")
Width: 164mm (6.45")
Height: N/A
Wheelbase: 225mm (8.85") (Adjustable)
Weight: Varies
Chassis: M-07 (Touring Car)
Drivetrain: 2WD
Suspension: Oil Filled Coil Over Shock Absorbers
Motor: Not Included
ESC: Not Included
1x 1/10 M-07R Electric On Road RC Car Kit
1x Compatible 7.4V LiPo
1x Compatible Charger
1x Compatible 1/10 Scale ESC

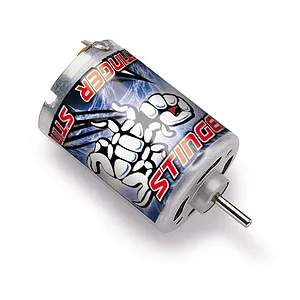

1x 540 Sized Brushed Motor
1x Compatible 1/10 Scale Servo
1x 2+ Channel Transmitter & Receiver
1x 225mm Body Shell
Polycarbonate Compatible Paint
AA Batteries For Chosen Transmitter
-
Pinion Gear
- 20T
-
Spur Gear
- 52T
-
Front Differential Oil
- 100000cSt
-
Wheel Hex Size
- 12mm
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Not Included
-
Completion
- Kit
-
Skill Level
- Intermediate
-
Drivetrain
- 2WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- On Road
-
Chassis Type
- Car
-
Power Source
- Electric
-
Scale
- 1/10
-
Suited Motor/ESC Type
- Electric
