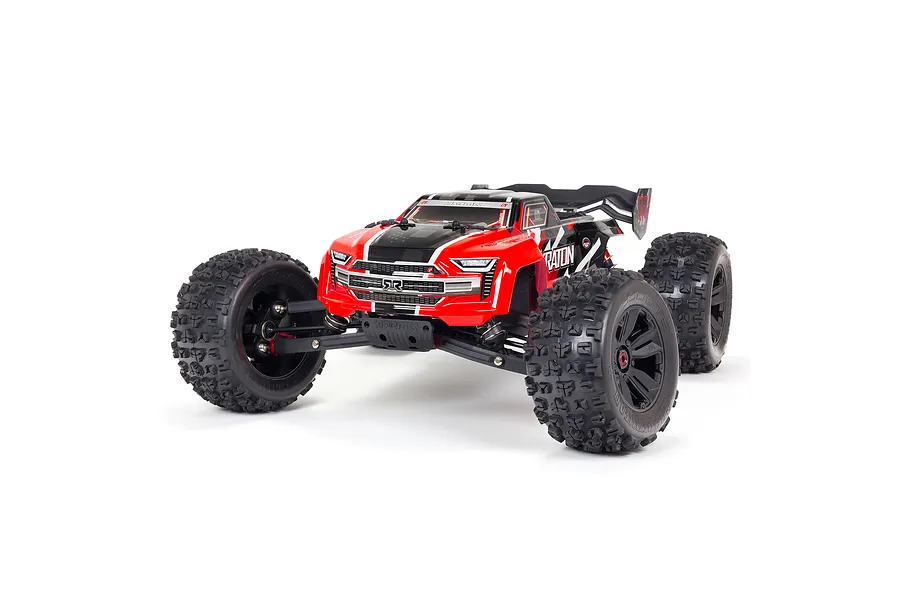

ARRMA Kraton 6S BLX V5 RC Truggy Electric Brushless 4WD 1/8 Scale RTR - Red

  • 1/8
  • 4WD
  • RTR
  • Brushless

Part no. ARA8608V5T1

DiscontinuedWrite a review
1 / 16
1 / 16

Videos

Select Option: Red

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Optional High Speed Gear

Using the optional high speed gear will void the warranty. Please contact us for more details.

The ready-to-run ARRMA® KRATON™ 6S BLX 4WD Speed Monster Truck now comes equipped for even greater all-terrain, 1/8 scale bashing thrills — with a Spektrum™ SLT3™ 3-channel radio, SLT™/DSMR® dual protocol receiver, Smart ESC, stronger servo and more.

Equipped with a Spektrum Firma 4074 2050Kv brushless motor that can handle two 11.1v LiPo batteries which combined will deliver 22.2 volts of raw power, with 6 steel drive shafts.

The Spektrum™ S652 Digital Servo is 32% stronger and 5% faster than the previous version's ADS-15M servo. Add a 4S or 6S LiPo battery and this truck can reach 60+ MPH in optimum conditions with a 6S LiPo and the included optional speed pinion gear.

Multi-split-spoke wheels with dBoots® COPPERHEAD 2™ tyres and a high downforce wing contribute to confident control and responsive handling at high speeds. A sliding motor mount and 4-bolt centre diff removal keep maintenance simple.

Features

  • Ready-to-Run
  • 60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the included optional speed pinion gear
  • Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
  • Spektrum™ SR315 Dual Protocol 3-Channel Receiver
  • Spektrum™ S652 Digital Servo
  • Spektrum™ Firma™ 150A Smart ESC
  • Spektrum™ Firma™ 4074 2050Kv Brushless Motor
  • Safe-D pinion gears
  • EXB front brace compatible top plate
  • Stronger chassis design
  • Heavy-duty arms front and rear
  • Updated rear shock tower geometry
  • Large volume waterproof* receiver box
  • Anodized aluminium chassis
  • Strong composite chassis side pods
  • Centre body support and brace for maximum durability
  • High downforce wing
  • Oil-filled adjustable shocks
  • Black-anodized aluminium front and rear shock towers
  • Durable steel driveshafts throughout
  • All-metal diff outdrives and gearbox internals
  • Never-loose red aluminium servo saver
  • Never-pop ball ends
  • 4-Bolt centre diff removal
  • Easy-access sliding motor mount for quick motor removal
  • Multi-split spoke wheels
  • Durable wheel hubs for increased strength
  • Hub nut O-rings
  • Multi-terrain dBoots® COPPERHEAD 2™ tyres
  • Detailed decals — body print style in red/black or blue/black
  • IC5® connectors (EC5™ compatible)

In the box

  • 1x ARRMA Kraton 6S RC Truggy Electric Brushless 4WD 1/8 Scale RTR
  • 1x Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
  • 1x Spektrum™ S652 Metal-Geared Digital Servo (installed)
  • 1x Spektrum™ SR315 3-Channel Dual Protocol Receiver (installed)
  • 1x Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
  • 1x Spektrum™ Firma™ 4074 2050Kv Brushless Motor (installed)
  • 1x 1/8 KRATON 6S V5 4WD BLX Manual

You'll need

  • 4S or 6S LiPo Battery
  • Charger
  • Charging Bag
  • 4x AA Batteries

Highlights

Maximum Off Road Grip

Maximum Off Road Grip

Equipped with DBOOTS® COPPERHEAD 2 tyres, you're ready to unleash its full off-road potential. Tear through any terrain with aggressive tread and unstoppable traction. These stylish multi-spoke wheels aren't just for show - they're built to handle the punishment!

6S Capable Electronics

6S Capable Electronics

This beast is equipped with 6S capable electronics. This powerhouse duo delivers waterproof* and dustproof performance, reliable IC5® connectors, and intelligent Spektrum® SMART Technology for precise control. The motor's 4-pole construction ensures smooth power delivery, while the ESC's integrated fan keeps things cool under pressure. Get ready to push the Kraton to the limit!

90+ KMH Speed

90+ KMH Speed

This beast is built for speed! ARRMA have included an optional speed pinion gear and have built the Kraton tough, with a red anodised motor mount and Mod 1 gears, to help you unlock its full potential. Get ready to experience 1/8 bashing at its peak as you blast past 90 KMH!

Rubber Shielded Bearings

Rubber Shielded Bearings

Rubber-shielded bearings mean your Kraton V5 will spend less time in the garage and more time tearing up the track. Enjoy longer life and less maintenance so you can focus on the fun!

Updated Steering

Updated Steering

ARRMA have refined the rear shock tower geometry and suspension arms for a smoother, more forgiving rear end. Plus, the new compact shock tower design is tucked away for better protection against those inevitable upside-down landings.

Safe-D Drivetrain

Safe-D Drivetrain

The Kraton features strengthened input gears and drive cups for maximum durability. Keyed composite sleeves ensure the drive cup set screws stay put, even during the most intense bashing sessions.

Specifications

Length594mm (23.39")
Width461mm (18.15")
Height195mm (7.68")
Weight4.85 kg (10.11 lbs) (without battery)
Wheelbase377mm (14.84")
Drivetrain4WD
MotorSpektrum™ Firma™ 4074 2050Kv Brushless Motor
ESCSpektrum™ Firma™ 150A Smart 4S/6S ESC

RC Car

Scale1/8
Max LiPo Power6S (22.2v)
CompletionReady to Run
Skill LevelExperienced
Power SourceElectric Brushless
Chassis TypeTruggy
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorIC5, EC5
Front Shock Oil1,000cSt
Rear Shock Oil1000cSt
Front Differential Oil10,000cSt
Centre Differential Oil100,000cSt
Rear Differential Oil10,000cSt
Pinion Gear15T 1Mod
Spur Gear50T 1Mod
Wheel Hex Size17mm

Parts

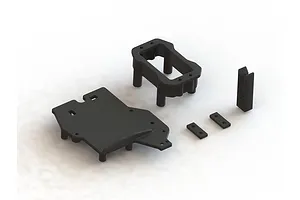

Top parts for this ARRMA Kraton 6S BLX V5 RC Truggy Electric Brushless 4WD 1/8 Scale RTR - Red
