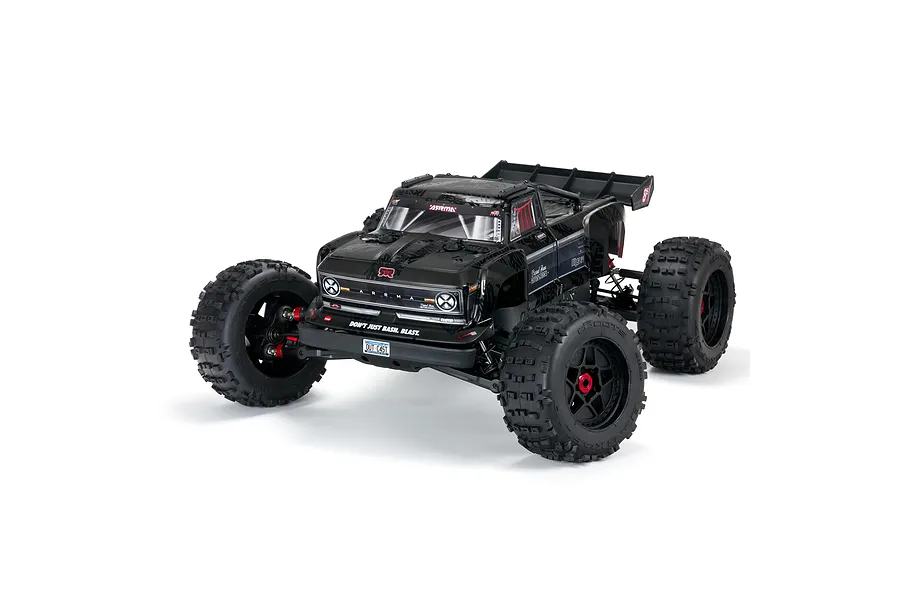

ARRMA Outcast EXtreme Bash RC Truggy Electric 4WD 1/5 Scale Roller - Black

ARRMA Outcast EXtreme Bash RC Truggy Electric 4WD 1/5 Scale Roller - Black

ARRMA Outcast EXtreme Bash RC Truggy Electric 4WD 1/5 Scale Roller - Black

Brand: ARRMA | SKU: ARA5210
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck

This is ARRMA® bashing performance at its biggest and best! Fully assembled and ready to complete with your choice of radio and 8S brushless power system, the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller is the perfect platform for blasting over rough terrain and performing flips and tricks with ease.


Equipped right out of the box with a premium package of EXtreme Bash (EXB) parts and options, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller is the top-of-the-line ARRMA® large-scale stunt vehicle. It has extra toughness everywhere it counts. Components receiving the EXB treatment include the 5mm thick EXB 7075 T6 CNC aluminium laser-etched chassis plate; EXB red-anodized CNC aluminium front brace mount; and exclusive EXB matte and gloss effect finished body for a look, unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller blasts over dirt and asphalt and grass — all terrain and all conditions. Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling.

A centre body support, aluminium centre braces and composite chassis side pods add more strength. The all-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to demanding stunts and brutal terrain.

ARRMA® engineering also cuts your maintenance time to the minimum. The 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, moulded electronics module contains a waterproof receiver box, servo mount and ESC tray and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller more than just massive and powerful. It's the ultimate ARRMA® stunt bash machine for the ultimate large-scale experience.


1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST™ EXtreme Bash Stunt Truck Roller virtually unstoppable strength.

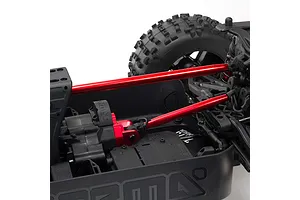

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Steel Turnbuckles

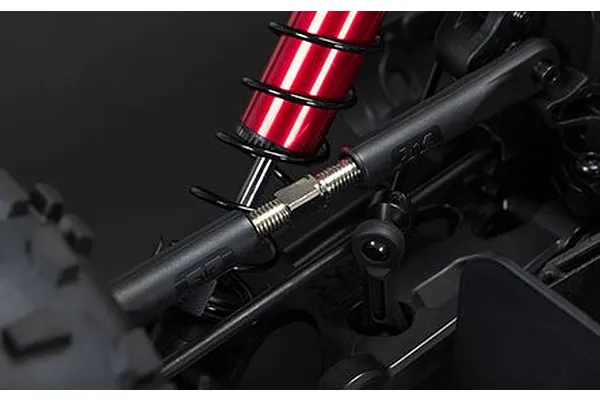

Steel Turnbuckles

Heavy-duty components, including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles, enable the 1/5 scale OUTCAST™ EXB to withstand extreme off-road bashing.

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Oil Filled Shocks

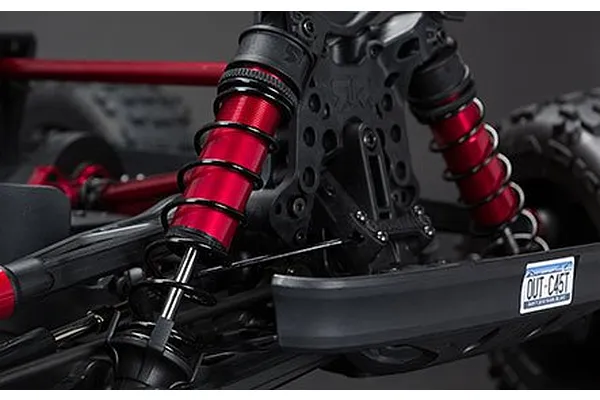

Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts quickly soak up bumps.

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Dboots Tyres

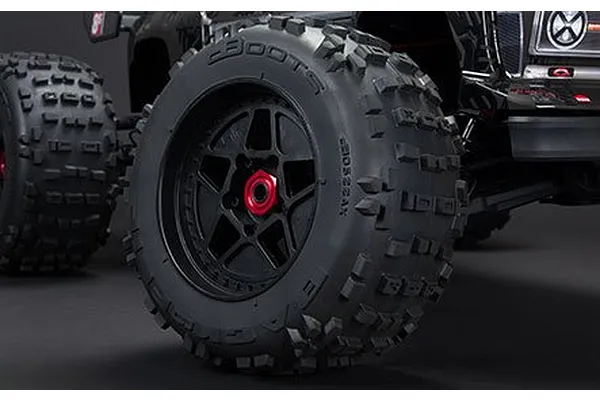

High-Traction dBoots® Tyres

Long-lasting dBoots® Back-Flip tyres on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.

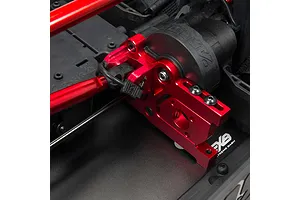

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Electronics Module

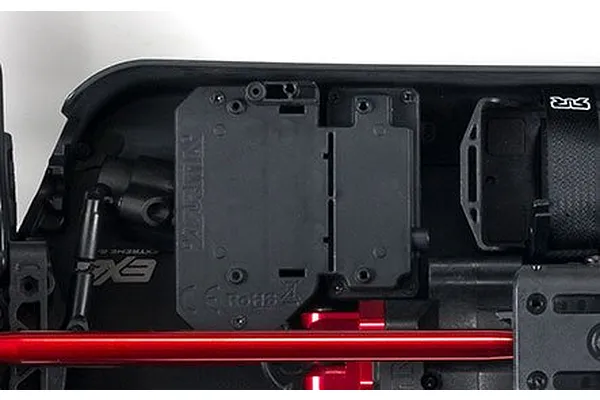

Electronics Module

The easy-access, moulded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.

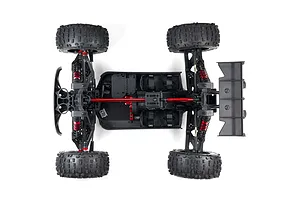

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Multi-Centered Brace System
Multi-Structured Centre Brace System

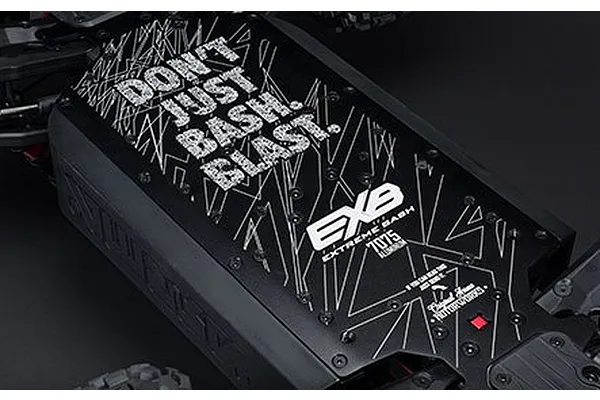

Made of rugged anodised 7075 T6 aluminium, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a centre body support and brace for maximum durability.

1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck Durable Metal Construction

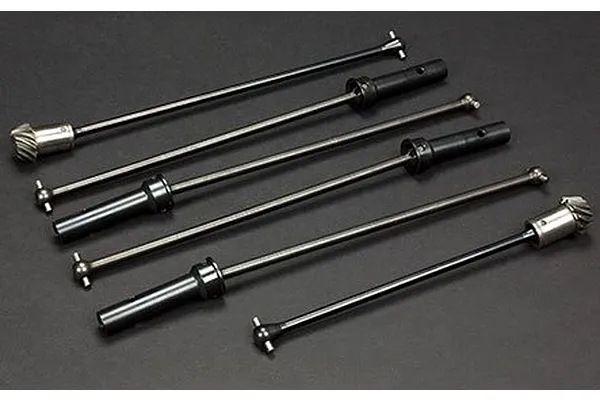

Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keeps the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.


Features

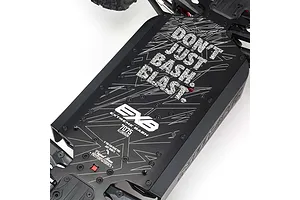

EXB 7075 T6 5mm thick CNC aluminium laser-etched chassis plate
EXB Red-anodised CNC aluminium front brace mount

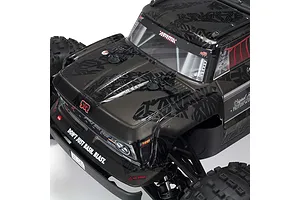

EXB Matte and gloss effect body
Heavy-duty 8mm thick steel rear turnbuckles
Heavy-duty 7mm thick steel steering turnbuckles
Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
Heavy-duty servo saver springs
Front and rear sway bars
Red-anodized aluminium 49 and 56 series motor plates
dBoots® Back-Flip tyres
47T and optional 39T Spur Gear
Servo mounts for 1/5 and 1/6 servos

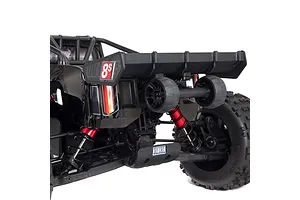

Wheelie bar

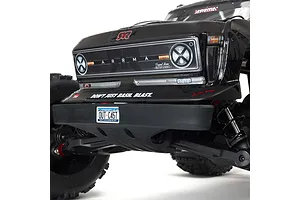

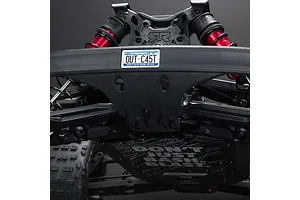

Front bumper with impact-absorbing design
Easy-access 3-bolt sliding motor mount for quick motor removal
Ultra-thick composite front and rear shock towers
Black anodised aluminium rear lower chassis brace
Multi-structured centre brace system for maximum durability
Heavy-duty drivetrain
Easy-access front and rear diff module design
All-metal diff outdrives and gearbox internals
Durable steel driveshafts
Durable wheel hubs for increased strength
An easy-access waterproof electronics module
Centre body support and brace for maximum durability
Strong composite chassis side pods
2-year warranty (see website support for details)
Specifications
Approximate Assembly Time: 1 - 3 hours
Ball Bearings: Full set, rubber shielded
Battery: Sold Separately
Body: Painted, decal and trimmed
Charger: Sold Separately
Chassis: 5mm plate, 7075-T6 aluminium
Completion Level: Roller
Differential: Gear type, three diffs total
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 9.1 - 28.4
Front Track: 596mm (23.46")
Power Type: Electric
Internal Gear Ratio: 9.06
Product Height: 305 mm (12.01")
Product Length: 714 mm (28.11")
Product Weight: 10.6kg (23.32lbs)
Product Width: 596 mm (23.46")
Radio: Sold Separately
Rear Track: 596mm (23.46")
Receiver: Sold Separately
Scale: 1/5
Servos: Sold Separately
Shock Type: Aluminum body oil-filled coil-over springs
Speed Control: Sold Separately
Spur Gear: 47T fitted, 39T included
Suspension: Independent
Vehicle Type: Monster Truck
Water-Resistant: Yes
Wheelbase: 430 mm (16.93")

Included items

ARRMA® OUTCAST™ 1/5 4WD EXtreme Bash Stunt Truck Roller
Optional 39T Spur Gear
49 Series Motor Plate
56 Series Motor Plate
1/5 Servo Mounts
1/6 Servo Mounts
Product Manual

Required Items

Motor
Pinion
Electronic Speed Control
Transmitter
Receiver
Steering Servo
Batteries
Charger
LiPo Charging Bag
