ARRMA

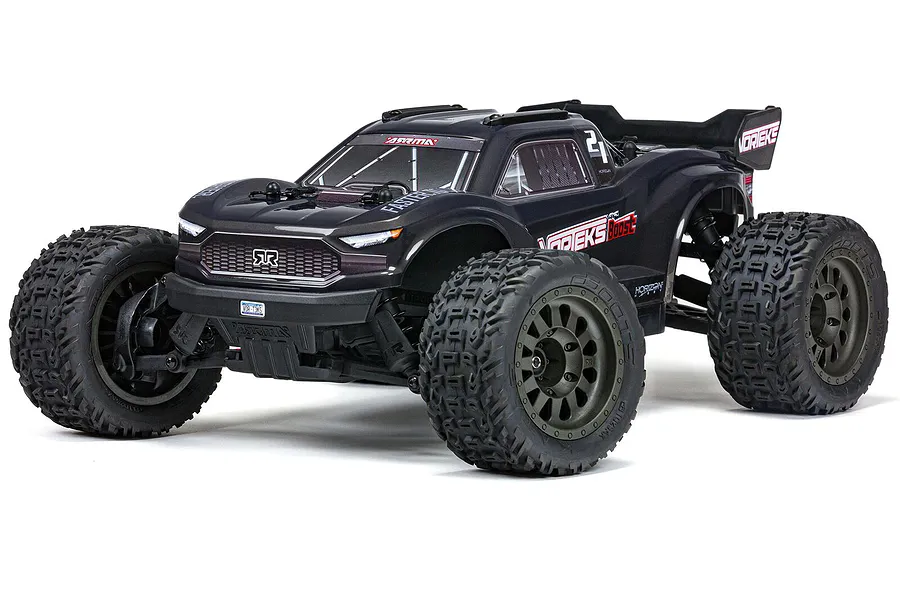

ARRMA VORTEKS 4X2 Boost 550 Mega RC Stadium Truck Electric 2WD 1/10 Scale RTR - Gunmetal

  • 1/10
  • 2WD
  • RTR
  • Brushless

Part no. ARA4105SV4T2

DiscontinuedWrite a review
1 / 14
1 / 14

Videos

Select Option: Gunmetal

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

The Spektrum smart charger will ONLY work with Spektrum NiMh & LiPo batteries, any non Spektrum batteries will NOT work with the kit charger.

If you're looking for your first hobby-quality RC basher vehicle, nothing else compares to the ARRMA VORTEKS 4X2 BOOST 550 MEGA Brushed 2WD. Based on the proven ARRMA 4X4 platform, ready-to-run 4X2 BOOST 550 MEGA Brushed 2WD vehicles can be upgraded easily to 4-wheel drive and 3S brushless power whenever you're ready. What's more, they also offer great value. Even without those upgrades, the VORTEKS 4X2 BOOST 550 MEGA Brushed 2WD stadium truck can reach speeds of 30+ MPH in optimum conditions using optional gearing. For all-terrain toughness, it includes a strong composite chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber shielded bearings throughout. The VORTEKS 4X2 BOOST is engineered to outlast other beginner-level bashers. It retains the ingenious modular chassis design perfected by ARRMA engineers for easy component access. Separate, easily removable modules for the power system, electronics, and differential components make routine vehicle maintenance fast and simple. The self-bleeding, oil-filled shocks with silicone O-rings use a tried and tested, coil-over design for effortless maintenance and amazing handling. The spring perches feature integrated dirt guards to keep the shocks running smooth. Shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts. An injection molded rear wing and body protection roof skids are also included. The VORTEKS 4X2 BOOST is brushless-ready, so you can easily upgrade from its included 550 MEGA brushed power system to 3S brushless power whenever you're ready. And with the 4X4 BOOST Transmission Upgrade Set (sold separately), the extra traction of 4-wheel drive is just three simple steps away.

Note

The Spektrum smart charger will ONLY work with Spektrum NiMh & LiPo batteries. Any non-Spektrum batteries will NOT work with the kit charger.

Features

  • 2-Wheel drive 4X2 transmission, upgradable to 4X4 (using 4X4 BOOST Transmission Upgrade Set, sold separately)
  • Spektrum 2.4GHz SLT2 transmitter with 50/75/100% throttle modes
  • Spektrum SLT 2-in-1 40A ESC & Receiver
  • MEGA 550 12T brushed motor
  • Spektrum S650 waterproof digital servo offering 84 oz-in of torque
  • Metal internal geared diff
  • 1.35 module input and main diff gear teeth
  • Strong composite chassis with extended height dirt defenders
  • Impact absorbing bumpers
  • Steering system with stone clearance
  • Easy-access modular design — power, diff, and electronics modules can be removed for maintenance quickly and easily
  • Double-wishbone suspension front and rear
  • Vented dBoots Fortress MT tires that disperse water for improved durability
  • AA transmitter batteries included
  • 2-year limited warranty — see website for details

In the box

  • Spektrum SLT 2-in-1 40A ESC & Receiver
  • ARRMA MEGA 550 12T Brushed Motor
  • Spektrum 2.4GHz SLT2 Transmitter
  • Spektrum S650 Waterproof Digital Servo
  • Spektrum Smart charger

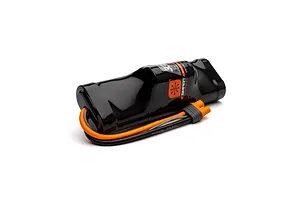

  • Spektrum 3300mAh NiMh 7 cell battery
  • AA Transmitter Batteries
  • Product Manual

You'll need

  • 1x 18W+ QC 2.0 or 3.0 USB Charge Adapter

Highlights

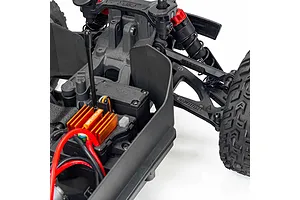

SIGNATURE EASY-ACCESS MODULAR DESIGN

SIGNATURE EASY-ACCESS MODULAR DESIGN

The 1/10 scale VORTEKS 4X2 BOOST 550 MEGA Brushed 2WD monster truck incorporates the signature ARRMA easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.

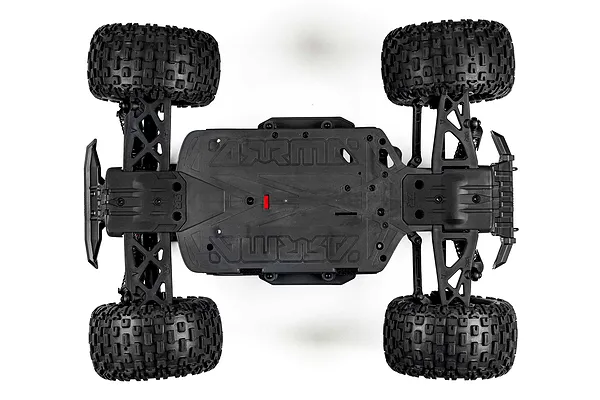

STRONG COMPOSITE CHASSIS

STRONG COMPOSITE CHASSIS

Contributing to the VORTEKS 4X2 BOOST short course truck's unstoppable performance are a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub.

UPGRADEABLE TRANSMISSION

UPGRADEABLE TRANSMISSION

Using the 4X4 BOOST Transmission Upgrade Set (sold separately), the 1/10 scale VORTEKS 4X2 BOOST 550 MEGA Brushed 2WD monster truck can easily be upgraded for the extra traction of 4-wheel drive in just three simple steps.

UPGRADEABLE POWER SYSTEM

UPGRADEABLE POWER SYSTEM

The 1/10 scale VORTEKS 4X2 BOOST 2WD monster truck is based on the proven ARRMA 4X4 platform. That means you can easily upgrade from its included 550 MEGA brushed power system to 3S brushless power whenever you are ready for the increased performance.

MULTI-TERRAIN DBOOTS TIRES

MULTI-TERRAIN DBOOTS TIRES

Tough, multi-spoke black MT wheels with vented, multi-terrain dBoots Fortress MT tires give the GRANITE 4X2 BOOST 2WD effective traction for bashing almost anywhere, from dirt and grass to parking lots, paved, and asphalt surfaces.

Spektrum™ SLT2 Radio for Precise Control

Spektrum™ SLT2 Radio for Precise Control

The included Spektrum™ SLT2 transmitter offers comfortable handling and precise control for all drivers. New bashers can utilise the throttle limits (50% or 75%) to gradually increase speed as their skills progress.

Specifications

Top Speed30+ MPH
Scale1/10
Completion LevelReady-To-Run
Drivetrain2WD
Drive TypeForward/Brake/Reverse
Vehicle TypeMonster Truck
Motor TypeBrushed
Motor Size550
Power SystemMega
Power TypeElectric
ChassisMolded Composite
SuspensionIndependent
Shock TypeOil-Filled, Coil-Over Springs
DifferentialMetal Gear Diff
Ball BearingsRubber shielded throughout
Gear Pitch48P
Spur Gear91T
Pinion14T
Internal Gear Ratio2.85
Final Drive Ratio18.5
Wheel Hex Size14mm
Wheel Width2.09" (53 mm)
Tire TreaddBoots® Fortress™ MT
Connector TypeIC3
ChargerSmart charger, LiPo ready
Battery3300mAh NiMh 7 cell
Max Battery Dimensions6.14 x 2.01 x 1.89 in (156 x 51 x 48 mm)
Product Length17.76" (451 mm)
Product Width13.46" (342 mm)
Product Height8.11" (206 mm)
Wheelbase11.3" (287 mm)
Front Track13.46 in (342mm)
Rear Track13.46 in (342mm)
Product Weight5.39 lb (2.45 kg)
Water-ResistantYes
BodyPainted, decalled and trimmed
BrakesIntegral with ESC
RadioIncluded
ReceiverIncluded
Speed ControlIncluded
ServosIncluded

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionReady to Run
Skill LevelIntermediate, Experienced
Power SourceElectric Brushless
Chassis TypeStadium Truck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorIC3, EC3
Rear Shock Oil500cSt
Front Differential Oil10,000cSt
Rear Differential Oil10,000cSt
Pinion Gear15T 32dp/0.8Mod
Spur Gear57T 32dp/0.8Mod
Wheel Hex Size14mm
