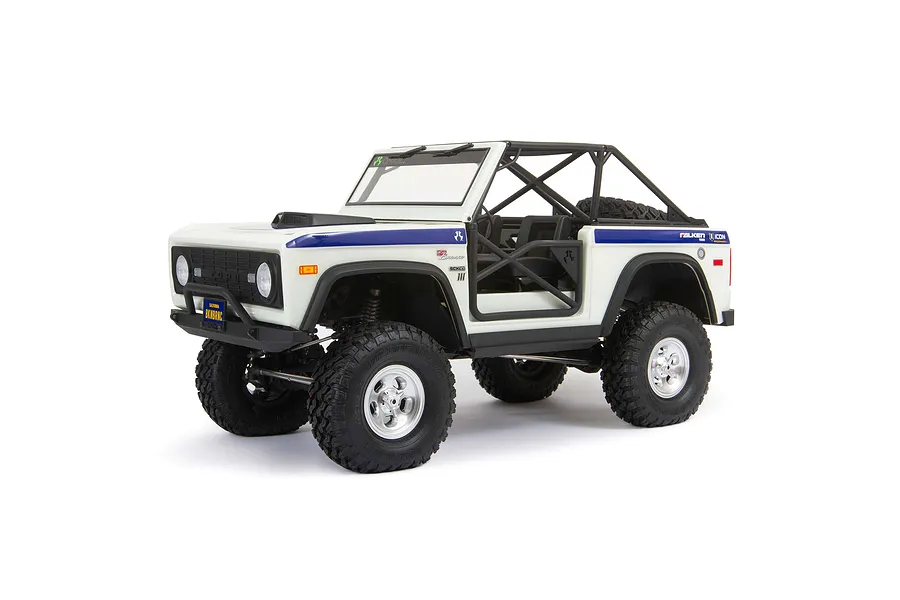

Axial SCX10 III Early Ford Bronco RC Rock Crawler Electric 4WD 1/10 Scale RTR - White

Axial SCX10 III Early Ford Bronco RC Rock Crawler Electric 4WD 1/10 Scale RTR - White

Axial SCX10 III Early Ford Bronco RC Rock Crawler Electric 4WD 1/10 Scale RTR - White

Brand: Axial | MPN: AXI03014T2
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description

As the first sport-utility vehicle from Ford Motor Company, the Bronco has become an icon of off-road history. The officially licensed Axial SCX10 III Ford Bronco 4WD RTR pushes the boundaries on ready-to-run scale crawler features, functions, and performance — one of the most detailed models Axial has ever produced, and a perfect choice for brand new scalers, experienced rock crawling enthusiasts, and everyone in between.

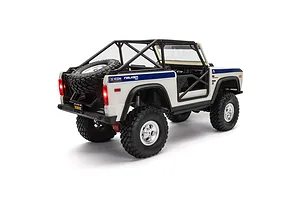

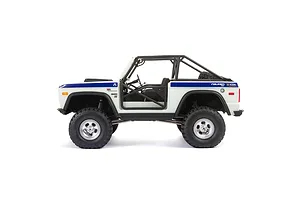

Inside and out, the scale realism is unprecedented. The polycarbonate Bronco body features a moulded tube cage with functional tube doors, hidden body mounts, fender flares, rock sliders, hood scoop, license plates, windshield wipers, and LED headlights and tail lights. The open interior includes moulded seats, dashboard, shifter, foot pedals, and a steering wheel with column. Under the hood, a replica 5.0L V8 engine, transmission housing, and transfer case conceal the Axial 35T motor.

Out of the box, the transmission includes a third-channel Front Dig function to lock the rear axle from the transmitter, and can be reconfigured for two-speed operation. The RTR comes with a Spektrum DX3 radio with DSMR technology and a Spektrum Firma Smart 40A ESC/receiver. Just add a suitable battery and go.

Features

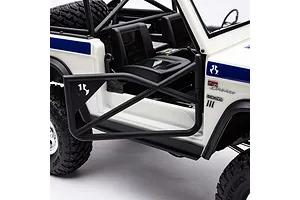

  • Officially licensed Early Ford Bronco body with realistic, moulded tube cage, functional tube doors and many authentic scale details

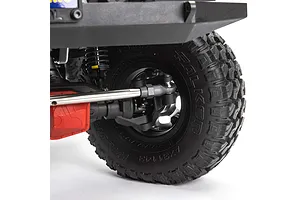

  • AR45 Straight Axles with offset front differential for true scale looks and low center of gravity
  • Front Dig function lets you lock the rear axle from the transmitter for the tighter turning radius of front wheel drive
  • Two-speed transmission option lets you increase the speed by approximately 20% (2-speed and Front Dig functions can both be operated with a 4-channel transmitter)
  • Replica 5.0L V8 engine, transmission housing and transfer case protect the motor while improving scale appearance
  • Authentic fender flares and rock sliders protect the body from rock rash
  • Fender liners and floor sides hide internal components normally visible from the side of the chassis
  • Open interior comes packed with details, including moulded seats, dashboard, steering wheel with column, shifters and foot pedals

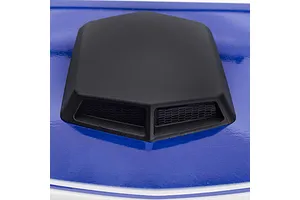

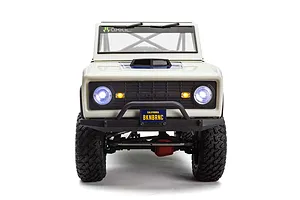

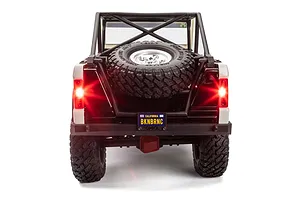

  • Exterior details include license plates, headlights, taillights, windshield wipers and hood scoop
  • Smart-enabled Spektrum receiver and ESC/receiver unit provides telemetry data to the DX3 transmitter

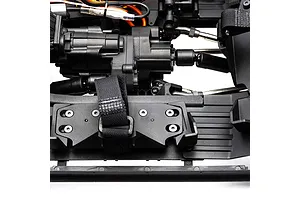

  • Battery mount accepts full-size standard LiPo or NiMH packs

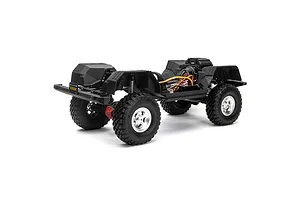

  • Chassis wheelbase length can be adjusted to match other body lengths (11.4", 12.0", 12.3")
  • Triangulated suspension geometry and AR45 Straight Axles reduce torque twist while improving scale looks

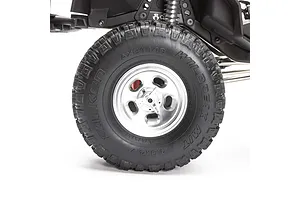

  • Retro-style 3-piece beadlock wheels look scale and allow tyres to be removed and replaced without gluing

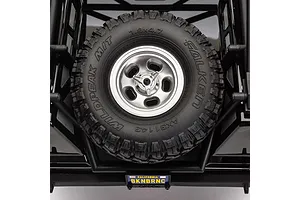

  • Licensed 1.9" replica Falken Wildpeak M/T tyres provide realism and a solid grip on the trails

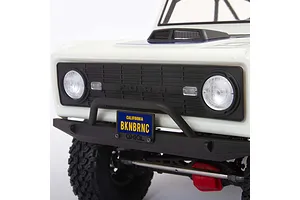

  • Off-road bumpers with optimal approach angle also include mounting hole for a winch fairlead and aftermarket lighting
  • Tunable aluminium oil-filled coil-over shocks feature an emulsion-style cap with bleed screw for easy rebuilds
  • Spektrum servo, receiver and ESC are waterproof and ready for driving in any weather and trail conditions
Included Items
  • 1x Axial SCX10 III Early Ford Bronco 1/10 Scale 4WD RTR
  • 1x Axial 35T Electric Motor (installed)
  • 1x Spektrum S614 Waterproof Metal Gear Surface Servo, 23T (installed)
  • 1x Spektrum SX107 Micro Analog Metal Gear Surface Servo, for Dig function (installed)

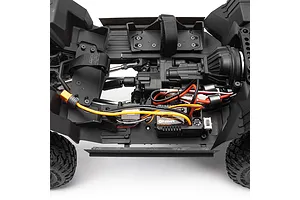

  • 1x Spektrum Firma 40A Brushed Smart 2-in-1 ESC and Receiver (installed)
  • 1x Spektrum DX3 2.4GHz Transmitter
  • 4x AA Alkaline Transmitter Batteries
  • 1x Product Manual
Required Items
  • 2-3S Standard or “Shorty” LiPo Battery with IC3 connector
  • Compatible Battery Charger
Specifications
Ball Bearings
Complete Vehicle
Battery
Sold Separately
Charger
Sold Separately
Chassis
Adjustable Steel C-channel
Completion Level
Ready-To-Run
Differential
Locked
Drivetrain
4WD
Final Drive Ratio
45.6:1 Low / 31.3:1 High
Front Track
9.25" (233mm)
Power Type
Electric
Gear Pitch
32-Pitch
Ground Clearance
2.5" (63.5mm)
Inner Tyre / Outer Wheel Diameter
1.9 in
Motor Size
540
Motor Type
Brushed
Pinion
14T
Product Height
9.75" (248mm)
Product Length
20.75" (527mm)
Product Weight
7.24 lbs (3.28kg)
Product Width
9.25" (235mm)
Radio
Included
Rear Track
9.25" (233mm)
Receiver
Included
Scale
1/10
Servos
Included
Shock Type
Oil-Filled/Coil-Over Spring
Speed Control
Included
Spur Gear
14T
Suspension
Multi-Link Solid Axle
Technology
Smart
Tyre Compound
R35
Tyre Tread
Falken Wildpeak
Tyre Type
M/T
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Wheelbase
12.3" (312mm)
Wheel Width
1" (25.5mm)

RC Car
Scale
1/10
Max LiPo Power
3S (11.1v)
Completion
Ready to Run
Skill Level
Beginner
Power Source
Electric Brushed
Chassis Type
Rock Crawler
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
Wheel Hex Size
12mm
