BetaFPV Drones

BetaFPV Lava 1104 7200KV Brushless Motor - 24mm

  • Brushless

Part no. 01050017_2

Expected 26 NovNo reviews yet
1 / 4
1 / 4

$31.99

or 4 fortnightly payments of $8.00 with afterpay or PayPal, or zip

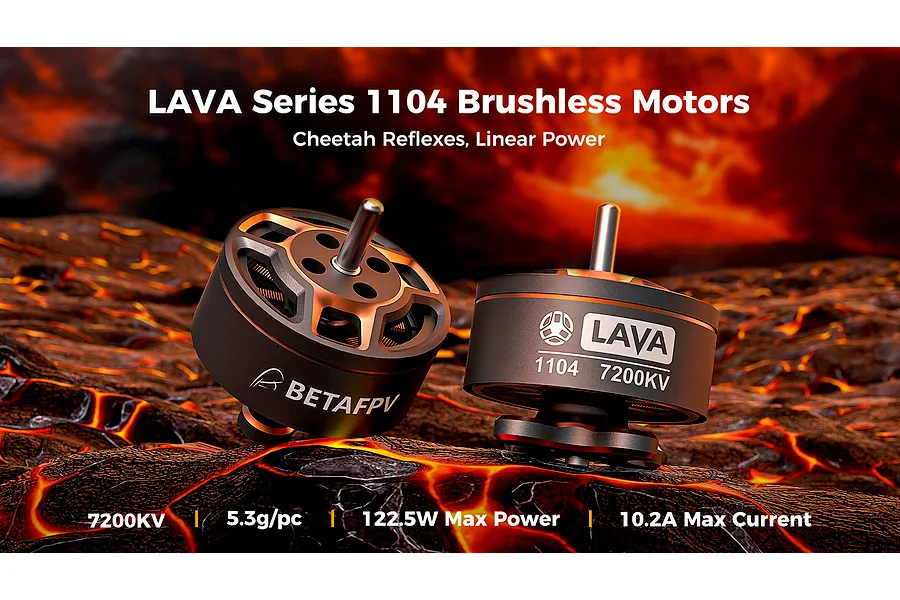

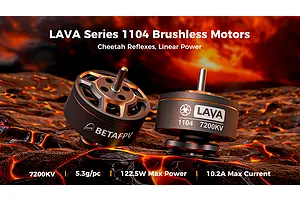

The BetaFPV LAVA Series 1104 7200KV Motor Offers A Reliable 24mm Lead For Complex 3S Cinewhoop Custom Builds.

  • A High 122.5W Power Rating Enables Agile Manoeuvres
  • The 7200KV Motor Setup Optimises 3S Performance
  • Efficient 4.7g Per Watt Output Extends Flight Time
Select Option: 24mm

Overview

Finding the right cable length is often the biggest hurdle when customising a professional-grade cinewhoop. This version of the LAVA Series 1104 motor features a 24mm wire lead, specifically designed to give builders the extra reach needed to route cables cleanly through larger or more complex frame layouts. You no longer have to struggle with short, awkward connections that risk pulling loose during aggressive flight manoeuvres; this motor provides the professional-grade fitment required for a clean and reliable interior chassis layout.

Performance remains perfectly consistent with the standard variant, channelling a high-thrust 3S profile that makes your 2.2 inch quad feel both rapid and smooth. Whether you are tracking fast subjects or performing delicate proximity flying, the combination of a high power-to-weight ratio and efficient current draw ensures your aerial footage stays stable and uninterrupted. It is a critical component upgrade that saves you build time while maintaining the high-performance standard necessary for imaginative cinematic feats.

Features

  • 24mm Wire Length Provides Minimal Area. Perfect for Compact Builds W
  • High-Performance 7200KV Rating Tuned Specifically For Smooth And Responsive 3S Cinewhoop Freestyle Flights.
  • Massive 122.5W Peak Power Output Provides The Necessary Punch For Rapid Manoeuvres And Challenging Aerial Feats
  • Efficient Propulsion System Hits 4.7g Per Watt At Low Throttle For Maximum Battery Life During Long Recording Sessions
  • Delivers A Thrust-To-Weight Ratio Greater Than Five To One For Blistering Speed And Razor-Sharp Agility

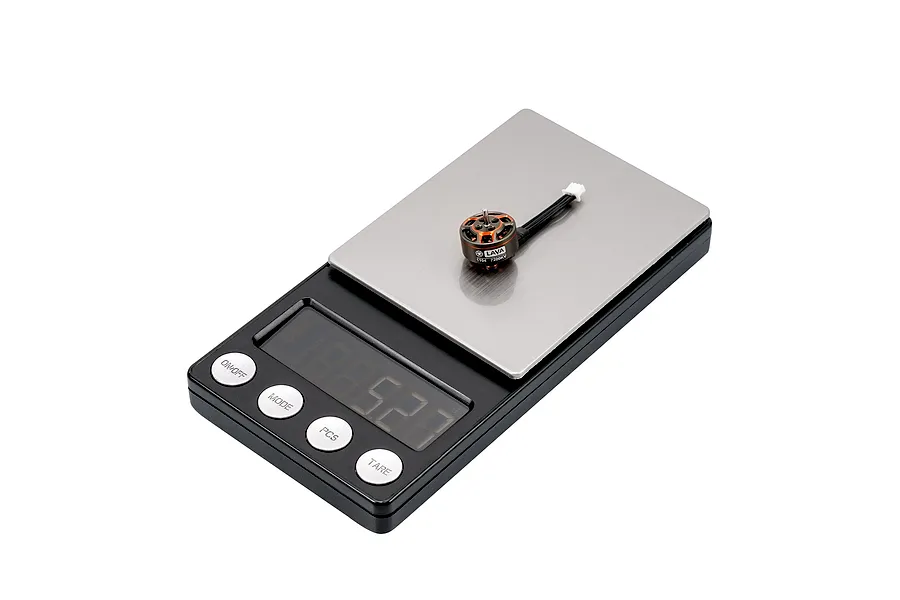

  • Lightweight 5.3g Motor Construction Maintains Low Overall Drone Mass For Better Flight Dynamics
  • Genuine BetaFPV Product

In the box

  • 1x BetaFPV LAVA Series 1104 7200KV Brushless Motor with 24mm Wire
  • 4x M2x4mm Hex Flat Head Screws
  • 4x M2x5mm Hex Flat Head Screws

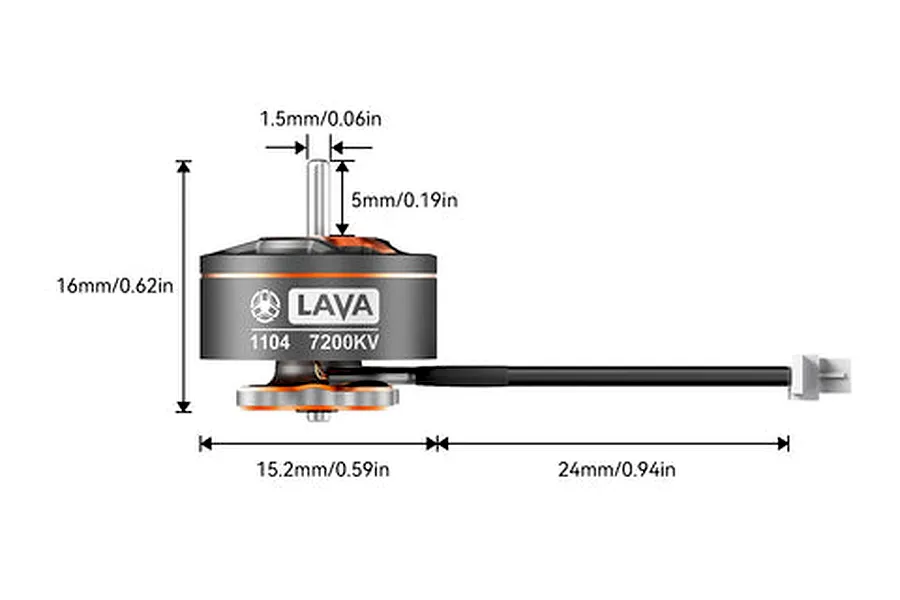

Specifications

Motor

Max Voltage3S (11.1V)
TypeOut-Runner
KVRPM (Revolutions Per Minute) per Volt7200KV
SensoredUses sensors for precise speed and position controlNo
LengthLength of the motor can in mm9mm
DiameterDiameter of the motor can15.2mm
Shaft Diameter1.5mm
