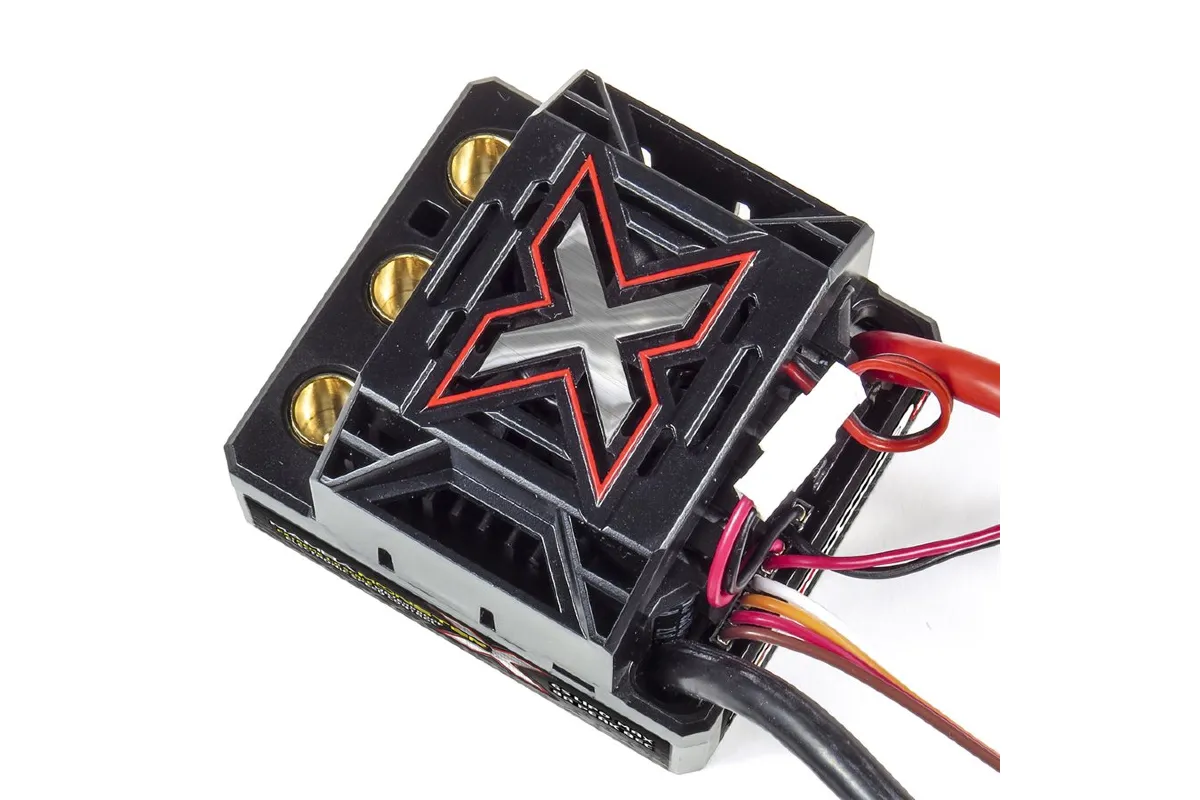

Castle Creations Mamba Monster X Waterproof 6S Brushless ESC

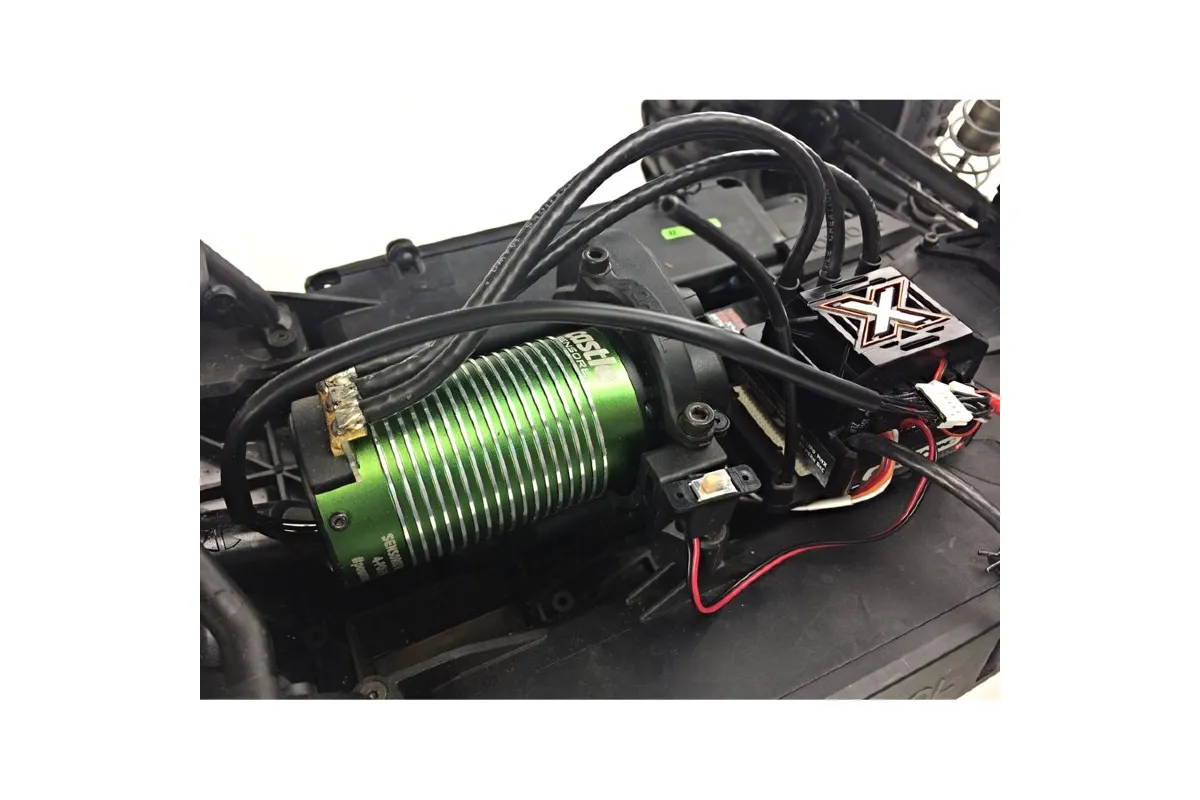

Mamba Monster X is our latest 1:8 scale and Monster truck controller capable of 2S - 6S LiPo, with an 8 amp peak BEC - and, its waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs with our Castle 1515 2200kv motor. It also comes standard with a highly efficient, 30mm ESC cooling fan.

• Input Voltage range 2S-6S
• 8A Adjustable BEC (5.25V-8.0V)
• Waterproof design
• Removable 30MM cooling fan
• Convenient transmitter programming for six common adjustable settings
• Easily program and update ESC with use of Castle Link USB and freely downloadable Castle-Link Windows™ program
• Data Logging capable
• Telemetry Ready
• Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake
• Audible Alerts will notify you of possible issues with calibrations and error conditions

Data Logging

Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Auxiliary Functionality

Mamba Monster X features the addition of a new, programmable AUX wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link or the Castle Link iOS App. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on the go from a compatible transmitter.

Programmability

Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).

Firmware Updates

Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit.

Power System Alerts

Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

Telemetry Capable

Mamba Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Adjustable Settings Include

• Throttle
• Braking curve
• Drag brake
• Auto LiPo cut-off
• Punch Control
• Reverse Type
• Motor Type

• Input Voltage Range: MIN: 2S LiPo
• MAX: 6S LiPo (25.2V)
• BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof* design allows for use in nearly any environment
• Brake: Proportional
• Reversible: Yes, but can be disabled for racing
• On/Off Switch: Yes
• Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
• Size: Length: 2.09" (53mm)
• Width: 1.93" (49mm)
• Height: 1.44" (36.4mm)
• Weight (with no battery connector): 3.92 oz. (111 g)
• Connectors: 6.5mm female bullets for motor connection
• Items Needed for Operation: Battery Connector required, 6.5mm Castle Connectors are recommended

• The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
