E-Flite RC Plane Night Timber X 1.2m BNF Basic with AS3X and Safe Select Technology

  • BNF

Part no. EFL13850

DiscontinuedNo reviews yet
1 / 16
1 / 16

Videos

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

The original Timber® captured the thrill of incredible Short Takeoff and Landing (STOL) capabilities in a design featuring sporty flight performance and ultra-friendly handling. The E-flite® Timber X 1.2m combines the STOL capabilities of the original model with a new wing design featuring oversized ailerons and flaps, plus an enlarged rudder and elevator and a more powerful 3S and 4S compatible power system, to also deliver 3D performance you’d expect from an all-out aerobat.

The E-flite® Night Timber X 1.2m unleashes a new era of STOL plus 3D aerobatic capability. Hollow-core EPO construction with composite reinforcement results in a lightweight yet strong airframe that’s capable of handling extreme aerobatic maneuvers while keeping the wing loading low for impressive Short Takeoff and Landing (STOL) and slow flight performance. It’s also equipped with high-torque, metal-geared servos plus the shock-absorbing landing gear of the original model so you can fly as aggressively as you want from almost any surface. You can even install the included leading-edge slats for improved slow flight performance, or the optional floats (EFL5261, sold separately) so you can fly from water.

Note

Please refer to the instruction manual for safety precautions and operating instructions. Includes optional-use leading edge slats for improved STOL and slow-flight performance. Optional floats (EFL5261) are available separately to fly from water.

Features

  • Incredible Short Takeoff and Landing (STOL) plus 3D capabilities
  • Enlarged and oversized control surfaces with double-bevelled hinge lines
  • Six durable and factory-installed high-torque, metal-geared servos
  • High-power 3S and 4S compatible brushless outrunner motor and 50A ESC
  • Spektrum™ AR631 6-channel receiver with industry-leading DSMX® technology
  • Unmatched stability and precision of AS3X® technology for smoother flight performance
  • Easy to fly with optional-use SAFE® Select flight envelope protection
  • Shock-absorbing landing gear with oversized tundra-style wheels
  • Functional and factory-installed LED landing, navigation and strobe lights
  • Lightweight yet durable composite-reinforced, hollow-core EPO construction
  • Optional-use leading-edge slats for improved STOL and slow flight performance
  • Optional EDO-style floats (EFL5261, sold separately)

In the box

  • 1x E-flite Night Timber X 1.2m
  • 1x 50A Brushless ESC (installed)
  • 1x Brushless Out-runner Motor (installed)
  • 6x High-Torque, Metal-Geared Servos (installed)
  • 1x Spektrum AR631 6-Channel Receiver (installed)
  • 1x Set of Optional-Use Leading Edge Slats
  • 1x Product Manual

You'll need

  • Full-range, 6+ Channel DSMX®/DSM2® transmitter
  • 2200–3200mAh 3–4S LiPo flight battery with EC3™ or IC3® connector
  • Compatible LiPo charger

Highlights

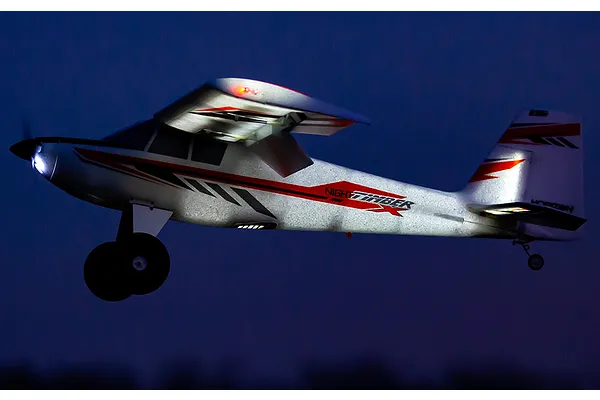

All-Day & All-Night LED Lighting

All-Day & All-Night LED Lighting

The Night Timber X 1.2m comes alive with factory-installed LED lights embedded throughout its airframe, allowing you to fly brilliantly day or night. These lights are powered by your 3S or 4S 2200–3200mAh flight battery and can be easily disconnected for daytime flights. It also features realistic landing, navigation, and strobe lights.

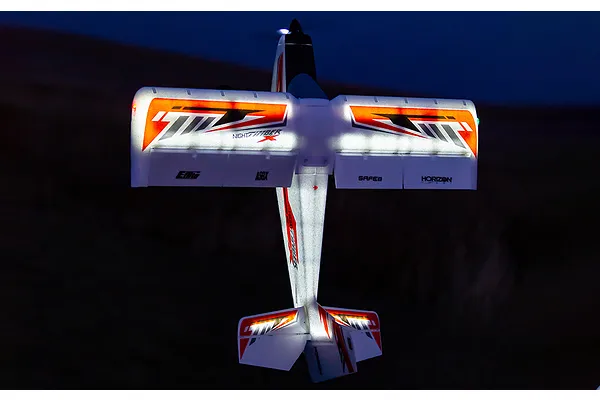

Enhanced Exclusive Technologies

Enhanced Exclusive Technologies

This Night Timber X 1.2m is packed with exclusive Spektrum™ AS3X® and SAFE® Select technologies. AS3X works in the background to smooth out wind effects, providing a locked-in feel. Optional SAFE Select offers pitch/bank limits and self-levelling, making this a much easier plane to fly, all switchable for your convenience.

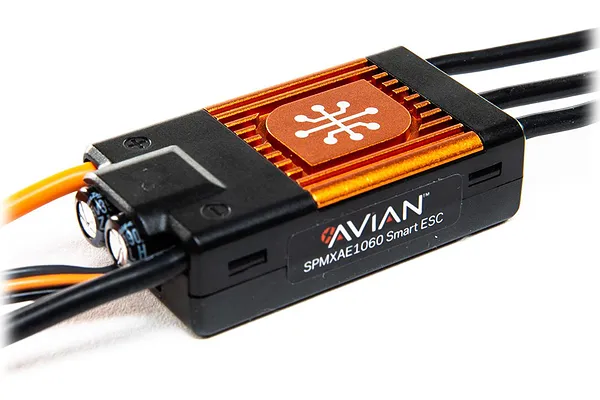

Integrated Smart Technology

Integrated Smart Technology

The Night Timber X 1.2m boasts an exclusive Spektrum™ Avian™ Smart ESC, providing vital real-time telemetry data like motor RPM, current, and battery voltage. View this info via compatible Spektrum receivers and AirWare™ equipped transmitters as you fly. It even includes motor reversing for special ground handling.

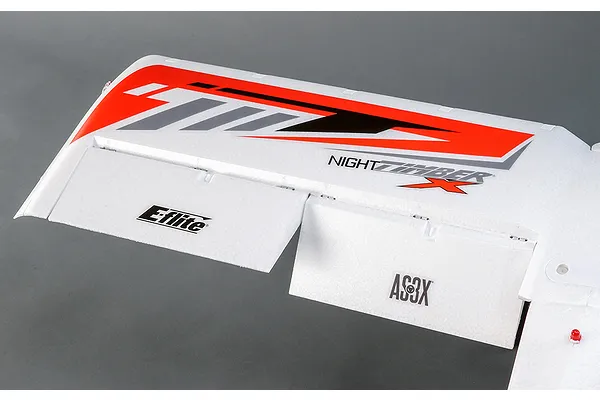

Extreme Manoeuvrability

Extreme Manoeuvrability

Experience incredible agility with the Night Timber X 1.2m! Its wing design features a shorter span, much larger ailerons and flaps, plus an enlarged elevator and rudder for extreme 3D aerobatic capability. Double-bevelled hinge lines allow high deflection on all control surfaces, including flaps that move both ways, allowing for wild or mild flight.

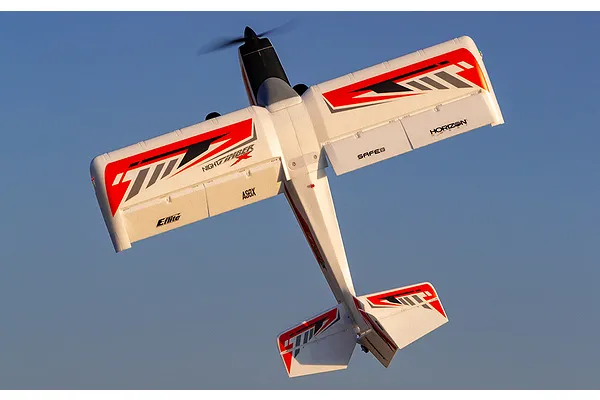

Extra Power System

Extra Power System

The factory-installed brushless power system features a 60-amp Spektrum™ Avian™ Smart ESC, a specially-tuned motor, and propeller. This combination delivers plenty of thrust with a 3S LiPo battery, or provides even more power and vertical performance with a 4S battery, all without needing any modifications.

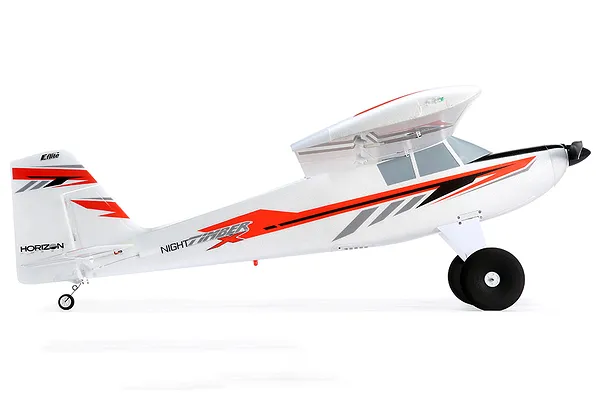

Extremely Durable Build

Extremely Durable Build

Built with composite-reinforced, hollow-core EPO material, the Night Timber X 1.2m offers a lightweight yet incredibly durable airframe, maintaining the same flying weight as the original Timber X, even with the added LEDs. It's also equipped with high-torque, metal-geared servos and the original model's shock-absorbing landing gear with oversized tundra-style wheels for aggressive flying from almost any surface.

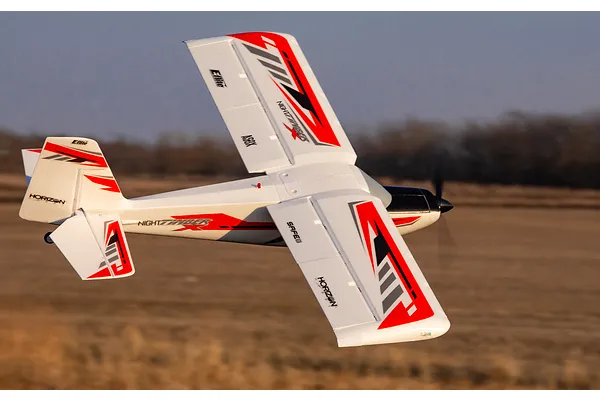

STOL (Short Take-off and Landing) Capable

STOL (Short Take-off and Landing) Capable

With a shorter wingspan yet similar wing area to the original Timber 1.5m, plus drooped wingtips and optional leading-edge slats, the Night Timber X 1.2m excels in Short Take-off and Landing (STOL) performance. These features, combined with its lightweight design, oversized flaps, and high-power system, allow it to take off or land in as little as two feet (0.6m) or less.

Optional Floats for Water Fun

Optional Floats for Water Fun

Owners of an original or Turbo Timber® 1.5m can use their existing float set on the Night Timber X 1.2m. Alternatively, EDO-style floats are available separately (EFL5261), including the necessary mounting struts and a dual-rudder steering system for excellent handling and easy take-offs and landings on water.

Specifications

Wingspan1207mm (47.5")
Length1054mm (41.5")
MaterialComposite-Reinforced, Hollow-Core EPO Foam
PropulsionPropeller (13 x 4)
MotorBrushless Out-runner (900Kv)
ESC50A Brushless ESC
CompletionBind-N-Fly Basic (BNF)
Landing GearFixed Taildragger with Tundra-Style Wheels
CG95mm (+/- 7mm) back from leading edge of wing at fuselage
Approximate Flight Time4–6 minutes

RC Plane

Plane TypeCivilian, 3D Aerobatic
Skill LevelIntermediate, Experienced
Wingspan1200mm
CompletionRTF is Ready To Fly (comes with everything). BNF is Bind N Fly (you need a compatible remote). PNP is Plug and Play (you need a radio set, battery & charger). Kits typically don't come with electronics.Bind N Fly
Power TypePropulsion TypePropeller
Length1055mm
Max LiPo Power4S (14.8V)
Motor TypeType of MotorBrushless
Retractable WheelsNo
Receiver Channels6Ch
Battery ConnectorEC3, IC3
