ECX

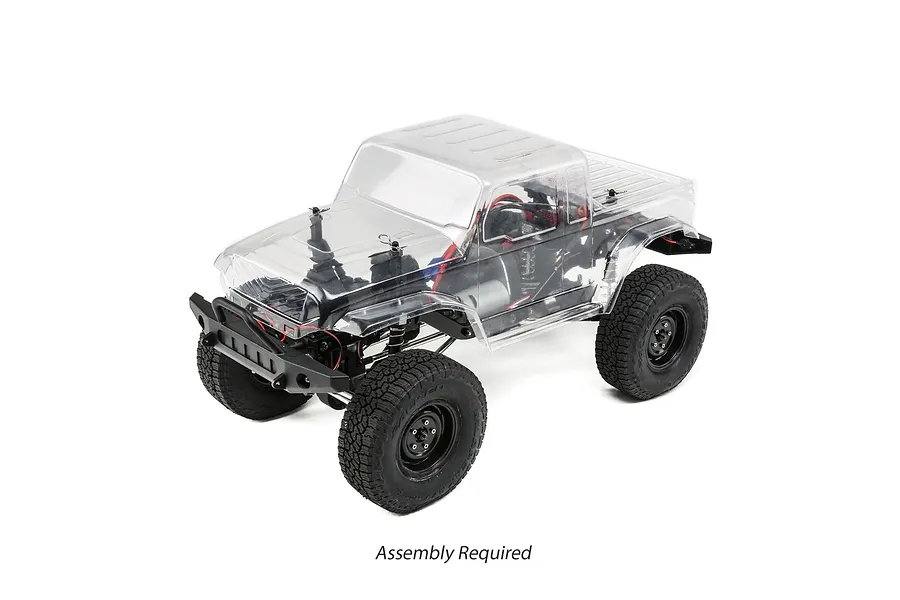

ECX Barrage 1.9 RC Rock Crawler Electric 4WD 1/12 Scale Kit

  • 1/12
  • 4WD
  • Kit
  • Brushed

Part no. ECX01011

DiscontinuedWrite a review
1 / 14
1 / 14

Overview

Building an RC car has just gotten a whole lot easier — this kit includes everything you need to get building and driving. Using the same "pre-built critical parts" formula and manual guidelines as the successful ECX AMP MT Build-To-Drive Kit, the ECX 1.9 Barrage 4WD Scaler Build-To-Drive Kit offers the same build experience on a new and exciting platform. The kit comes with everything needed to get started, including tools, parts, and electronics. It even comes with its differential, shocks, and wheels assembled, so all you need to do is follow the instructions and you'll be ready to navigate baseball-sized rock piles and tall weeds in no time.

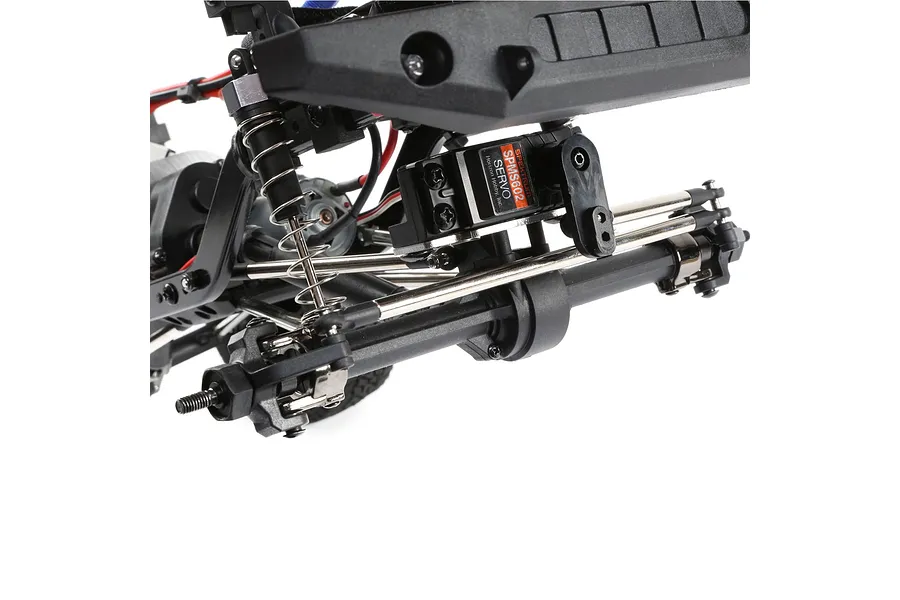

The Build-To-Drive Kit version differences from the RTR version are: motor plate for larger 390 motor (more power and torque), longer axles and housings (alleviates long wheel hex and has less wheel scrub and better handling), aluminum servo mount (more servo options), 4-point links (improves articulation), aluminum steering links (stronger than plastic), outboard shocks (moved to outside chassis for better handling, articulation, realism and looks).

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

  • Customizable clear body shell and sticker sheet

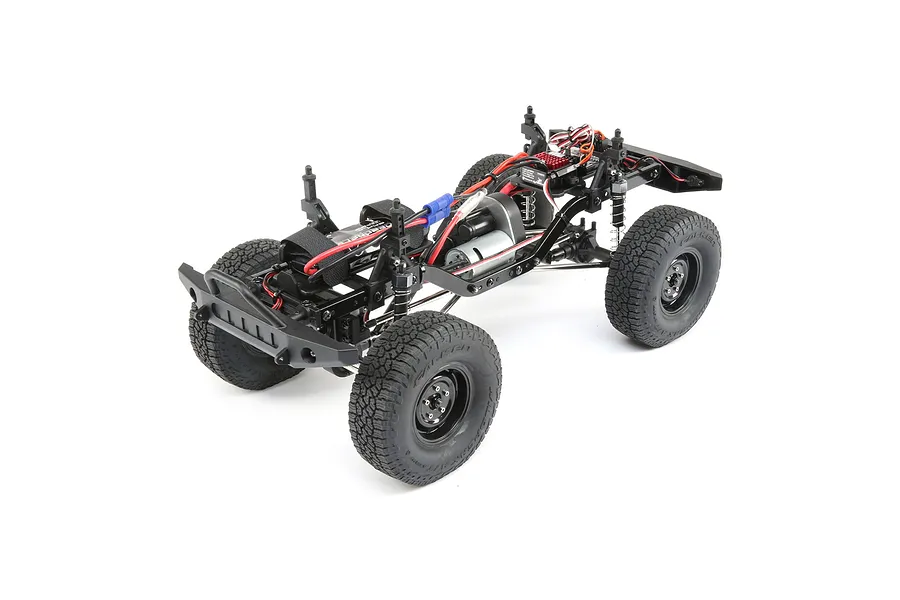

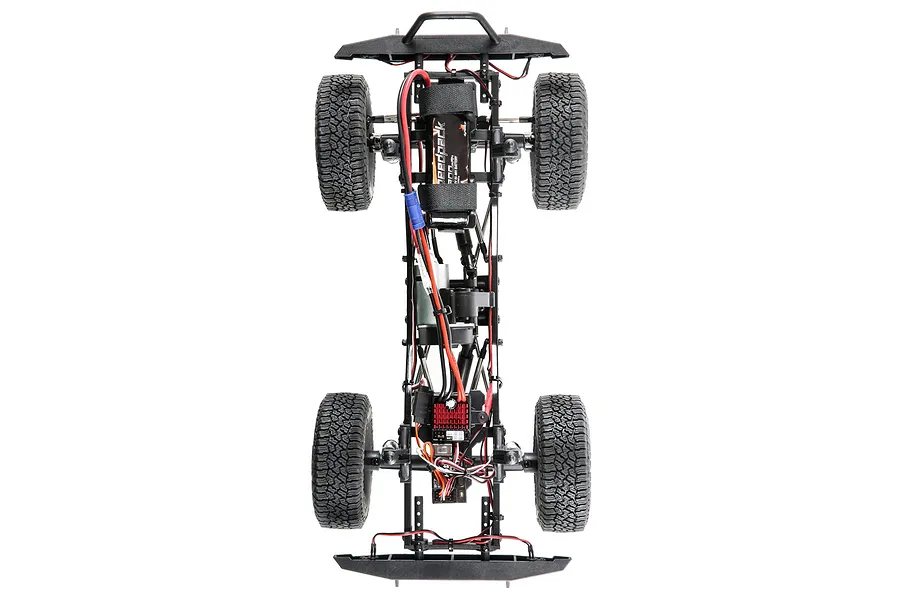

  • Realistic C-channel chassis frame
  • Full range Spektrum 2.4GHz transmitter
  • Waterproof electronics
  • Dynamite Ni-MH battery
  • AC battery charger
  • 390 size can motor
  • 1/10 scale size metal gear servo

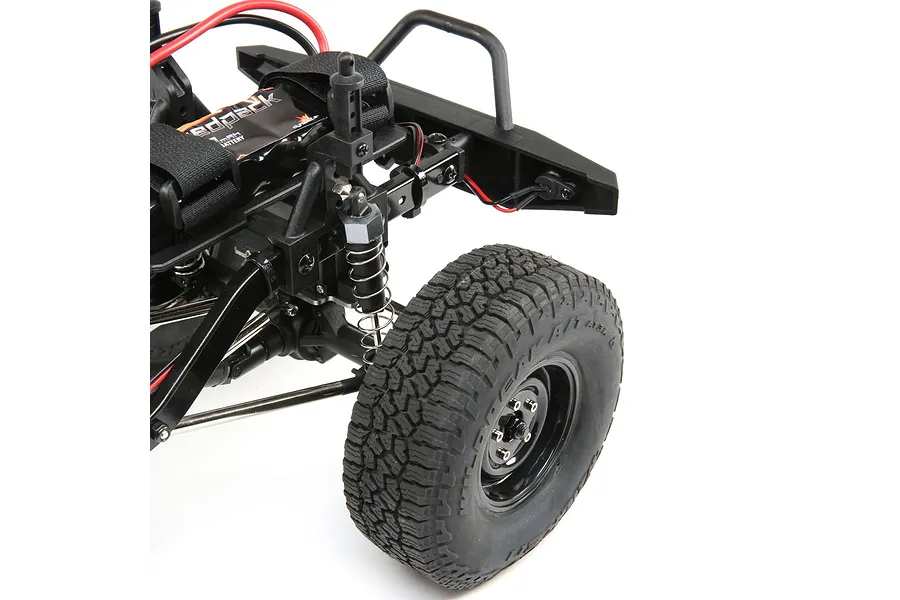

  • Outboard conventional shock mounting system
  • Improved articulation and steering
  • Partially assembled
  • Fully upgradable
  • Tools included
  • Educational build

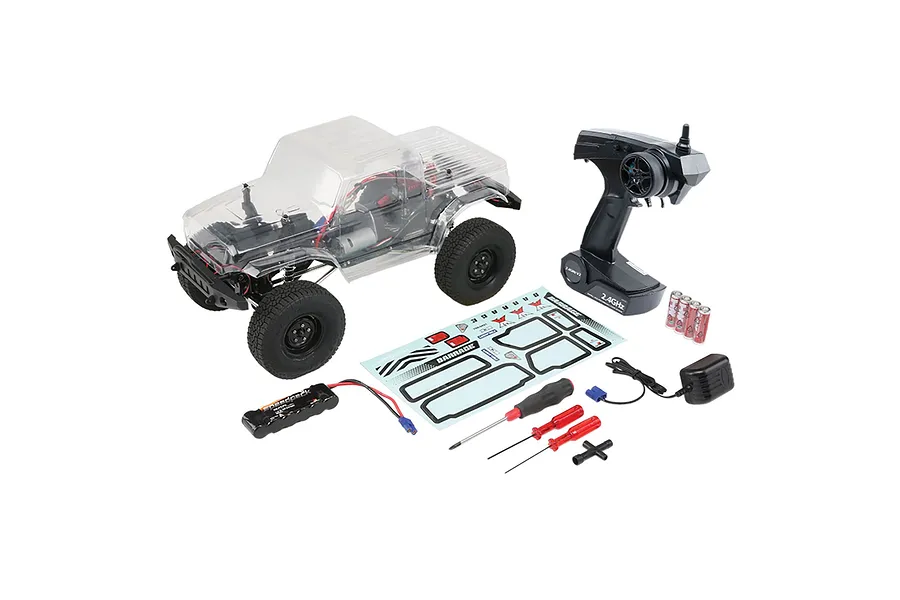

In the box

  • 1x ECX 1.9 Gen2 4WD Barrage Kit
  • 1x ECX 2.4GHz Transmitter

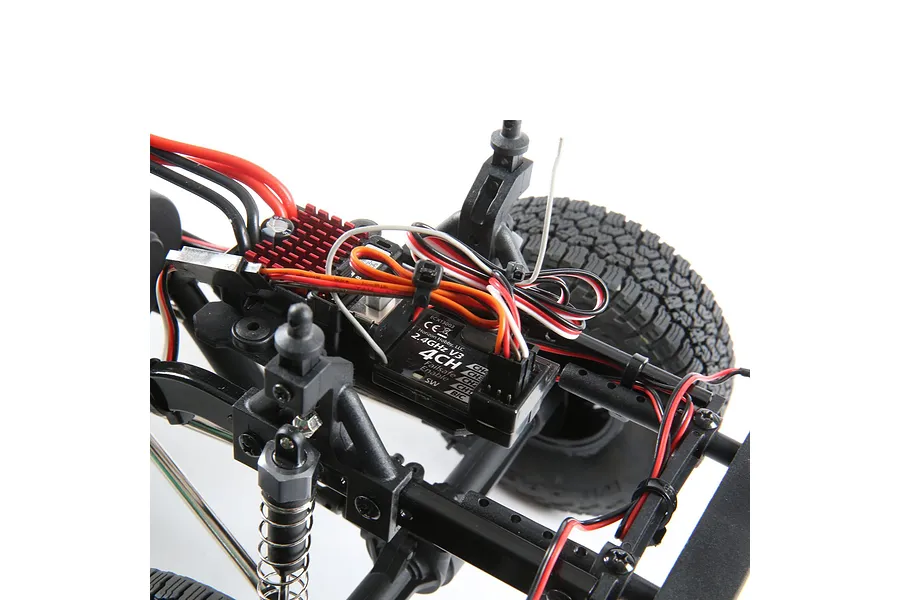

  • 1x ECX 2.4GHz 2-CH V3 Receiver
  • 1x 100mAh NiMH Wall Charger with EC3 Connector
  • 1x Dynamite Speedpack 900mAh NiMH Battery with EC3 Connector
  • 1x Dynamite Tazer 390 Brushed Motor
  • 1x Dynamite 60A WP FWD/REV Brushed ESC
  • 1x Spektrum S602 Digital Servo
  • 4x AA Batteries
  • 1x User Manual

You'll need

  • Polycarbonate spray paint (for the body shell)

Highlights

ECX Barrage kit build assembly illustration

ECX Barrage kit build assembly illustration

The ECX 1.9 Barrage Build-To-Drive Kit includes everything needed to get started, including the tools, parts, and electronics.

Specifications

Length417mm (16.4")
Width196mm (7.7")
Height216mm (8.5")
Wheelbase252mm (9.9")
Weight1.3kg (2.8lbs)

RC Car

Scale1/12
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Pinion Gear22T 48dp/0.5Mod
Spur Gear60T 48dp/0.5Mod
Wheel Hex Size12mm
