Element RC Enduro Comp Fox Competition RC Rock Crawler Electric 4WD 1/10 Scale Kit

Element RC Enduro Comp Fox Competition RC Rock Crawler Electric 4WD 1/10 Scale Kit

Videos

Element RC Enduro Comp Fox Competition RC Rock Crawler Electric 4WD 1/10 Scale Kit

Brand: Element RC | SKU: 40129
1 in stock
$607.76
Element RC Enduro Comp Fox RC Rock Crawler Kit: Comp-level performance & progress packed with features for serious crawling fun!
  • Designed for competitive rock crawling performance and progress
  • Includes Factory Team performance parts
  • Carbon fibre chassis with aluminium braces
  • Portal axles & Stealth X transmission with overdrive
  • Competition kit for experienced RC crawlers
Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

Prepare to master the toughest terrain and experience the thrilling challenge of competitive rock crawling with the Element RC Enduro Comp Fox Kit! This isn't just any kit; it's specifically engineered for the serious competitor looking to push their limits and progress through every gate. While it's built for competition, the fun comes in the meticulous assembly and then seeing how this rig absolutely dominates the rocks you put in front of it! At its core is a lightweight and incredibly strong carbon fibre flat rail chassis, reinforced with machined aluminium braces, offering a rigid platform with ample tuning possibilities for links and shocks. The intelligently designed angled Delrin skid plate helps you glide over difficult breakovers, preventing frustrating high-centring.

Inside the Enduro Comp Fox, you'll find the proven Stealth X transmission with adjustable overdrive options right in the box, allowing you to fine-tune your rig's crawl characteristics. To maximise ground clearance, the kit features all-new high-clearance portal axles with robust all-metal internal gears, giving you almost an inch more clearance than standard axles – essential for tackling extreme obstacles! Element RC has even packed in Factory Team hopups like threaded aluminium shocks, steel pivot balls, and heavy-duty links to give you a head start on building a top-tier rig. This feature-packed kit is the perfect starting point for your next rock crawling journey. Building it is part of the fun, and the performance you'll achieve on the rocks makes it all worthwhile!

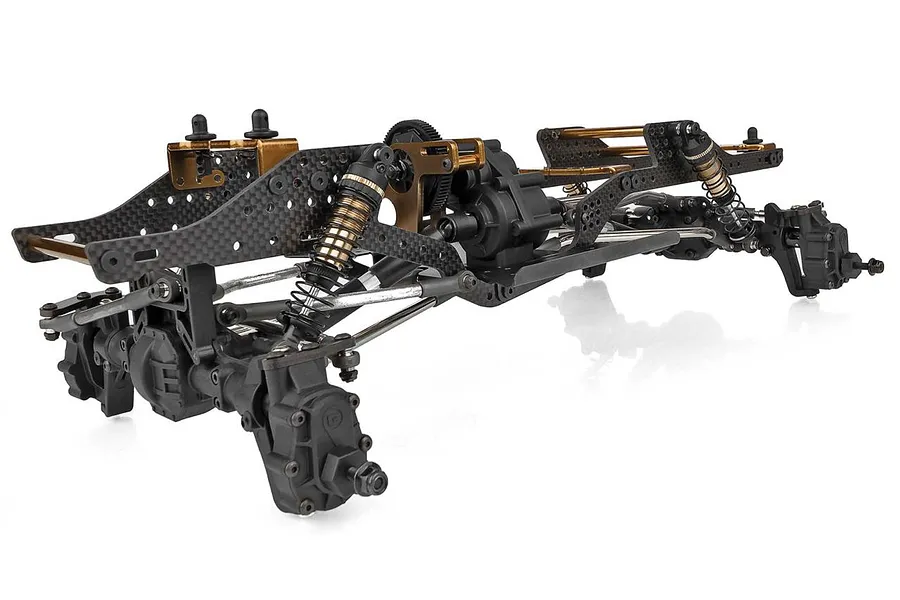

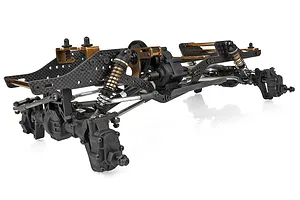

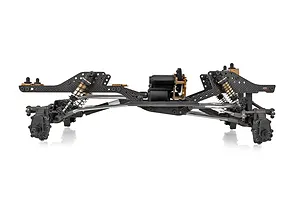

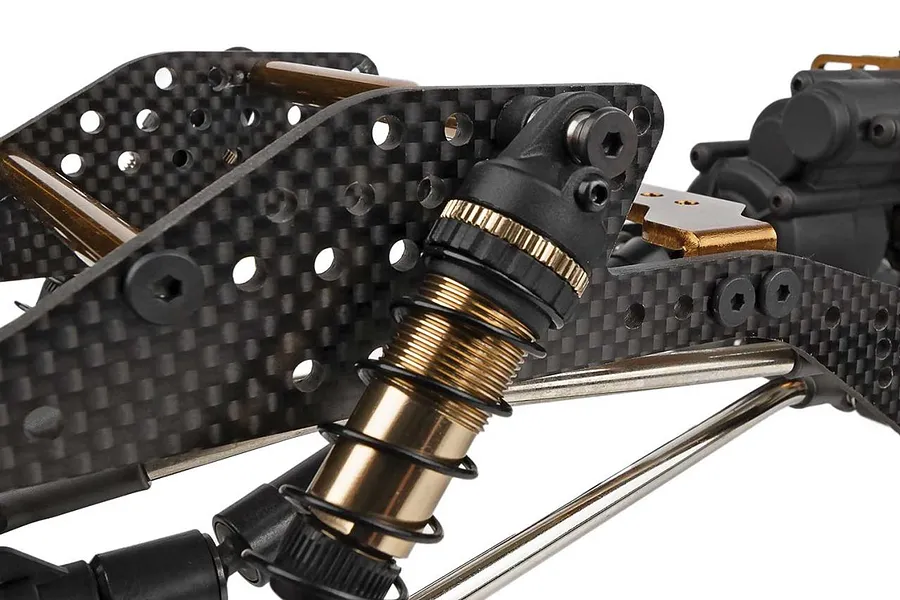

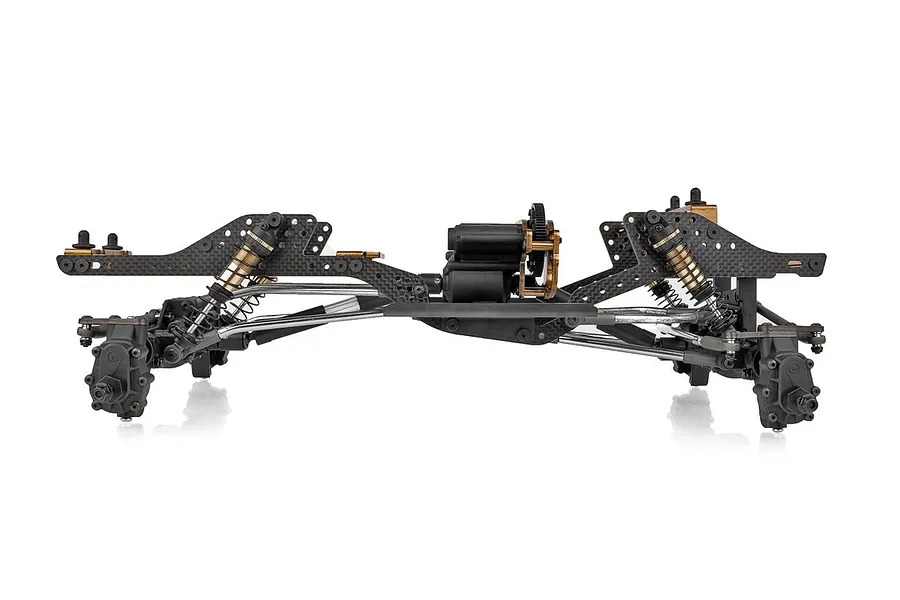

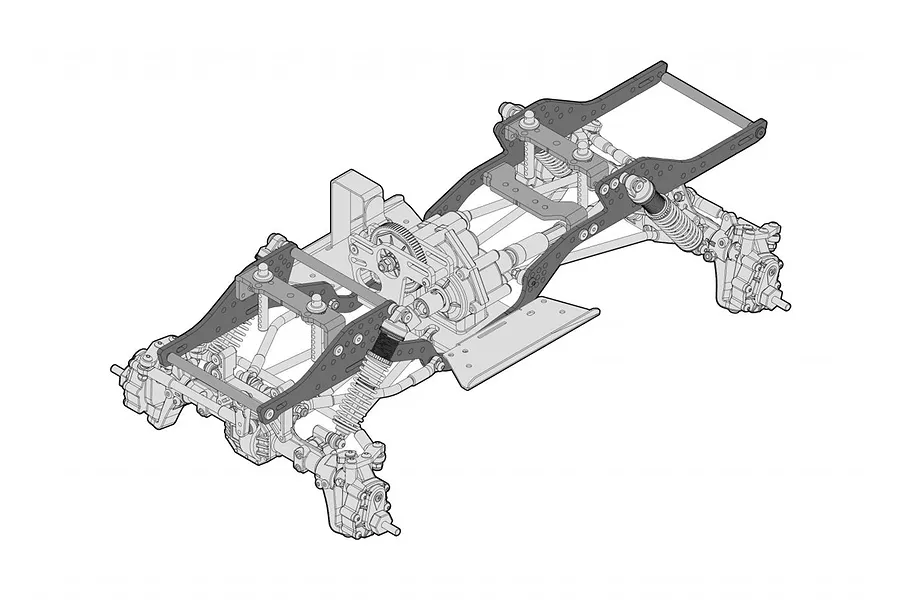

Carbon Fibre Chassis with Aluminium Braces

The carbon fibre flat rail chassis, together with the aluminium chassis braces, is lightweight, rigid, and strong. This provides exceptional durability and structural integrity. It also offers plenty of suspension tuning options, allowing you to dial in the perfect performance for the competition trail ahead.

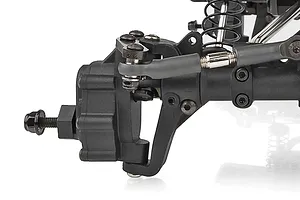

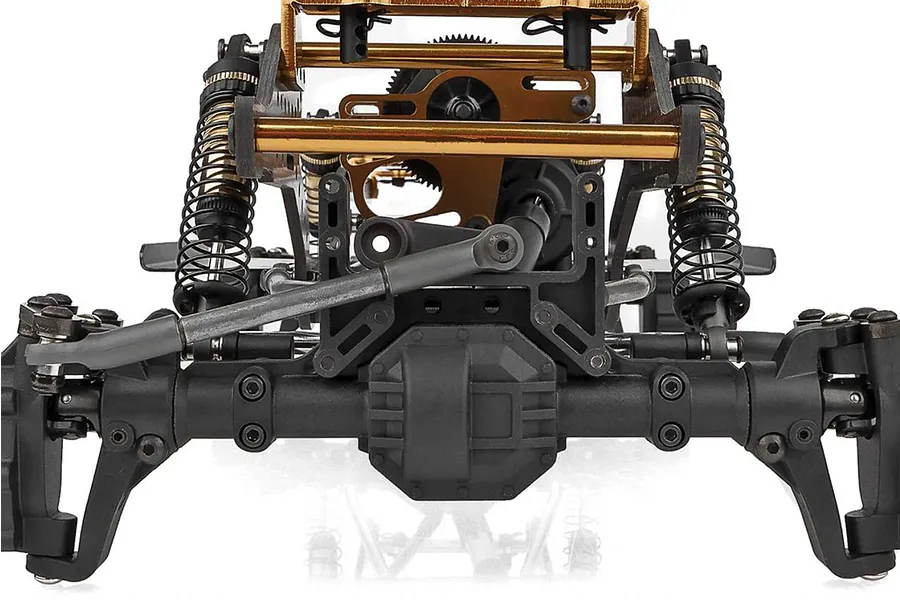

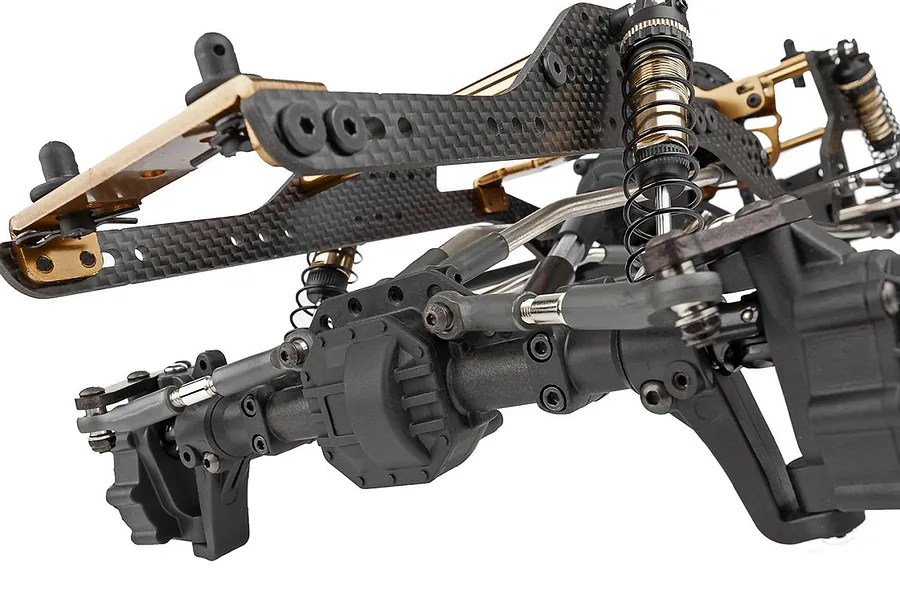

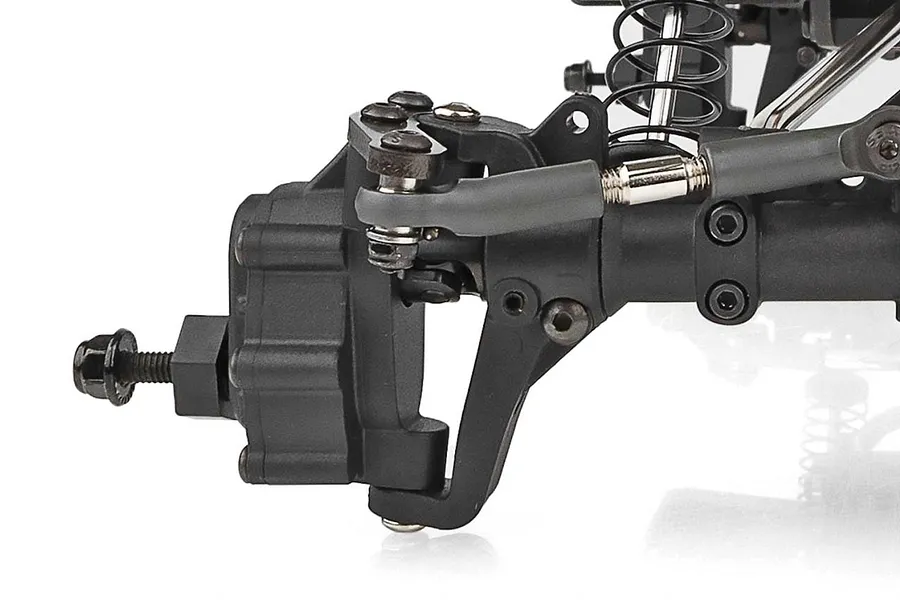

Servo-On-Axle Steering for Low CG

Servo-on-axle steering provides better performance and control where you need it most, on the rocks. This clever setup also helps in keeping the vehicle's centre of gravity low, which is crucial for maximum stability and climbing capability when navigating challenging and off-camber terrain.

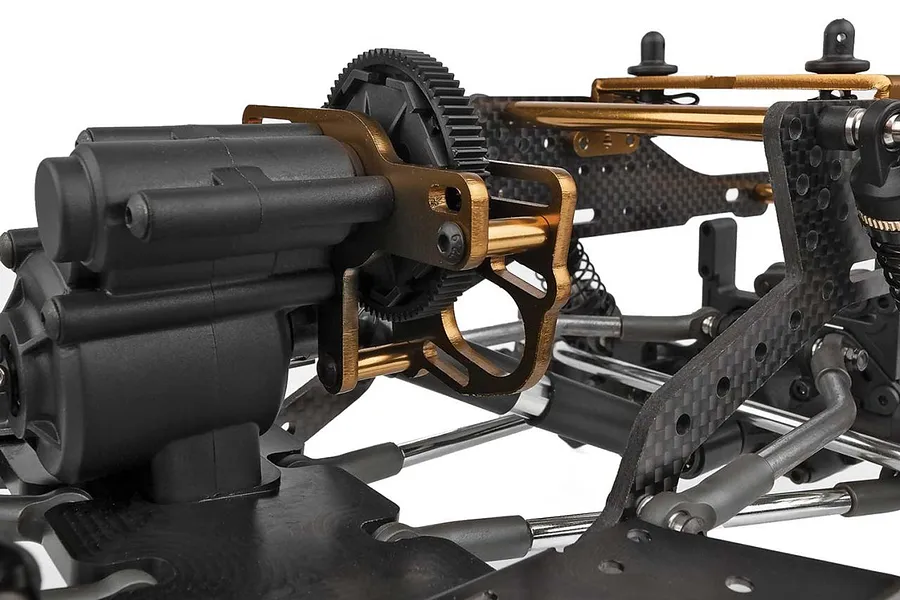

Forward Bias Aluminium Motor Mount

The innovative two-piece aluminium motor mount is designed to flip the motor forward and low in the chassis. This strategically shifts weight to provide more frontend bias. This increased weight on the front axle results in improved traction and crawling performance, especially on steep ascents.

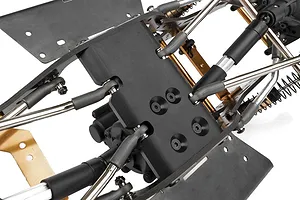

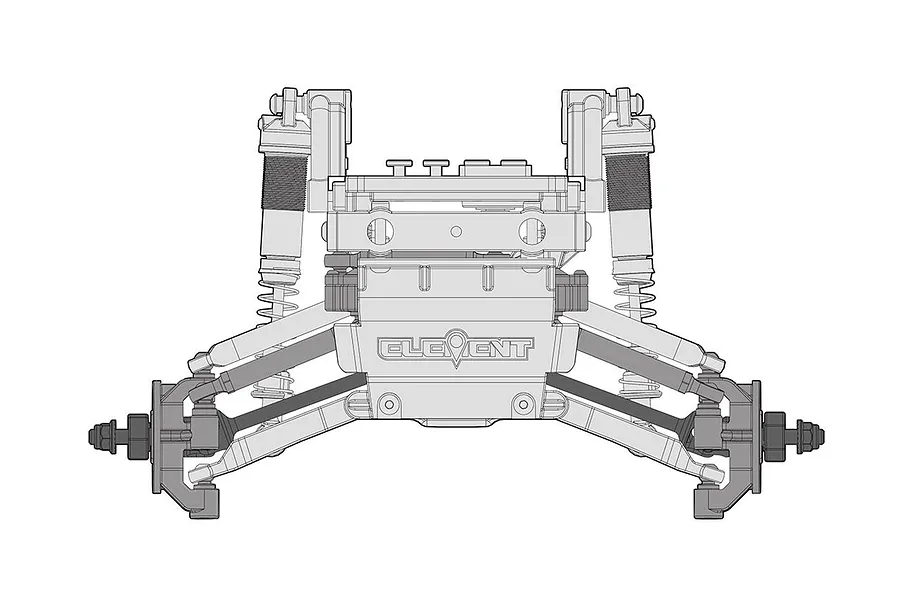

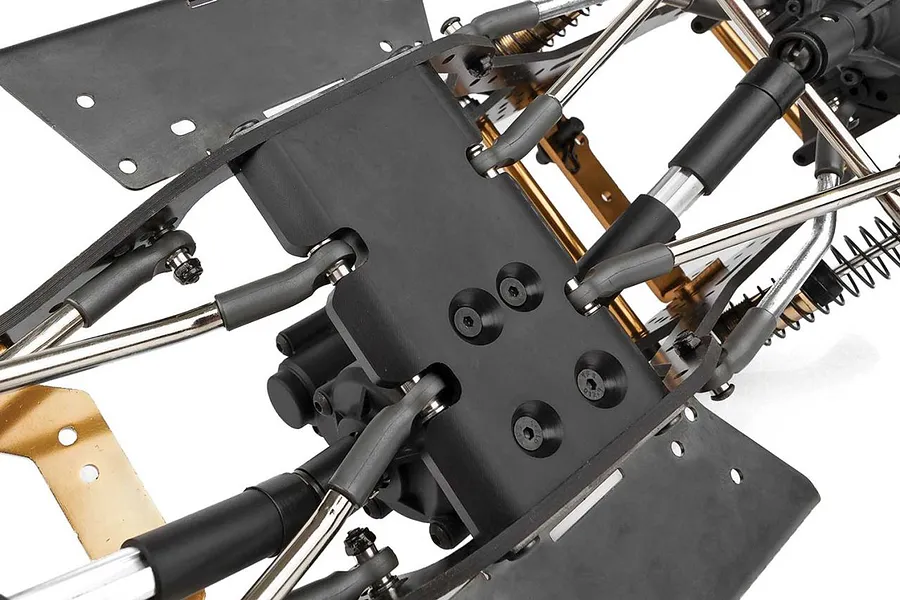

Angled Delrin® Skid Plate

Machined from a solid block of low-friction Delrin®, the lower skid plate is angled at 7 degrees. This unique design keeps the transmission flat for more rear ground clearance, which is fantastic for breakover transitions, helping you glide over obstacles smoothly without getting hung up.

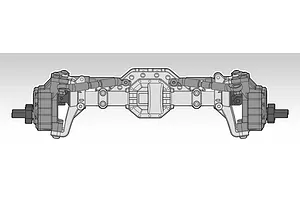

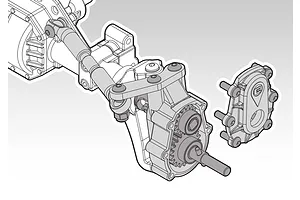

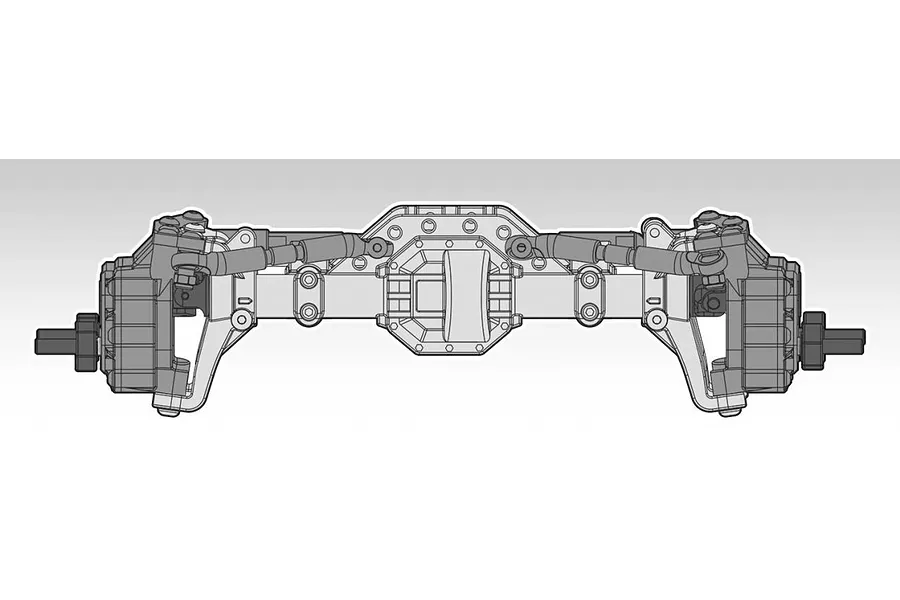

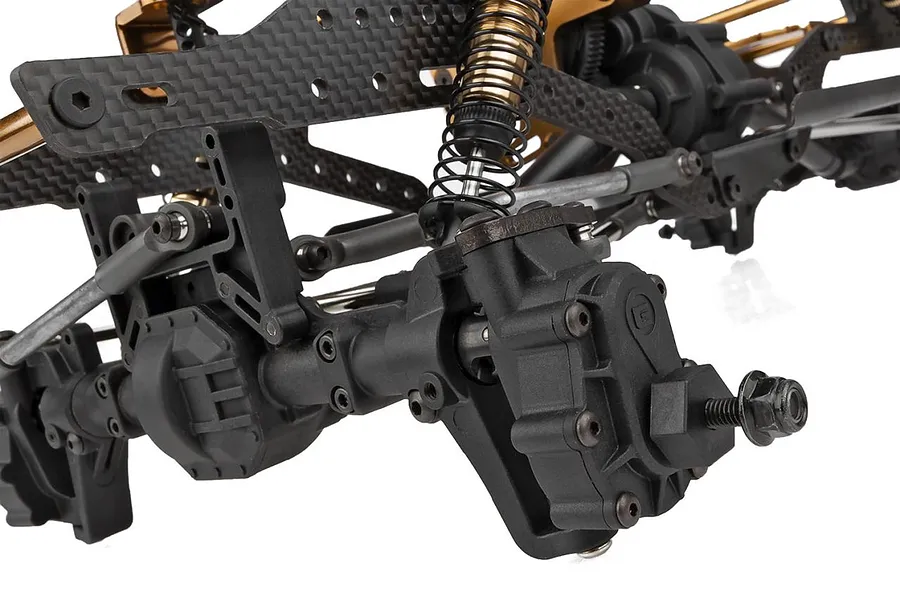

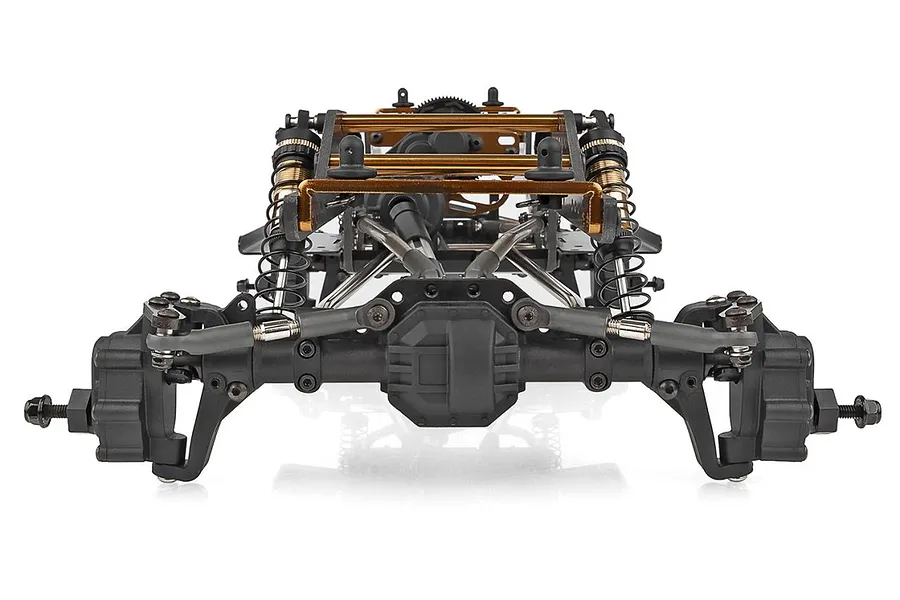

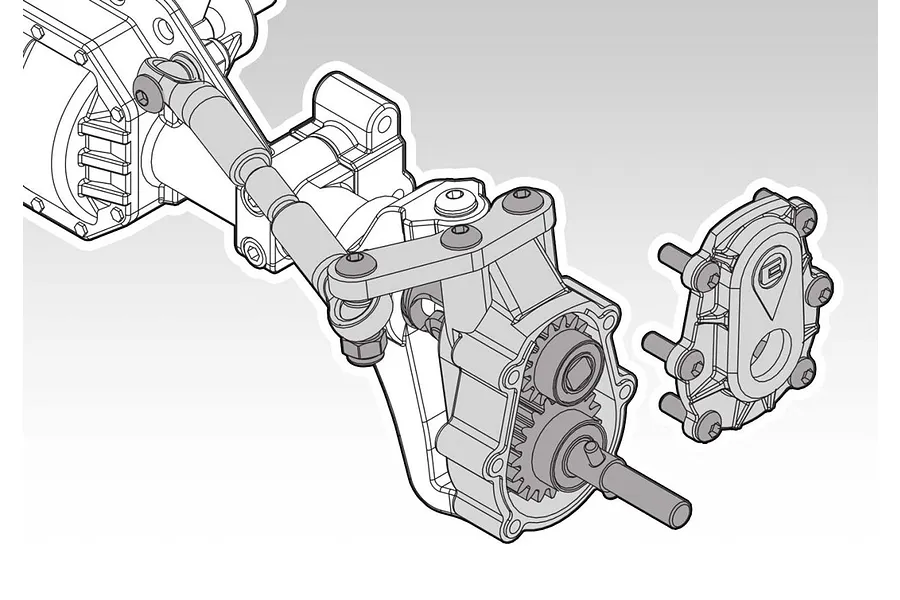

High-Clearance Portal Axles

When it comes to rock crawling, ground clearance is absolutely crucial! That’s why this kit includes high-clearance portal axles. They offer almost an inch of added centre axle clearance over standard straight axles, making getting over tough obstacles and boulders a breeze!

Features
  • Lightweight carbon fibre flat rail chassis with rigid machined aluminium braces
  • Angled Delrin® skid plate designed for improved breakover clearance
  • Stealth X® transmission with adjustable overdrive options (5.7% and 11.83% included)
  • Forward-bias aluminium motor mount for optimised front-end weight distribution
  • New high-clearance portal axles featuring all-metal internal gears for durability
  • Factory Team threaded aluminium shocks for smooth and tuneable suspension travel
  • Factory Team steel pivot balls and heavy-duty high-clearance links included
  • Servo-on-axle steering provides improved performance and a lower centre of gravity
  • Durable drivetrain components including machined gears, steel top shaft, and full metal ball bearings
  • Genuine Element RC Product
Specifications
  • Length: 410mm (16.14")
  • Width: 230mm (9.06")
  • Height: Not Specified
  • Wheelbase: 322mm (12.68")
  • Weight: 1190g (2.62lbs)
  • Chassis: Carbon Fibre Flat Rail
  • Suspension: Adjustable Long-Span Double Wishbone, Threaded Aluminium Shocks
  • Drivetrain: 4WD Portal Axles, Stealth X Transmission
  • Motor: N/A
  • ESC: N/A
Included Items
  • 1x Complete Element RC Enduro Comp Fox Competition Rock Crawler Kit
Required Items
  • 1x Electric Motor (540/550 Size Recommended)
  • 1x Electronic Speed Controller (ESC)
  • 1x Steering Servo (High Torque Recommended)
  • 1x LiPo or NiMH Battery
  • 1x Compatible Battery Charger
  • 1x 2-3 Channel Radio System
  • 4x Rims (1.9" Or 2.2" Beadlock Recommended)
  • 4x Tyres (1.9" Or 2.2" Rock Crawling Recommended)
  • 1x 1/10 Scale Rock Crawler Body Shell
Note
  • Optional gear sets are available separately for further tuning options.
Videos
Specifications
RC Kit
Suited Motor/ESC Type
Brushed
Factory Specs
Spur Gear
87T 48dp/0.5Mod
Max LiPo Power
2S (7.4v)
Rear Shock Oil
30wt
Wheel Hex Size
12mm
Front Shock Oil
30wt
RC Car
Completion
Kit
Drivetrain
4WD
Max LiPo Power
2S (7.4v)
On/Off Road
Off Road
Chassis Type
Rock Crawler
Power Source
Electric
Skill Level
Expert
Scale
1/10
