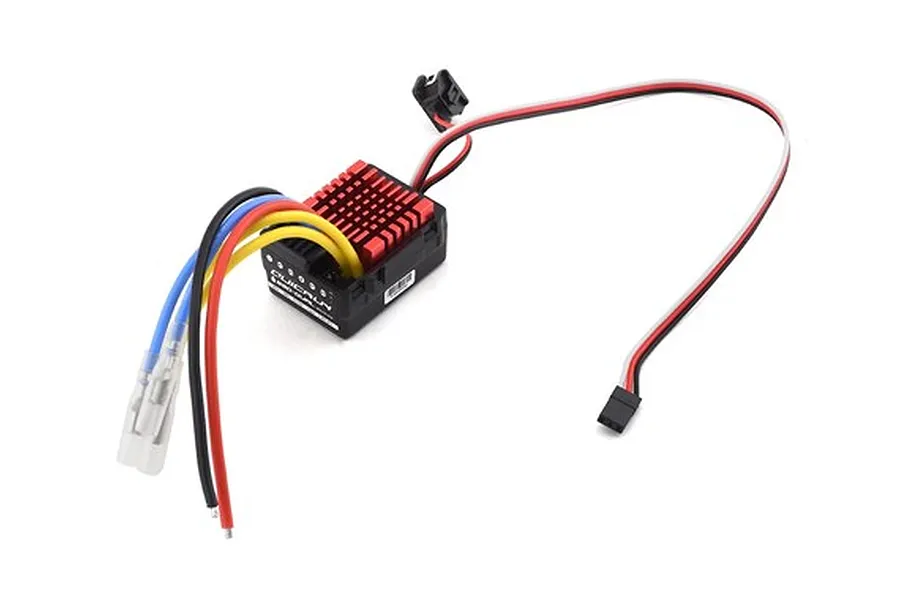

Hobbywing QuicRun WP-880 80A Dual Motor Waterproof Brushed ESC
Brand: Hobbywing
|
SKU: 30120301
Videos
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Hobbywing QuicRun 880 Waterproof Dual Brushed Crawling ESC.
Features
- Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors).
- HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
- Built-in switch-mode BEC with cont. current of 4A.
- Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel.
- Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
- 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
- Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
- Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
- Separate programming port to easily connect the LED program card to the ESC.
- ESC programming via HOBBYWING LED Program Card.
Specifications
- Cont./Peak Current: 80A/400A
- Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
- Applicable Car: 1/10th Vehicles & MOA style comp crawlers
- Motor Limit:
- Brushed Motor Limit with 2S LiPo /6S NiMH: ? 12T or RPM<30000@7.4V (540, 550 Size Motors)
- Brushed Motor Limit with 3S LiPo /9S NiMH: ? 18T or RPM<20000@7.4V (540, 550 Size Motors)
- Brushed Motor Limit with 4S LiPo /12S NiMH: ? 24T or RPM<15000@7.4V (540, 550 Size Motors)
- LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
- BEC Output: 6A@4A (Switch-Mode)
- Connectors: Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors
- Size/ Weight: 45.9x34.7x26.5mm/ 75g
- Programming Port: Separate Port
- Waterproof: Yes
NOTE: WP-880-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turn of the motors needs to be increased.
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushed |
| Max Voltage: | 14.8v |
| Waterproof Design: | Yes |
| Continuous Amps: | 80 |
| Motor Connectors: | 4.0mm Bullet |
| Battery Connector: | Bare Wire |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 6 |
| Dual Motor: | Yes |
