Kyosho Le Mans 240S Sensored 60A Brushless ESC
Kyosho Le Mans 240S Sensored 60A Brushless ESC
Brand:
Kyosho
|
MPN: 37051
$152.26
or 4 fortnightly payments of $38.06 with

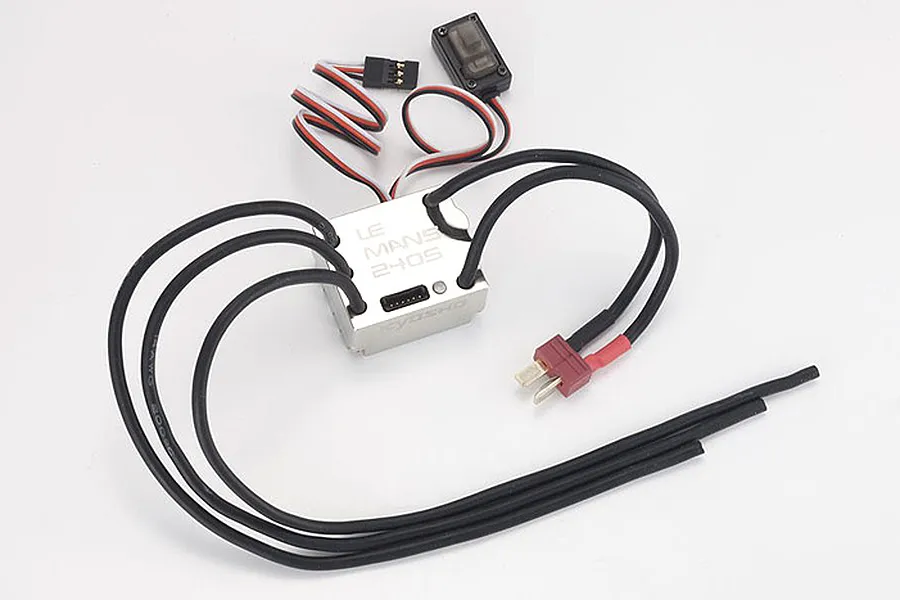

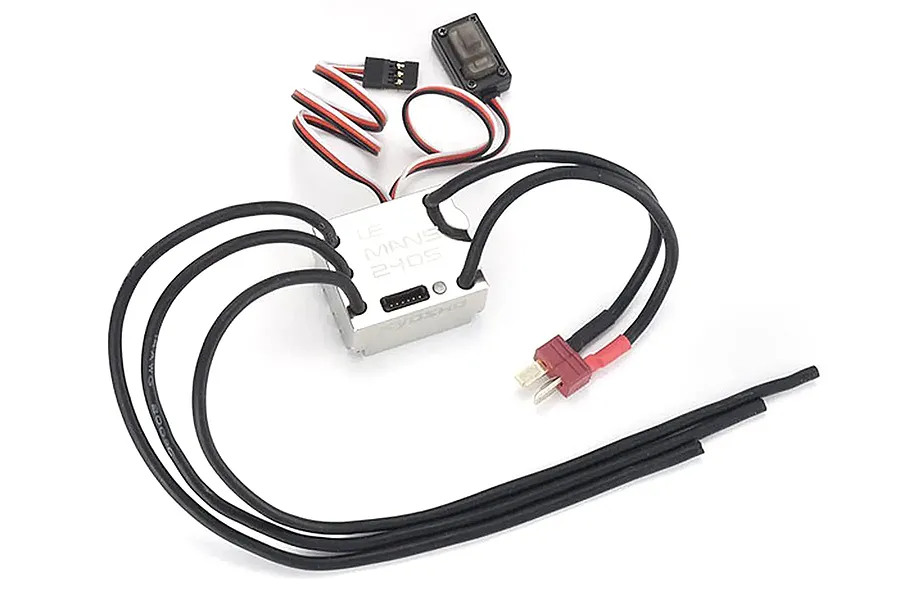

Kyosho Le Mans 240S 60A sensored brushless ESC with fan-free aluminium case and nickel-plated finish, optimized for Le Mans 240S motors.
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Compatible with
48 products.
See Compatibility
Related Products
Description
Le Mans 240S ESC is optimized for Le Mans 240S brushless motors. This new design locates all 6 FETs on the base and uses fins shaped into the underside of the aluminum case to dissipate heat and negate the need for a cooling fan. In addition to its excellent heat control and durability, the hard aluminum case is finished with nickel plating and laser etched with the "LE MANS 240S" and "KYOSHO" logos. With all 14-gauge wires covered in black silicon, the design aligns its superior performance with quality presentation.
Note
Sensor cable is not included. Please purchase separately.
Specifications
-
Resistance
- 0.0011Ω
-
Amps
- 60A continuous
-
Peak amps
- 80A
-
MAX KV (2S)
- 13.5T / 3200KV
-
MAX KV (3S)
- 15.5T / 2200KV
-
Function
- Forward / Brake; Forward / Brake / Reverse
-
Input Voltage
- 7.2V–11.1V (6-cell NiMH / 3S LiPo)
-
Motor Type
- Sensor & Sensorless, 2-pole / 4-pole
-
BEC
- 6V / 2A
-
Dimensions
- 37.5 × 30.8 × 18.7 mm
-
Weight
- approx. 80g
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushless
-
Max Voltage
- 11.1V
-
Waterproof Design
- No
-
Continuous Amps
- 60A
-
Battery Connector
- Deans
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Air
-
BEC Voltage
- 6V
