Part no. 32522MR
This product has been discontinued.

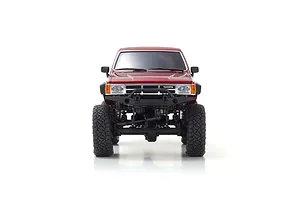

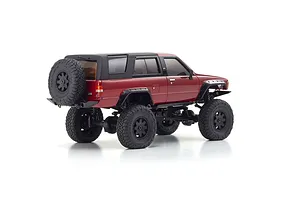

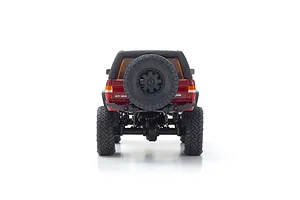

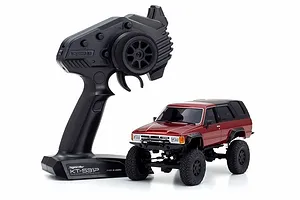

Contact usThe combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scaled realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to creating an entirely new 'MINI-Z 4x4' design that delivers an all-new driving experience for RC fans of all stripes, with the superior overall design, driving performance and high-quality injection-moulded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis on body detail and quality of finish, surpassing existing benchmarks set by the MINI-Z. The body is also moulded with thicker material better to resist crash damage from operation in rough terrain. Incorporating the same ladder-style frame of actual 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would typically be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the rugged terrain for excellent performance in the most challenging rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.
Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from everyday driving to rock crawling, while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

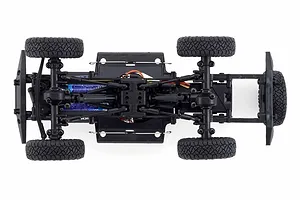

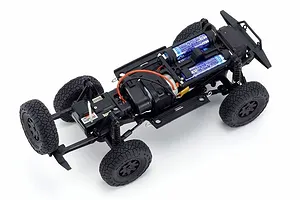

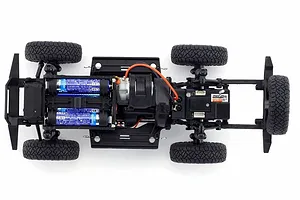

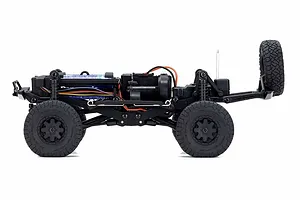

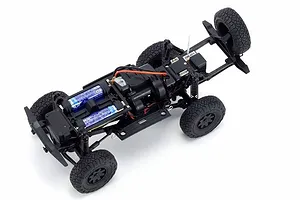

The Mini-Z 4x4 employs a ladder frame design featuring sturdy steel vertical plates, striking the perfect balance between rigidity and flexibility. This design enhances overall performance and ensures exceptional durability for unrivalled crawling performance.
The Mini-Z 4x4 chassis features tough solid axles with metal ring and pinion gears for exceptional durability and consistent performance. This robust drivetrain ensures reliable power transfer and long-lasting operation, even under challenging conditions.
Experience smooth and consistent performance with coil-over shocks that feature a 360-degree spring retainer. This innovative design ensures the springs stay securely in place, even during extreme articulation and challenging off-road driving. No more worries about losing parts on the trail, just reliable suspension performance every time.
The Mini-Z 4x4 gearbox features moulded covers for a clean look and houses smooth-spinning ball bearings for efficient operation. Six included pinion gears provide a wide range of gear ratio options, allowing you to fine-tune your setup for different terrains and driving styles. Easily adjust the gear mesh with the provided spacers for optimal performance.
The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.
Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.
Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.
The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.
Tyres and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of the Toyo Tyre's export brand "Nitto Ridge Grappler" tyres mounted on custom wheels.
| Length | 200.5mm (7.89") |
|---|---|
| Width | 87mm (3.42") |
| Height | 86.0mm (3.38") |
| Chassis | Type MX-01 |
| Wheel Base | 110mm (4.33") |
| Tread F/R | 72.7mm (2.86") |
| Weight | 223g (0.491lbs) excl. battery |
| Motor/Engine | 130 Class |
| Gear Ratio | 55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1 |
| Front Tyre Diameter | 42.0mm (1.65") |
| Rear Tyre Diameter | 42.0mm (1.65") |
| Front Tyre Width | 14.3mm (0.056") |
| Rear Tyre Width | 14.3mm (0.056") |
| Battery | 4 x AAA alkaline |
| Transmitter | Syncro KT-531P |
| Speed | 3.3 km/h – 6.6 km/h (Pinion gears 10T – 20T) approx. |
| Running Time | 60 mins approx. |
| Scale | Mini-Z |
|---|---|
| Completion | Ready to Run |
| Skill Level | Beginner |
| Power Source | Electric Brushed |
| Chassis Type | Rock Crawler |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
| Suited Motor/ESC Type | Brushed |
|---|
| Battery Connector | AAA |
|---|---|
| Pinion Gear | 10T, 12T, 14T, 16T, 18T, 20T |
| Wheel Hex Size | 7mm |
