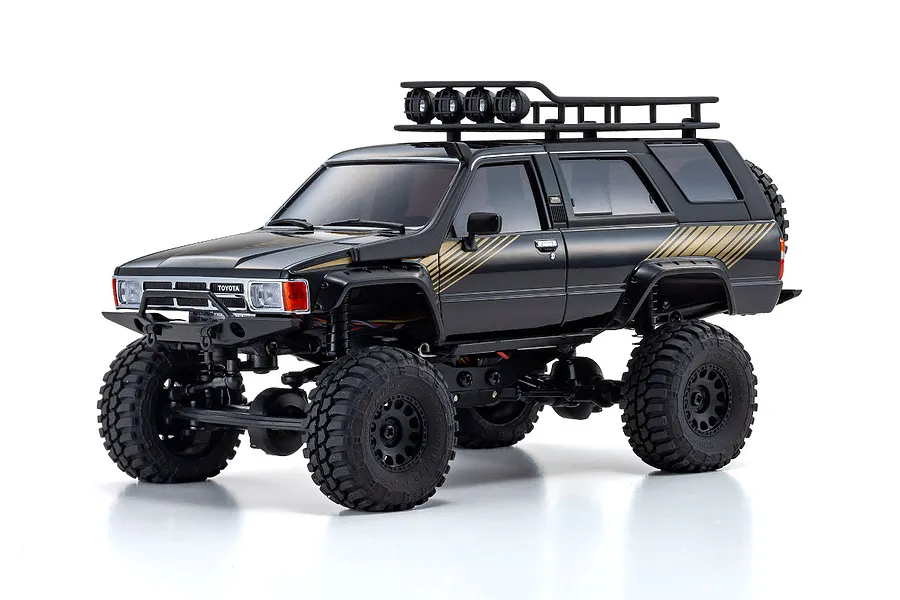

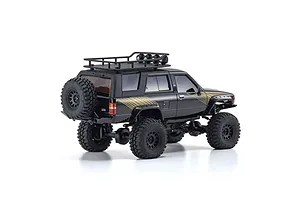

Name: Kyosho Mini-Z Toyota 4Runner Hilux Surf 4x4 RC Rock Crawler Electric 4WD RTR - Black
Brand: Kyosho
SKU: KYO-32532BK
Price: 387.86 AUD
Availability: OutOfStock

Overview

In 2019, the renowned Kyosho Mini-Z, the world's most beloved mini RC series, marked over two decades of unparalleled performance and scale realism in the hobby-grade RC realm. To continue pushing the boundaries of performance and evolution, Kyosho introduced the innovative Mini-Z 4x4 design, promising an entirely new and thrilling RC experience for enthusiasts of all backgrounds. This series stands out with its exceptional overall design, driving capabilities, and top-notch injection-moulded scale body construction. The Mini-Z 4x4 places a strong emphasis on body detail and finish quality, surpassing even the high standards set by the standard Mini-Z series. The body features enhanced durability, crafted with thicker material to withstand rough terrain and resist damage from crashes.

Inspired by the ladder-style frame found in real 4WD vehicles, the Mini-Z 4x4 boasts a 3-link rigid axle suspension that combines two upper links into a single upper A-arm, ensuring maximum suspension travel. With a specially designed high-torque steering servo, this machine can handle challenging terrain with ease, excelling in demanding rock-crawling conditions. The high-torque 130-size motor is perfectly geared for low to medium-speed ranges. The Kyosho Mini-Z 4x4 is the ultimate mini crawler, delivering a full range of crawling performance in a compact package.

Note

Refer to the vehicle's manual for the manufacturer's waterproof specifications and guidelines.

Features

LED capable roof rack lights for added scale realism
Fat Interco Super Swamper "Bigger" LTB tyres with new rims for an aggressive look
Ladder frame chassis with sturdy steel vertical plates, balancing rigidity and flexibility
Robust front and rear axles with precision-engineered metal ring and pinion gears
Advanced coil-over shocks with 360-degree spring retainer to prevent spring loss
Gearbox with moulded covers, precision ball bearings, and six pinion gear options for terrain tuning
3-link rigid axle suspension for maximum suspension movement
20+ years of R&D experience in small-scale crawling
Perfect for crawling inside the house or in the back yard
Solid front and rear axles for durability and reliable performance
Officially licensed by Toyota
Metal differentials and solid axle driveshafts

In the box

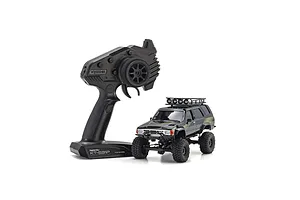

1x Mini-Z Toyota 4Runner Hilux Surf 4x4 Electric RTR RC Rock Crawler - Black
6x Optional Pinion Gears
3x Pinion Gear Spacers

You'll need

8x AAA Batteries

Highlights

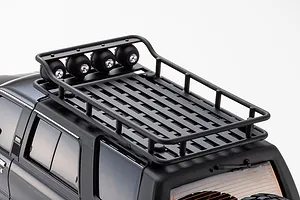

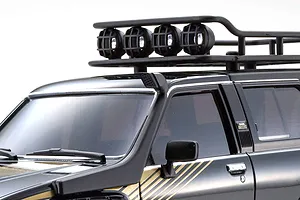

LED Capable Roof Rack Lights

The scale detail includes a roof-mounted rack with LED-capable roof lights (sold separately), adding an extra layer of authenticity to your off-road adventures.

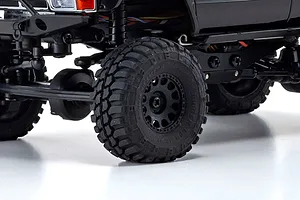

Scale Wheels

The Mini-Z 4x4comes with the fantastic Fat Interco Super Swamper "bigger" LTB tyres with new rims to give an aggressive look while maintaining its scale proportions.

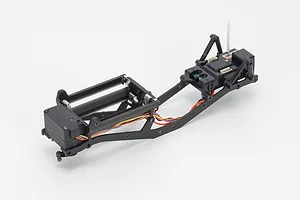

Ladder Rail Chassis

The Mini-Z 4x4 employs a ladder frame design featuring sturdy steel vertical plates, striking the perfect balance between rigidity and flexibility. This design enhances overall performance and ensures exceptional durability for unrivalled crawling performance.

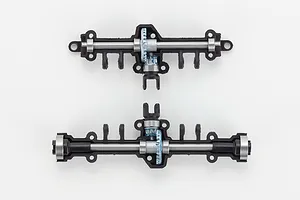

Metal Drivetrain

The Mini-Z 4x4 chassis features tough solid axles with metal ring and pinion gears for exceptional durability and consistent performance. This robust drivetrain ensures reliable power transfer and long-lasting operation, even under challenging conditions.

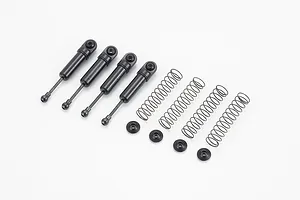

Secure & Reliable Coil-Over Shocks

Experience smooth and consistent performance with coil-over shocks that feature a 360-degree spring retainer. This innovative design ensures the springs stay securely in place, even during extreme articulation and challenging off-road driving. No more worries about losing parts on the trail, just reliable suspension performance every time.

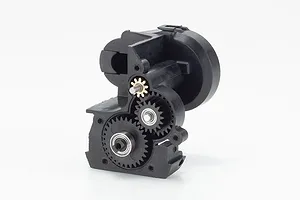

Tunable Gearbox for Optimal Performance

The Mini-Z 4x4 gearbox features moulded covers for a clean look and houses smooth-spinning ball bearings for efficient operation. Six included pinion gears provide a wide range of gear ratio options, allowing you to fine-tune your setup for different terrains and driving styles. Easily adjust the gear mesh with the provided spacers for optimal performance.

Specifications

Length	200.5mm (7.89in)
Width	87mm (3.43in)
Height	104mm (4.09in)
Wheelbase	110mm (4.33in)
Weight	238g (8.40oz)
Tyre Diameter/Width F/R	40.5/18mm
Chassis	Crawler
Drivetrain	4WD
Gears	55.4:1 / 46.2:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
Suspension	Oil filled shock absorbers
Motor	130 sized brushed electric
ESC	N/A
