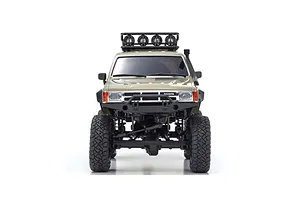

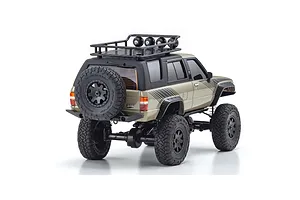

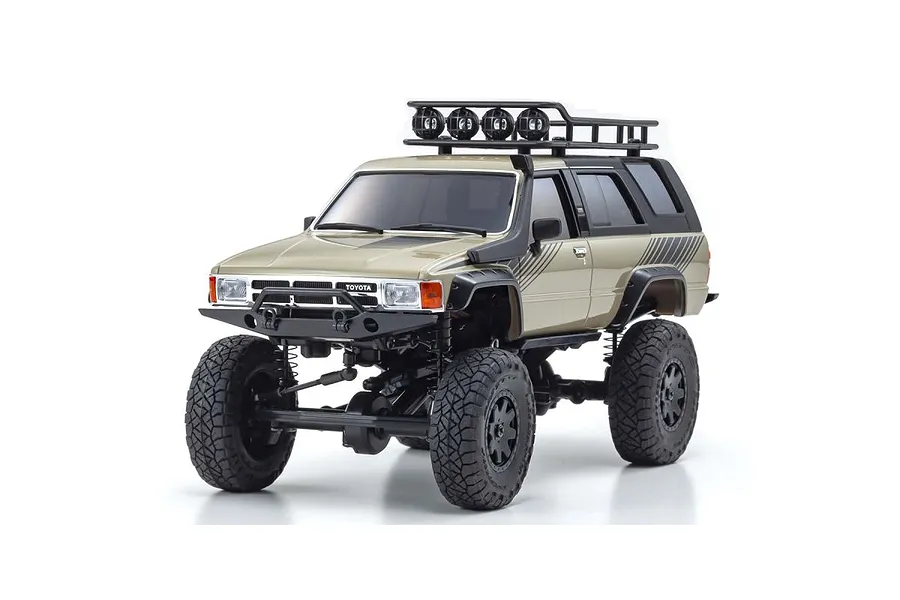

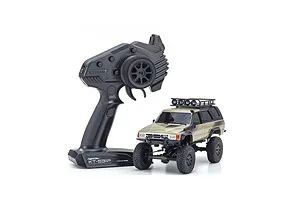

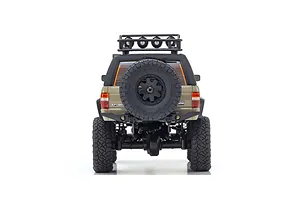

Name: Kyosho Mini-Z Toyota 4 Runner Hilux Surf RC Rock Crawler Electric 4WD RTR - Quick Sand
Brand: Kyosho
SKU: KYO-32524SY
Price: 360.83 AUD
Availability: Discontinued

Overview

The Kyosho Mini-Z 4x4 is a revolutionary mini crawler that redefines performance and scale realism. This compact and powerful RC crawler boasts a highly detailed body and a completely new 4x4 chassis design, delivering an all-new driving experience for RC enthusiasts. The Mini-Z 4x4 surpasses existing benchmarks with its superior overall design, driving performance, and high-quality injection-moulded scale body construction. The body is also moulded with thicker material to withstand the rigours of off-road driving.
The Mini-Z 4x4 features a 3-link rigid axle suspension, combining two upper links into a single upper A-arm for maximum suspension movement. A specially designed high-torque steering servo allows for precise control and exceptional performance in challenging rock-crawling conditions. The high-torque 130-size motor, geared for low to medium speed ranges, brings out the beast in this mini crawler.
Whether you're navigating everyday obstacles or tackling a challenging rock garden, the Kyosho Mini-Z 4x4 delivers a full range of crawling performance in a smaller package. With its exquisite style, scale detail, and superior driving performance, the Mini-Z 4x4 is the ultimate mini crawler for RC enthusiasts of all levels.

Features

1/24 scale ready-to-run 4WD Toyota 4Runner with officially licensed and highly detailed injection-moulded body
Features flexible mirrors and wipers, chrome details, and a removable roof section with a matte finish
Roof mounted light bar can be fitted with LED
Durable body with intricate details like door handles, bumpers, and a realistic rear end design
One-touch body mounting system for easy removal
Ladder frame chassis with multi-link rigid-axle suspension and steel components for optimal performance
Newly designed shock absorbers with 360-degree spring retainers prevent loss and ensure proper re-seating
Adjustable wheelbase (110 or 120mm) and a tight turning radius for agile handling
Includes Nitto Ridge Grappler tyres and custom wheels for a scale appearance
Gearbox with 6 pinion gears for adjusting the gear ratio and a slipper clutch for drivetrain protection
18 ball bearings ensure smooth and efficient operation
High-torque motor optimised for low-speed power and crawling performance
On-board electronics with accessory ports for optional LED lights
Independent steering servo with enhanced performance
Syncro KT-531P 2.4GHz transmitter with various adjustments and a sponge steering wheel for improved control
Genuine Kyosho Product

In the box

1x MX-01 Chassis
1x Factory-Painted Body
1x Pinion gear set (10T,12T,14T,16T,18T,20T)
1x 3 types of pinion gear spacers

You'll need

4 x AAA Batteries for Transmitter
4 x AAA Batteries for Chassis

Highlights

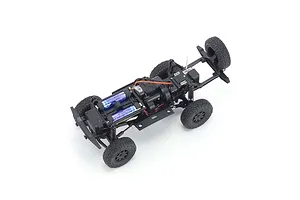

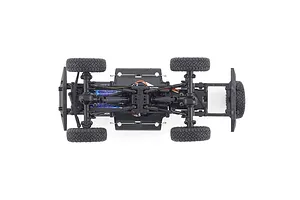

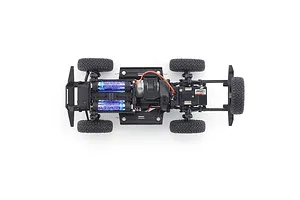

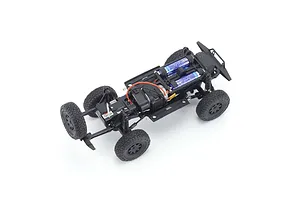

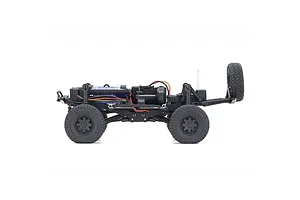

Ladder Rail Chassis

The Mini-Z 4x4 employs a ladder frame design featuring sturdy steel vertical plates, striking the perfect balance between rigidity and flexibility. This design enhances overall performance and ensures exceptional durability for unrivalled crawling performance.

Metal Drivetrain

The Mini-Z 4x4 chassis features tough solid axles with metal ring and pinion gears for exceptional durability and consistent performance. This robust drivetrain ensures reliable power transfer and long-lasting operation, even under challenging conditions.

Secure & Reliable Coil-Over Shocks

Experience smooth and consistent performance with coil-over shocks that feature a 360-degree spring retainer. This innovative design ensures the springs stay securely in place, even during extreme articulation and challenging off-road driving. No more worries about losing parts on the trail, just reliable suspension performance every time.

Tunable Gearbox for Optimal Performance

The Mini-Z 4x4 gearbox features moulded covers for a clean look and houses smooth-spinning ball bearings for efficient operation. Six included pinion gears provide a wide range of gear ratio options, allowing you to fine-tune your setup for different terrains and driving styles. Easily adjust the gear mesh with the provided spacers for optimal performance.

Solid Axles

The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.

Steel Link & Ball End

Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

Scale Wheels

Tyres and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of the Toyo Tyre's export brand "Nitto Ridge Grappler" tyres mounted on custom wheels.

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

Specifications

Length	200.5mm (7.89")
Width	87mm (3.42")
Height	86.0mm (3.38")
Wheelbase	110mm (4.33")
Weight	223g (0.49 lbs)
Chassis	MX-01 (Rock Crawler )
Drivetrain	4WD
Suspension	Coil Over Shock Absorbers
Motor	130 Sized Brushed Motor
ESC	N/A
