Kyosho Mini-Z Suzuki Jimny Sierra RC Rock Crawler Electric 4WD RTR - Black Pearl (Team Hot in the Sun)

  • 4WD
  • RTR
  • Brushed

Part no. 32523BP

Sold out5.0
1 review
1 / 8
1 / 8

Videos

$369.91

or 4 fortnightly payments of $92.48 with afterpay

Kyosho Mini-Z Jimny Sierra Black Pearl RC Rock Crawler - A compact crawler with unmatched performance and scale realism.

  • 60 minute run time on 8x AAA batteries!
  • Highly detailed injection-moulded body
  • Perfect for all skill levels

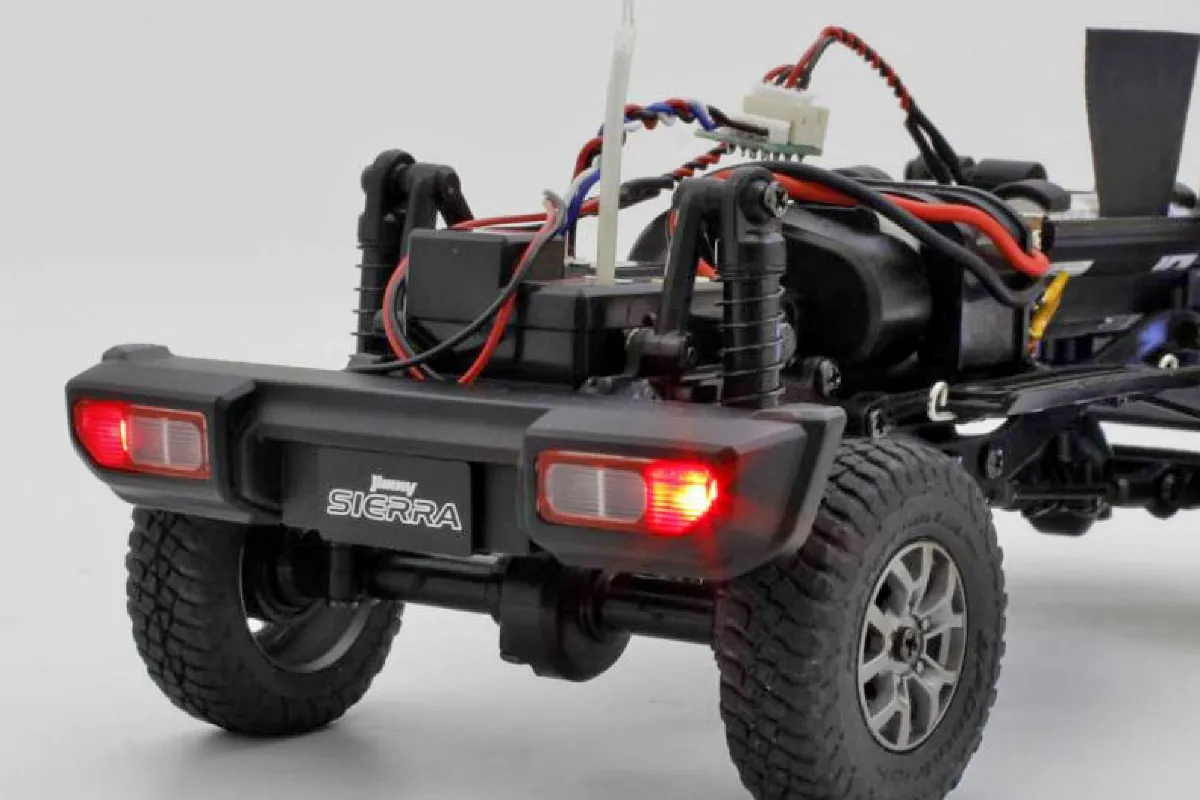

  • LED Light set
  • High-torque steering servo and 130-size motor

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Embark on epic off-road adventures with the Kyosho Mini-Z Suzuki Jimny Sierra. This meticulously detailed RTR rock crawler captures the rugged spirit and iconic design of the beloved Jimny, ready to tackle any challenge right out of the box. Kyosho's dedication to scale realism shines through in every aspect, from the injection-moulded body with its bold wheel flares to the 3-link rigid axle suspension that mimics full-size 4WD vehicles. But it's not just about looks - the high-torque steering servo and powerful 130-size motor deliver exceptional crawling performance, allowing you to conquer obstacles with ease. Experience the thrill of realistic rock crawling in a compact and convenient package.

Features

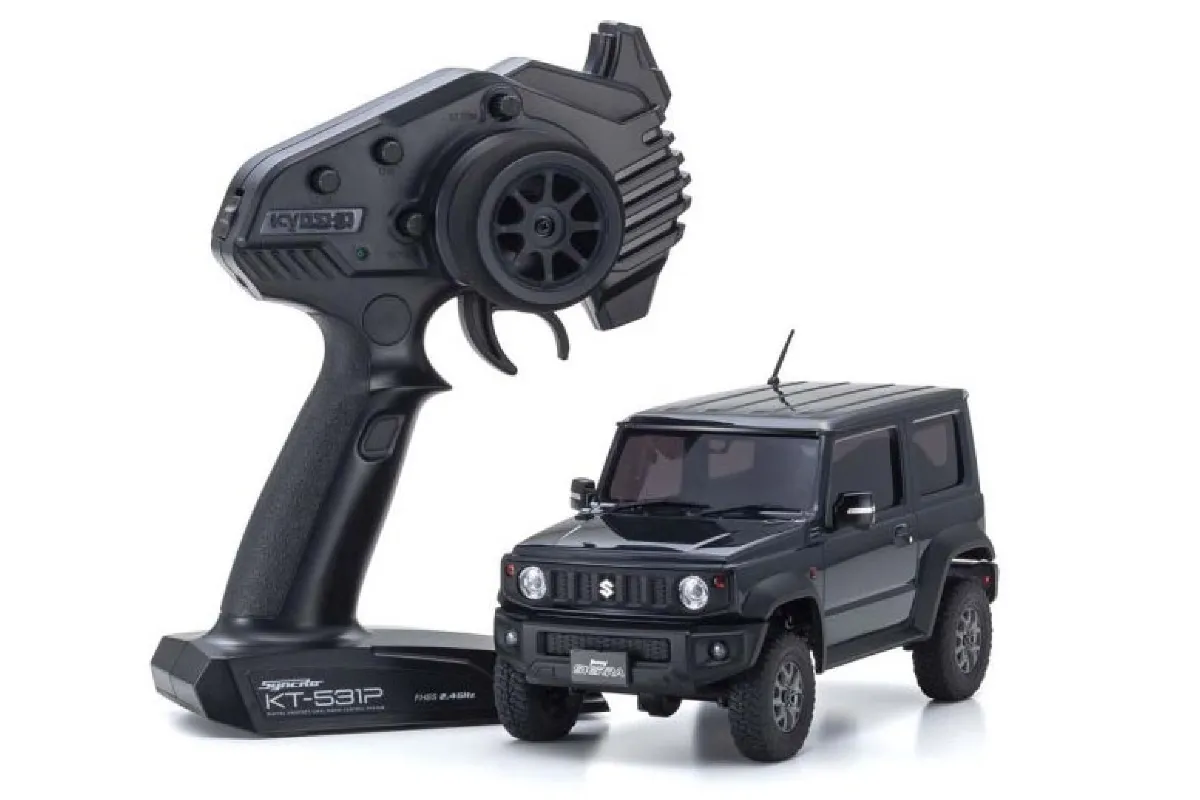

  • KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions
  • Servo uses an independent receiver/ESC connection and is protected with its own casing
  • Includes LED light set
  • Full ball bearings (18 total)
  • Slipper clutch protects the drivetrain from excess loads
  • Multiple pinion gear setup to customise speed
  • Gearbox & Gears come with moulded covers
  • BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels with an aluminium-like silver finish
  • Wheelbase can be adjusted using included spacers
  • Incorporates a ladder frame design to offer superior balance & durability
  • Newly designed one-touch body mount
  • Genuine Kyosho Product

In the box

  • 1x Kyosho Mini-Z Suzuki Jimny Sierra RC Rock Crawler Electric 4x4 RTR - Black Pearl
  • 1x Electronics
  • 1x KT-531P 2.4GHz Transmitter
  • 1x Pinion Gear Set (10T, 12T, 14T, 16T, 18T, 20T)
  • 1x 3 Types of Pinion Gear spacers

You'll need

  • 8x AAA Batteries

Highlights

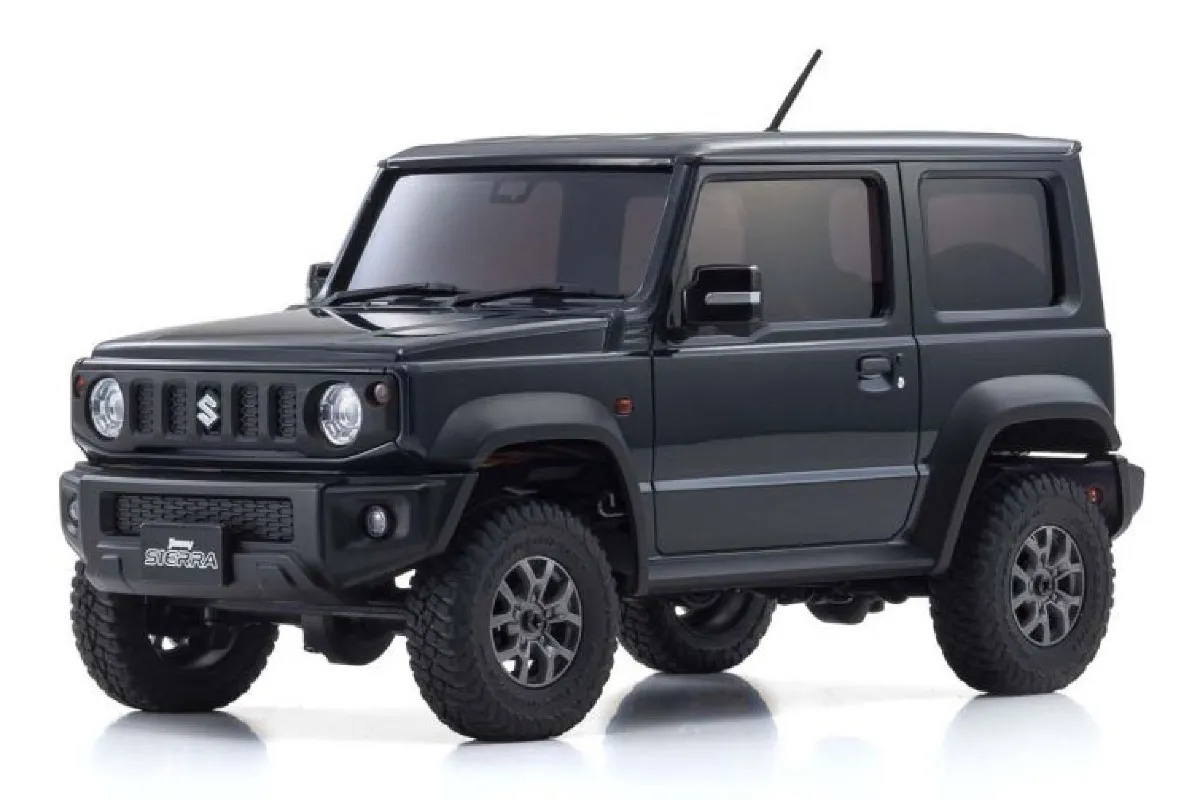

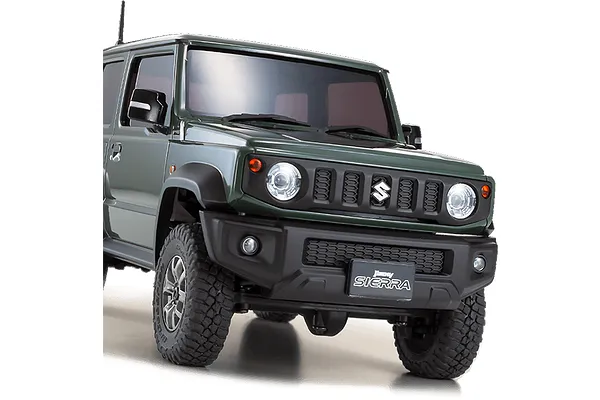

Iconic Jimny Styling

Iconic Jimny Styling

Kyosho captures the unique charm of the Jimny with meticulous attention to detail. The signature five-slot front grille, round headlights fitted with LEDs, and precisely replicated turn signal and driving lights elevate the scale realism of this already impressive model.

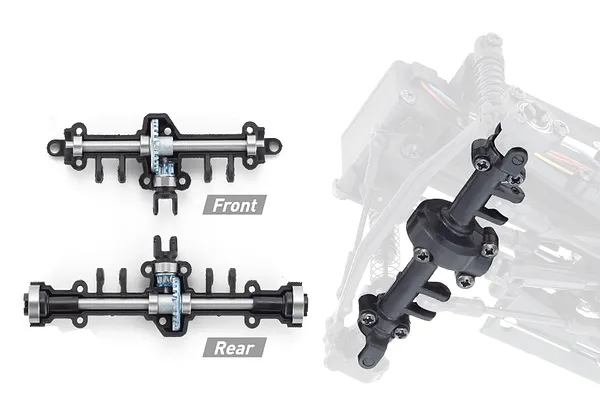

Solid Axles

Solid Axles

The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.

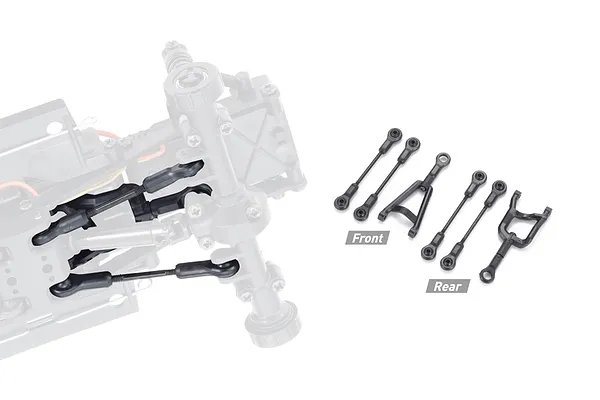

Steel Link & Ball End

Steel Link & Ball End

Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.

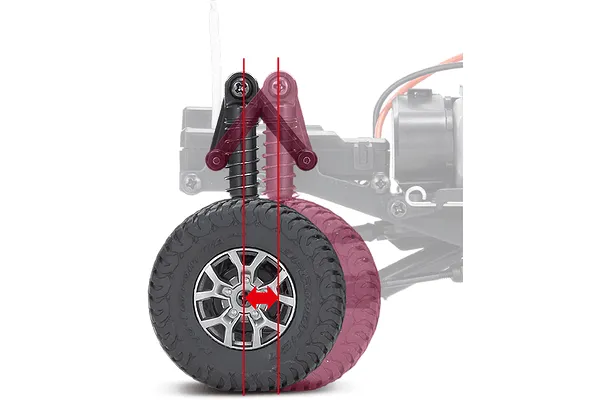

Adjustable Wheelbase

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

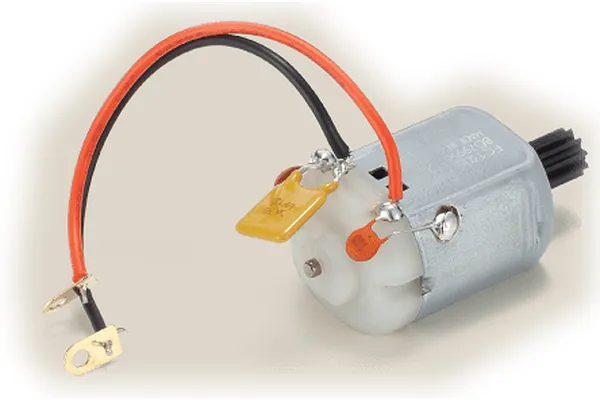

130 Size High Torque Motor

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

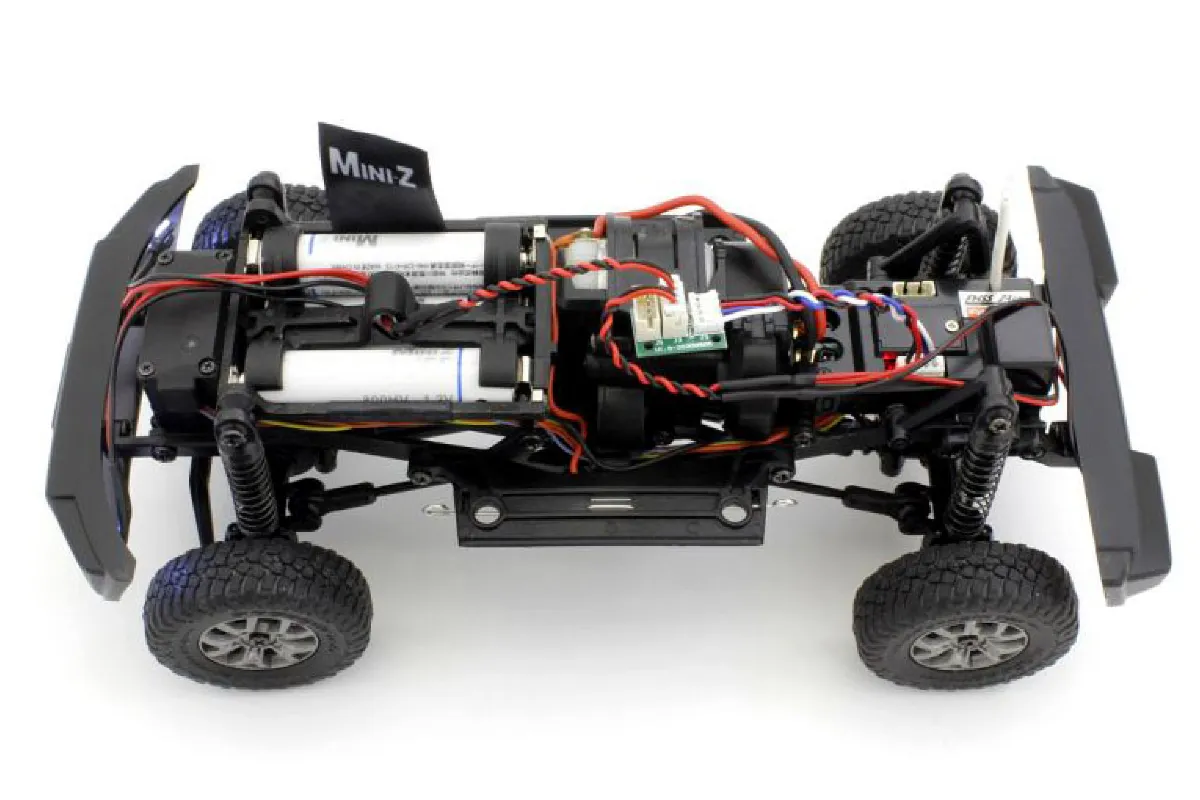

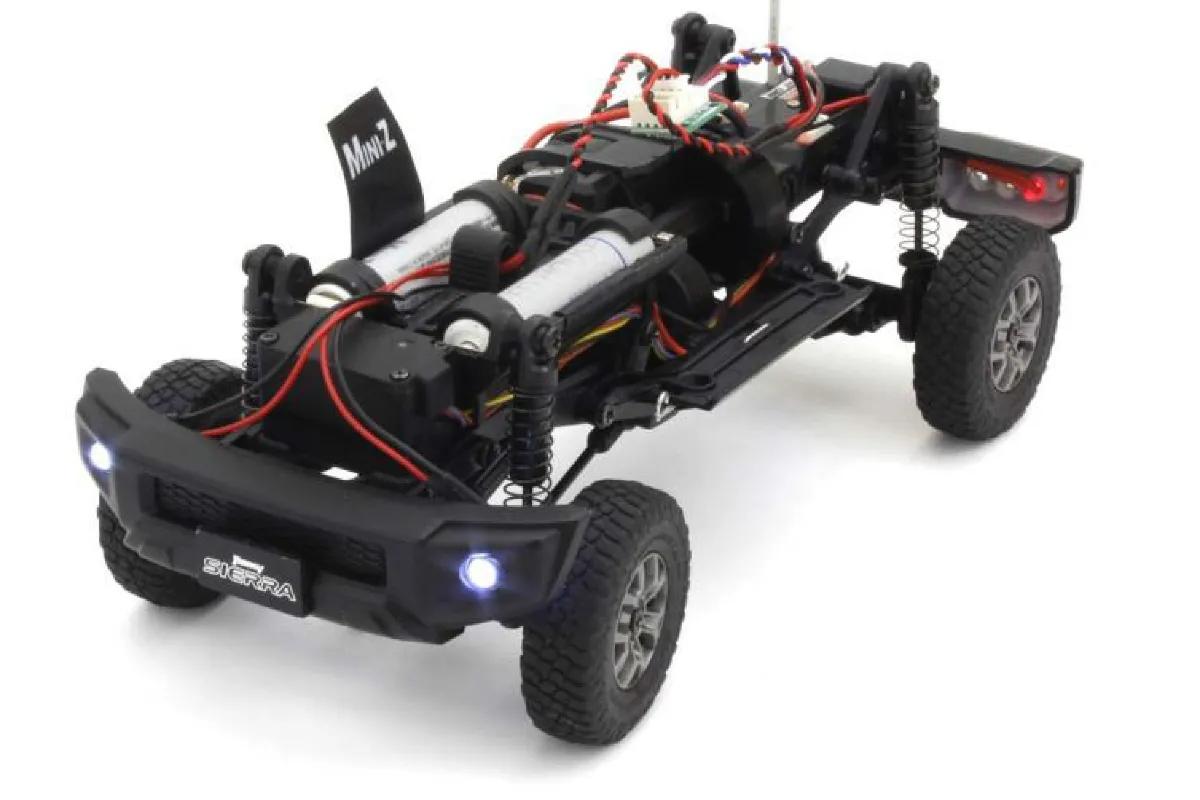

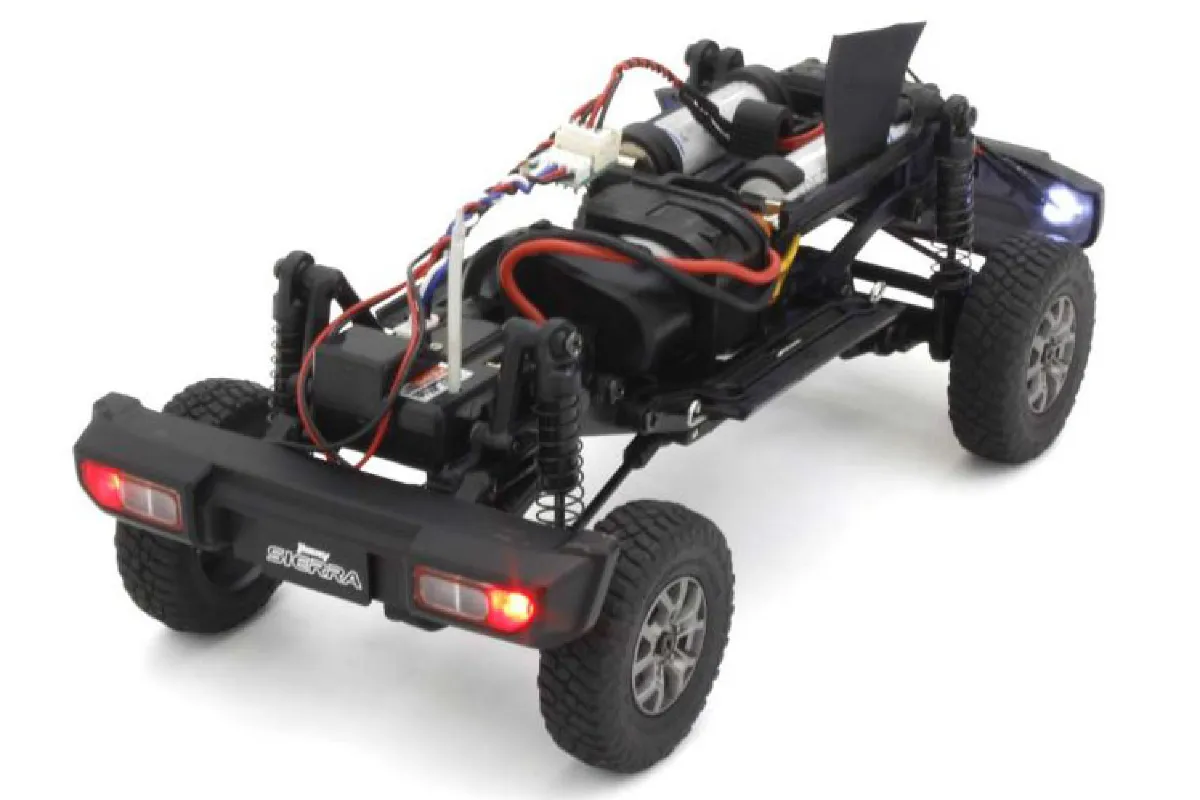

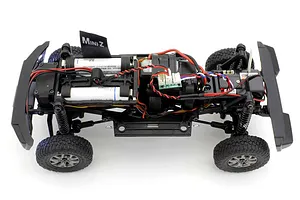

New 4x4 Crawler Chassis

New 4x4 Crawler Chassis

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance well beyond anything RC enthusiasts have seen from a mini crawler.

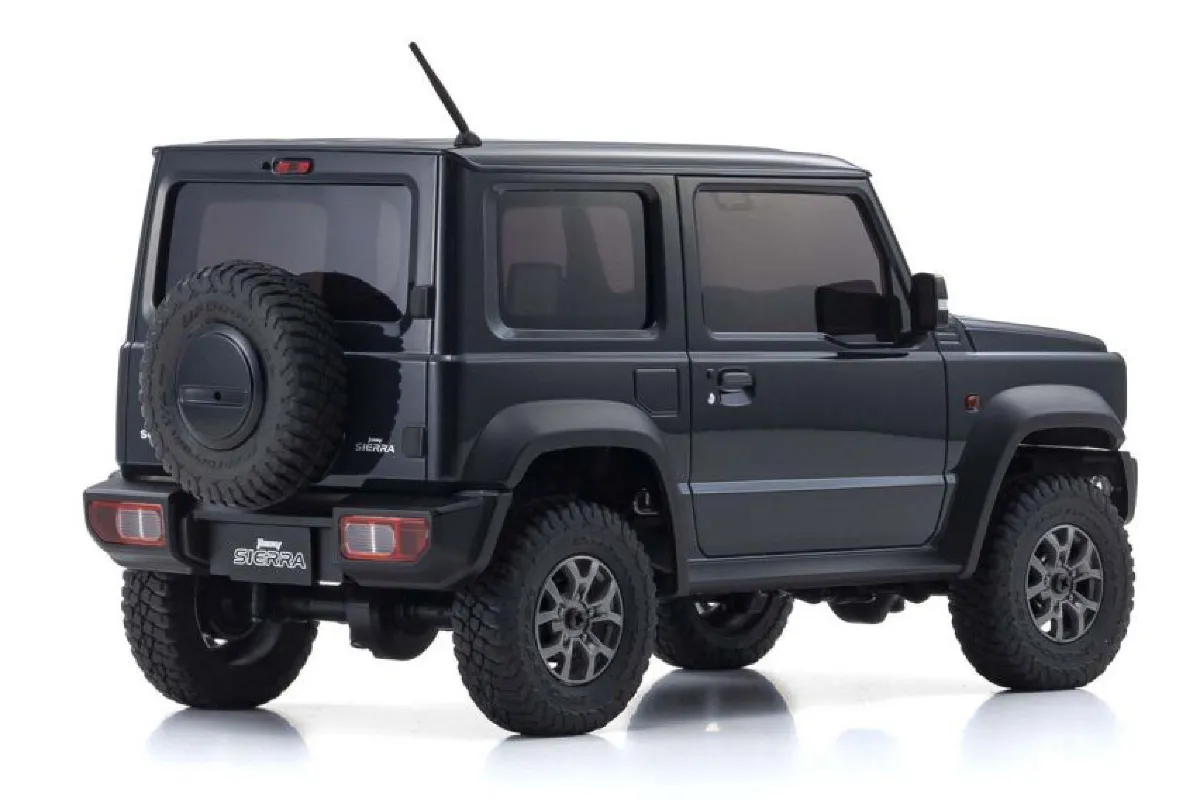

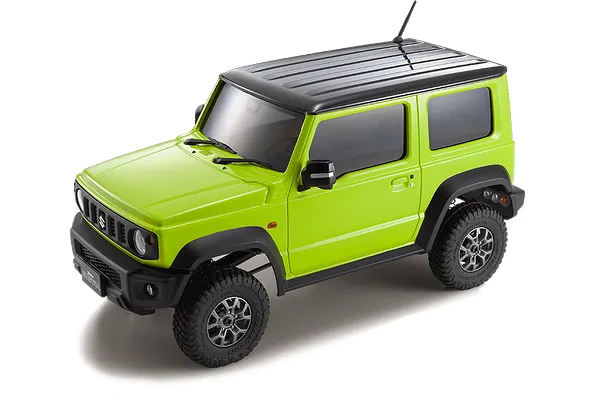

Painted body detail

Painted body detail

The factory-painted body has so much detail it rivals that of a die cast model, with door mirrors produced with a combination of gloss and matte finishes.

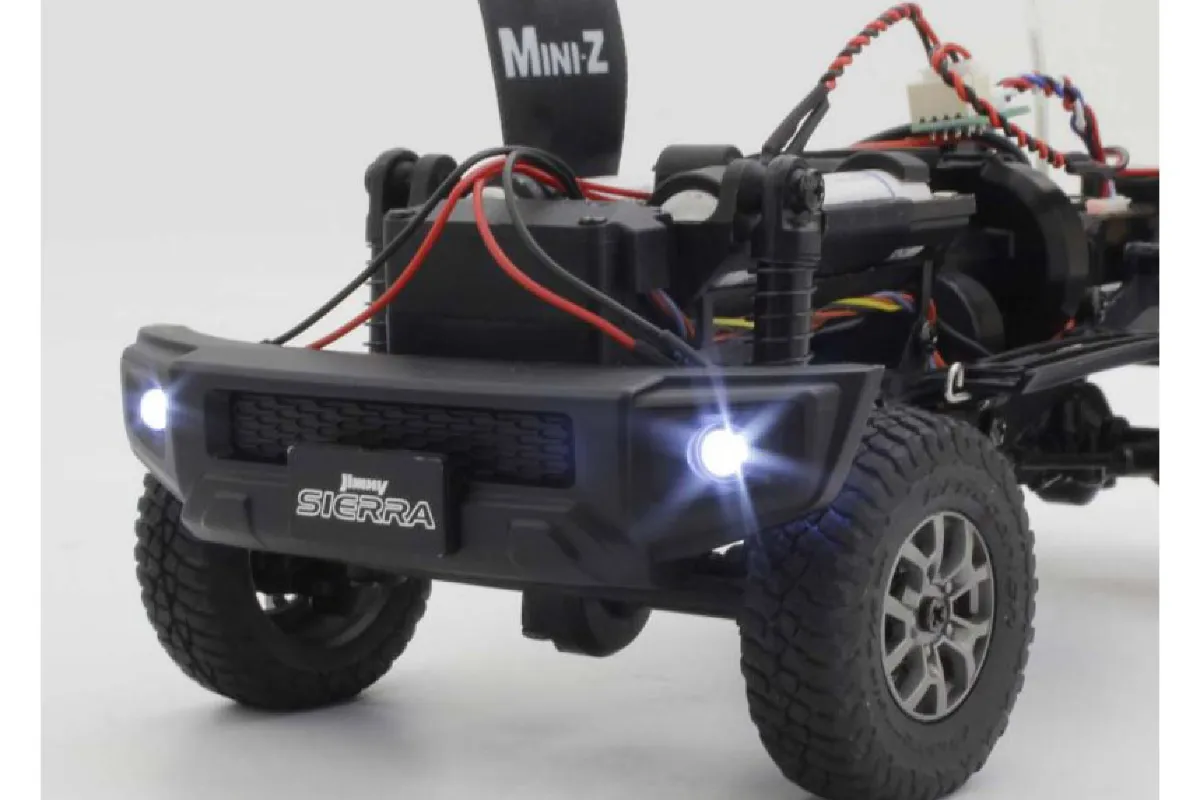

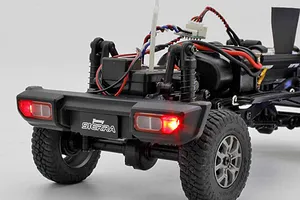

Front face with LED headlights

Front face with LED headlights

The unique styling of the Jimny is recreated with the signature five-slot front grille, round headlights fitted with LEDs, and turn signal lights.

Solid axle construction detail

Solid axle construction detail

Solid front and rear axles feature links with steel rods and captured rod ends, with metal ring and pinion gears to withstand heavy loads.

Steel link and ball end suspension

Steel link and ball end suspension

The upper A-arms and lower links feature strong steel links and captured ball ends for maximum range of motion and smooth operation.

Adjustable wheelbase spacer

Adjustable wheelbase spacer

The wheelbase can be changed to 110 or 120mm by changing the length of the spacer on the upper A-link.

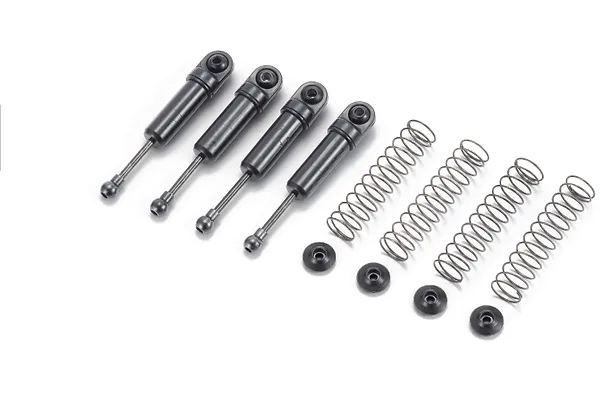

Coil-over shock absorbers

Coil-over shock absorbers

The newly designed shock absorbers feature 360-degree spring retainers which cannot come loose, ensuring the springs re-seat after hard impacts.

High-torque 130-size motor

High-torque 130-size motor

The Mini-Z 4x4 features a specially-designed high-torque motor optimized for maximum torque at lower speeds common in crawling.

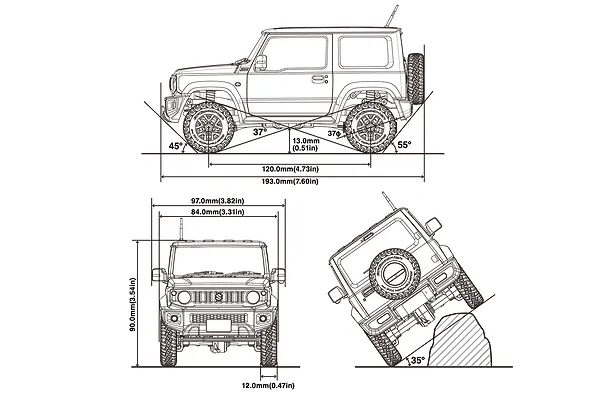

Extreme approach angle demonstration

Extreme approach angle demonstration

Enjoy driving under any conditions, from normal driving to rock crawling, thanks to the extreme approach angles enabled by the 3-link rigid axle suspension.

Specifications

Length193mm (7.63")
Width84mm (3.32")
Height90.0mm (3.56")
Wheelbase120mm (4.74")
Weight242g (0.53 lbs) (excl. battery)
ChassisMX-01
Drivetrain4WD
SuspensionOil Filled Coil Over Shock Absorbers
MotorKyosho 130 Size Brushed Motor
ESCN/A

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorAAA
Pinion Gear10T, 12T, 14T, 16T, 18T, 20T
Wheel Hex Size7mm
