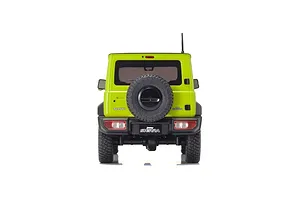

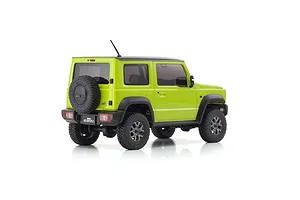

Kyosho Mini-Z Suzuki Jimny Sierra RC Rock Crawler Electric 4x4 RTR - Kinetic Yellow (Team Tennis Ball)

  • 4WD
  • RTR
  • Brushed

Part no. 32523Y

DiscontinuedNo reviews yet
1 / 11
1 / 11

Videos

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scaled realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to creating an entirely new 'MINI-Z 4x4' design that delivers an all-new driving experience for RC fans of all stripes, with the superior overall design, driving performance and high-quality injection-moulded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis on body detail and quality of finish, surpassing existing benchmarks set by the MINI-Z. The body is also moulded with thicker material better to resist crash damage from operation in rough terrain. Incorporating the same ladder-style frame of actual 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would typically be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the rugged terrain for excellent performance in the most challenging rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from everyday driving to rock crawling, while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Features

  • KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions
  • Servo uses an independent receiver/ESC connection and is protected with its own casing
  • Includes LED light set
  • Full ball bearings (18 total)
  • Slipper clutch protects the drivetrain from excess loads
  • Multiple pinion gear setup to customise speed
  • Gearbox & Gears come with moulded covers
  • BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels with an aluminium-like silver finish
  • Wheelbase can be adjusted using included spacers

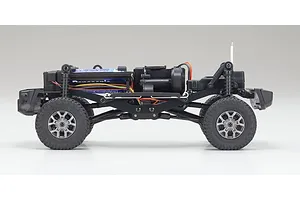

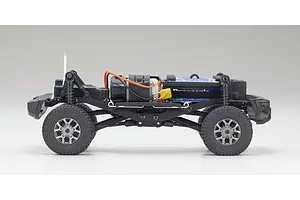

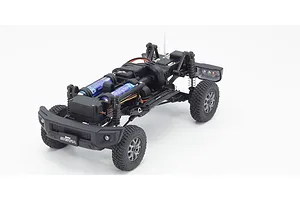

  • Incorporates a ladder frame design to offer superior balance & durability
  • Newly designed one-touch body mount
  • Genuine Kyosho Product

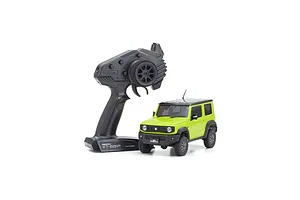

In the box

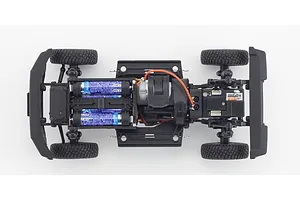

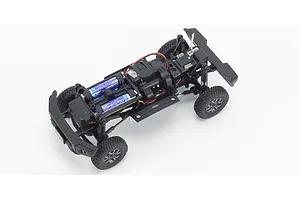

  • 1x Complete chassis with built-in electronics
  • 1x Factory-painted body complete with many fine details
  • 1x KT-531P 2.4GHz transmitter
  • 1x Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
  • 1x 3 types of pinion gear spacers

You'll need

  • 4x AAA Batteries for Transmitter
  • 4x AAA Batteries for Chassis

Highlights

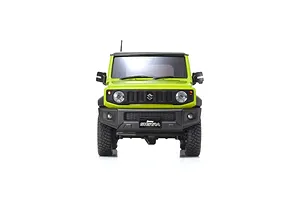

Iconic Jimny Styling

Iconic Jimny Styling

Kyosho captures the unique charm of the Jimny with meticulous attention to detail. The signature five-slot front grille, round headlights fitted with LEDs, and precisely replicated turn signal and driving lights elevate the scale realism of this already impressive model.

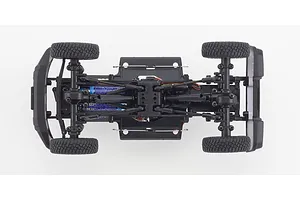

Solid Axles

Solid Axles

The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.

Steel Link & Ball End

Steel Link & Ball End

Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.

Adjustable Wheelbase

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

130 Size High Torque Motor

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

Specifications

Length193mm (7.59")
Width84mm (3.30")
Height90mm (3.54")
ChassisType MX-01
Wheel Base120mm (4.72")
Tread F/R72.7mm (2.86")
Weight242g (0.533 lbs) excl. battery
Motor/Engine130 Class
Gear Ratio55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
Front Tyre Diameter37mm (1.45")
Rear Tyre Diameter37mm (1.45")
Front Tyre Width12mm (0.472")
Rear Tyre Width12mm (0.472")
Battery4 x AAA alkaline
TransmitterSyncro KT-531P
Speed3.3 km/h – 6.6 km/h (Pinion gears 10T – 20T) approx.
Running Time60 mins approx.

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorAAA
Pinion Gear10T, 12T, 14T, 16T, 18T, 20T
Wheel Hex Size7mm
