Kyosho Mini-Z Suzuki Jimny Sierra 4x4 RC Rock Crawler Electric 4WD RTR - Brisk Blue (Team Smurf)

  • AWD
  • RTR
  • Brushed

Part no. 32530MB

DiscontinuedNo reviews yet
1 / 12
1 / 12

Videos

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

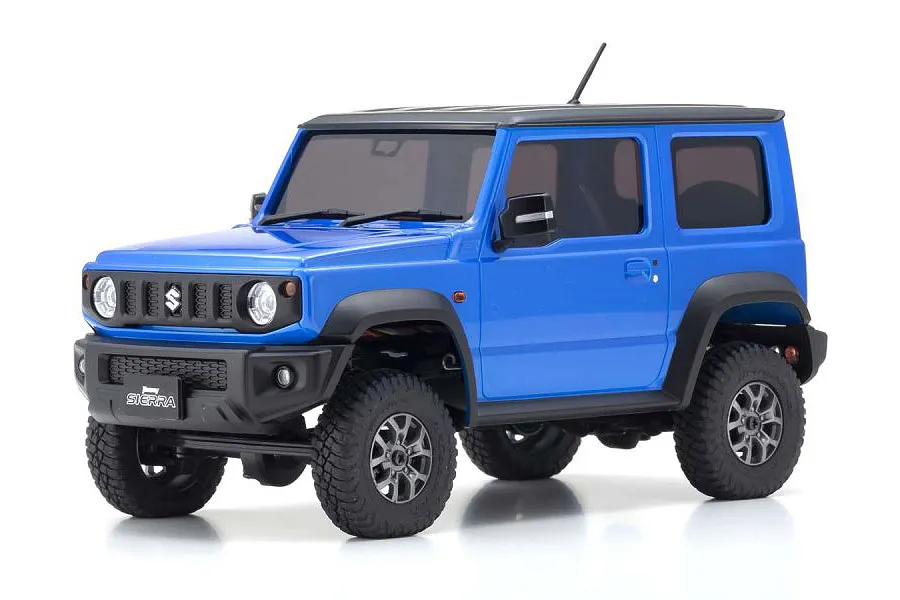

The Kyosho Mini-Z Suzuki Jimny Sierra 4x4 Readyset is a 1:18-scale model that accurately recreates the signature features of this popular compact Japanese 4x4, including the unique square body shape and bold wheel flares over generous wheel wells. In 2019 the Kyosho MINI-Z celebrated more than 20 years of performance and scale realism, and the MINI-Z 4x4 delivers an all-new driving experience with superior overall design, driving performance, and high-quality injection-moulded scale body construction.

Incorporating the same ladder-style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension, combining two upper links into a single upper A-arm for maximum suspension movement. A specially designed high-torque steering servo delivers excellent performance in tough rock-crawler conditions, and the high-torque 130-size motor is specially geared for low-to-medium speed crawling. The body is moulded with thicker material to better resist crash damage from operation in rough terrain.

Features

  • Injection moulded, pre-painted body
  • Thick body material for added durability
  • Scale accessories such as side mirrors, windshield washers, door hinges, wipers, rain rails
  • Accurate recreation of the unique Jimny five-slot front grille and rear end

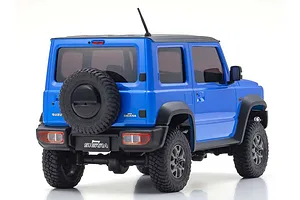

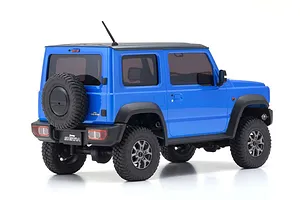

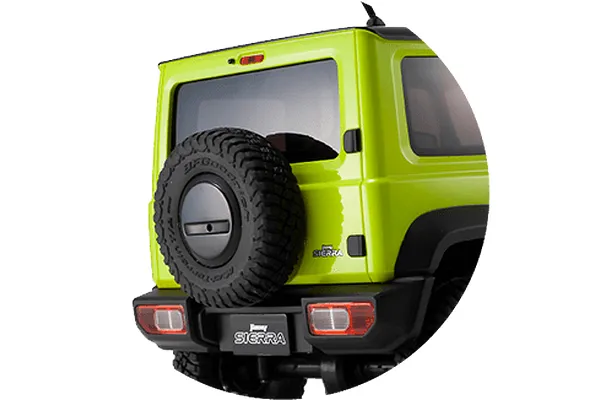

  • Hinged rear door design with spare tyre and wheel cover accessory
  • One-touch body mounting system using spring-wire retainers

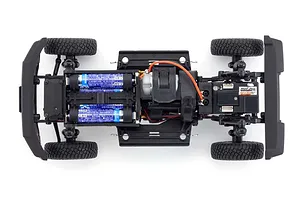

  • Steel vertical ladder-frame chassis
  • Metal axles and multi-link suspension
  • Oil-filled coil-over shocks
  • Adjustable wheelbase (110mm or 120mm)
  • Licensed scale BFGoodrich Mud-Terrain T/A KM3 tyres and Suzuki factory-replica wheels with aluminium-like silver finish
  • Six pinions to adjust torque and HP with slipper clutch
  • Full ball bearings
  • High-torque 130-size motor
  • New speed controller with accessory ports for optional LED light set MZW429R (sold separately)
  • Round headlights can be fitted with optional LEDs (MZW429R, sold separately)

In the box

  • 1x Complete chassis with built-in electronics
  • 1x Factory-painted body (complete with fine details)

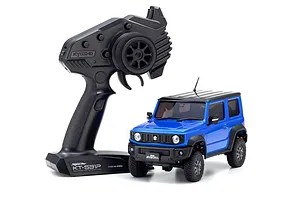

  • 1x KT-531P 2.4GHz transmitter
  • 1x Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
  • 3 types of motor spacers
  • 1x Pairing stick

You'll need

  • 8 x AAA Batteries

Highlights

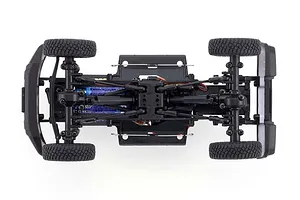

Ladder Frame

Ladder Frame

The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various moulded parts to deliver the ultimate balance of rigidity and flex for superior performance and durability.

Metal Drivetrain

Metal Drivetrain

The Mini-Z 4x4boasts robust front and rear axles, featuring precision-engineered metal ring and pinion gears. These high-quality components not only ensure exceptional durability but also guarantee a consistent and reliable performance that enthusiasts can rely on for countless thrilling adventures on and off the trails.

Coil Over Shock Absorbers

Coil Over Shock Absorbers

The Mini-Z 4x4 is equipped with advanced coil-over shocks, meticulously designed with a thoughtful 360-degree spring retainer. This ingenious feature ensures that you won't lose any vital components while navigating challenging terrains, keeping the springs securely in place even during the most extreme suspension movements. It's the perfect combination of practical engineering and innovation, enhancing your off-road experience.

A Gearbox Built for Ultimate Off-Roading

A Gearbox Built for Ultimate Off-Roading

The Mini-Z 4x4's gearbox is a marvel of engineering, boasting carefully crafted moulded covers, precision ball bearings, and a selection of six pinion gears. This versatile gearbox provides you with the flexibility to fine-tune your vehicle's performance to match your chosen terrain. Just like its Mini-Z counterparts, adjusting the gear mesh is a breeze thanks to the included spacers, ensuring your RC adventure is both seamless and exhilarating.

Adjustable Wheelbase

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

130 Size High Torque Motor

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

Mini-Z 4x4 Jimny Sierra – product feature illustration 1

Mini-Z 4x4 Jimny Sierra – product feature illustration 1

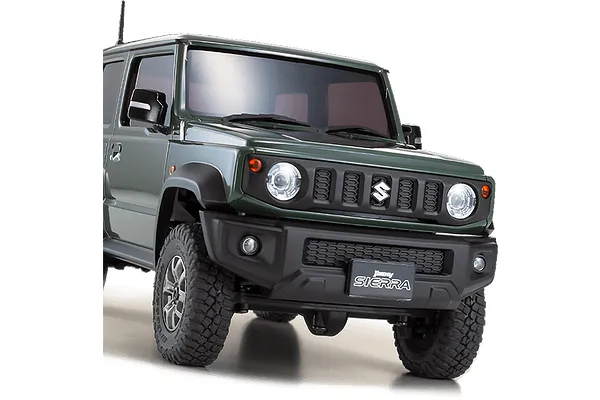

The factory-painted body has so much detail it rivals that of a die-cast model, with thicker body material for added durability.

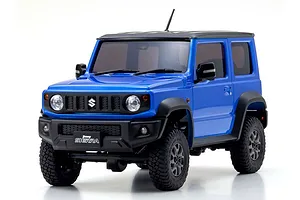

Mini-Z 4x4 Jimny Sierra – overview feature illustration

Mini-Z 4x4 Jimny Sierra – overview feature illustration

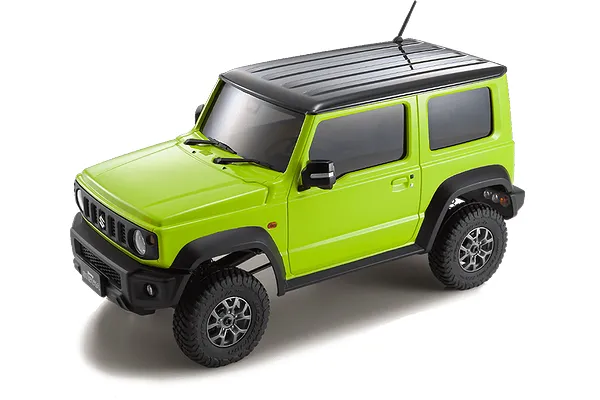

This 1:18-scale MINI-Z 4x4 Readyset accurately recreates the signature features of the Jimny Sierra, including the unique square body shape and bold wheel flares.

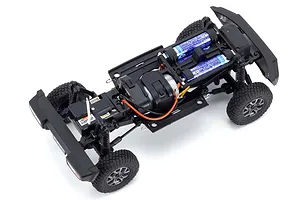

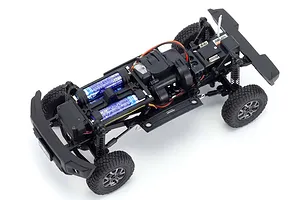

Mini-Z 4x4 Jimny Sierra – ladder frame chassis detail

Mini-Z 4x4 Jimny Sierra – ladder frame chassis detail

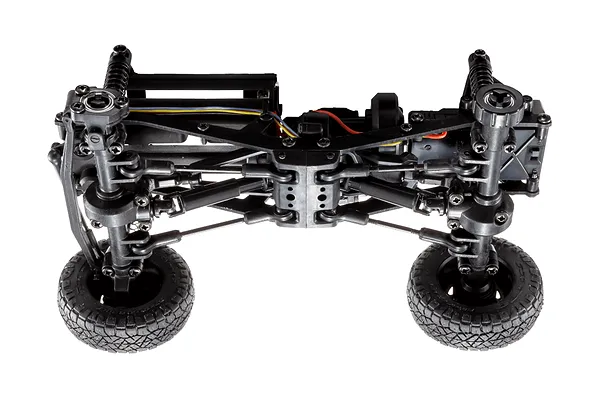

Incorporating the same ladder-style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension.

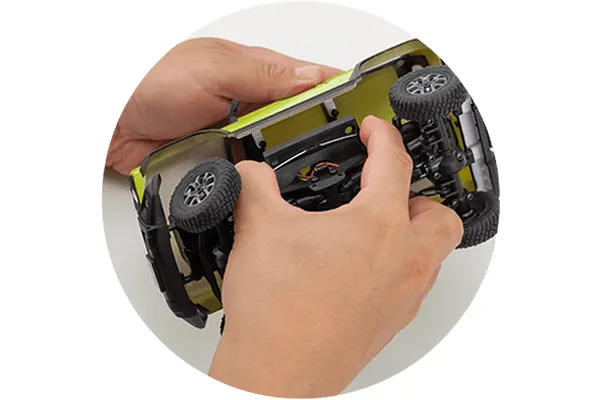

Mini-Z 4x4 Jimny Sierra – suspension articulation

Mini-Z 4x4 Jimny Sierra – suspension articulation

The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, condensed into Mini-Z size for maximum articulation.

Mini-Z 4x4 Jimny Sierra – BFGoodrich tyre and wheel detail

Mini-Z 4x4 Jimny Sierra – BFGoodrich tyre and wheel detail

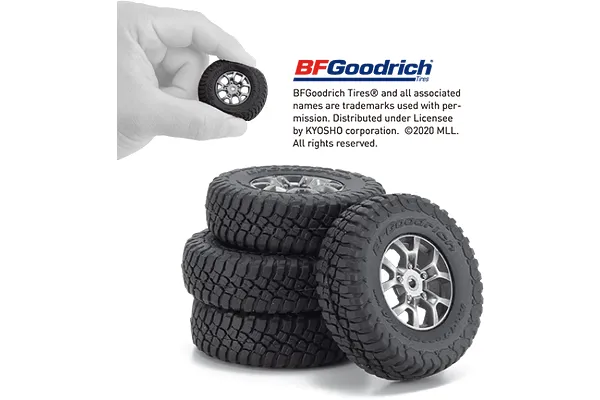

Features a scale reproduction of the BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels with an aluminium-like silver finish.

Mini-Z 4x4 Jimny Sierra – one-touch body mount system

Mini-Z 4x4 Jimny Sierra – one-touch body mount system

A newly-designed one-touch body mounting system uses spring-wire retainers to quickly and easily install and remove the body.

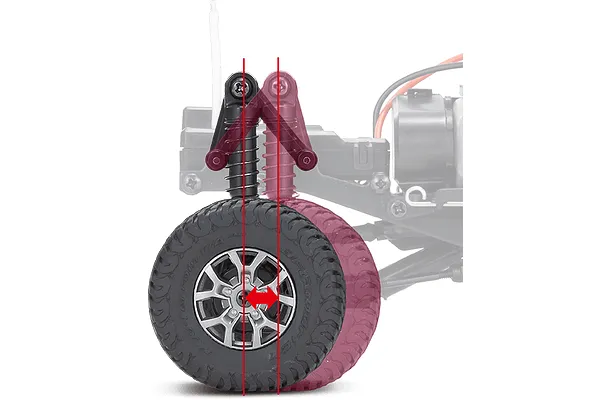

Mini-Z 4x4 Jimny Sierra – adjustable wheelbase diagram

Mini-Z 4x4 Jimny Sierra – adjustable wheelbase diagram

The wheelbase can be changed to 110 or 120mm by changing the length of the spacer on the upper A-link.

Mini-Z 4x4 Jimny Sierra – extreme approach angle demonstration

Mini-Z 4x4 Jimny Sierra – extreme approach angle demonstration

Extreme Approach Angles — the high-torque steering servo enables this machine to throw its elbows around in hard terrain for excellent performance in rock-crawler conditions.

Specifications

Chassis TypeMX-01
Scale1:18

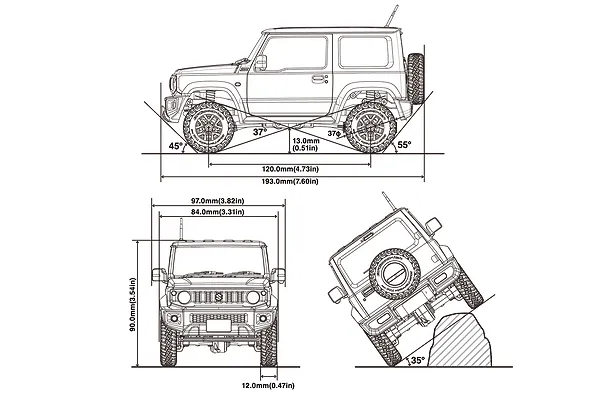

Length193.0mm (7.59")
Width84.0mm (3.30")
Height90.0mm (3.54")
Wheelbase120.0mm (4.72")
Weight242g (excl. battery)
Front Tyres — Tread72.7mm (2.86"); Diameter: 37.0mm (1.45"); Width: 12.0mm (0.472"); Wheel Offset: Narrow +1.5mm (.059")
Rear Tyres — Tread72.7mm (2.86"); Diameter: 37.0mm (1.45"); Width: 12.0mm (0.472"); Wheel Offset: Wide +1.5mm (.059")
DrivetrainAWD
Motor130 Class
Gear Ratio55.44:1, 34.65:1, 46.20:1, 30.80:1, 39.60:1, 27.72:1
Pinion gears10T–20T
Radio SystemSyncro KT-531P
SpeedApprox. 2.7km/h–5.4km/h
Running TimeApprox. 60 mins

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorAAA
Pinion Gear10T, 12T, 14T, 16T, 18T, 20T
Wheel Hex Size7mm
