Name: Kyosho Mini-Z Suzuki Jimny Sierra RC Rock Crawler Electric 4x4 RTR - Chiffon Ivory (Team Latte)
Brand: Kyosho
SKU: KYO-32530IV
Price: 378.92 AUD
Availability: Discontinued
Rating: 5 (1 reviews)

Overview

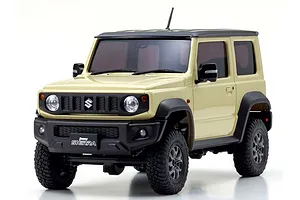

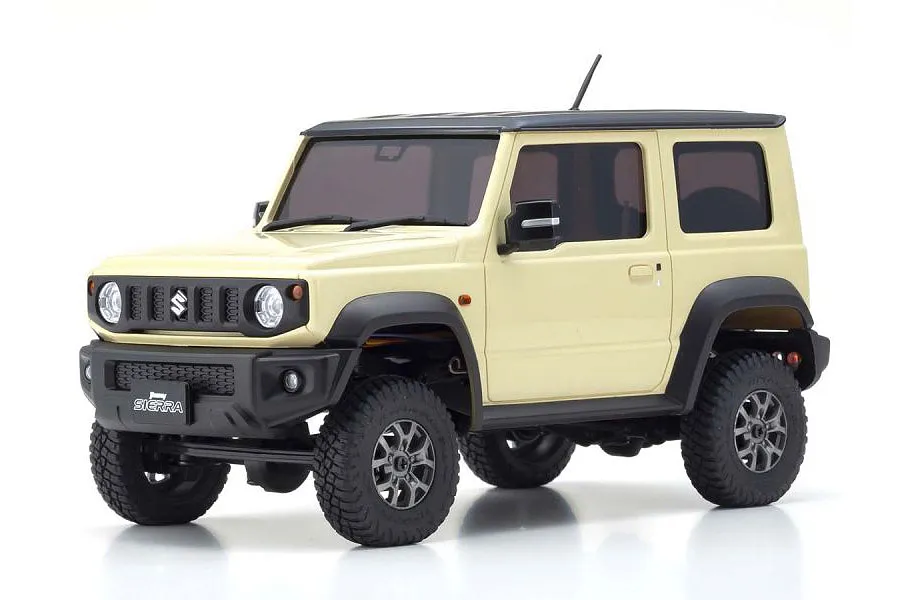

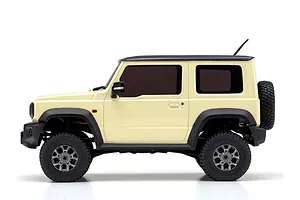

The Kyosho Mini-Z Suzuki Jimny Sierra 4x4 Readyset is a 1:18-scale model that accurately recreates the signature features of this popular compact Japanese 4x4, including the unique square body shape and bold wheel flares over generous wheel wells. In 2019 the Kyosho MINI-Z celebrated more than 20 years of performance and scale realism, and the MINI-Z 4x4 delivers an all-new driving experience with superior overall design, driving performance, and high-quality injection-moulded scale body construction.

Incorporating the same ladder-style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension, combining two upper links into a single upper A-arm for maximum suspension movement. A specially designed high-torque steering servo delivers excellent performance in tough rock-crawler conditions, and the high-torque 130-size motor is specially geared for low-to-medium speed crawling. The body is moulded with thicker material to better resist crash damage from operation in rough terrain.

Features

Injection moulded, pre-painted body
Thick body material for added durability
Scale accessories such as side mirrors, windshield washers, door hinges, wipers, rain rails

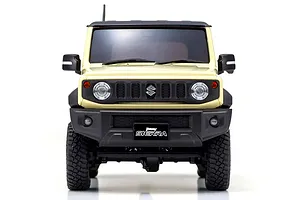

Accurate recreation of the unique Jimny five-slot front grille and rear end

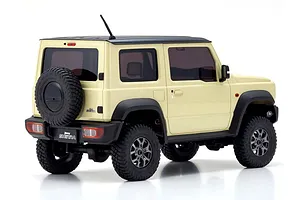

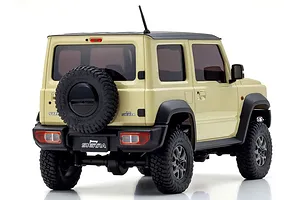

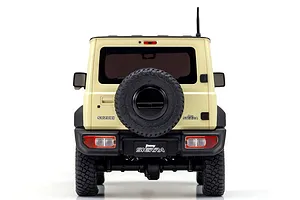

Hinged rear door design with spare tyre and wheel cover accessory
One-touch body mounting system using spring-wire retainers
Steel vertical ladder-frame chassis
Metal axles and multi-link suspension
Oil-filled coil-over shocks
Adjustable wheelbase (110mm or 120mm)
Licensed scale BFGoodrich Mud-Terrain T/A KM3 tyres and Suzuki factory-replica wheels with aluminium-like silver finish
Six pinions to adjust torque and HP with slipper clutch
Full ball bearings
High-torque 130-size motor
New speed controller with accessory ports for optional LED light set MZW429R (sold separately)
Round headlights can be fitted with optional LEDs (MZW429R, sold separately)

In the box

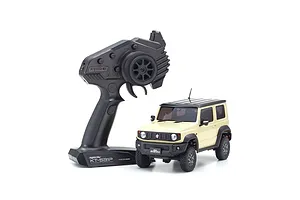

1x Complete chassis with built-in electronics
1x Factory-painted body (complete with fine details)
1x KT-531P 2.4GHz transmitter
1x Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
3 types of motor spacers
1x Pairing stick

You'll need

8 x AAA Batteries

Highlights

Solid Axles

The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.

Steel Link & Ball End

Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

Ladder Frame

The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various moulded parts to deliver the ultimate balance of rigidity and flex for superior performance and durability.

Mini-Z 4x4 Jimny Sierra – product feature illustration 1

The factory-painted body has so much detail it rivals that of a die-cast model, with thicker body material for added durability.

Mini-Z 4x4 Jimny Sierra – overview feature illustration

This 1:18-scale MINI-Z 4x4 Readyset accurately recreates the signature features of the Jimny Sierra, including the unique square body shape and bold wheel flares.

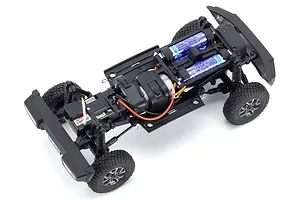

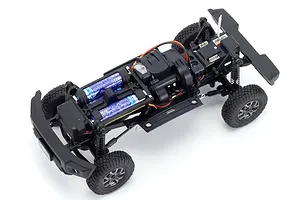

Mini-Z 4x4 Jimny Sierra – ladder frame chassis detail

Incorporating the same ladder-style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension.

Mini-Z 4x4 Jimny Sierra – suspension articulation

The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, condensed into Mini-Z size for maximum articulation.

Mini-Z 4x4 Jimny Sierra – BFGoodrich tyre and wheel detail

Features a scale reproduction of the BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels with an aluminium-like silver finish.

Mini-Z 4x4 Jimny Sierra – one-touch body mount system

A newly-designed one-touch body mounting system uses spring-wire retainers to quickly and easily install and remove the body.

Mini-Z 4x4 Jimny Sierra – adjustable wheelbase diagram

The wheelbase can be changed to 110 or 120mm by changing the length of the spacer on the upper A-link.

Mini-Z 4x4 Jimny Sierra – extreme approach angle demonstration

Extreme Approach Angles — the high-torque steering servo enables this machine to throw its elbows around in hard terrain for excellent performance in rock-crawler conditions.

Specifications

Chassis Type	MX-01
Scale	1:18
Length	193.0mm (7.59")
Width	84.0mm (3.30")
Height	90.0mm (3.54")
Wheelbase	120.0mm (4.72")
Weight	242g (excl. battery)
Front Tyres — Tread	72.7mm (2.86"); Diameter: 37.0mm (1.45"); Width: 12.0mm (0.472"); Wheel Offset: Narrow +1.5mm (.059")
Rear Tyres — Tread	72.7mm (2.86"); Diameter: 37.0mm (1.45"); Width: 12.0mm (0.472"); Wheel Offset: Wide +1.5mm (.059")
Drivetrain	AWD
Motor	130 Class
Gear Ratio	55.44:1, 34.65:1, 46.20:1, 30.80:1, 39.60:1, 27.72:1
Pinion gears	10T–20T
Radio System	Syncro KT-531P
Speed	Approx. 2.7km/h–5.4km/h
Running Time	Approx. 60 mins
