Kyosho

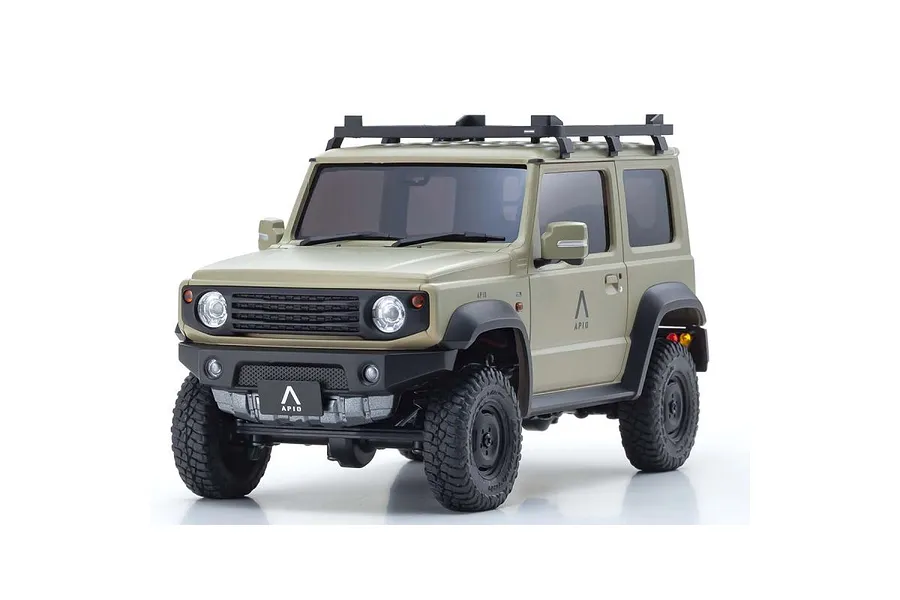

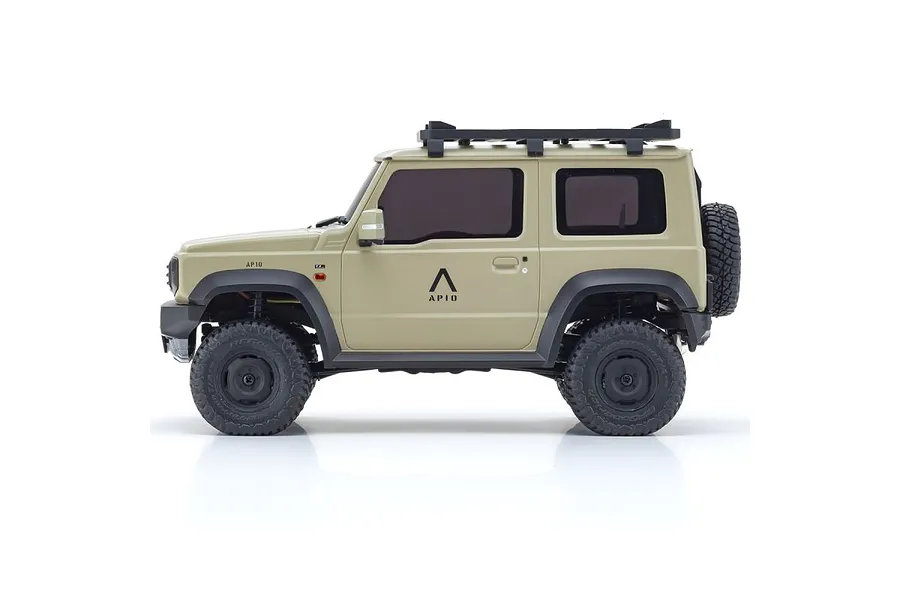

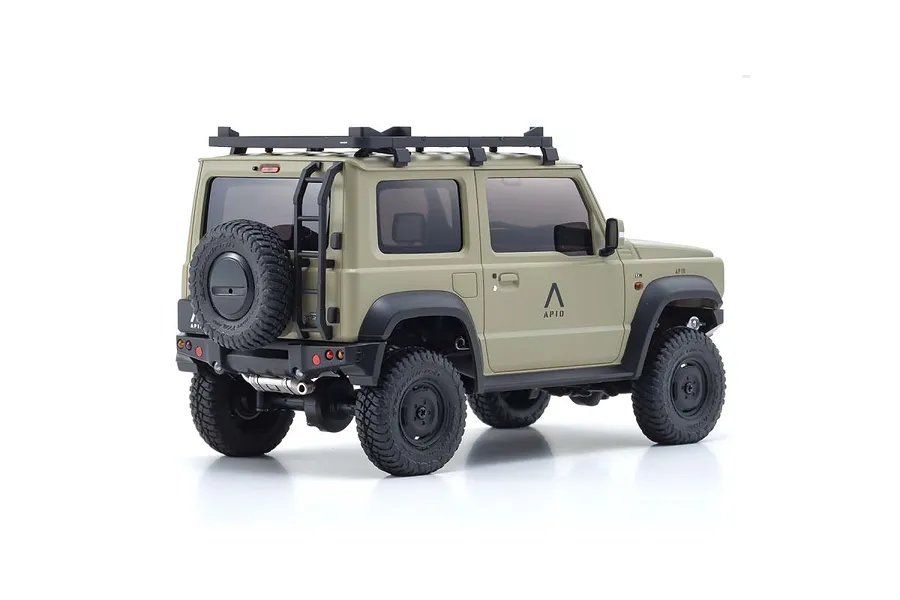

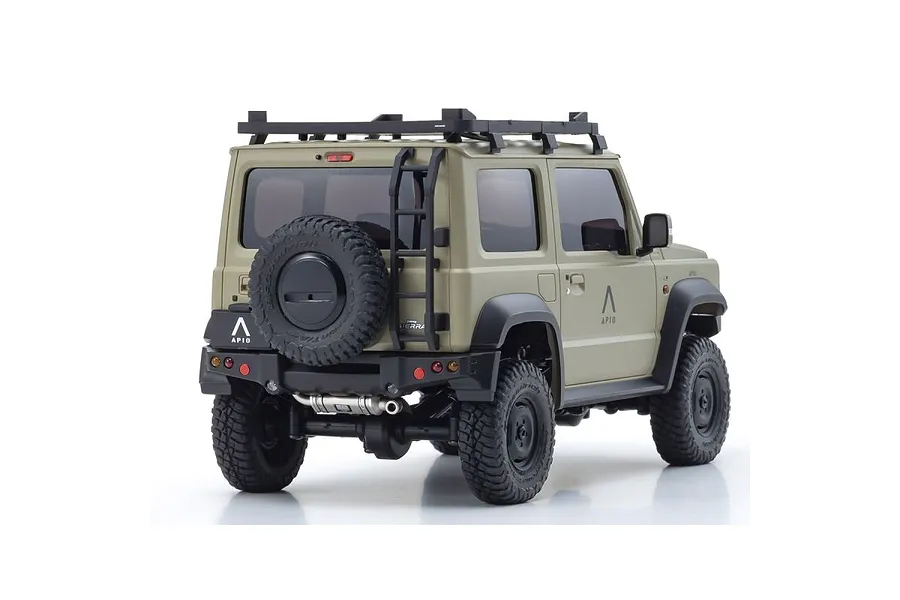

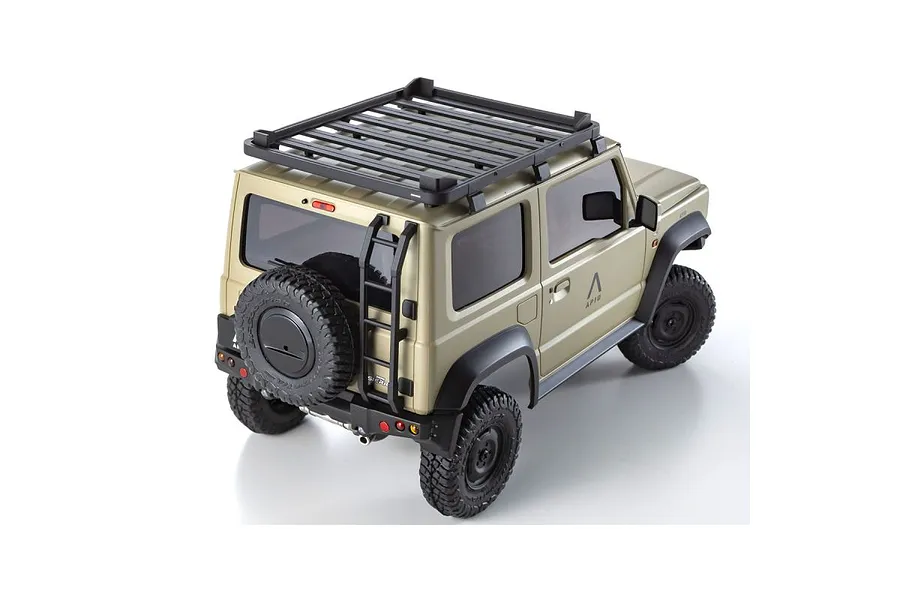

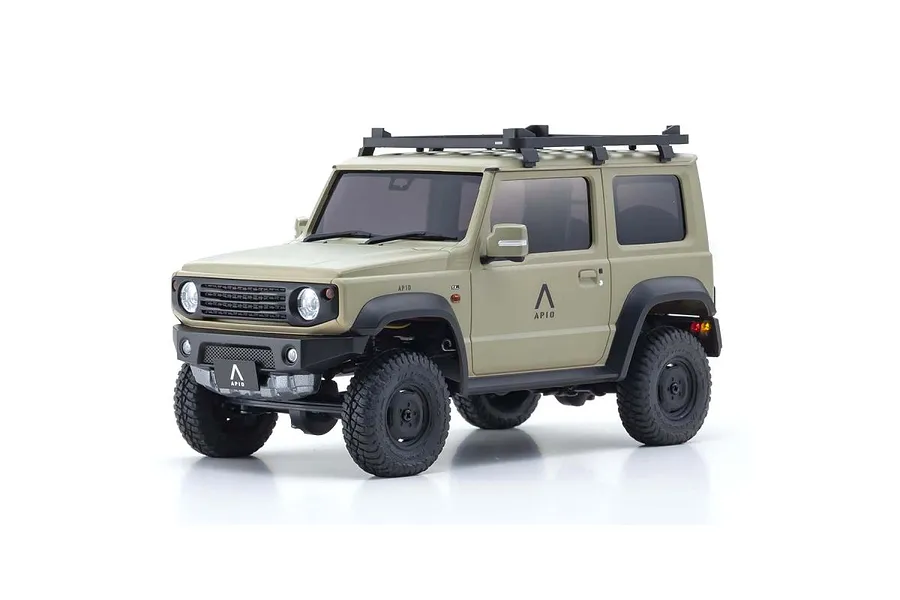

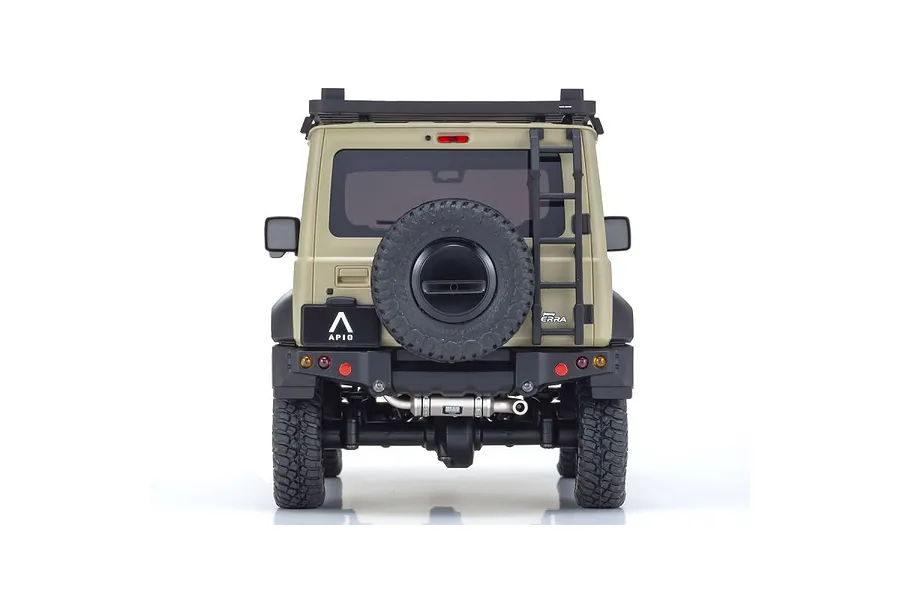

Kyosho Mini-Z Suzuki Jimny Sierra 4x4 RC Rock Crawler Electric 4WD RTR - Khaki

  • 4WD
  • RTR
  • Brushed

Part no. 32525K

Sold outNo reviews yet
1 / 11
1 / 11

$363.36

or 4 fortnightly payments of $90.84 with afterpay or PayPal, or zip

Kyosho Mini-Z 4x4 Suzuki Jimny Sierra APIO TS4 in Khaki — solid axles, steel ladder frame, adjustable wheelbase, 60 min run time.

  • Official APIO fit-out recreation with front grille, bumpers, roof rack, rear ladder and Yoshimura muffler
  • Solid axles with steel links and captured ball ends for maximum range of motion
  • Adjustable wheelbase (110 or 120mm via upper AQ-link spacer)
  • BFGoodrich Mud-Terrain T/A KM3 tyres on Suzuki factory-replica wheels
  • 130 Class motor, 18 full ball bearings, approx. 60 min run time

Part Support

Replacement & upgrade parts that fit this model

Overview

The "Jimny Sierra APIO TS4" recreates the Jimny with an APIO fit out as a Mini-Z 4x4 model. With over 50 years as an aftermarket parts creator for the Suzuki Jimny, APIO's unique tuning parts have a cult following for their enhanced performance and unique sense of style. In collaboration with APIO, Kyosho has recreated the special front grille, front bumper, rear bumper, roof rack, rear ladder, rear license plate, Yoshimura muffler, and wheels in exceptional detail. While the wild adventurism of the Jimny is captured in the MINI-Z 4x4 with a variety of colours, it provides a different driving feel to the original car for people to enjoy.

Features

  • Tactical Front Grille, Bumpers & Lamp Unit
  • Rear Steel Ladder
  • Front Runner Roof Rack
  • Wild Boar Rims
  • Steel & Moulded Plastic Ladder Frame
  • Solid Axles
  • Steel Linkages
  • Coil-Over Shocks
  • Adjustable Wheelbase (110 or 120mm)
  • Extreme Steering Angles with Drag Link & Tie Rod
  • Multiple Pinion Gears
  • 18 Full Ball Bearings
  • BFGoodrich Mud-Terrain T/A KM3 tyres on Suzuki factory-replica wheels with aluminium-like silver finish

In the box

  • 1x Complete chassis with built-in electronics
  • 1x Factory-painted body complete with many fine details
  • 1x KT-531P 2.4GHz transmitter
  • 1x Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
  • 3x Motor spacers
  • 1x Pairing stick
  • 8x AAA Batteries

You'll need

Highlights

Ladder Frame

Ladder Frame

The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various moulded parts to deliver the ultimate balance of rigidity and flex for superior performance and durability.

Metal Drivetrain

Metal Drivetrain

The Mini-Z 4x4boasts robust front and rear axles, featuring precision-engineered metal ring and pinion gears. These high-quality components not only ensure exceptional durability but also guarantee a consistent and reliable performance that enthusiasts can rely on for countless thrilling adventures on and off the trails.

Coil Over Shock Absorbers

Coil Over Shock Absorbers

The Mini-Z 4x4 is equipped with advanced coil-over shocks, meticulously designed with a thoughtful 360-degree spring retainer. This ingenious feature ensures that you won't lose any vital components while navigating challenging terrains, keeping the springs securely in place even during the most extreme suspension movements. It's the perfect combination of practical engineering and innovation, enhancing your off-road experience.

130 Size High Torque Motor

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

Adjustable Wheelbase

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

A Gearbox Built for Ultimate Off-Roading

A Gearbox Built for Ultimate Off-Roading

The Mini-Z 4x4's gearbox is a marvel of engineering, boasting carefully crafted moulded covers, precision ball bearings, and a selection of six pinion gears. This versatile gearbox provides you with the flexibility to fine-tune your vehicle's performance to match your chosen terrain. Just like its Mini-Z counterparts, adjusting the gear mesh is a breeze thanks to the included spacers, ensuring your RC adventure is both seamless and exhilarating.

APIO Collaboration Details

APIO Collaboration Details

In collaboration with APIO, Kyosho has recreated the special front grille, front bumper, rear bumper, roof rack, rear ladder, and wheels in exceptional detail.

Mini-Z 4x4 Colour Range

Mini-Z 4x4 Colour Range

The Mini-Z 4x4 captures the wild adventurism of the Jimny with a variety of colours and a different driving feel to enjoy.

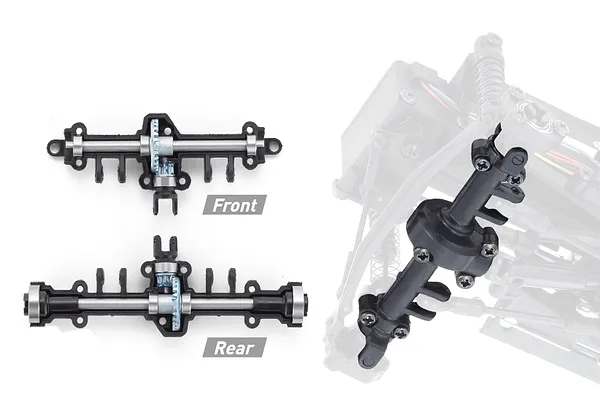

Jimny Sierra solid axle and steel link detail

Jimny Sierra solid axle and steel link detail

Solid front and rear axles feature links with steel rods and captured rod ends for strength and maximum range of motion.

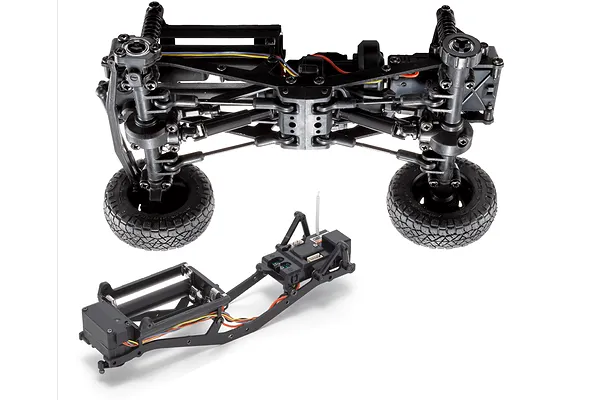

Jimny Sierra ladder frame detail

Jimny Sierra ladder frame detail

The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates for the ultimate balance of rigidity and flex.

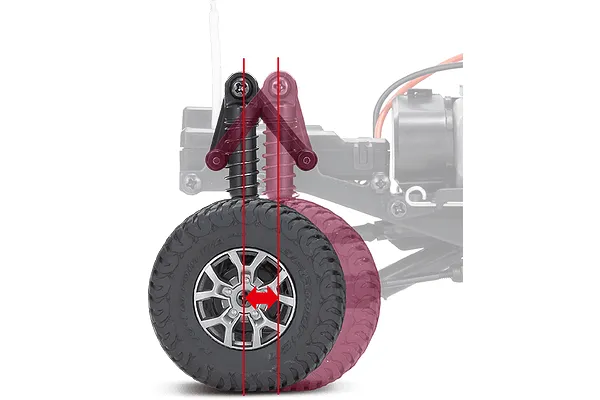

Jimny Sierra adjustable wheelbase detail

Jimny Sierra adjustable wheelbase detail

The wheelbase can be changed to 110 or 120mm by adjusting the length of the spacer on the upper AQ-link.

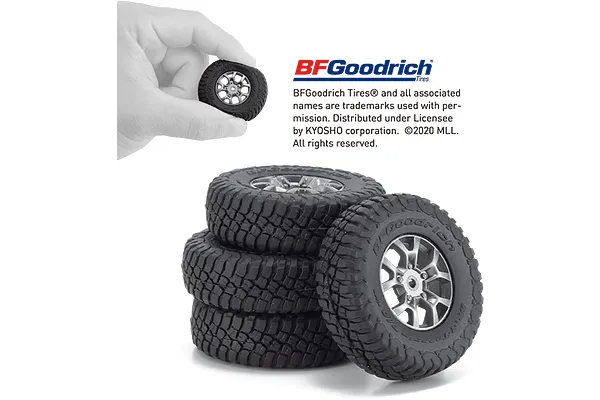

Jimny Sierra tyres and wheels detail

Jimny Sierra tyres and wheels detail

This model features a scale reproduction of the BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels.

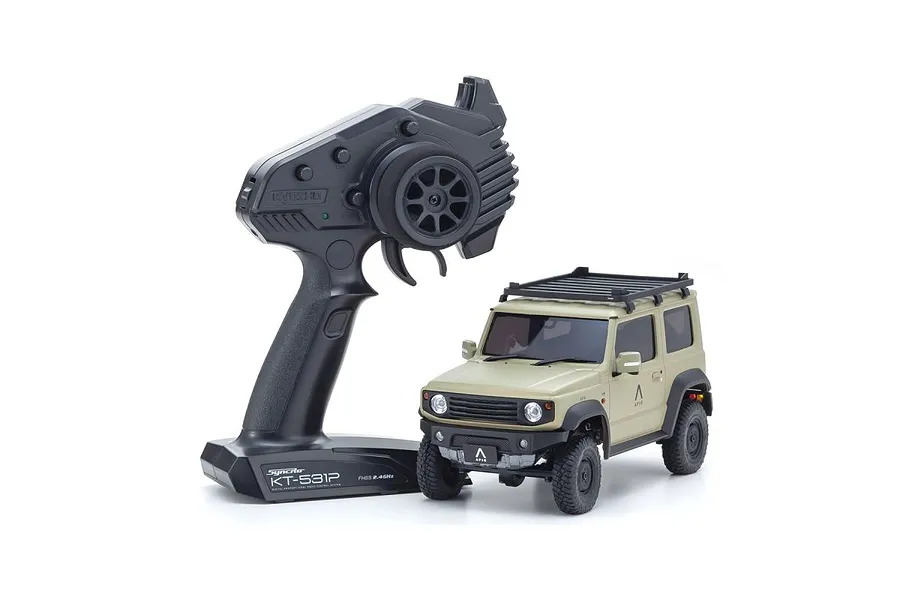

Jimny Sierra additional feature or transmitter detail

Jimny Sierra additional feature or transmitter detail

Includes the KT-531P 2.4GHz transmitter and pinion gear set for multiple speed configurations.

Specifications

Length191.0mm (7.51")
Width84.0mm (3.30")
Height102.0mm (4.01")
Chassis TypeMX-01
Wheelbase120.0mm (4.72")
TreadF/R 72.7mm (2.86")
Weight242g (excl. battery)
Motor/Engine130 Class
Gear Ratio55.44:1, 34.65:1, 46.20:1, 30.80:1, 39.60:1, 27.72:1
Tyre DiameterF/R 37.0mm (1.45")
Tyre WidthF/R 12.0mm (0.47")
TransmitterSyncro KT-531P
Speed2.7 km/h – 5.4 km/h approx.
Pinion Gears10T, 12T, 14T, 16T, 18T, 20T
Running Time60 mins approx.

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorAAA
Pinion Gear10T, 12T, 14T, 16T, 18T, 20T
Wheel Hex Size7mm
