Kyosho Outlaw Rampage PRO 2RSA Series RC Short Course Truck Electric 2WD 1/10 Scale Kit

Kyosho Outlaw Rampage PRO 2RSA Series RC Short Course Truck Electric 2WD 1/10 Scale Kit

Kyosho Outlaw Rampage PRO 2RSA Series RC Short Course Truck Electric 2WD 1/10 Scale Kit

Brand: Kyosho | MPN: 34362
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description

Experience the dynamic control of this 2WD trophy truck, packed with optional performance parts as standard!Embodying the defining mechanics of a real production model trophy truck, the scale 2WD Outlaw Rampage is about 80% pre-assembled in an ARR kit, including the optional upgrade components that mark this machine as a "PRO" version. While power and steering control is more challenging than a 4WD model, the superior running stability and overall functionality of this rear-wheel 2WD is realized from the roll cage, long-stroke aluminium oil shocks, stabilizers on front and rear with 3 different wire gauge settings, and aluminium skid pads that protect the chassis. With easy controllability and wider scope for setting adjustments, the true dynamic performance of 2WD truck racing is in your hands.High strength and easy maintenance of the bathtub type chassis combines with a reinforced frame and dustproof monocoque radio box for increased durability in hard driving.Real roll cage with two spare tyres delivers scale appearance and provides structural and setting functionality. Changing from horizontally mounted tyres to 1 vertically mounted and changing the length can alter the weight balance to adjust rear traction characteristics.Mounting 1 or 2 tyres as well as changing the longitudinal length significantly influences rear grip. These parts play a functional role in enhancing driving stability.Wiper style steering system delivers improved durability and reliability for off-road performance. Turnbuckle tierods with front toe angle adjustment are included as standard. Six ball bearings (4 in wiper post, 2 in steering plate) realise ultra-smooth movement.Aluminium oil shocks feature scratch-resistant hard-anodized cases that work combined with titanium coated shafts for smooth shock movement—large capacity aeration-type shock absorbers with long-stroke promise superior performance over the roughest terrain.Stabiliser bars equipped on front and rear control chassis roll through cornering to improve driving stability. Three-wire gauges are available for setting according to specific conditions: 1.8/2.2/2.6mm for the front, 2.2/2.6/3.0mm for the rear.Aluminium front skidpad protects the front bumper and chassis and completes a real trophy truck's powerful look and feel.Aluminium rear skidpad protects the motor and gearbox over rough roads and jump landings and adds weight to the underside of the chassis to lower the centre gravity to improve running performance.Original tread pattern tyres match the body style to replicate authentic truck style while delivering dominant driving characteristics. The 3-piece structure of the silver-plated wheels removes the need to glue tyres while recreating that authentic truck look. It can be disassembled to wash rubber tyres.

Pre-Cut Body With Roll Cage
Pre-Cut Body With Roll Cage

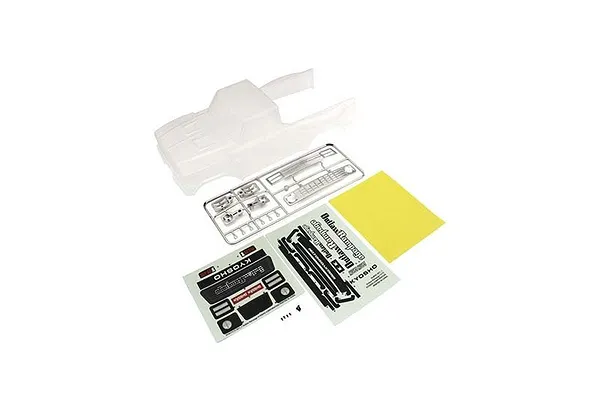

Kyosho Outlaw Rampage PRO 2WD short course truck kit showing the pre-cut clear body with roll cage and trophy truck styling.

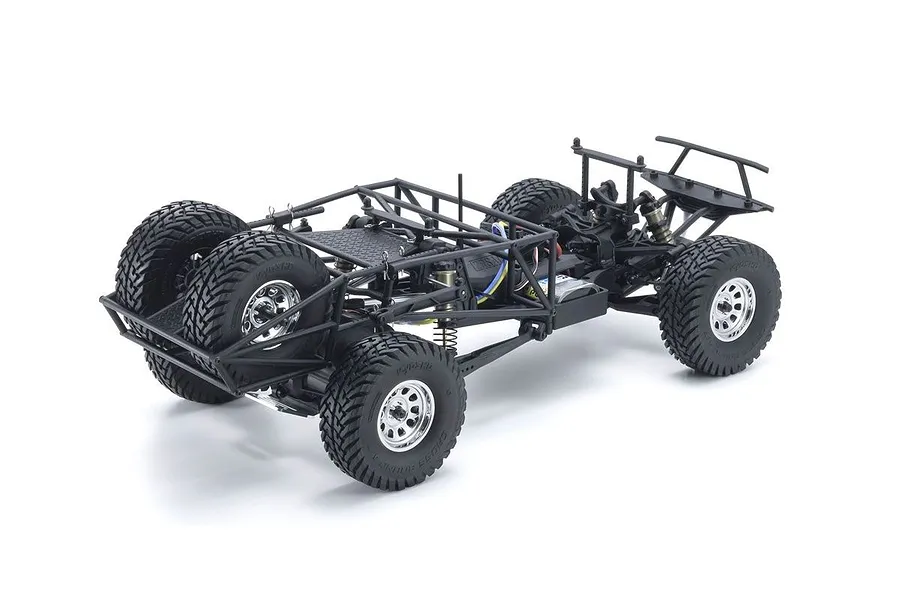

Outlaw Rampage PRO — chassis overview
Outlaw Rampage PRO — chassis overview

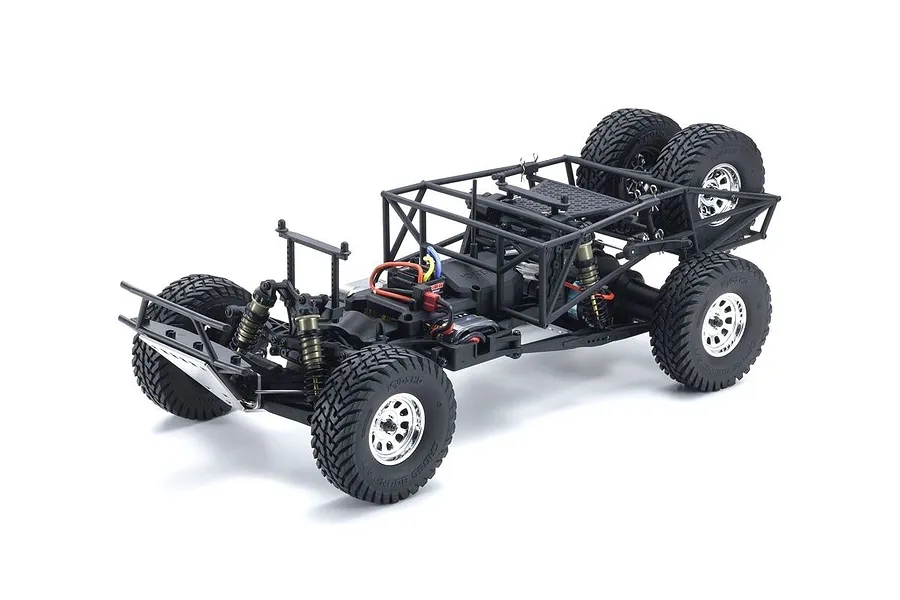

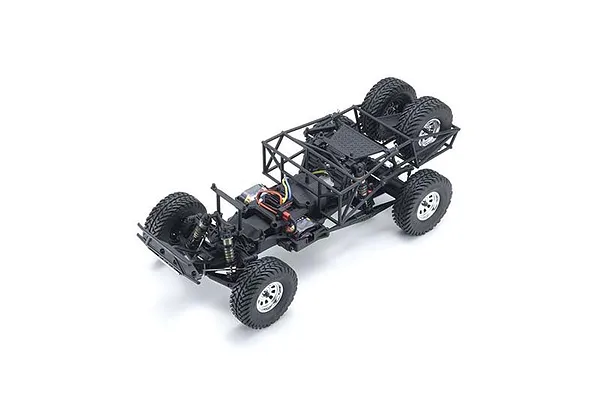

Chassis view highlighting the bathtub type frame, aluminium oil shocks, and reinforced monocoque radio box.

Outlaw Rampage PRO — suspension and skid pads
Outlaw Rampage PRO — suspension and skid pads

Detail of the front double-wishbone suspension, aluminium skid pads and wiper-style steering system.

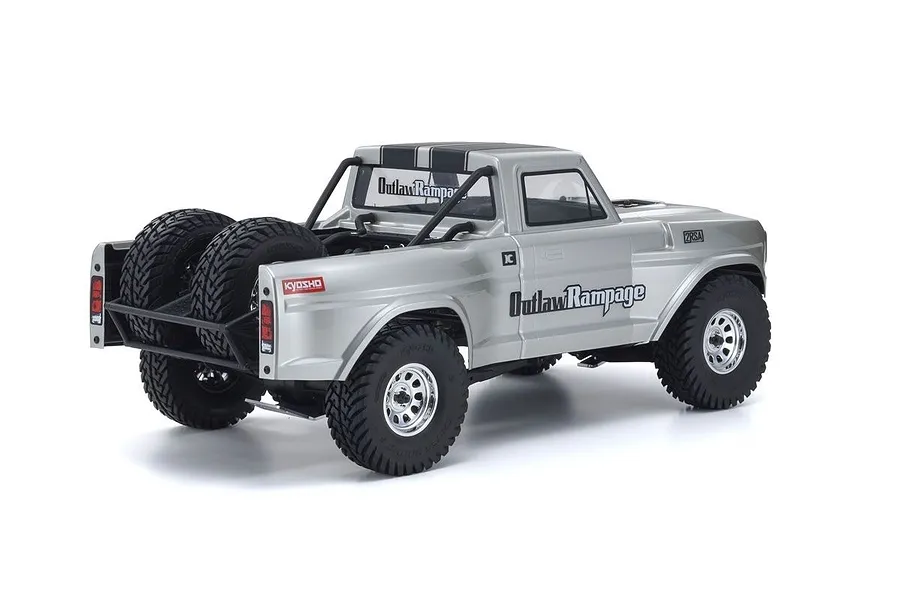

Outlaw Rampage PRO — roll cage and spare tyres
Outlaw Rampage PRO — roll cage and spare tyres

Additional angle showing the real roll cage with two spare tyres and the 1970s-80s trophy truck body style.

Outlaw Rampage PRO — aluminium oil shocks
Outlaw Rampage PRO — aluminium oil shocks

Close-up of the hard-anodised aluminium oil shocks with titanium coated shafts and long-stroke aeration-type design.

Outlaw Rampage PRO — stabiliser bars
Outlaw Rampage PRO — stabiliser bars

Stabiliser bars on front and rear shown, highlighting the three available wire gauge settings for tuning.

Outlaw Rampage PRO — tyres and 3-piece wheels
Outlaw Rampage PRO — tyres and 3-piece wheels

Original tread pattern tyres on silver-plated 3-piece wheels that allow disassembly for tyre washing.

Outlaw Rampage PRO — rear aluminium skid pad
Outlaw Rampage PRO — rear aluminium skid pad

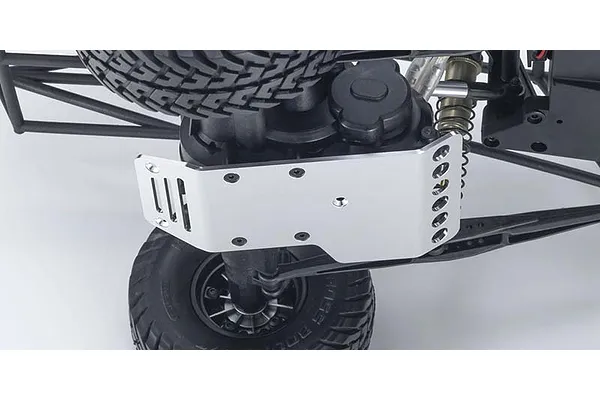

Rear view showing the aluminium rear skidpad protecting the motor and gearbox over rough roads.

Outlaw Rampage PRO — gearbox and drivetrain
Outlaw Rampage PRO — gearbox and drivetrain

Detail of the 32-pitch counter gear and diff gear gearbox with reinforced components for increased strength.

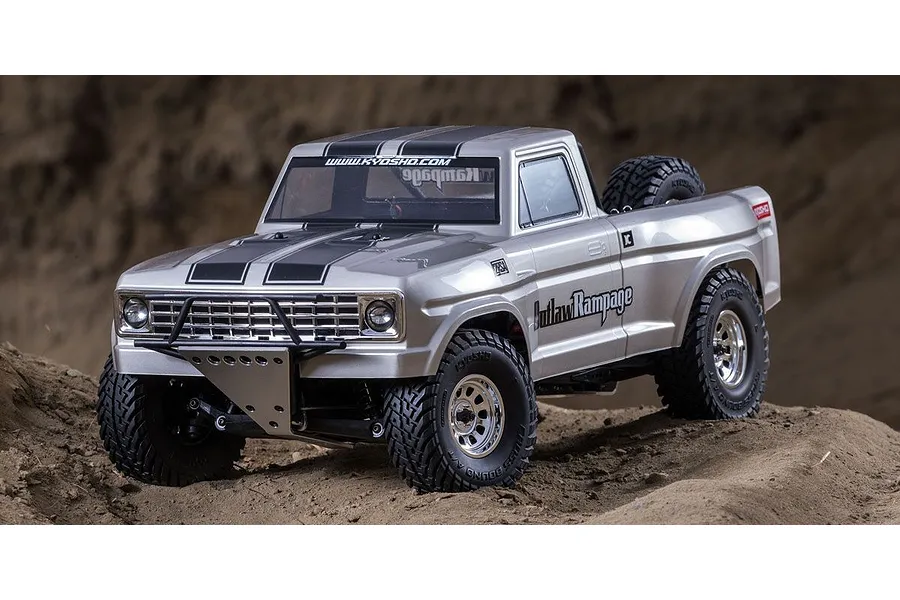

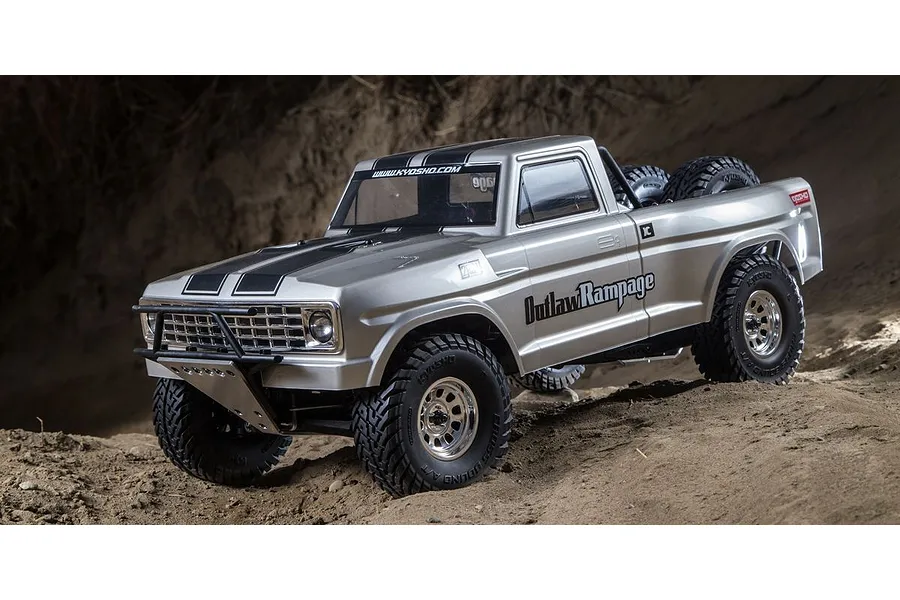

Kyosho Outlaw Rampage PRO — overview product photo
Kyosho Outlaw Rampage PRO — overview product photo

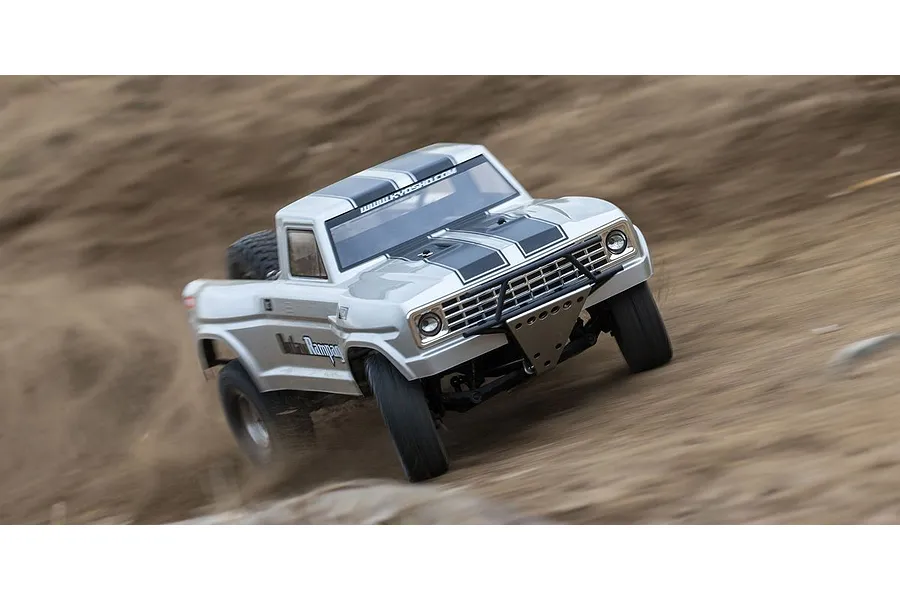

Experience the dynamic control of this 2WD trophy truck, packed with optional performance parts as standard.

Kyosho Outlaw Rampage PRO — feature detail view 1
Kyosho Outlaw Rampage PRO — feature detail view 1

High strength and easy maintenance of the bathtub type chassis combines with a reinforced frame and dustproof monocoque radio box for increased durability in hard driving.

Kyosho Outlaw Rampage PRO — feature detail view 2
Kyosho Outlaw Rampage PRO — feature detail view 2

Wiper style steering system delivers improved durability and reliability for off-road performance.

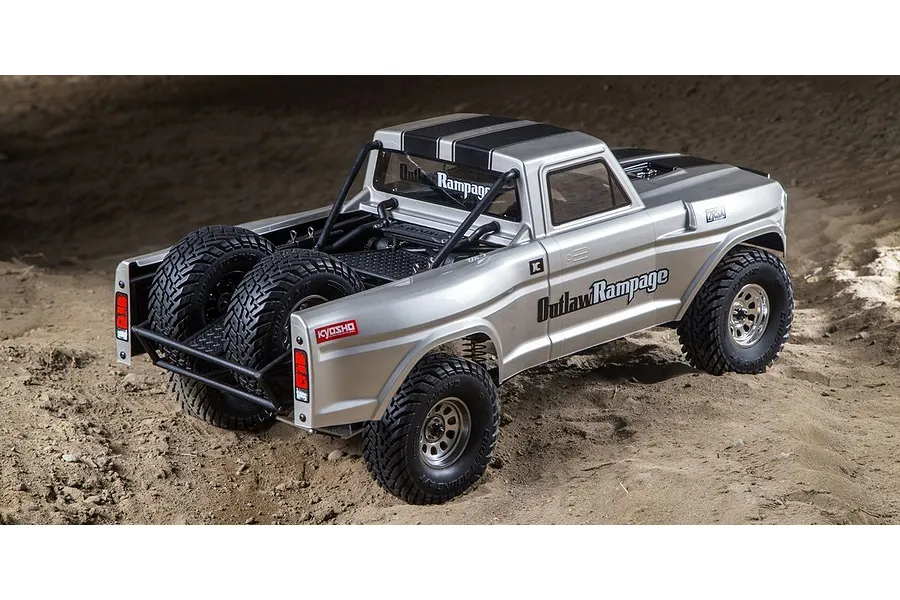

Kyosho Outlaw Rampage PRO — roll cage and spare tyre detail
Kyosho Outlaw Rampage PRO — roll cage and spare tyre detail

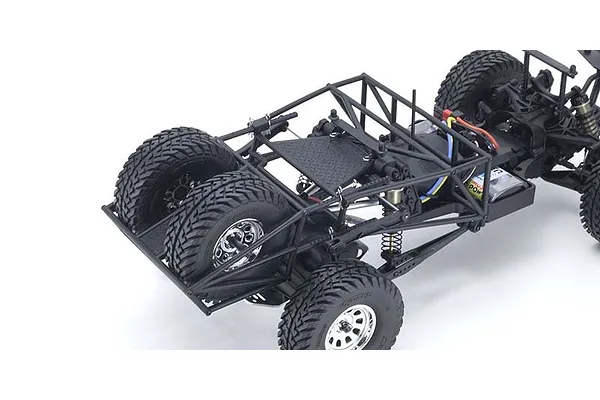

Real roll cage with two spare tyres delivers scale appearance and provides structural and setting functionality.

Kyosho Outlaw Rampage PRO — aluminium oil shock detail
Kyosho Outlaw Rampage PRO — aluminium oil shock detail

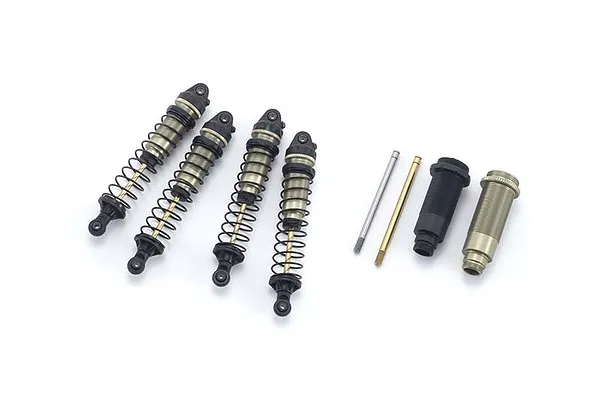

Aluminium oil shocks feature scratch-resistant hard-anodized cases that work combined with titanium coated shafts for smooth shock movement.

Kyosho Outlaw Rampage PRO — stabiliser bar detail
Kyosho Outlaw Rampage PRO — stabiliser bar detail

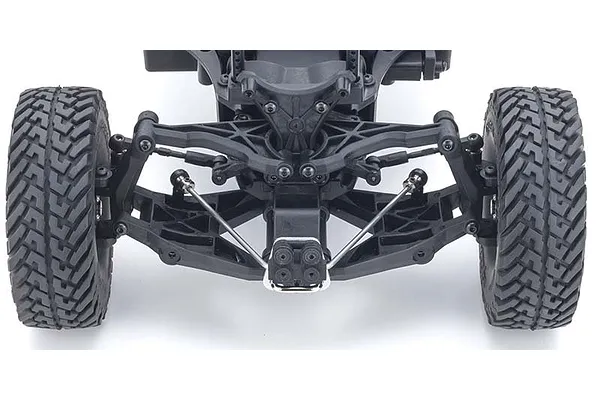

Stabiliser bars equipped on front and rear control chassis roll through cornering to improve driving stability.

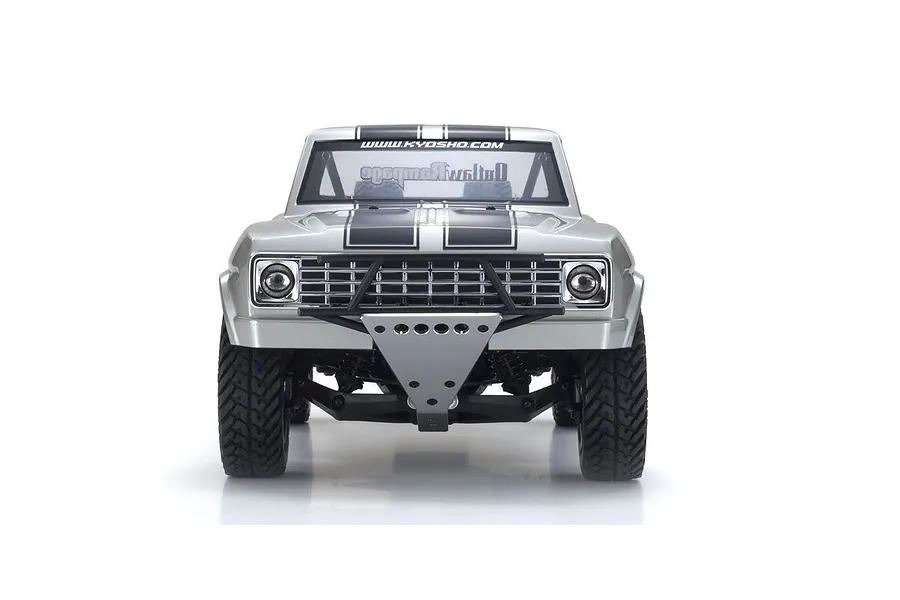

Kyosho Outlaw Rampage PRO — aluminium skid pad detail
Kyosho Outlaw Rampage PRO — aluminium skid pad detail

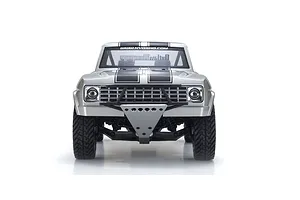

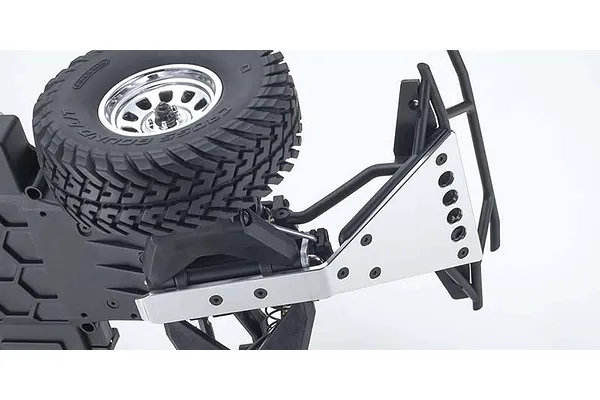

Aluminium front skidpad protects the front bumper and chassis and completes a real trophy truck's powerful look and feel.

Kyosho Outlaw Rampage PRO — 3-piece wheel and tyre detail
Kyosho Outlaw Rampage PRO — 3-piece wheel and tyre detail

Original tread pattern tyres match the body style to replicate authentic truck style while delivering dominant driving characteristics.

Kyosho Outlaw Rampage PRO — gearbox and drivetrain detail
Kyosho Outlaw Rampage PRO — gearbox and drivetrain detail

The gearbox features 32-pitch module counter gear and diff gear, with reinforcement of both gears and large modules for increased strength.

Features

ARR Kit is nearly fully pre-assembled and includes performance-enhancing optional parts as standard.Full ball bearing specifications (20 bearings) ensure smooth movement with minimal drive loss.3-piece front bumper protects the chassis from hard crash damage.Front double-wishbone suspension with longer sus arms realises excellent driving stability and traction.The rear suspension is linked to the rigid axle differential to deliver smooth movement and superior traction control.The gearbox features 32-pitch module counter gear and diff gear. Reinforcement of both gears and large modules realises increased strength (spur gear is 48-pitch).The lever lock holder allows easy removal of the battery.The connector holder allows the connector to the radio plate to be removed with one hand.Hex screws are used throughout for easy maintenance.Pre-cut clear scale body recreates 1970-80s trophy truck style.Choose either square or round headlights with the two front grill styles included.Compatible with LED light unit (No. 97054-2: two lights, 97054-4: four lights) for easy installation.

Included Items

1x Approximately 80% Pre-Assembled ARR Kit 1x Pre-Cut Clear Body 1x Decals 1x Hex Wrench 1x Cross Wrench 1x Shock Oil

Required Items

2/3 channel transmitter and receiver Steering servo Electronic Speed Controller 540 brushed/3650 brushless sized motor 4 x AA Batteries for Transmitter Compatible Battery & Charger

Note

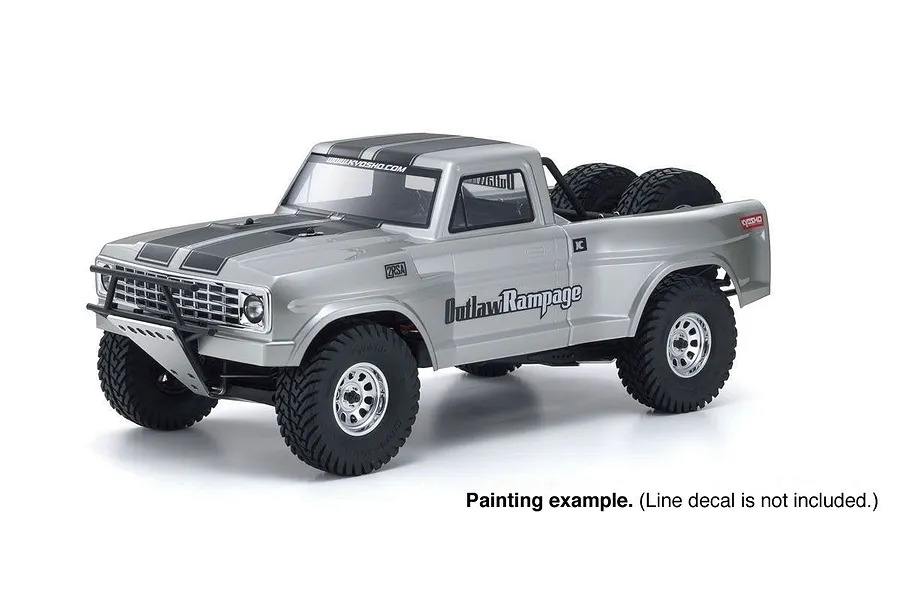

This kit does not include line decals.This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Specifications
Length
561mm (22.08")Width: 262mm (10.3") w/ BodyHeight: 231mm (9.09") w/ BodyWheelbase: 335mm (13.1")Tread (F/R): 204mm/204mm (8.03/8.03")Tyres (F/R interchangeable): 108×38mm (4.25x1.29")Gear Ratio: 12.65:1Weight: 2600g (5.73lbs) approx.

RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric
Chassis Type
Short Course
On/Off Road
Off Road
Drivetrain
2WD
Factory Specs
