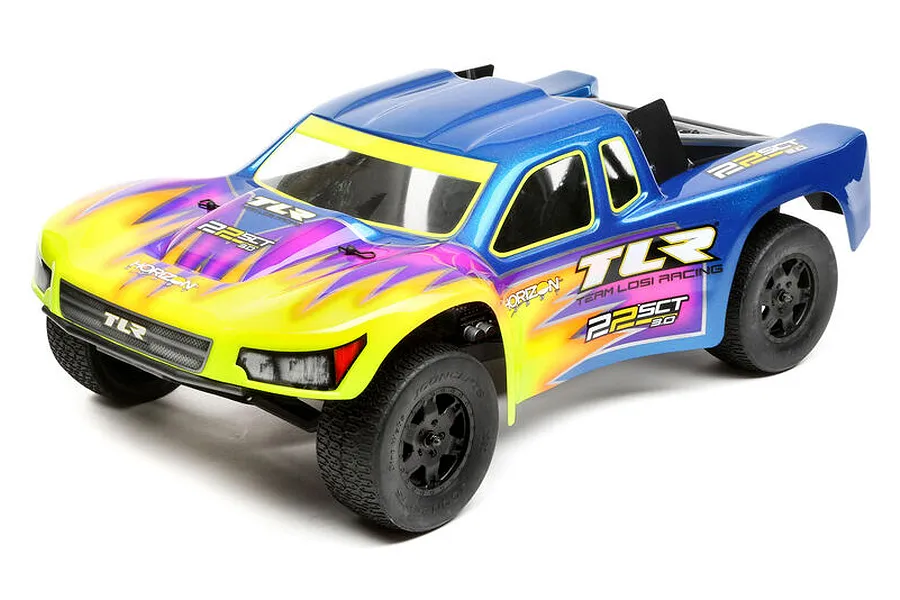

TLR 22SCT 3.0MM SCT Race RC Short Course Truck Electric 2WD 1/10 Scale Kit

Brand: TLR | SKU: TLR03009

discontinued

write a review

Shop replacement & upgrade parts for this model

Shop Parts

Description

Please Note:

The body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or may cause damage to the body shell's surface.

The TLR 22SCT 3.0 takes short course performance to the next level. Building on the success of its predecessor, the 22SCT 3.0 incorporates a host of changes that make it the truck to beat. With a revised motor location, 3-gear transmission, and updated suspension geometry, the 22SCT 3.0 delivers improved handling, acceleration, and overall performance.

This race-bred kit includes many parts that were previously considered optional, allowing you to build to team specs right out of the box. The 22SCT 3.0 features a lightweight 7075-T6 aluminium chassis, Gen II 12mm big-bore shocks, and a heavy-duty slipper clutch. With its transverse battery mounting option and TLR pre-cut body, the 22SCT 3.0 is as versatile as it is fast.

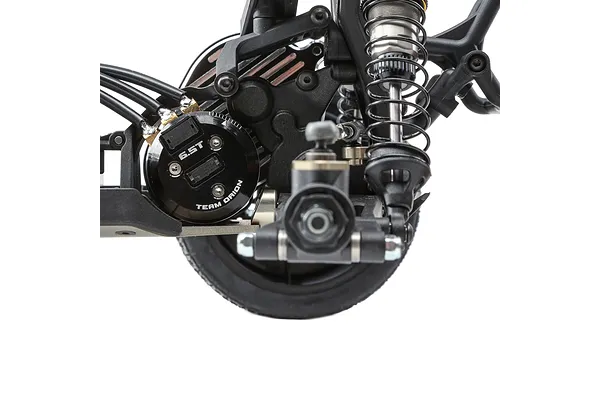

Revised Motor Location & 3-Gear Transmission

As with the 22™ 3.0 buggy, the 22SCT 3.0 motor location is 12mm closer to the diff gear than it was in the previous version. This increases the rear weight bias, providing better rear grip on exit, more entry steering and a truck that, overall, is easier to drive. The new 3-gear transmission dramatically improves speed and rear-end grip in all racing classes.

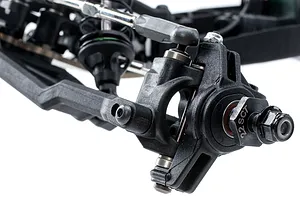

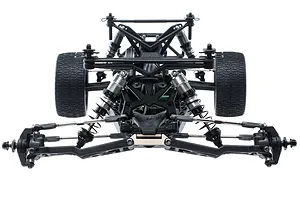

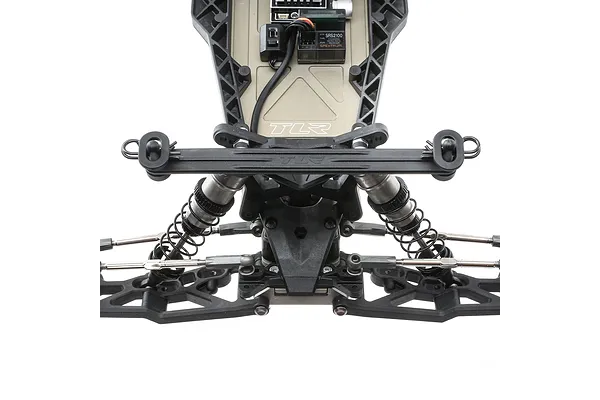

Revised Front Suspension Geometry

All-new front caster blocks and suspension arms allow for variable length arm adjustment. This, together with the bell crank steering system, provides the same amazing steering 22SCT drivers have come to love, but with a more consistent feel between different surfaces. It all adds up to a truck with neutral balance that requires less tuning from track to track to maximize performance.

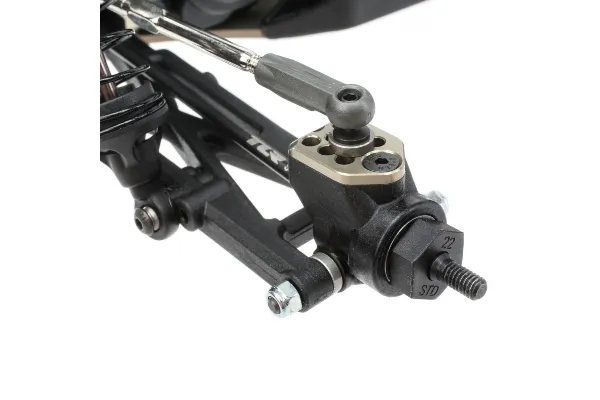

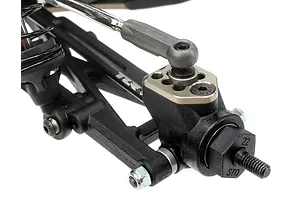

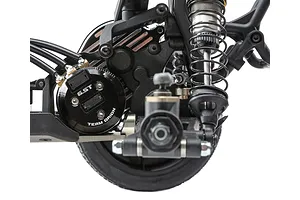

Aluminium-Plate Rear Hub

The hub base is moulded composite, allowing a bearing to be press fit without play and minimal unspring weight when compared to an all-aluminium hub. The aluminium plate is secured to the hub with an M3 screw and ball stud, which is vertically adjustable. Now the ball stud is supported by aluminium from pushing or pulling out, while still threading into composite so it cannot work loose.

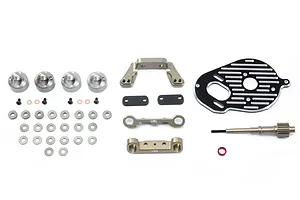

Included Option Parts

Many of the parts included with this kit are popular upgrades that provide everything needed to build a pro-level short course truck right out of the box. This includes milled, 7075-T6 aluminium parts like the top shaft, adjustable rear pivot mounts, motor plate, rear camber block, bleeder shock caps and ball stud spacers throughout.

Features

1/10 scale 2WD electric short course race truck kit
Based on the championship-winning 22 3.0 buggy
Revised mid-motor mounting location
Revised front and rear suspension geometry
3-Gear transmission for better acceleration and grip
Aluminium-plate rear hub

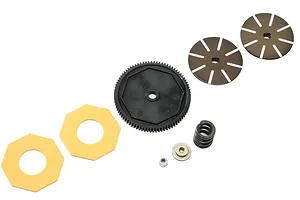

HDS slipper with HD spring

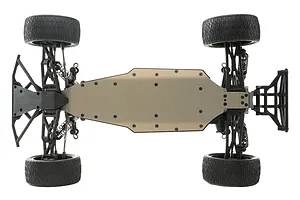

Lightweight 7075-T6 aluminium chassis

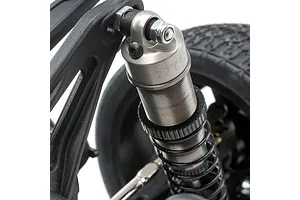

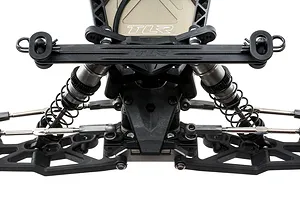

Gen II 12mm big-bore shocks
Transverse battery mounting option

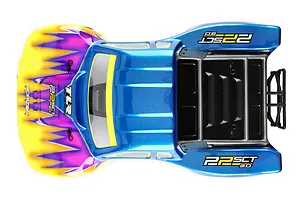

TLR® pre-cut body
Many popular option parts included as standard
Genuine TLR Product

Specifications

Length: 537.15mm (21.15")
Width: 246.9mm (9.72")
Height: 184.9mm (7.28")
Wheelbase: 325mm (12.8")
Weight: Varies with equipment used
Chassis: 2.5mm, 7075-T6 Aluminium
Suspension: Lower A-Arm, Upper Adjustable Link
Drivetrain: 2WD
Motor: N/A
ESC: N/A

Included Items

1x TLR 22SCT 3.0MM SCT Race Kit
1x Clear Polycarbonate Body
4x SCT 2.2/3.0 Wheels, 12mm Hex, Black
1x Instruction Manual

Required Items

1x Transmitter and Receiver
1x Steering Servo
1x 2S "Shorty" LiPo Battery
1x LiPo Battery Charger
1x 48 Pitch Pinion Gear
1x Motor
1x ESC
1x Tyre Glue
4x Tyres
Polycarbonate Paint
Tools

Note

This is a kit and requires assembly. Additional components are required for operation.

Videos

Specifications

Factory Specs

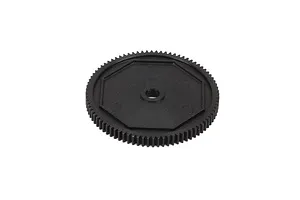

Spur Gear: 84T 48dp/0.5Mod
Max LiPo Power: 3S (11.1v)
Rear Shock Oil: 32.5w
Wheel Hex Size: 12mm
Battery Connector
Front Shock Oil

RC Car

Max LiPo Power: 3S (11.1v)
Completion: Kit
Drivetrain: 2WD
On/Off Road: Off Road
Chassis Type: Short Course
Skill Level: Intermediate
Scale: 1/10

Parts

Standard

Same as the original part from the manufacturer.

TLR 3x10mm Fine Thread Countersunk Head Screws 10Pcs

0 reviews

$9.38

Standard

Same as the original part from the manufacturer.

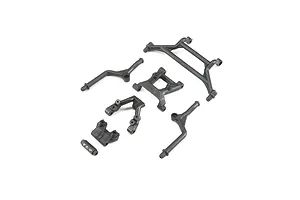

TLR Body Mount Set

0 reviews

$29.01

Standard

Same as the original part from the manufacturer.

TLR 3x20mm Fine Thread Countersunk Head Screws 10Pcs

0 reviews

$13.13

Standard

Same as the original part from the manufacturer.

TLR 1.2mm Black Body Pins 12Pcs

0 reviews

$9.87

Standard

Same as the original part from the manufacturer.

TLR 3x16mm Fine Thread Countersunk Head Screws 10Pcs

0 reviews

$13.13

Standard

Same as the original part from the manufacturer.

TLR 5mm Ball Studs

0 reviews

$14.75

Standard

Same as the original part from the manufacturer.

TLR 3x12mm Fine Thread Countersunk Head Screws 10Pcs

0 reviews

$13.13

Standard

Same as the original part from the manufacturer.

TLR 3x6mm Fine Thread Countersunk Head Screws 10Pcs

0 reviews

$7.12

Standard

Same as the original part from the manufacturer.

TLR 4mm Black Aluminium Flanged Serrated Nyloc Nuts 6Pcs

1 review

$19.92

Alternatives

Standard

Same as the original part from the manufacturer.

Losi Silver Aluminium 2.5mm Serrated Nyloc Nuts 10Pcs

0 reviews

$21.68

Standard

Same as the original part from the manufacturer.

TLR 3x8x0.5mm Washers 10Pcs

0 reviews

$16.37

Standard

Same as the original part from the manufacturer.

TLR Complete Ball Diff Set w/ Tungsten Balls

0 reviews

$114.00

Standard

Same as the original part from the manufacturer.

TLR Gunmetal Aluminium Main Chassis

0 reviews

$116.50

Standard

Same as the original part from the manufacturer.

TLR 3x6mm Fine Thread Button Head Screws 10Pcs

0 reviews

$13.33

Standard

Same as the original part from the manufacturer.

TLR 3x5mm Fine Thread Grub Screws 10Pcs

0 reviews

$8.68

Standard

Same as the original part from the manufacturer.

TLR 3x35mm Fine Thread Button Head Screws 10Pcs

0 reviews

$13.13

Standard

Same as the original part from the manufacturer.

TLR 3x20mm Fine Thread Button Head Screws 10Pcs

0 reviews

$13.13

Standard

Same as the original part from the manufacturer.

TLR Rear Bumper Set

0 reviews

$22.15

Standard

Same as the original part from the manufacturer.

TLR 3x16mm Fine Thread Button Head Screws 10Pcs

0 reviews

$9.38

Standard

Same as the original part from the manufacturer.

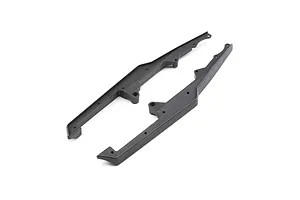

TLR Stiffezel Mud Guards 2Pcs
