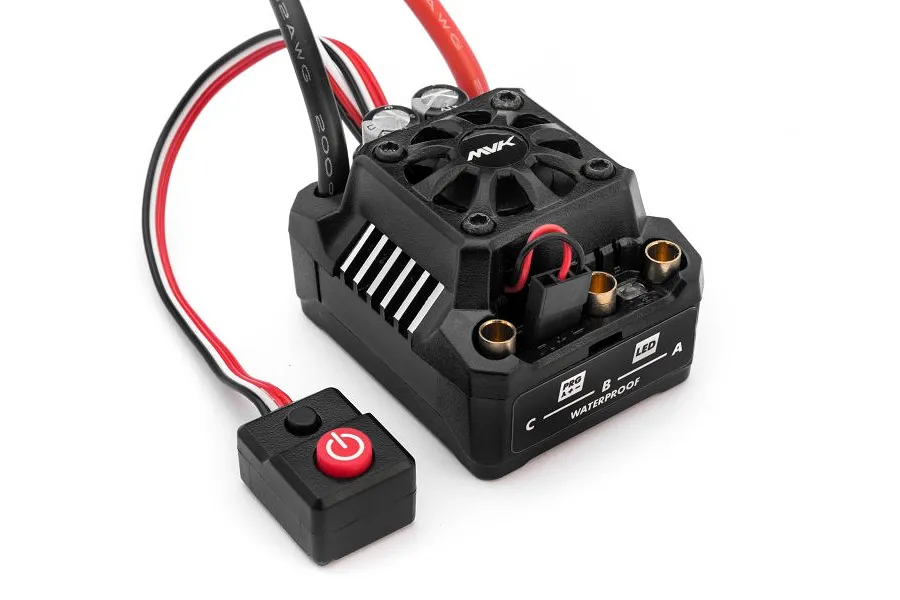

Maverick FLX10-3S100 Flux 100A Brushless ESC

Maverick FLX10-3S100 Flux 100A Brushless ESC

Maverick FLX10-3S100 Flux 100A Brushless ESC

Brand: Maverick | MPN: 150244
1 in stock
$177.19
or 4 fortnightly payments of $44.30 with Afterpay
  • 100A continuous / 650A peak current output
  • Fully waterproof construction
  • Compatible with 2-3S LiPo batteries
  • Large integrated cooling fan
  • Programmable settings
Select Male Connector
Deans
Deans
EC3
EC3
+ $5.50
XT60
XT60
+ $5.50
Other - Leave Comment
Other - Leave Comment
+ $5.50
Other - Leave Comment
Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

The Maverick Flux 100A Brushless ESC delivers up to 100 amps of continuous power for colossal top speeds, jaw-dropping stunts, and tire-shredding action. Designed to handle the elements, its waterproof construction lets you tackle puddles, mud, and more with confidence. Built for 1/10th scale buggies and monster trucks.

Features
  • 100A continuous current output for high-performance driving
  • Complete waterproof protection for all-terrain adventures
  • Large integrated cooling fan for consistent performance
  • Sealed electronic push-button on/off switch with long cable
  • Compatible with 2-3S LiPo batteries for versatile power options
  • Genuine Maverick product
Included Items
  • 1x Maverick FLX10-3S100 Flux 100A Brushless ESC
Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications
Length
49mm (1.93 in)
Width
39.5mm (1.56 in)
Height
34.7mm (1.37 in)
Weight
105g (3.70 oz)
Continuous/Peak Current
100A/650A
Waterproof
Yes
Motor Limit
2S LiPo <5500KV, 3S LiPo <3500KV
BEC
6V/7.4V @ 3A
Voltage Limit
2-3S LiPo
Programmable
Yes
Scale
1/10th
Sensored
No

ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
Yes
Burst Amps
650A
Continuous Amps
100A
Motor Connectors
4.0mm Bullet
Battery Connector
Deans
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V, 7.4V
Dual Motor
No
