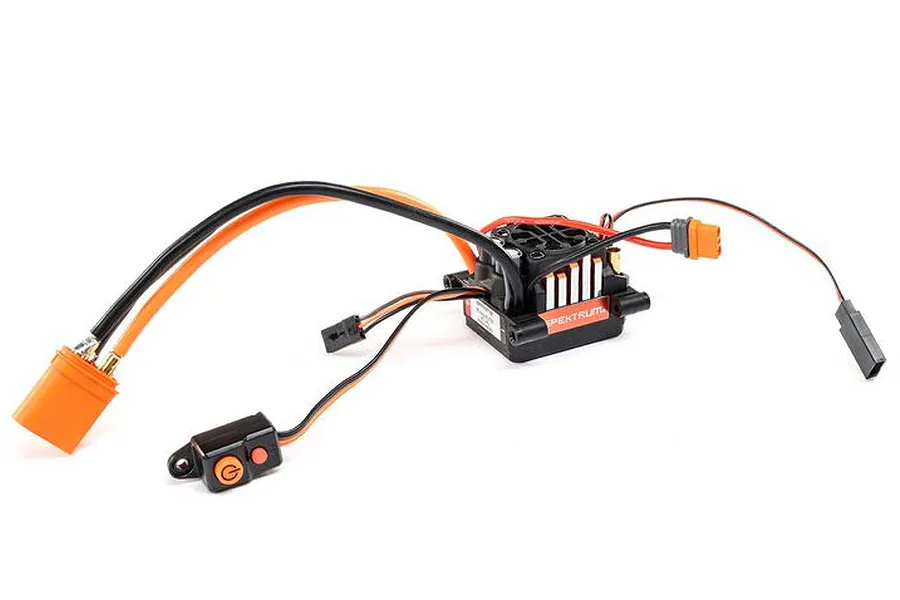

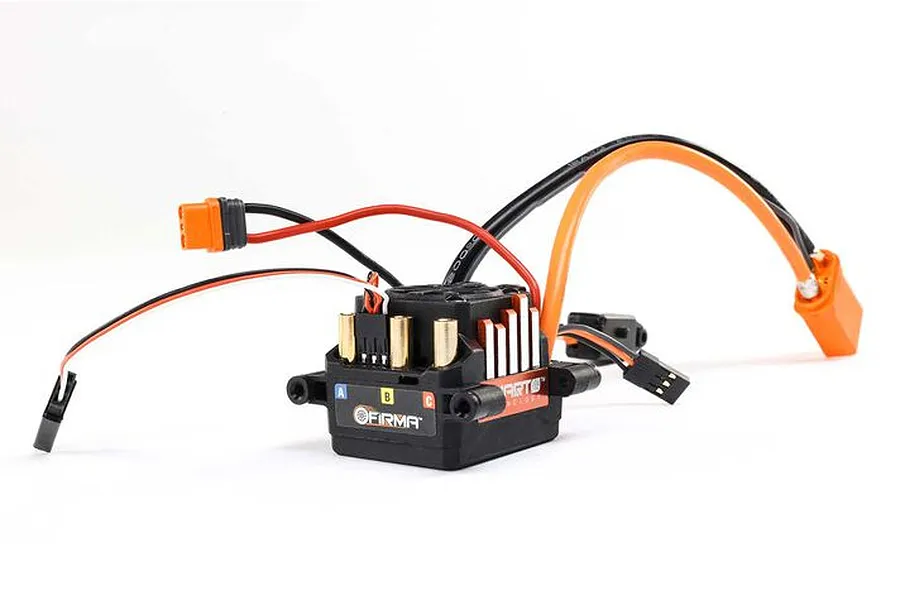

Spektrum Firma 85A Brushless Smart ESC

Spektrum Firma 85A Brushless Smart ESC

Videos

Spektrum Firma 85A Brushless Smart ESC

Brand: Spektrum | MPN: SPMXMXE85
1 in stock
$192.86
or 4 fortnightly payments of $48.22 with Afterpay
  • 85-amp continuous / 550-amp peak power
  • Waterproof Smart ESC with telemetry
  • 1/10 scale brushless compatible
EC3
EC3
IC3
IC3
These connectors plug into each other, so any of them fits this product.
Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Description

Experience the power and intelligence of the Spektrum Firma 85-amp Smart ESC. Designed for 1/10 scale surface vehicles, this waterproof ESC is part of the innovative Spektrum Smart ecosystem, offering real-time telemetry and seamless compatibility with your Smart-enabled receiver and transmitter.

Features
  • Powerful 85-amp continuous current handling
  • Waterproof design for all-weather adventures
  • Smart technology integration for easy setup and telemetry data
  • Compatible with sensored and sensorless brushless motors
  • High-efficiency cooling for reliable performance
  • Built-in switch-mode BEC with adjustable voltage output
  • User-friendly programming options via the Spektrum Smart Link app
  • Genuine Spektrum product
Included Items
  • 1x Spektrum Firma 85A Brushless Smart ESC
Note

Safety Notice: Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Videos
Specifications
Length
43.3mm (1.70 in)
Width
54.6mm (2.15 in)
Height
33.9mm (1.33 in)
Weight
116g (4.09 oz)
Continuous/Peak Current
85A/550A
Waterproof
Yes
Motor Limit
N/A
BEC
6.0V/7.4V @ 4A
Voltage Limit
2S-3S LiPo/6-9 Cells NiMH
Programmable
Yes
Scale
1/10
Sensored
No

ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
Yes
Burst Amps
85A
Continuous Amps
550A
Motor Connectors
4.0mm Bullet
Battery Connector
IC3
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V, 7.4V
Dual Motor
No
