Maverick

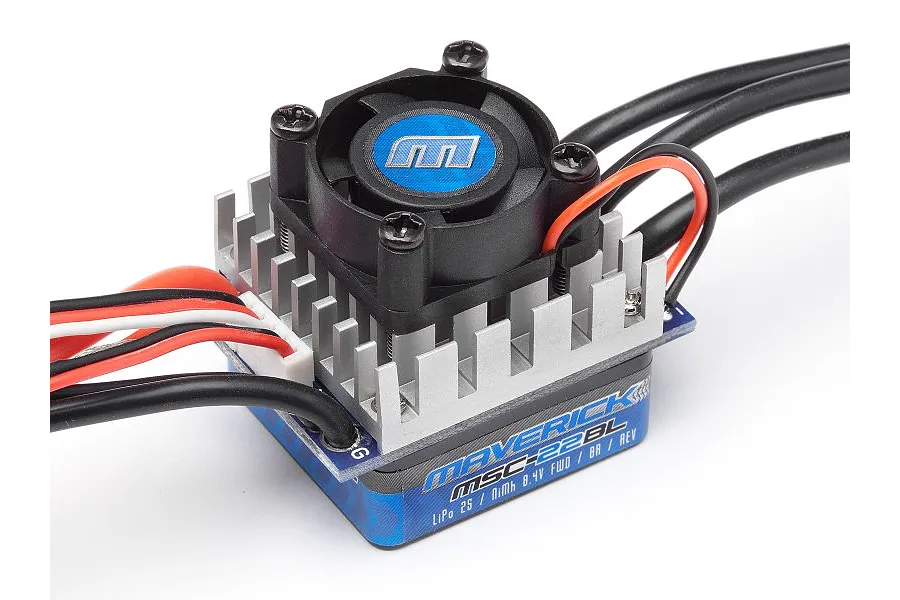

Maverick MSC-22BL 80A Brushless ESC

  • Brushless

Part no. MV22632

1 in stockNo reviews yet

$143.26

or 4 fortnightly payments of $35.82 with afterpay or PayPal, or zip

Replacement 80A brushless ESC for the Strada Evo S series, supporting 2S LiPo or 7-cell NiMH with over-current, thermal, and low-voltage protection.

Select Male Connector

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Order in 0h 18m, dispatched today

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

Replacement Brushless ESC from the Strada Evo S series of cars.

Features

  • 5.0 Volt — 8.4 Volt Power Input (2S Lipo or 7-Cell Nimh Max)
  • High Frequency Drive System
  • Forward, Reverse & Brake Linear Operation
  • Automatic Setup System
  • Over Current Protection
  • Thermal Protection
  • Low Voltage Protection
  • LED with audible beep
  • 11 Turn Brushless Motor Limit 50,000 RPM Max

In the box

  • 1x MSC-22BL 80A Brushless ESC

Specifications

PWM frequency 10K
80 Amps continuous current
Case dimensions32mm x 43mm x 36mm
Silicone Wire 14 Gauge
Weight 72g with connectors and switch
BEC Voltage 6.0V 3A

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage8.4V
Continuous Amps80A
Battery ConnectorBullet
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
Cooling MethodFan
BEC Voltage6V
