Reefs RC XP10 Plague Black Edition RC Rock Crawler Electric 4WD 1/10 Scale Assembled Kit

Name: Reefs RC XP10 Plague Black Edition RC Rock Crawler Electric 4WD 1/10 Scale Assembled Kit
Brand: Reefs RC
SKU: RFS-REEFS291
Price: 1549.99 AUD
Availability: InStock
Rating: 5 (1 reviews)

1/10
4WD
Kit

Part no. REEFS291

3+ in stock5.0

1 review

1 / 19

Videos

$1,549.99

or 4 fortnightly payments of $387.50 with afterpay or PayPal, or zip

Reefs RC RC Rock Crawler XP10 Plague Black Edition uses 199 portal axles and 60-degree steering to deliver high-clearance performance on every trail

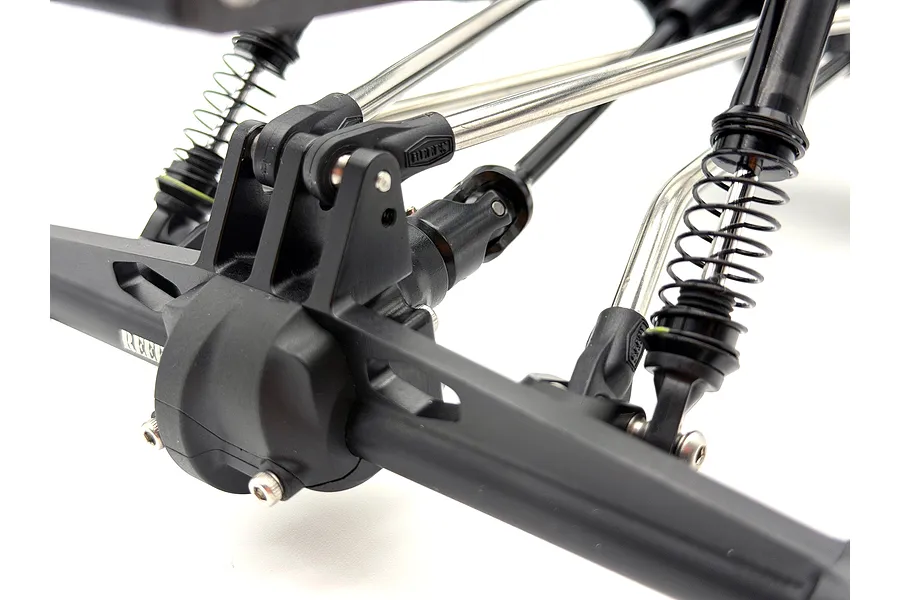

Reefs 199 Portal Axles Provide Superior Ground Clearance On Rocks
Machined Aluminium Housing With Hardened Steel Gears Throughout
Narrow Carbon Fibre Chassis Rails Support 60-Degree Steering Angle
Includes Stainless Steel Links And Hardened Axles For Peak Durability
Competition Grade Features Ideal For Experienced Builders And Pros

3+ in stock · Ships Thursday · order by 1:00pm Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Videos

Overview

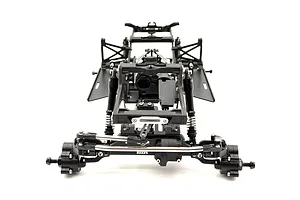

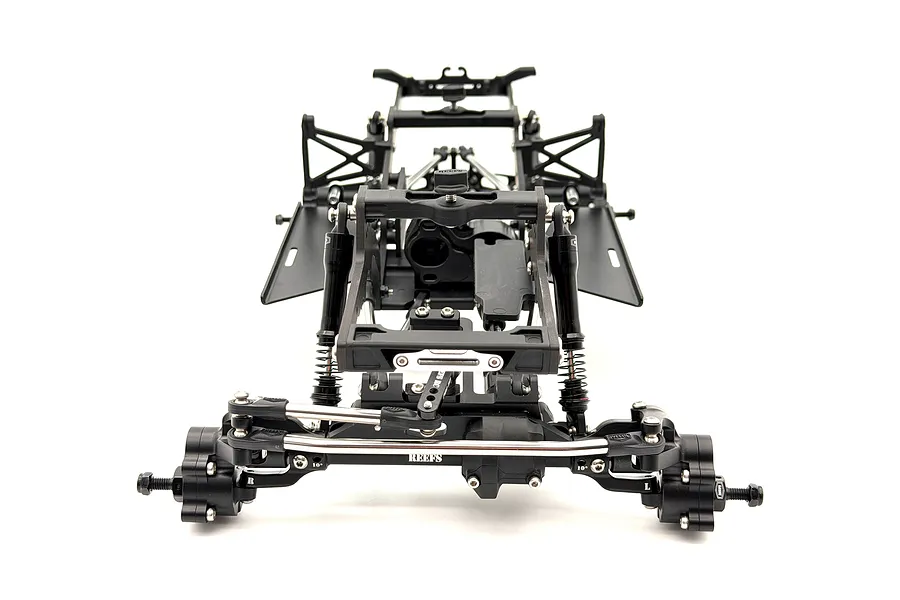

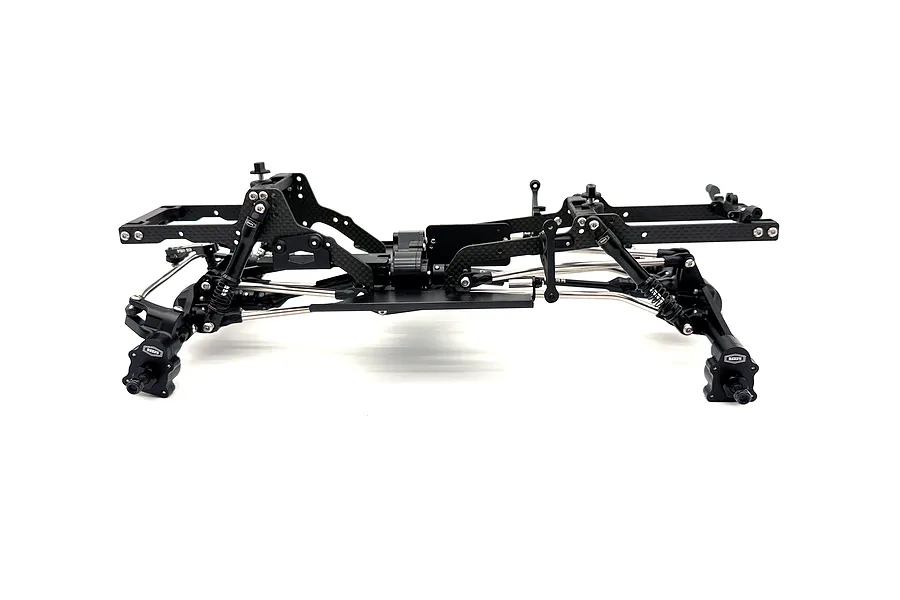

The Reefs RC XP10 Plague Black Edition redefines high-performance crawling by merging portal axle clearance with the grounded stability typically associated with straight axle rigs. This 1/10 scale platform utilises 199 portal axles to lift differential housings, allowing the vehicle to traverse jagged obstacles that snag traditional axles. The 3mm carbon fibre frame rails feature a narrow 64mm profile, enabling tighter clearance between rock faces while maintaining a low centre of gravity. Precision remains a priority through the Behind The Axle (BTA) steering configuration and forward-mounted motor placement, ensuring weight bias remains over the front tyres ensuring maximum traction on vertical ascents.

Every drivetrain component consists of premium materials designed to manage high-torque brushless systems. Machined hardened steel gears, spools, and 5mm pinned axle shafts provide a bulletproof foundation within aluminium housings. The XPT3 transmission incorporates a titanium output shaft and 48-pitch steel gears to facilitate smooth power delivery through 5mm stainless steel links. With a 7-degree skid angle and adjustable caster settings on the C-hubs, users can fine-tune suspension geometry matching specific terrain requirements. This assembled kit provides a professional-grade starting point, allowing enthusiasts to select preferred electronics and wheel combinations meeting competition standards.

Assemble your ultimate rock-crawling machine and leave the competition behind. The black edition chassis provides the precision needed to master technical lines on local trails. Grab the transmitter and own the mountain!

Note

Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.

This is an assembled kit requiring electronics, wheels, and tyres for completion.

Features

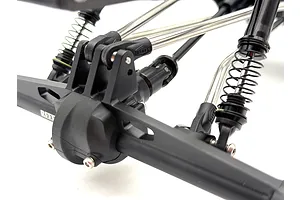

Reefs 199 Portal Axles Provide Maximum Ground Clearance Over Rock Obstacles
Machined Aluminium Axle Housings Deliver Superior Strength And Durability
Hardened Steel Gears And Spools Ensure Reliable Power Transfer Under Load
Narrow 3mm Carbon Fibre Chassis Rails Improve Clearance In Tight Sections

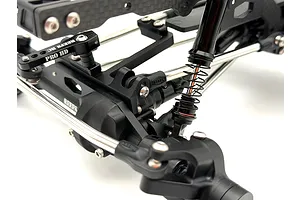

Behind The Axle Steering Configuration Enables Up To 60 Degrees Of Angle

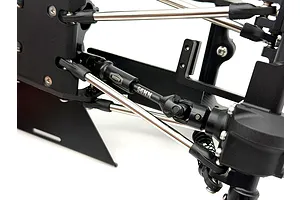

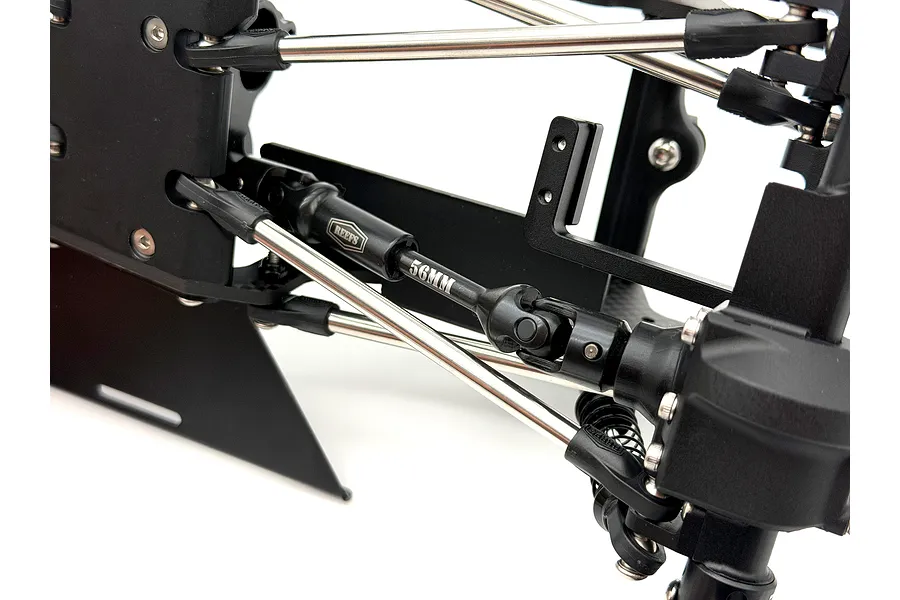

High-Strength 5mm Stainless Steel Links Ensure Consistent Suspension Action

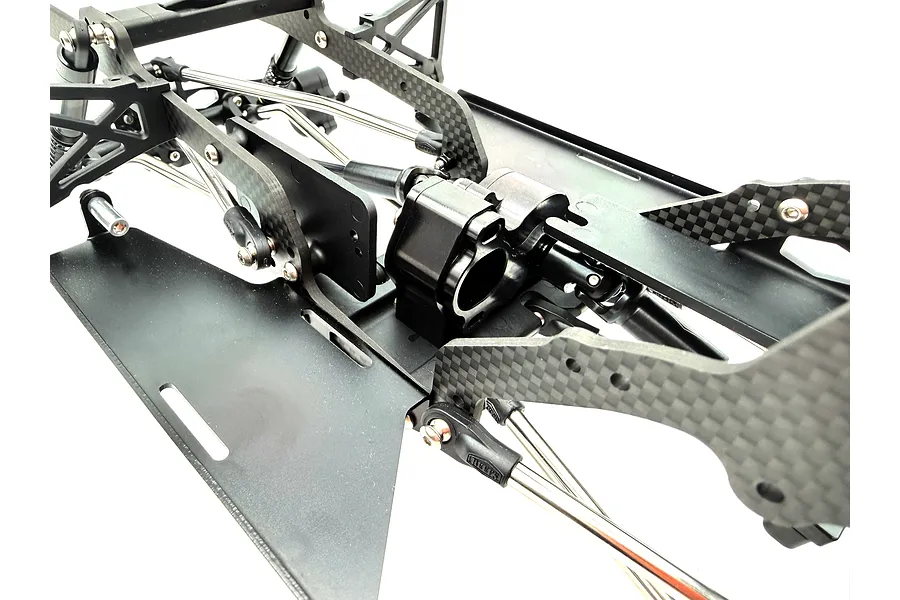

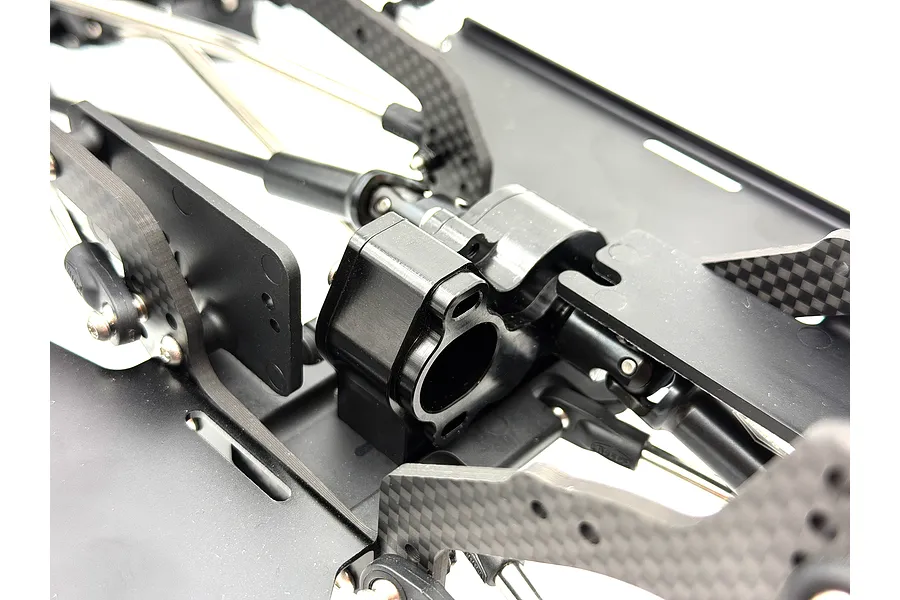

XPT3 Aluminium Transmission Case Features A High-Grade Titanium Output Shaft
Slim 9mm Reefs XP Aluminium Shocks Provide Smooth Oil-Damped Performance
Forward-Mounted Motor Position Optimises Weight Distribution On Steep Climbs

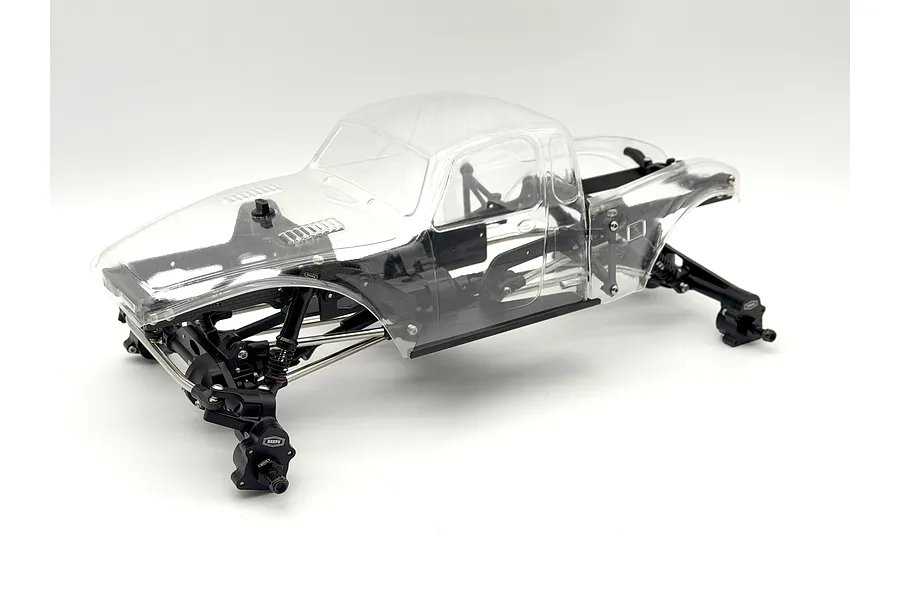

Included Plague Comp Body Set Allows Cab-Only Or Full Bed Configurations
Precision C-Hubs Offer Adjustable Caster Settings Of 0, 10, And 20 Degrees
Genuine Reefs RC Product

In the box

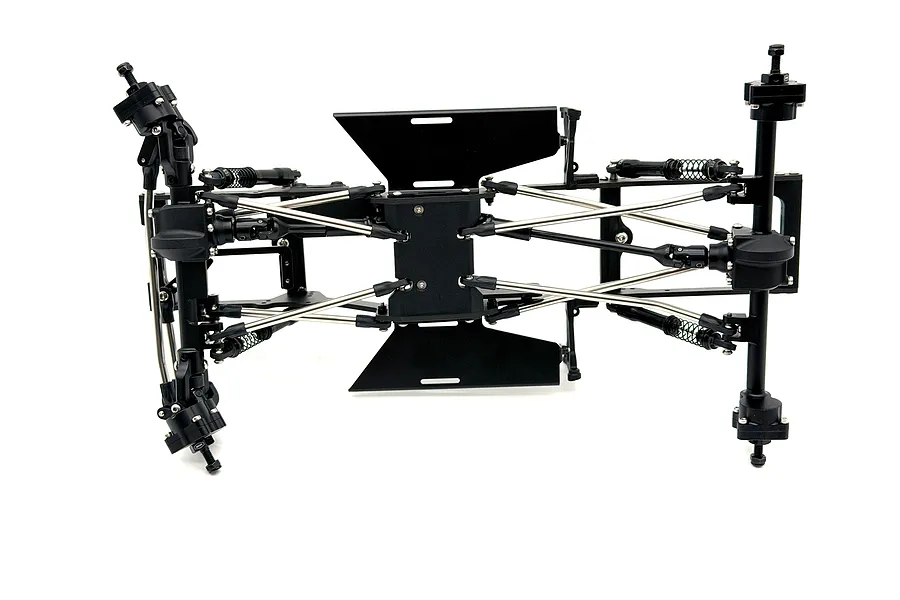

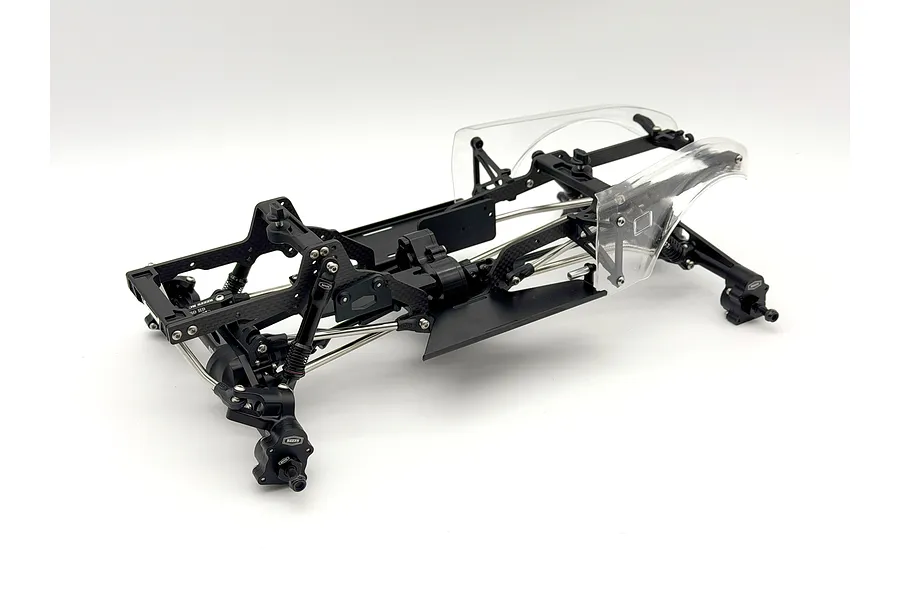

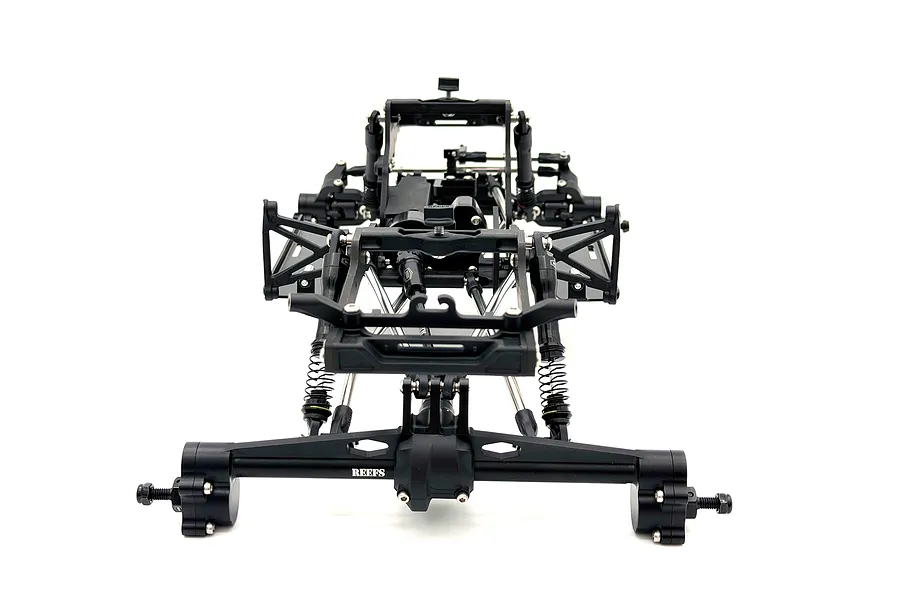

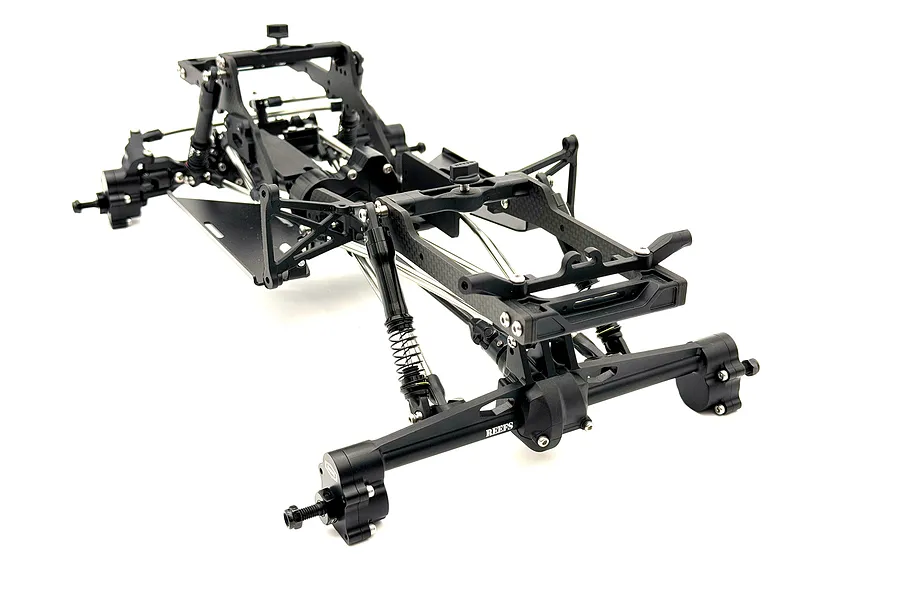

1x Assembled Reefs XP10 Plague Chassis

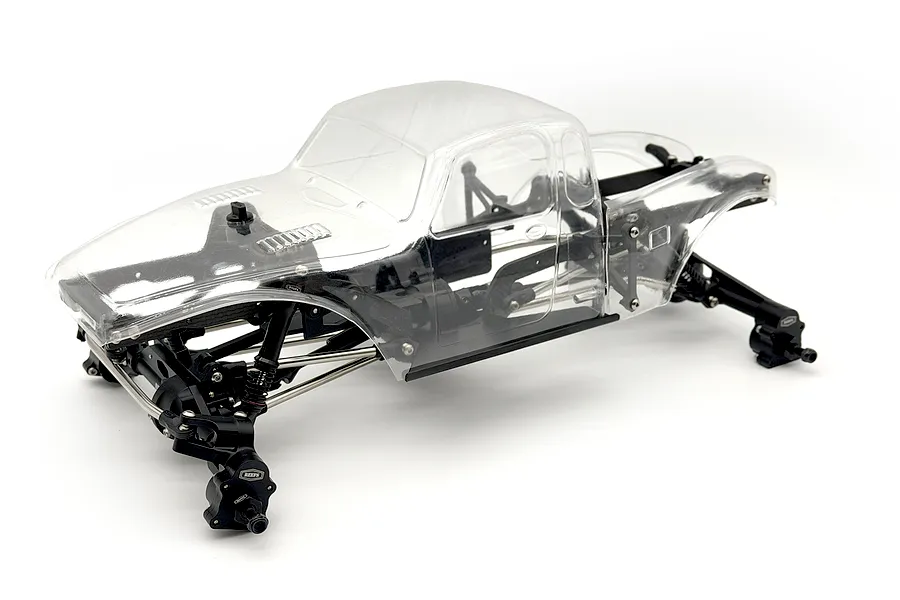

1x Clear Plague Comp Body Set

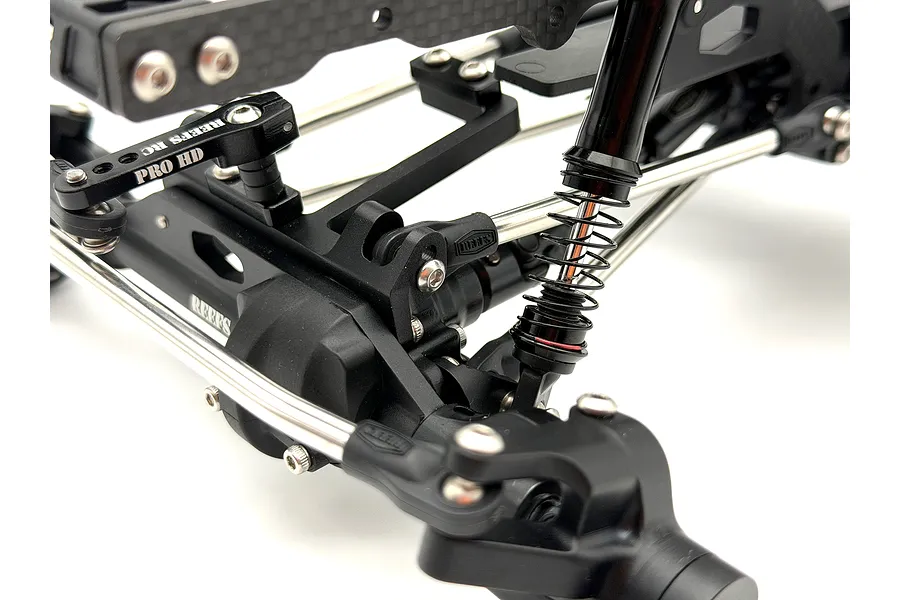

1x Pro HD Aluminium Servo Horn
1x Hardware And Link Set

You'll need

1x 2.4GHz Radio System
1x High-Torque Steering Servo
1x 540 Size Brushless Motor
1x Electronic Speed Control
1x 2S LiPo Battery
1x LiPo Safe Charging/Storage Bag
4x 1.9" or 2.2" Tyres
4x 1.9" or 2.2" Wheels
1x Shock Oil
1x Polycarbonate Paint

Highlights

Machined Steel and Titanium Bulletproof Drivetrain

The axles and transmission feature machined, hardened steel gears, spools, and shafts throughout to handle extremely high-torque applications. From the 6mm (0.24") portal stubs to the titanium transmission output, every internal component is engineered for maximum durability. This robust mechanical system ensures your 1/10-scale crawler delivers reliable power during the most demanding vertical climbs and technical rock lines.

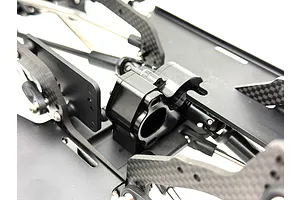

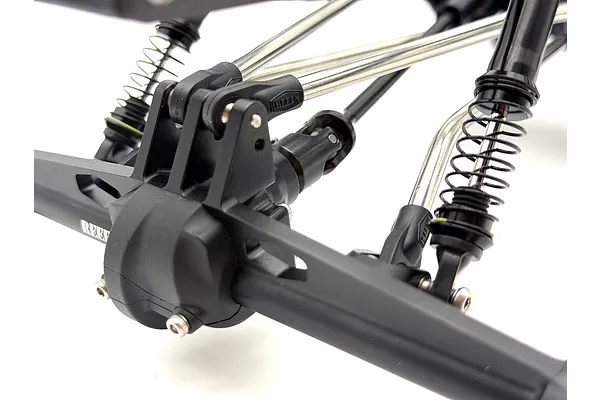

CNC-Machined Aluminium Precision Axle Components

Critical structural components like the axle housings, C-hubs, and the XPT3 transmission case are CNC-machined from high-grade aluminium. This provides incredible strength and precision while maintaining a sleek, professional finish. This premium metal construction, including a machined aluminium servo horn and fairleads, reduces flex and ensures your steering and drive systems operate with absolute accuracy and consistency.

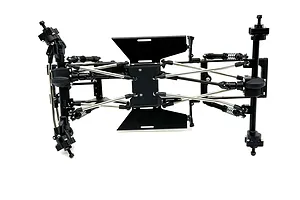

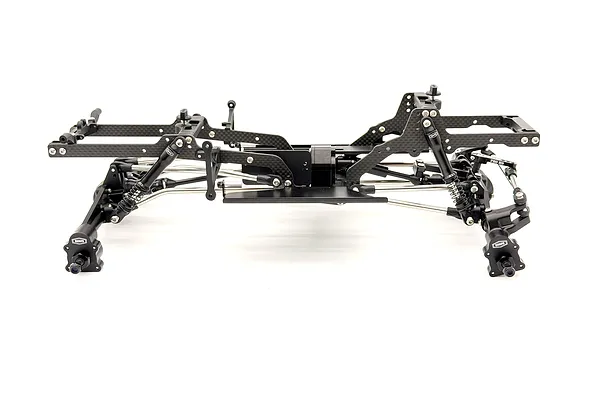

Rigid Carbon Fibre Frame and Competition Suspension

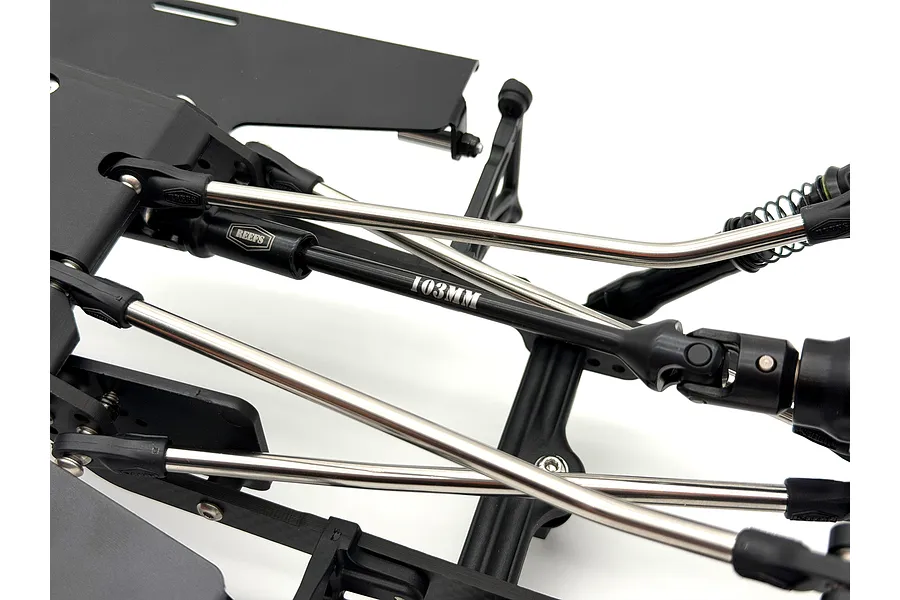

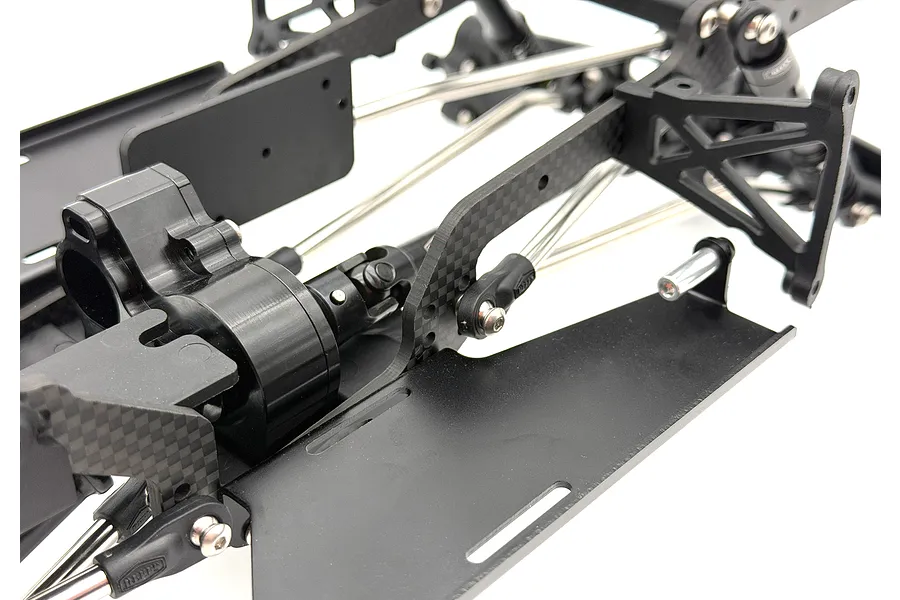

The 3mm (0.12") carbon fibre frame rails provide a lightweight yet incredibly rigid foundation for this competition-grade rig. It is paired with 5mm (0.2") stainless steel links and Reefs XP Aluminium 90mm (3.54") shocks to ensure smooth, predictable suspension action on any trail. This high-end setup allows the 317.5mm (12.5") wheelbase chassis to articulate over massive obstacles while keeping the centre of gravity low for superior stability.

Specifications

Length	400mm (15.75")
Width	165mm (6.50")
Height	108mm (4.25")
Wheelbase	317.5mm (12.5")
Weight	N/A
Chassis	3mm Carbon Fibre
Drivetrain	4WD
Suspension	4-Link Stainless Steel
Motor	N/A (Sold Separately)
ESC	N/A (Sold Separately)
