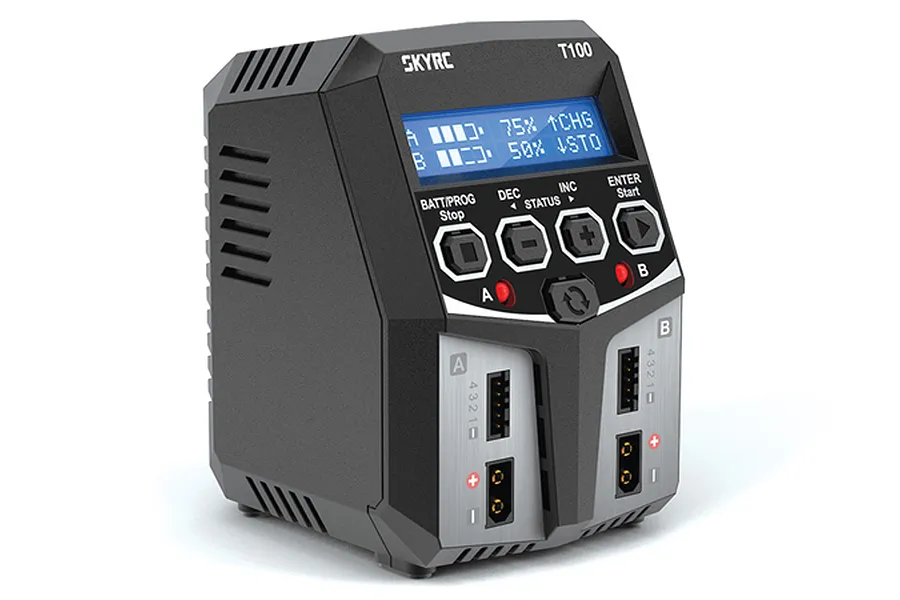

SkyRC T100 Dual Port Smart Charger

Brand: SkyRC | SKU: SK-100162-01
1 in stock

$129.65

Fits 289 Vehicles

Login to My Garage to check compatibility.

Description

Overview
SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more efficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries on cold days.

Twin-channel Charger

SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb)batteries into any of the charging ports.

AGM & Cold Charge Modes for PB Battery

SkyRC T100 can charge AGM(Absorbent Glass Mat) battery and also can be used for charging PB battery at very low temperatures.

Embedded XT60 Battery Connector

By embedding the XT60 battery connector in the charger, it is more convenient & safer for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.

Specifications

    Size and Weight
    • Case Material: Plastic
    • Case Size: 90x100x127mm
    • Weight: 500g
    • Display
    • Display Type: 2x16LCD
    • Display Backlight: Blue
    Power
    • Input Voltage: AC 100-240V
    • Charge Wattage: 50Wx2
      Battery
      • Battery Types/Cells:
      • LiPo/LiFe/LiIon/LiHV: 2-4 cells
      • NiMH/NiCd: 6-8 cells
      • Pb:6/12V
      • Battery Capacity Range:
      • LiPo/LiIon/LiFe/LiHV:100-50000mAh
      • NiMH/NiCd:100-50000mAh
      • Pb: 100-50000mAh
        Charge and Discharge
        • Charge Voltage
        • LiPo: 4.18-4.25V/cell
        • LiFe: 3.58-3.7V/cell
        • LiIon: 4.08-4.2V/cell
        • LiHV: 4.25-4.35V/cellNiMH/NiCd: Delta peak detection: 3-15mV/cell ; Default: 4mV/cell
        Discharge Cut-off Voltage
        • LiPo:3.0-3.3V/cell
        • LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell
        • LiHV: 3.1-3.4V/cellNiMH/NiCd:0.1-1.1V/cell
        • Charge Current: 0.1A-5.0A
        • Balance Cells: 2-4 cells
        • Balance Current: 300mA/cell
        • Safety Timer: 1-720minutes & OFF
        • Charge Method:CC/CV for Lithium batteries.
        • Delta-peak Sensitivity for NiMH/NiCd batteries.
        • CC/CV and float charge for PB batteries.
        How To: Charge a LiPo Battery

        See how to select the correct settings for safely charging your LiPo battery with a LiPo smart charger.


        Specifications
        Charger
        Compatible With: Li-Ion,LiFe,LiPo,NiMH,NiCd,Pb
        Output Connector Type: XT60
        Maximum Amps: 5
