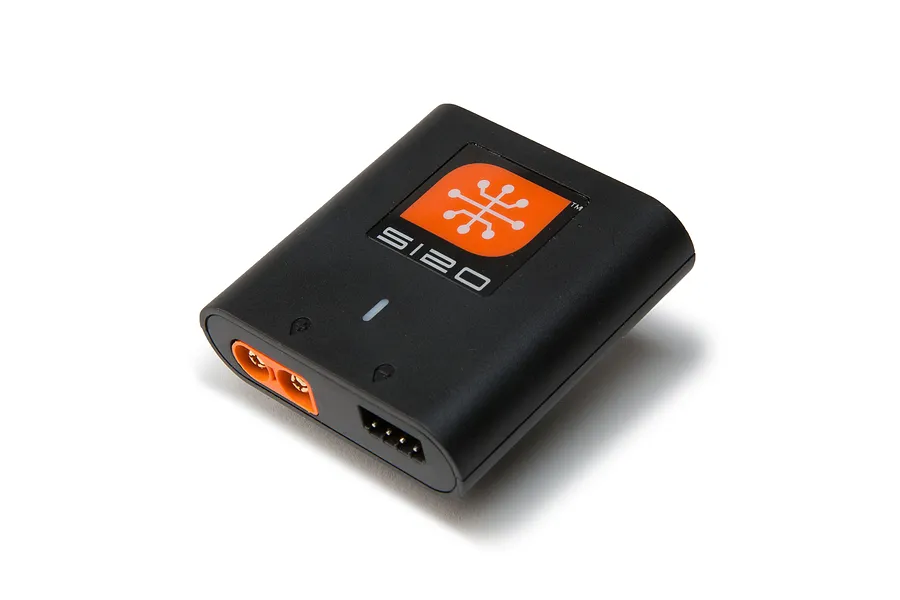

Spektrum S120 USB-C Smart Charger
Spektrum S120 USB-C Smart Charger
Compact 20W Spektrum Smart USB-C charger — auto-detects your battery and starts charging instantly from any USB Fast Charger source.
- Spektrum Smart technology — plug in and charging starts automatically
- 20W charger powered by any USB source via included USB-C cable
- LED status indicator: blinking = charging, solid green = complete
- IC3 output connector with JST-XH balance port
- Supports 2–3S LiPo/LiFe/LiHV and 6–7 cell NiMH Smart batteries
The Spektrum S120 USB-C Smart Charger features Spektrum Smart Charging technology in a small and simple-to-use platform. This 20W charger easily charges compatible Spektrum Smart batteries from almost any USB power source.
When a Spektrum Smart battery is connected, the S120 immediately detects the battery information and automatically begins to charge. Simply use the included USB-C cable to supply power from a USB power source, plug in your Spektrum Smart battery (LiPo versions require the balance lead connected as well as the main lead), and the charger will automatically start charging. Monitor charging status via a blinking purple or yellow LED — the LED glows green when charging is complete.
- Small and easy to use with Spektrum Smart Charging technology
- 20W of charging power
- Charges compatible Spektrum Smart batteries from almost any USB power source
- Automatically detects battery information when connected and begins charging
- Safe, intuitive, and convenient Spektrum Smart charging
- Powered via the included USB-C to USB cable
- Blinking purple or yellow LED indicates charging in progress
- LED glows green when charging is complete
- 1x S120 USB-C Smart Charger
- 1x USB-C to USB Cable
- 1x Product Manual
The S120 Charger will ONLY charge 2–3 cell Spektrum Smart LiPo/LiFe/LiHV and 6–7 cell Smart NiMH batteries.
The charger requires a USB Fast Charger adaptor to operate (not included). A USB Fast Charger adaptor with QC 2.0/3.0 18W+ output is recommended.
-
Length
- 51mm (2")
-
Width
- 51mm (2")
-
Height
- 14mm (0.55")
-
Charge Protection Circuitry
- Yes
-
Power Source
- USB
-
Battery Type
- Spektrum Smart Only
-
Technology
- Smart, Software Updatable
-
Output Connector
- IC3
-
Battery Balance Connector
- JST-XH
-
Maximum Charge Rate
- 1–2 Amps
-
Protection
- Reverse Polarity, Thermal
-
Input Voltage
- 5–12V DC USB charge port
-
Power Supply Required
- 20–49W
-
Output
- Up to 2A (depending on power supply and battery)
-
Output Connector Type
- IC3
-
Compatible With
- NiMH, LiPo, LiFe, LiHV
-
Maximum Amps
- 2A
