Name: Tamiya CR-01 Rock Socker RC Rock Crawler Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58592
Price: 416.47 AUD
Availability: OutOfStock

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

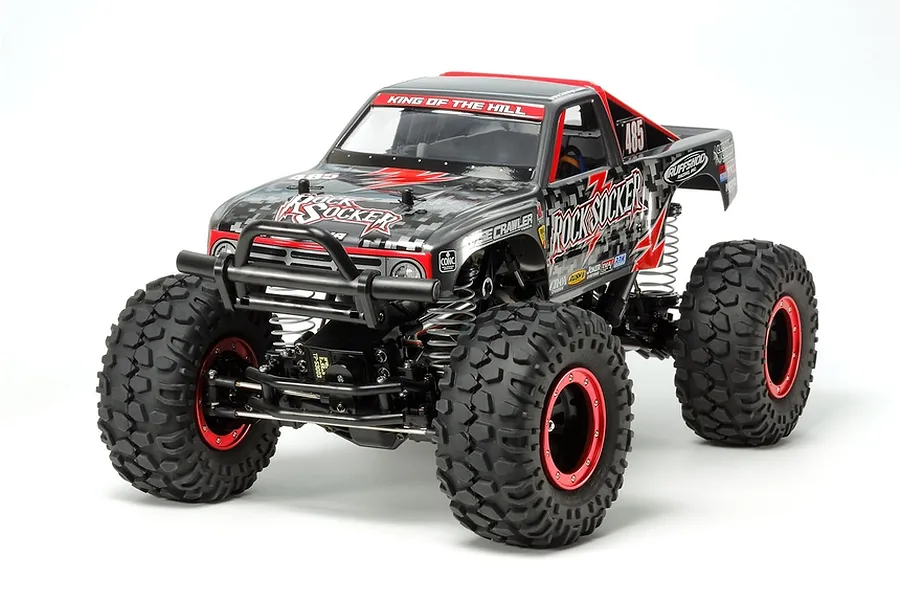

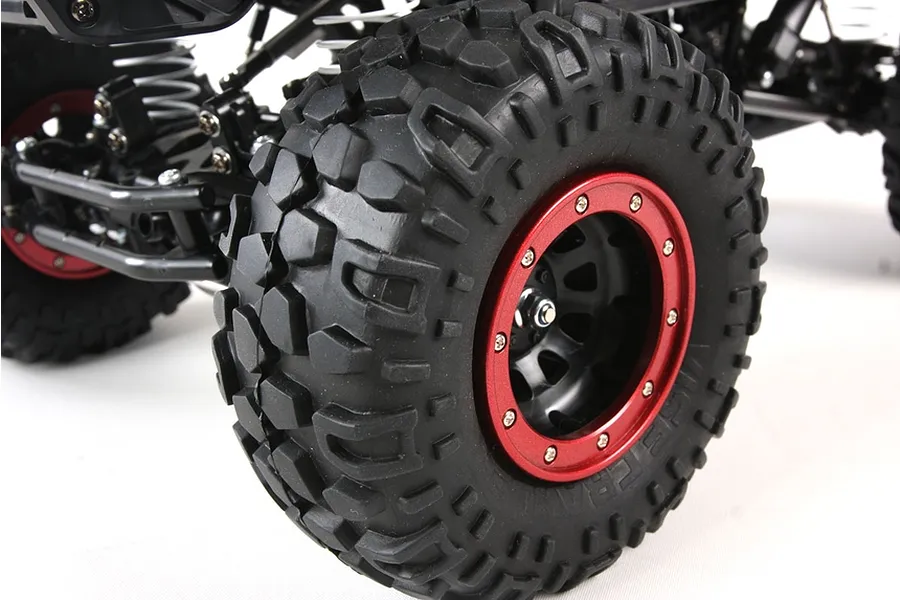

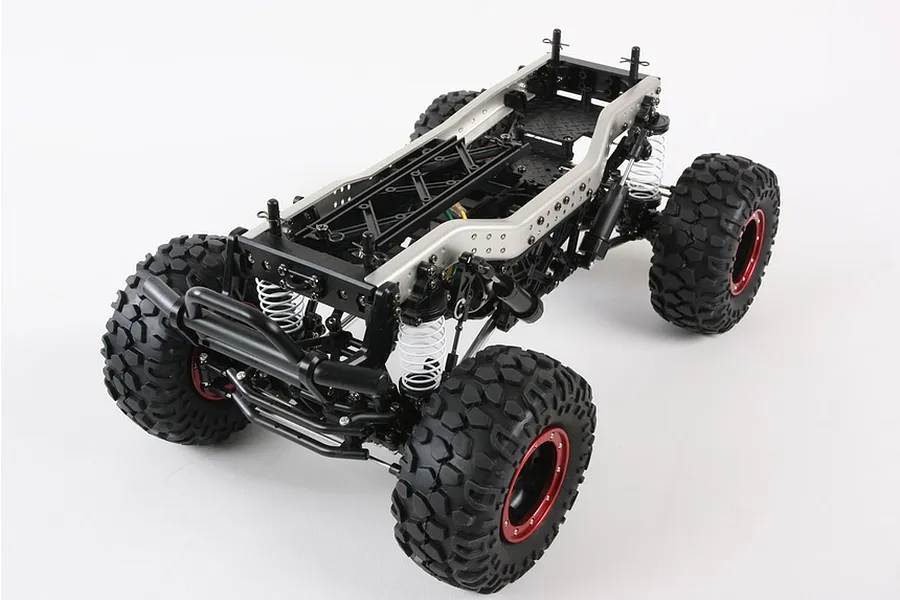

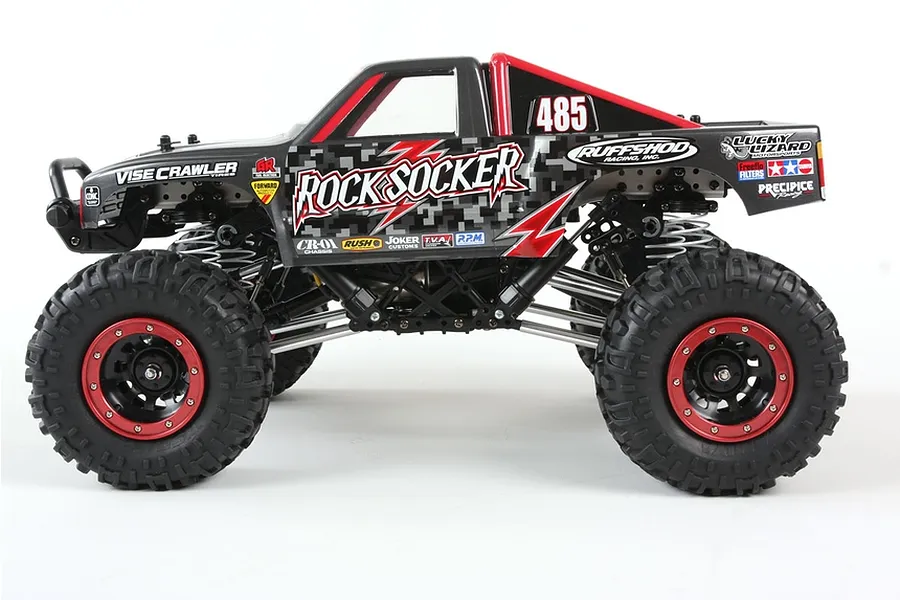

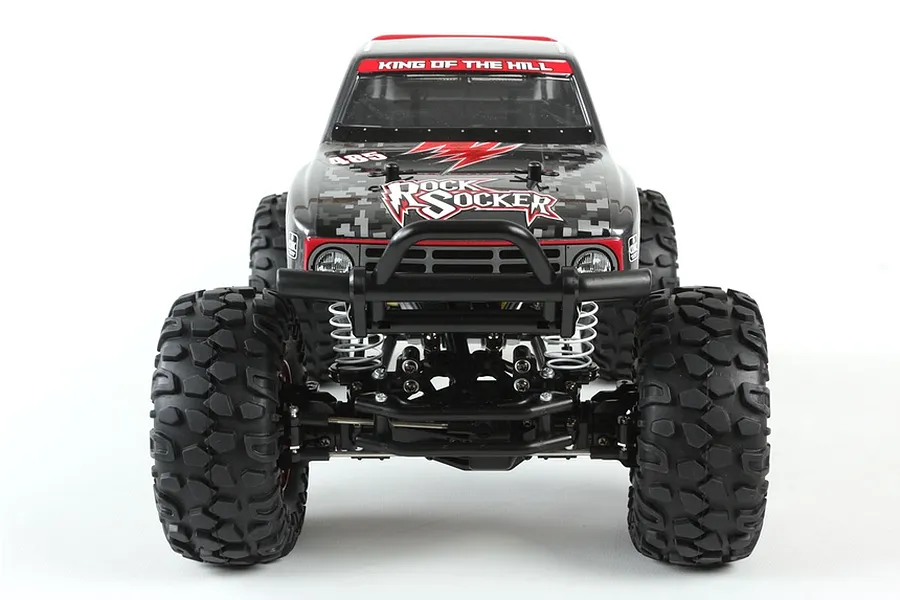

This R/C model assembly kit recreates a rock crawling vehicle like those seen in popular U.S. events where the massive machines vie for time or crawling ability over impossible-looking obstacles. The lightweight yet tough polycarbonate racing truck body comes with a host of marking stickers for decoration. The tough CR-01 chassis features durable ladder frames with aluminium side channels and resin cross members, as well as 4-link rigid suspension with oil dampers and progressive springs. The motor is placed in a central position, with planetary gears enabling low-speed shaft-driven 4WD. Front and rear differentials can be locked. Large-diameter tires feature a tread pattern which extends to the sidewalls, and are fitted to beadlock wheels.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

1/10 scale R/C model assembly kit
Detailed clear polycarbonate body
Highly reliable CR-01 chassis with a full-time 4WD system
Planetary gearbox
Front/rear 3-bevel differentials (locked as standard)
Shaft-driven 4WD
Aluminium and resin ladder frame
Front/rear 4-link rigid suspension
Front/rear CVA shock units

In the box

1x CR-01 Rock Crawler Chassis Kit
1x Tamiya Brushed Motor
1x Tamiya TBLE-02S Brushed ESC
1x 1/10 Scale Unpainted Body Shell

You'll need

Steering servo
Remote controller
Battery
Charger
Paint
Tools

Highlights

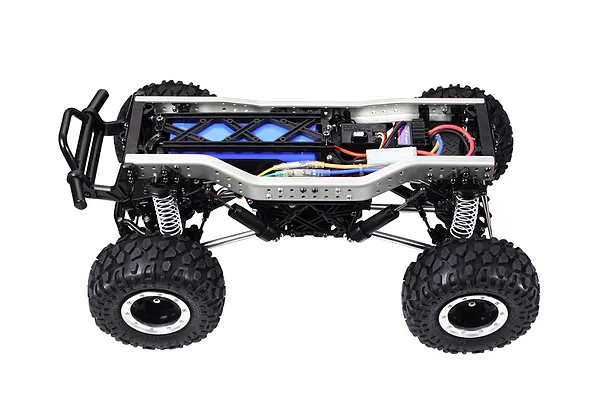

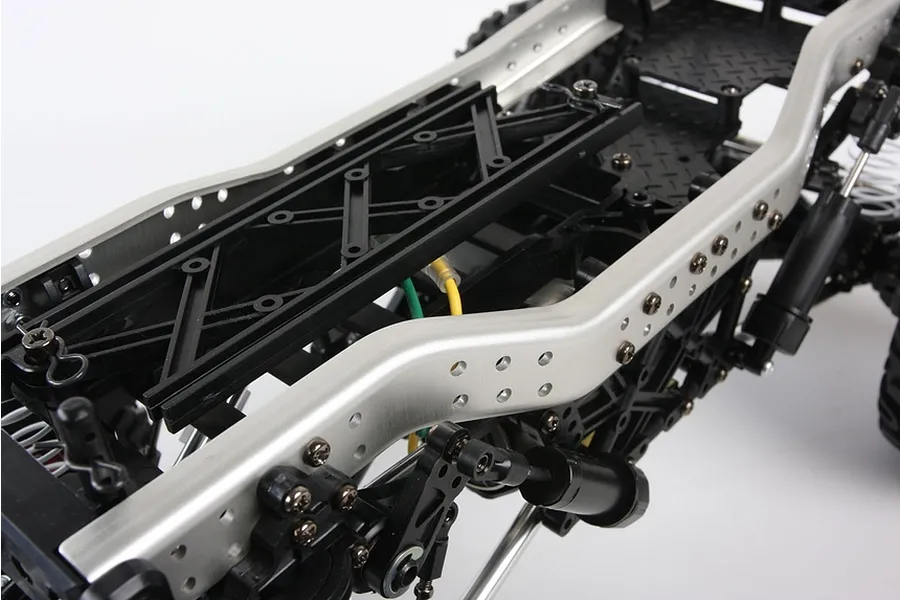

Ladder Frame Chassis

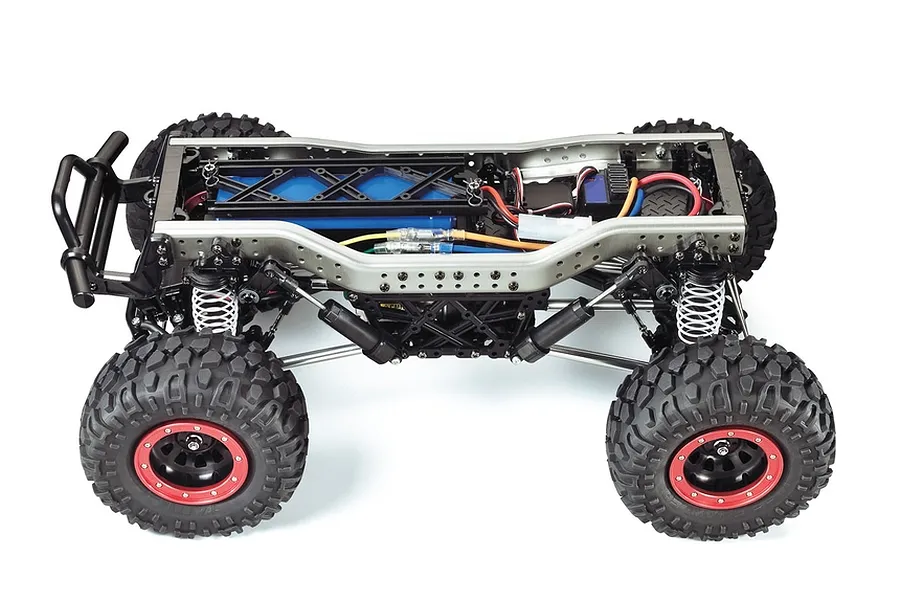

The CR-01's highly rigid ladder frame, constructed with aluminium side members and plastic cross members, provides exceptional strength and torsional rigidity for tackling the toughest terrain.

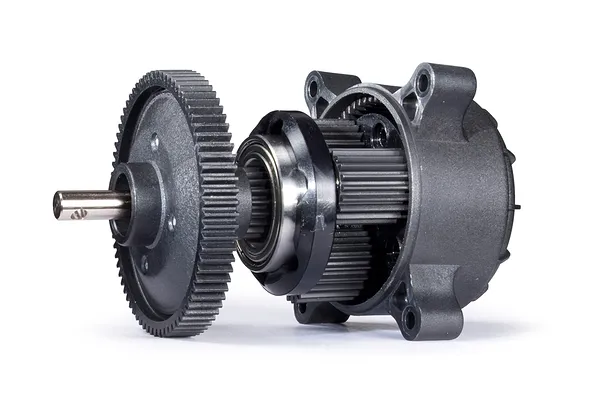

Planetary Gear Transfer Case

The CR-01's compact planetary gear transfer case delivers smooth and efficient power distribution to all four wheels. Its high reduction ratio and low-mounted battery contribute to a low centre of gravity, enhancing stability and climbing ability.

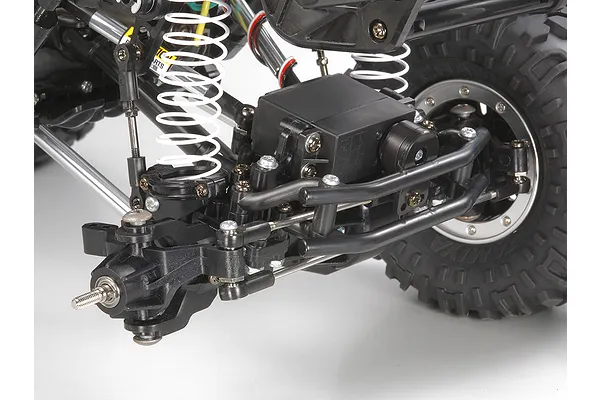

Axle Mounted Servo

Experience unrestricted suspension movement with the CR-01's innovative steering servo placement. Mounted directly to the axle, the servo avoids interference with suspension components, maximising articulation and climbing capability.

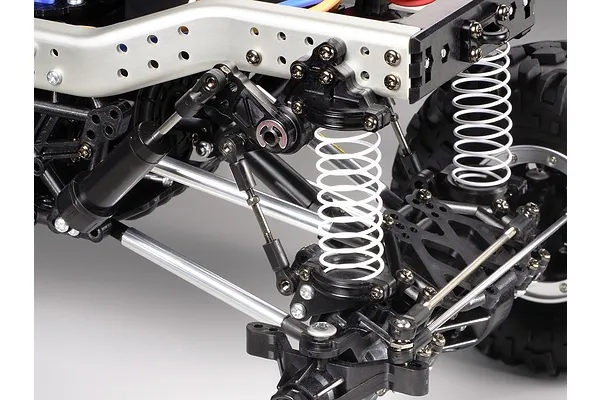

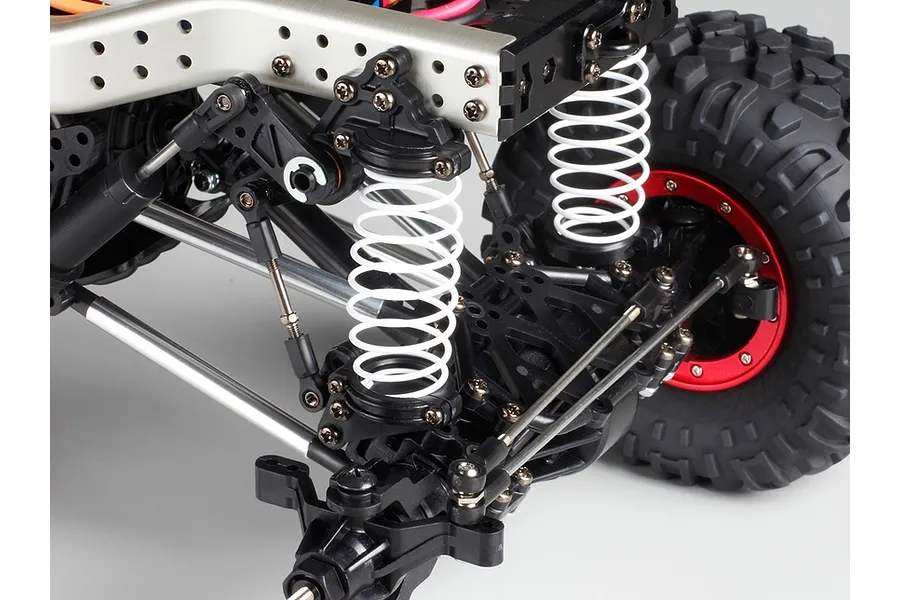

Push Rod and Rocker Suspension

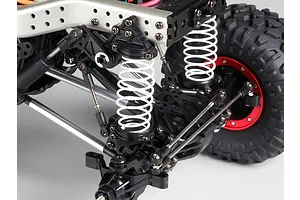

The CR-01's oil filled shock absorbers, operated by a push rod and rocker arm system, provide smooth and responsive damping action. The unique coil spring setup, mounted separately from the damper, enhances articulation and traction by extending when the vehicle rolls.

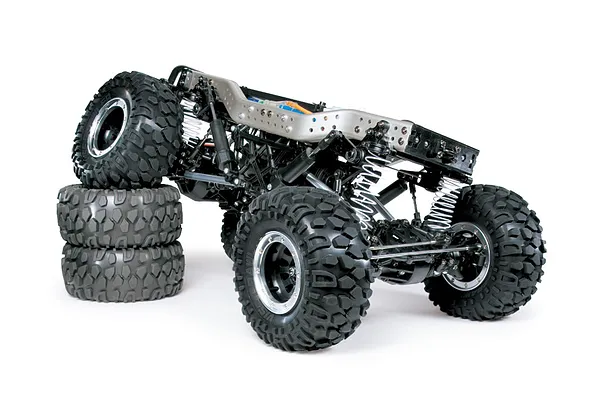

4 Link Suspension

The CR-01's 4-link suspension delivers exceptional off-road capability. With incredible articulation and stabilisers on both axles, this system maximises tire contact with the ground, providing tenacious traction and stability on even the most challenging surfaces.

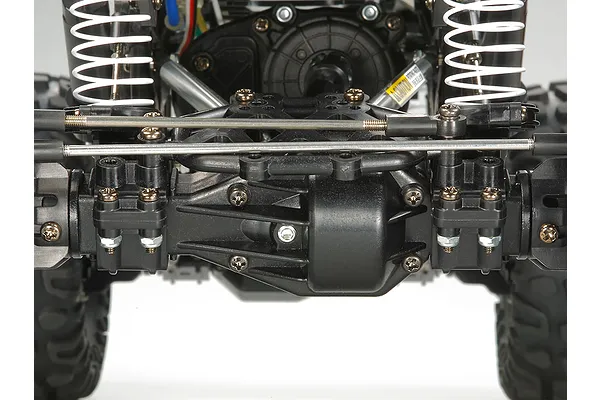

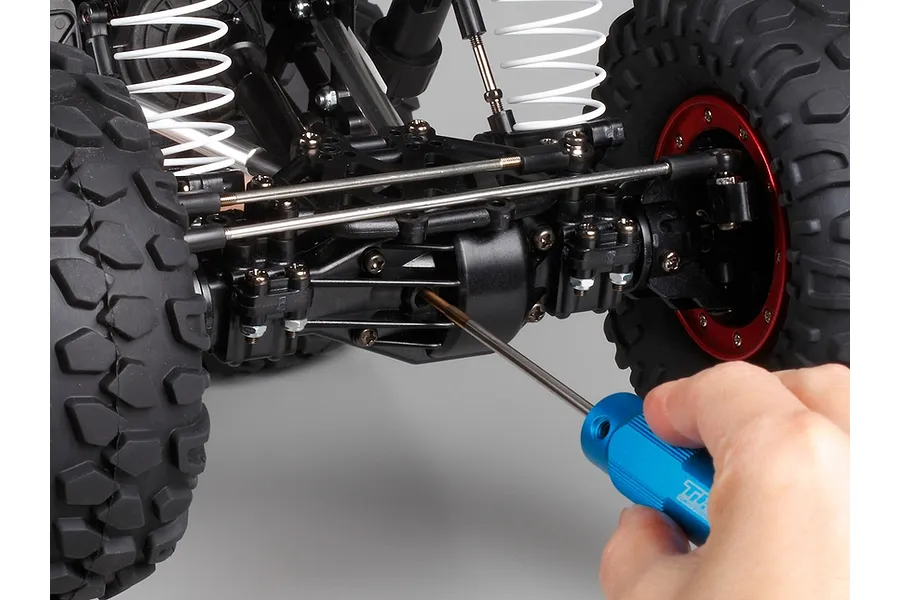

Locked Differentials

The CR-01 comes equipped with locked front and rear 3-bevel differentials, providing maximum traction for conquering challenging rock crawling obstacles.

Specifications

Length	435mm
Width	265mm
Height	215mm
Weight	2.31kg (without battery)
Wheelbase	288mm
Drivetrain	4WD

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Intermediate
Power Source	Electric Brushed
Chassis Type	Rock Crawler
On/Off Road	Off Road
Drivetrain	4WD
