Name: Tamiya CC-01 Toyota Hilux Extra Cab RC Rock Crawler Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58663
Price: 308.49 AUD
Availability: Discontinued

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

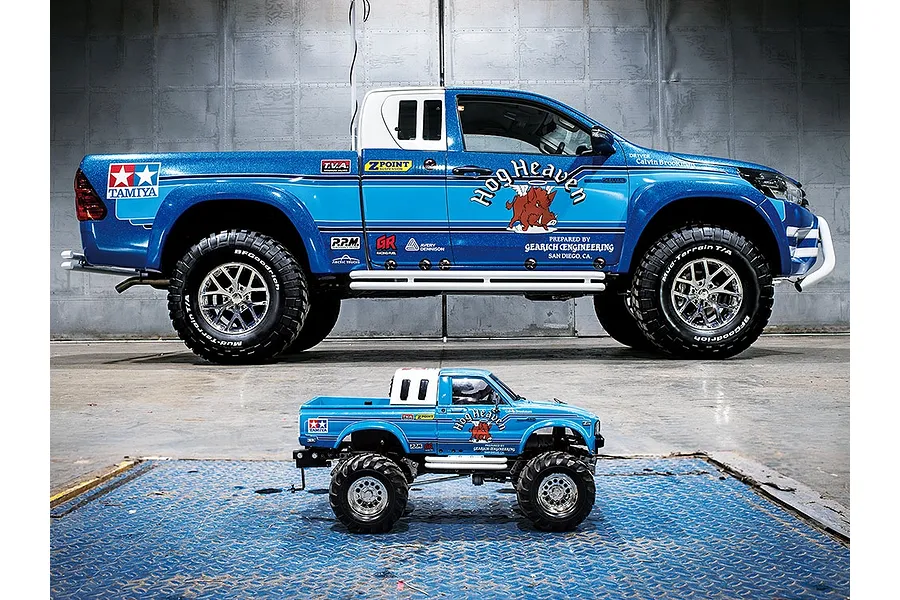

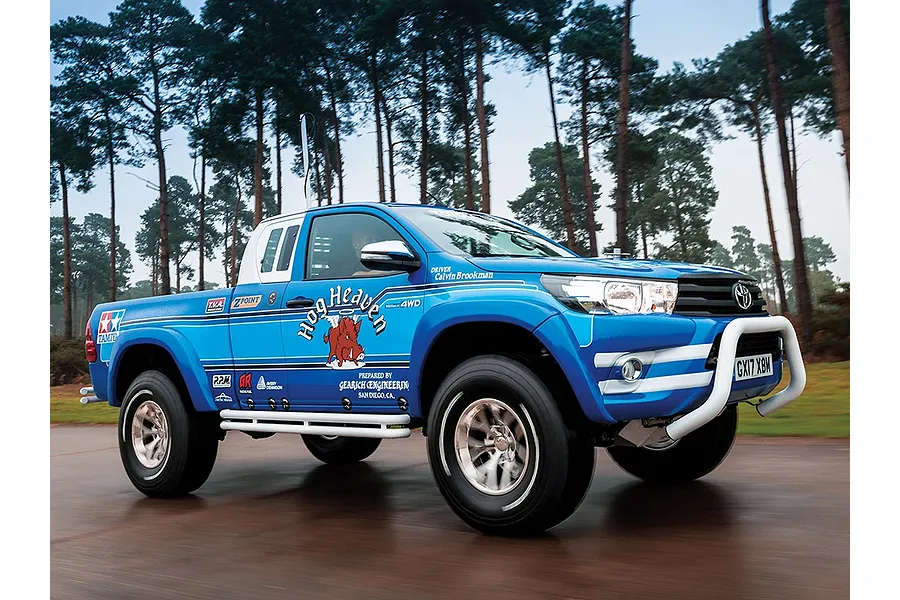

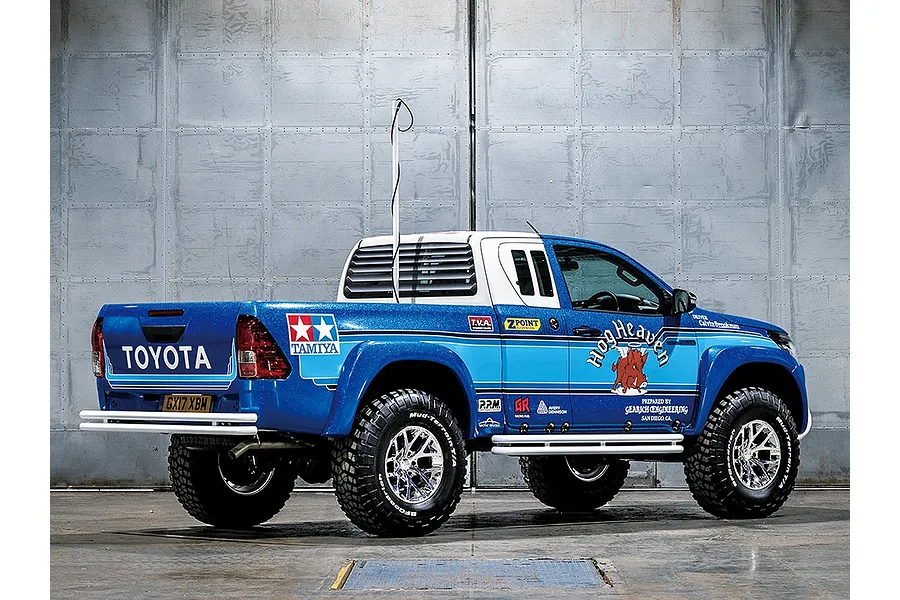

This model recreates the classic Toyota Hilux in the form of a new polycarbonate body mounted on the reliable CC-01 cross country chassis. The kit depicts the 8th generation of the Hilux, released in 2015, specifically a special full-size version of the Extra Cab which Toyota's British division made in the colors of Tamiya's legendary Bruiser as a tribute to that model. It also appeared in some high-profile PR activities in Great Britain.

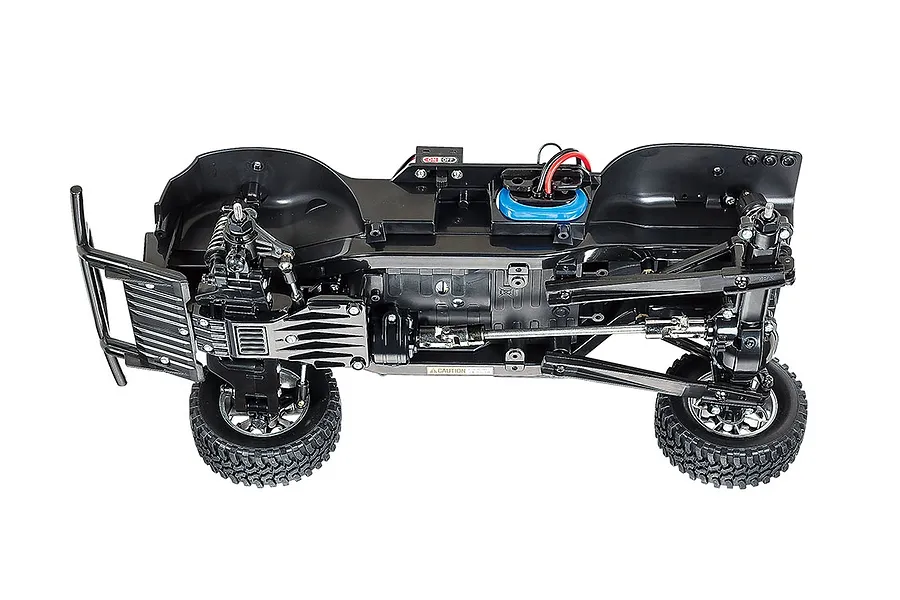

The CC-01 chassis features an excellent ground-hugging, long-stroke suspension system consisting of front double wishbone and rear 4-link rigid setups equipped with 4 oil dampers. A highly reliable full-time 4WD system features a front-mounted motor transmitting power to the front wheels via the gearbox and to the rear wheels via the propeller shaft with universal joints. Front and rear differentials enable smooth cornering. For greater off-road performance on rough terrain, the rear differential may be locked during assembly.

Note

This body shell comes completely unpainted and may require body post holes to be drilled. Only use a polycarbonate-compatible paint such as the Tamiya PS series; standard paints will not adhere and may damage the body shell surface.

Features

1/10 scale R/C model assembly kit

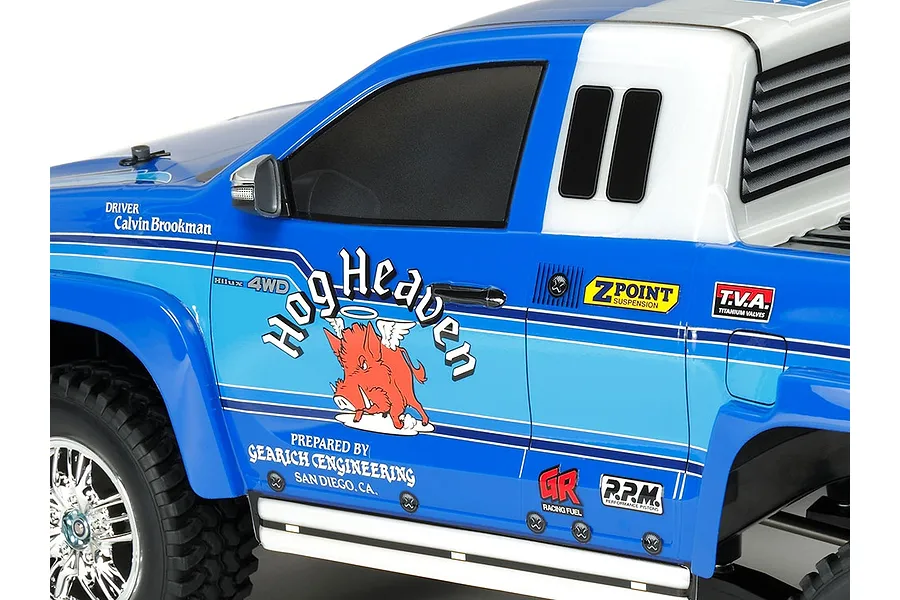

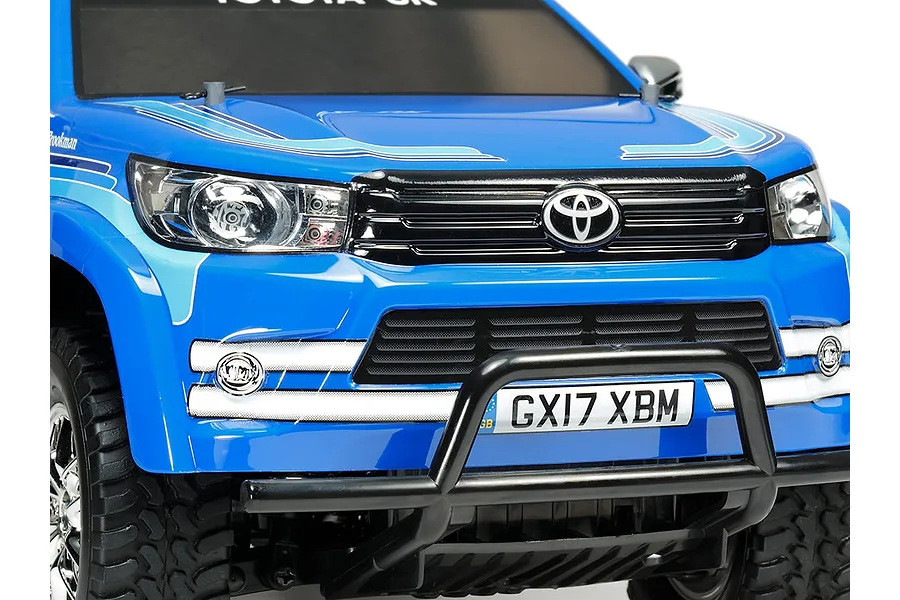

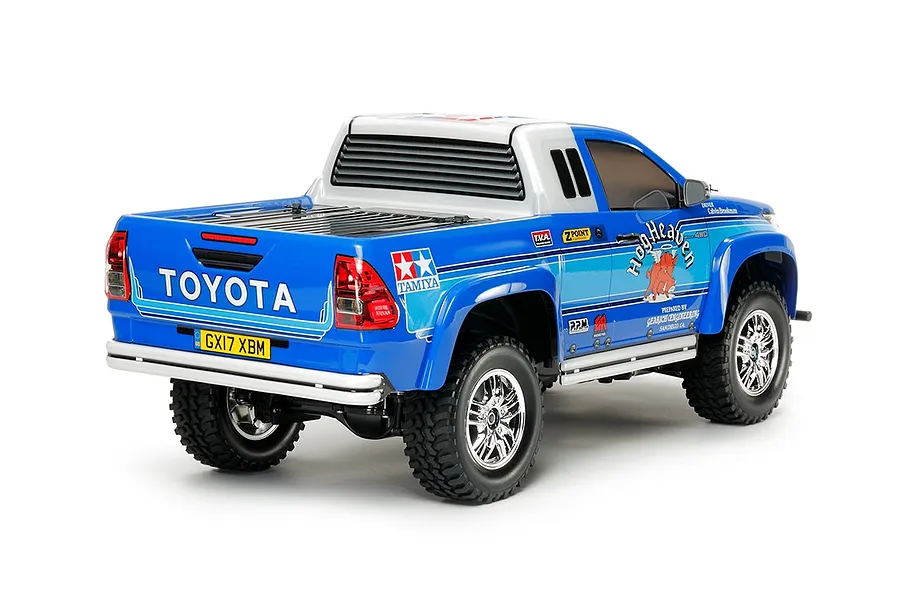

The rugged Hilux Extra Cab form is depicted in lightweight and durable polycarbonate, with separate metal-plated side mirror and light case parts
Includes 2 white (headlight) and 2 red (taillight) 5mm-diameter LEDs and the LED Light Unit; light cases can be fitted with up to 6 LEDs front and rear

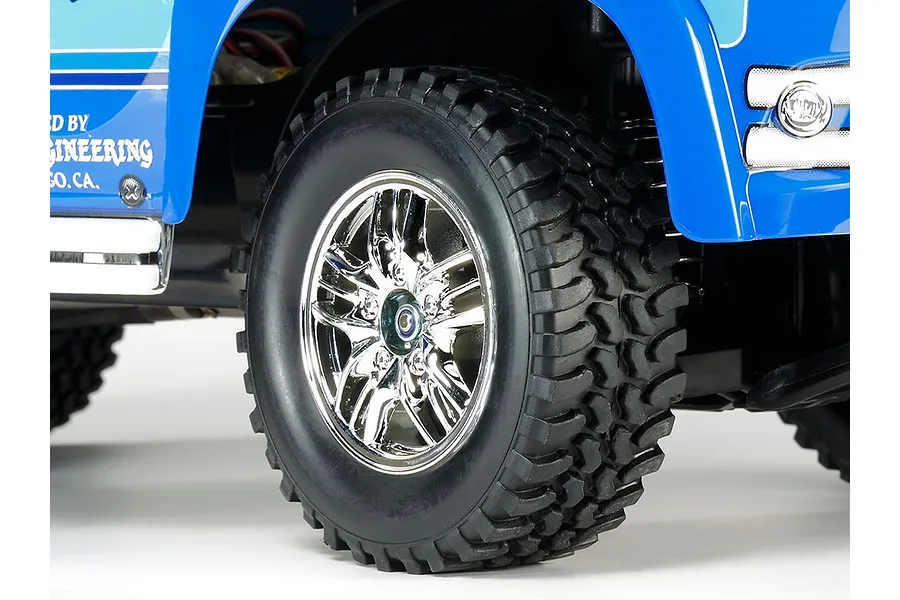

Metal-plated wheels paired with realistic tires featuring authentic block tread pattern
CC-01 chassis features full-time 4WD, front double wishbone suspension, rear 4-link rigid suspension, and 4 CVA oil dampers
267mm wheelbase
An expansive range of option parts is available to customize the CC-01 chassis
Includes 540-Type Brushed motor
Includes Tamiya TBLE-02S ESC — capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit / 23 Turn brushed motor limit)

In the box

1x Tamiya CC-01 Rock Crawler Chassis
1x Tamiya TBLE-02S Brushed ESC
1x Tamiya 540-Type Brushed Motor
1x Tamiya 1/10 Toyota Hilux Extra Cab Unpainted Polycarbonate Body Shell
LED Light Unit, 2x white 5mm LEDs, 2x red 5mm LEDs

You'll need

2-channel radio transmitter
Steering servo
7.2V battery pack and charger
Tamiya PS polycarbonate paint
Tools

Highlights

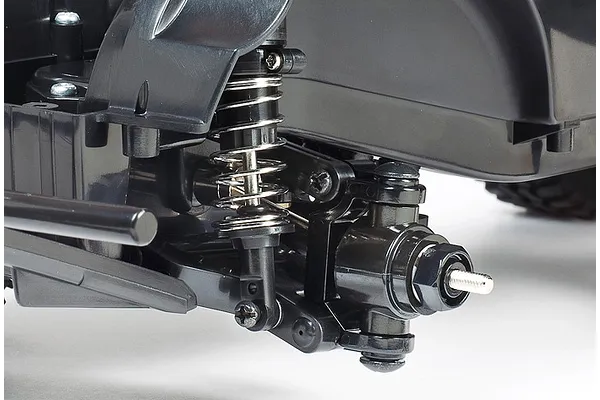

Responsive Handling

The CC-01 features a realistic double wishbone front suspension system, just like a real off-road vehicle. CVA oil dampers provide smooth damping action and improve the truck's ability to soak up bumps and maintain traction.

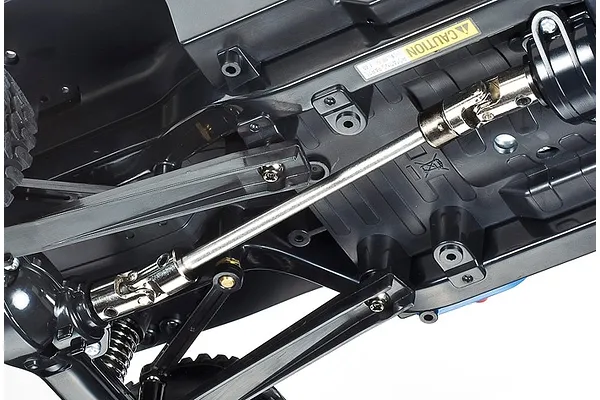

Realistic Drivetrain

The authenticity doesn't stop with the scale body shell. The drivetrain of the CC-01 is just like a real car with power being delivered to the rear wheels through a propeller shaft, adding to the realism and driving enjoyment.

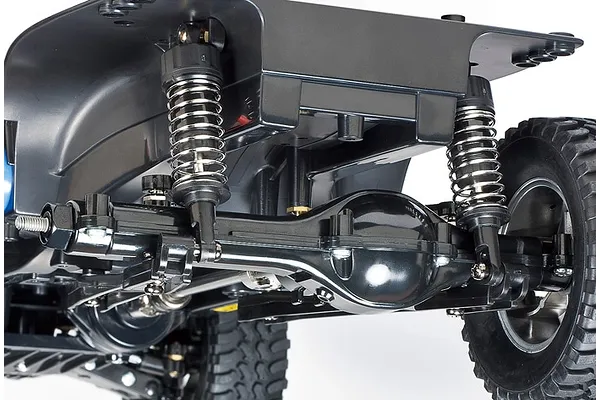

4 Link Suspension

The CC-01's 4-link rear suspension provides exceptional durability and stability for tackling tough off-road conditions. CVA oil dampers ensure a smooth and controlled ride, even over rough terrain.

Specifications

Length	465mm
Width	196mm
Height	207mm
Wheelbase	267mm
Weight	Coming Soon
Ground Clearance	Coming Soon
Drivetrain	4WD
Motor	Tamiya 540-Type Brushed Motor
ESC	Tamiya TBLE-02S

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Intermediate
Power Source	Electric Brushed
Chassis Type	Rock Crawler
On/Off Road	Off Road
Drivetrain	4WD
