Part no. 58405
$504.48
or 4 fortnightly payments of $126.12 with afterpay
Tamiya CR-01 Toyota Land Cruiser 40 1/10 rock crawler kit with 4-link suspension, lockable differentials, and TBLE-02S ESC included.
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Ready to send today if you order before 1pm.
Please Note:
This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

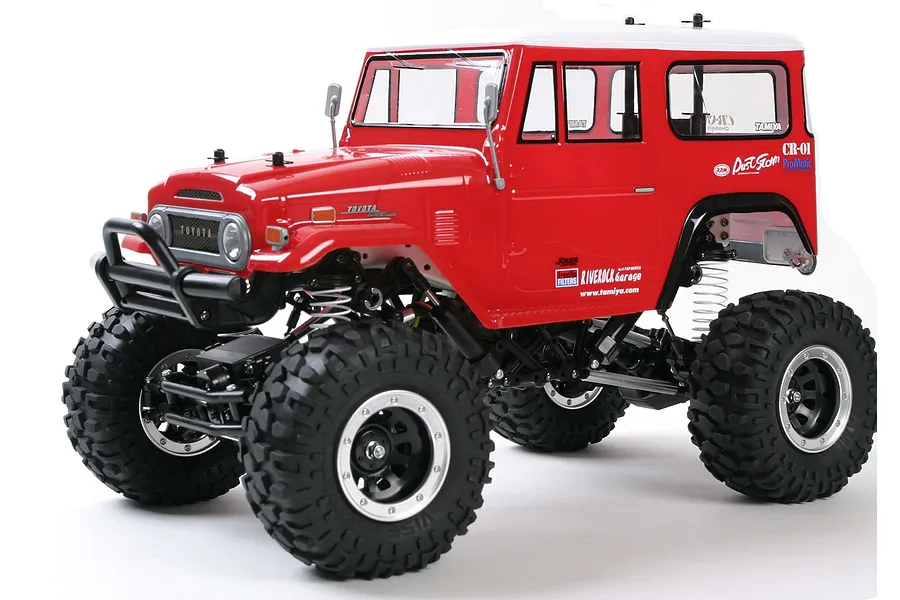

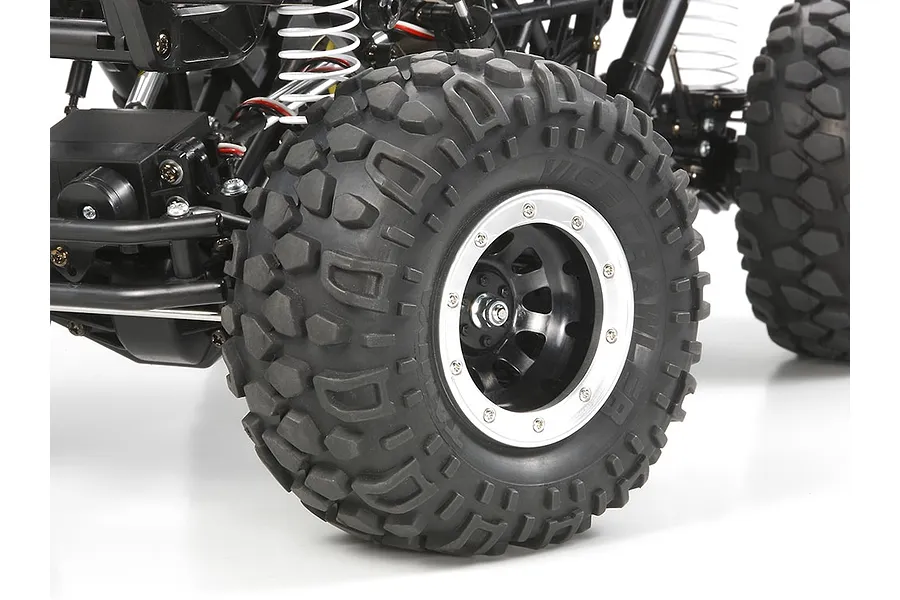

The Toyota Land Cruiser 40 was produced from 1960 to 1984 and is one of the most well-known 4x4 vehicles in the world. Tamiya has reproduced this classic off-roader as an assembly kit R/C model on the newly developed CR-01 rock crawling chassis. This chassis features a tough ladder frame with aluminum side channels and resin crossmembers, 4-link suspension with aluminum rods, a 4WD system with lockable differentials, massive off-road tires with sidewall tread pattern, and dependable beadlock wheels. The body is accurately reproduced in durable polycarbonate material, giving fans a superbly capable rock crawler with scale realism.
Note
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish this body — standard paints will not adhere and/or may cause damage to the body shell's surface.

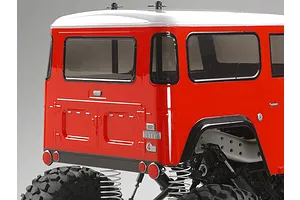

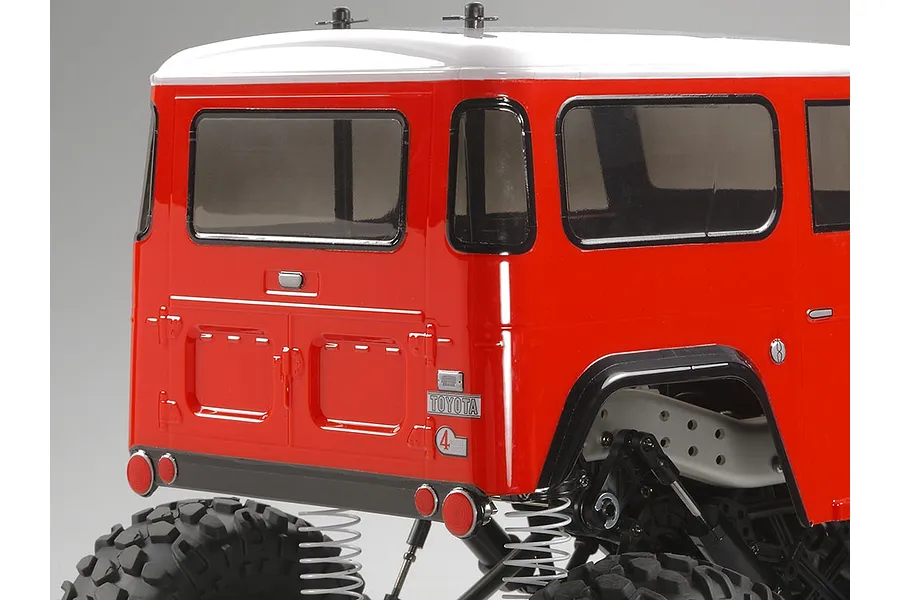

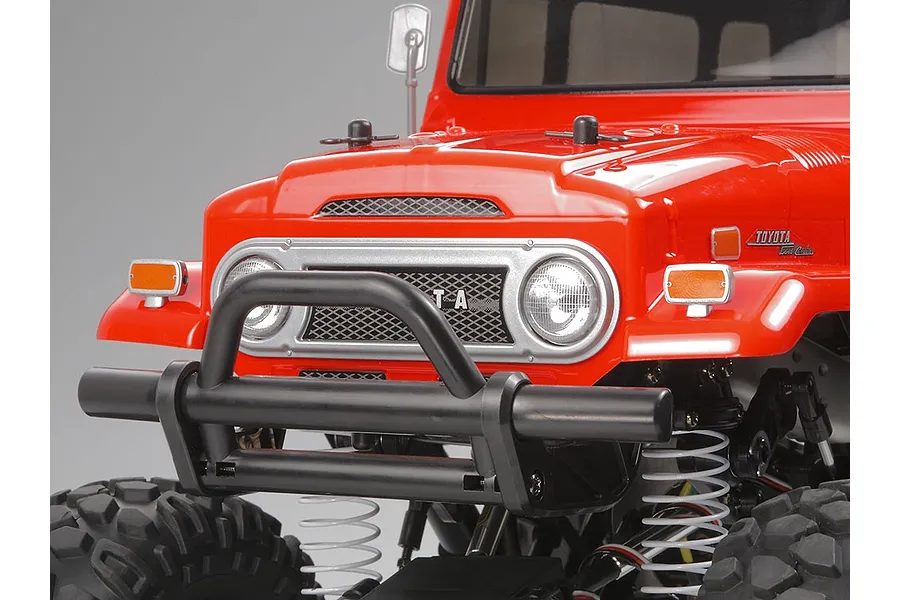

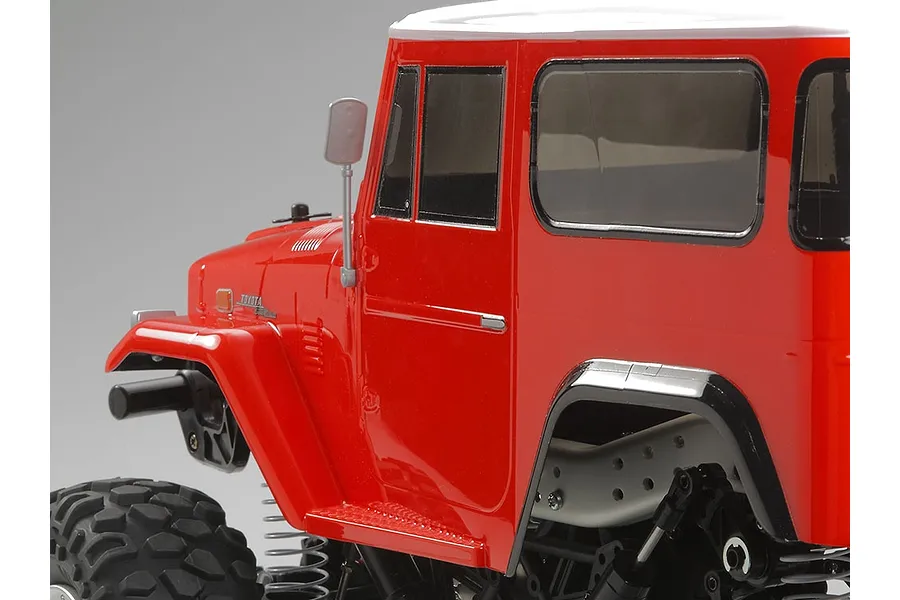

The CR-01's body is a masterpiece of scale detail, capturing the essence of the full-size vehicle with incredible accuracy. Features like the separate oval radiator grille, non-slip side steps, and curved rear windows enhance the realism, while optional LEDs for the headlights and taillights bring the model to life.

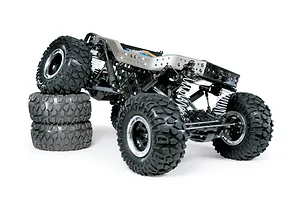

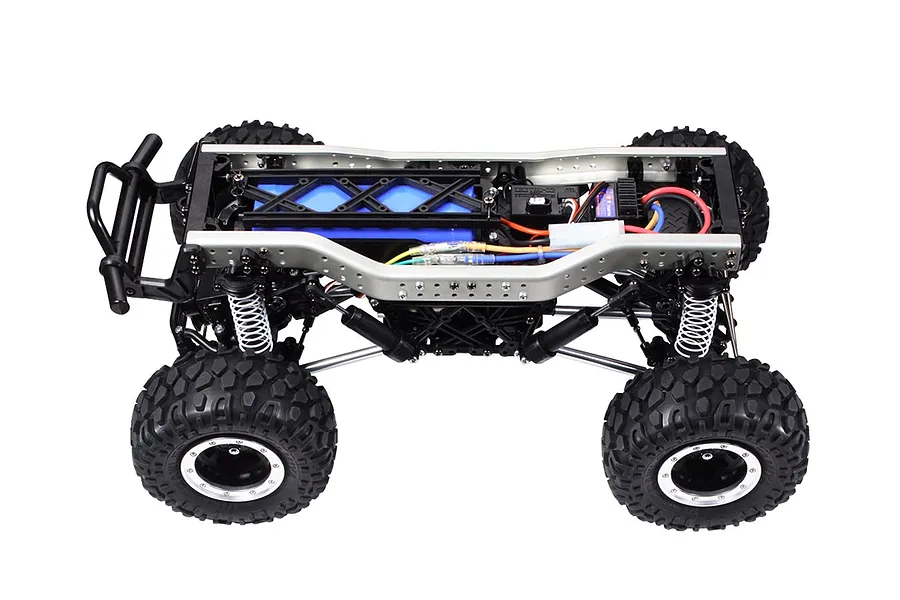

The CR-01's highly rigid ladder frame, constructed with aluminium side members and plastic cross members, provides exceptional strength and torsional rigidity for tackling the toughest terrain.

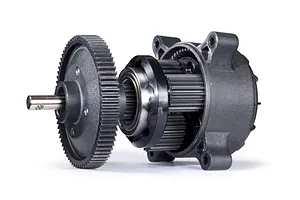

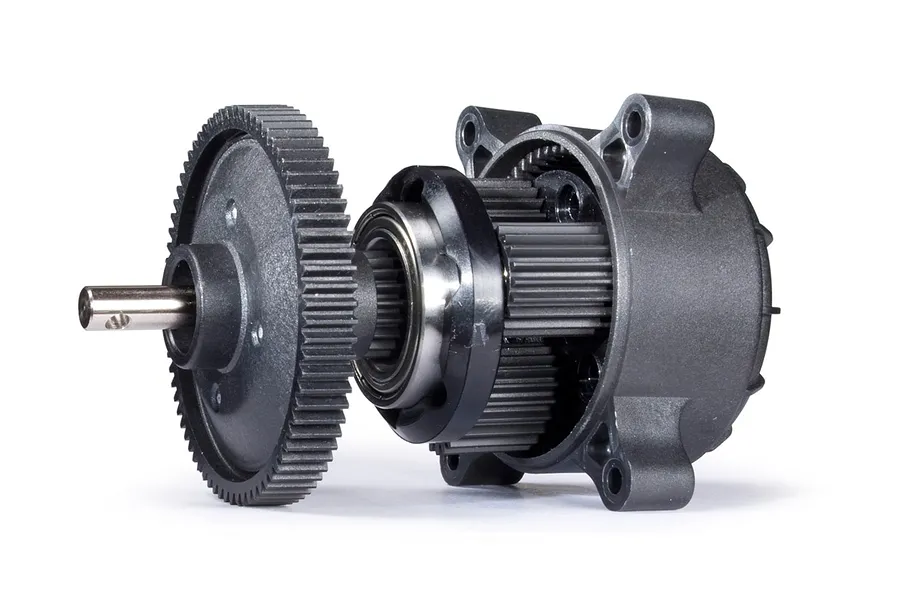

The CR-01's compact planetary gear transfer case delivers smooth and efficient power distribution to all four wheels. Its high reduction ratio and low-mounted battery contribute to a low centre of gravity, enhancing stability and climbing ability.

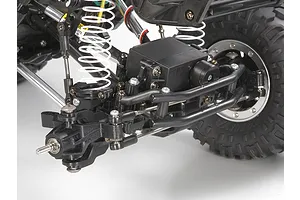

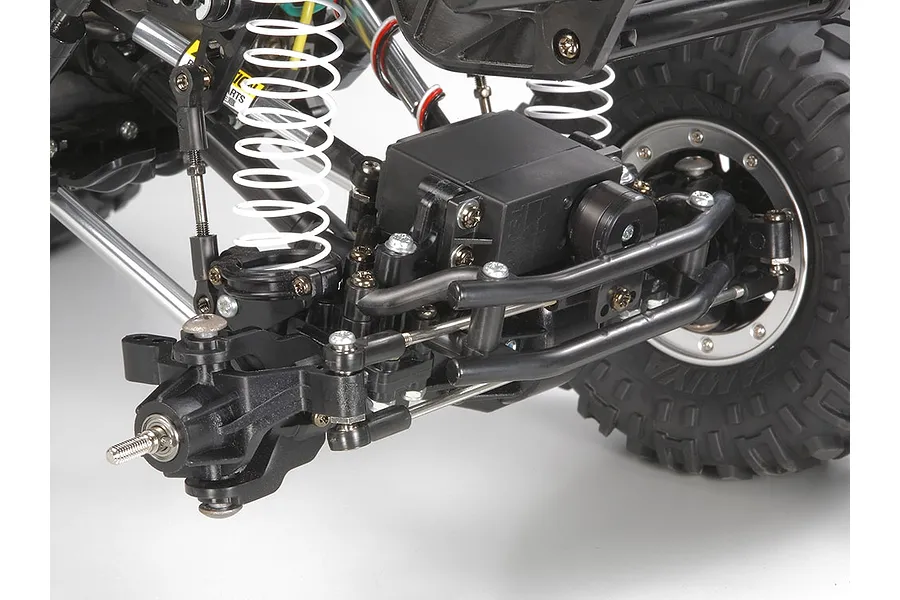

Experience unrestricted suspension movement with the CR-01's innovative steering servo placement. Mounted directly to the axle, the servo avoids interference with suspension components, maximising articulation and climbing capability.

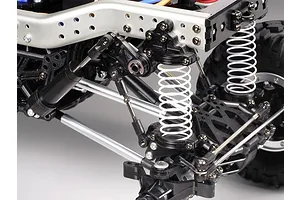

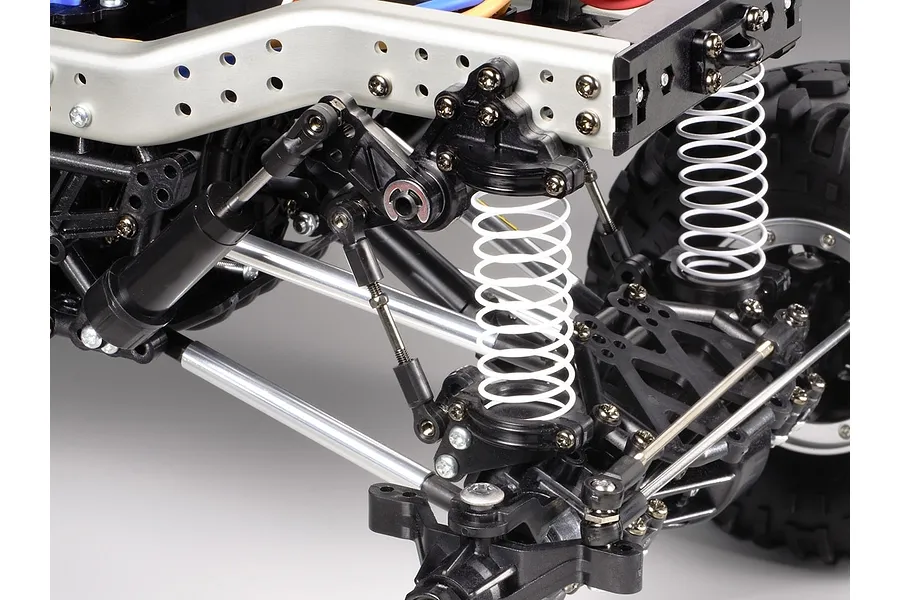

The CR-01's oil filled shock absorbers, operated by a push rod and rocker arm system, provide smooth and responsive damping action. The unique coil spring setup, mounted separately from the damper, enhances articulation and traction by extending when the vehicle rolls.

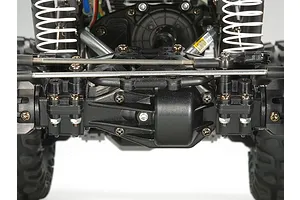

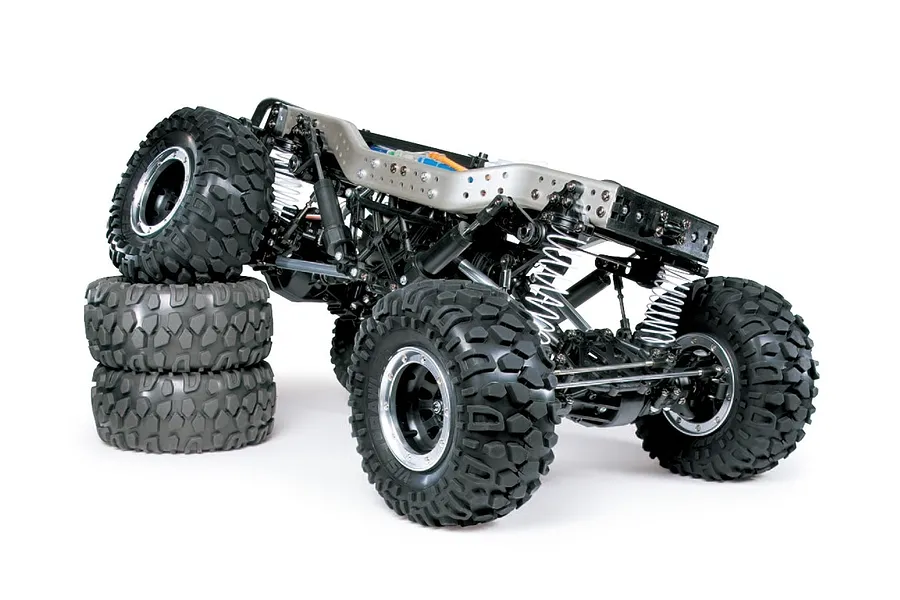

The CR-01's 4-link suspension delivers exceptional off-road capability. With incredible articulation and stabilisers on both axles, this system maximises tire contact with the ground, providing tenacious traction and stability on even the most challenging surfaces.

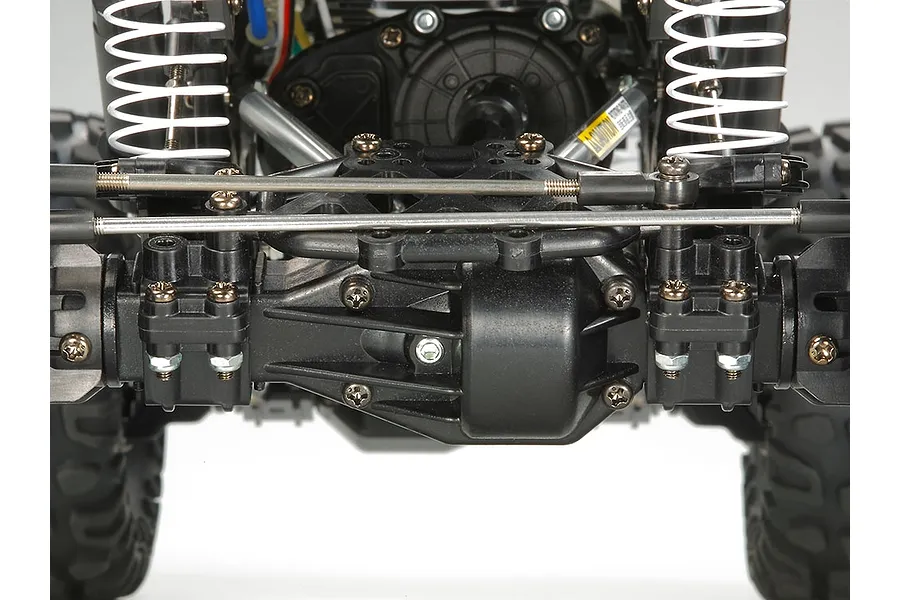

The CR-01 comes equipped with locked front and rear 3-bevel differentials, providing maximum traction for conquering challenging rock crawling obstacles.
| Length | 435mm |
|---|---|
| Width | 265mm |
| Height | 274mm |
| Weight | 2.33kg (without battery) |
| Wheelbase | 288mm |
| Drivetrain | 4WD |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric Brushed |
| Chassis Type | Rock Crawler |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
| Battery Connector | Tamiya |
|---|---|
| Front Shock Oil | 400cSt |
