Tamiya DT-03 Neo Fighter RC Buggy Electric 2WD 1/10 Scale Kit (No ESC)

  • 1/10
  • 2WD
  • Kit

Part no. 58587A

DiscontinuedNo reviews yet
1 / 5
1 / 5

Videos

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Videos

Overview

Painting Required

Your body shell arrives clear and unpainted, and you may need to drill body post holes to suit your chassis. Stick to flexible polycarbonate paints like the Tamiya PS range, since standard acrylics or enamels will flake off and harm the surface. Explore our polycarbonate RC body paints to pick your colours.

This kit comes without an Electronic Speed Control. Click Here to view our range of ESCs.

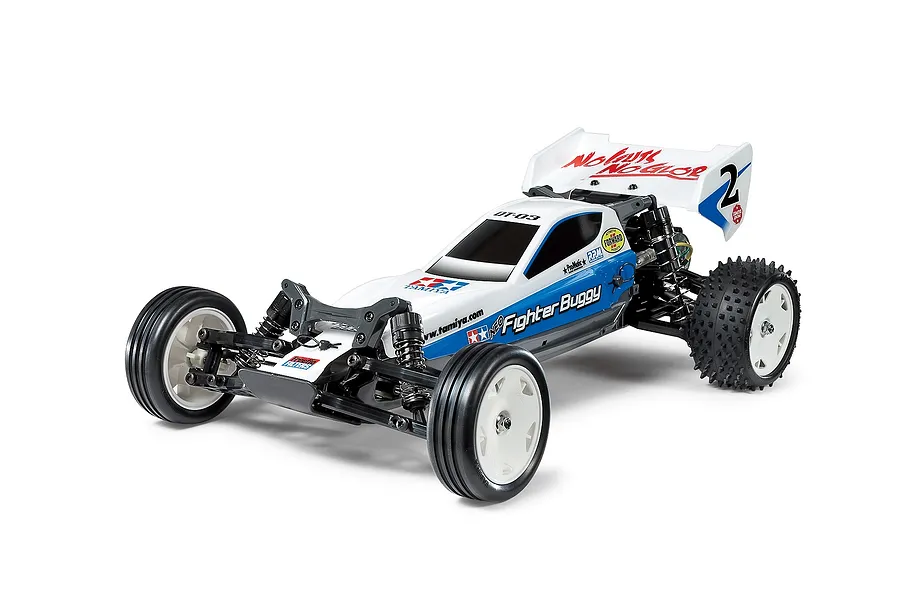

The Neo Fighter Buggy takes its inspiration from the legendary Frog, a 2WD buggy familiar to many who joined the first R/C boom of the 1980s. At home both on- and off-road, this 2WD buggy features a lightweight yet tough monocoque frame that protects vital equipment such as the servo and battery from damage; its long form also offers great stability. Coupled with friction dampers and 4-wheel double wishbone suspension, the Neo Fighter Buggy performs well even on difficult off-road surfaces. Such a combination of hassle-free assembly and high-performance, light-on-its-feet handling is sure to recommend this model not only to fans of the past, but also to the next generation of R/C racers.

The stylish slimline chassis stems from its lightweight yet durable monocoque frame, which features a longitudinally-positioned battery and R/C equipment along the centerline for excellent balance. Ribbed front and square spike rear tires provide ample grip, and the rear-positioned gearbox is sealed to protect from dust and dirt, with the built-in differential gear offering smooth cornering.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

  • Lightweight yet tough monocoque frame protects servo and battery from damage
  • Long 287mm wheelbase combined with 4-wheel double wishbone suspension with long arms for stability on poor surfaces
  • Front suspension arms attached at a 25-degree angle to improve off-road ability
  • Rear gearbox is sealed to protect from dust and dirt; built-in differential provides smooth cornering
  • Ribbed front tyres and square spike rear tyres provide ample grip
  • Dust cover protects R/C equipment from sand and dust
  • Polycarbonate body — paint and apply markings as desired

In the box

  • 1x Tamiya 1/10 DT-03 Neo Fighter Buggy 2WD Electric Off-Road RC Buggy Kit

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • 4 x AA Batteries (for transmitter)
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2-Channel Transmitter & Receiver
  • Tamiya PS Polycarbonate Paint

Highlights

Angled Suspension Design

Angled Suspension Design

The front suspension arms are attached at a sharp 25-degree angle to massively improve off-road ability. This aggressive geometry allows the machine to soak up hits and glide over obstacles that would stop a standard rig. It is a high-performance setup built to keep you in total control during the wildest backyard sessions

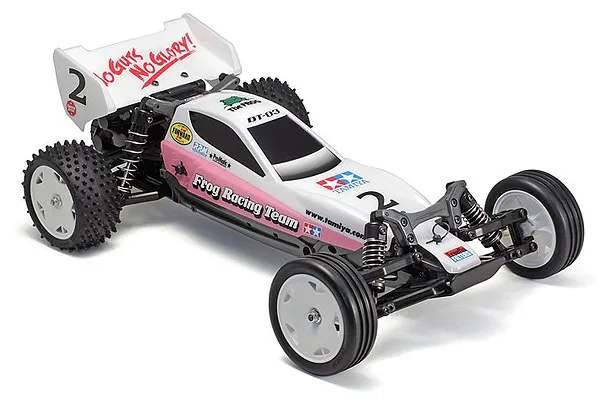

Customisable Polycarbonate Body

Customisable Polycarbonate Body

The tough polycarbonate body is built to take a beating while maintaining a sharp scale appearance. You can paint and apply markings as you like to create a one-of-a-kind racer that stands out from the rest of the fleet. It is a durable and versatile shell that brings a professional presence to your construction or racing site.

Heavy Duty Dust Cover

Heavy Duty Dust Cover

A dedicated dust cover shields your sensitive RC equipment from sand and grit to prevent running trouble on the site. This protective barrier ensures your electronics stay clean and functional even during the most intense desert runs. It is a practical addition that keeps your machine operational in the harshest environments.

Sealed Gearbox For Protection

Sealed Gearbox For Protection

The rear gearbox is fully sealed to lock out dust and debris while you tear up the track. An integrated gear differential ensures smooth and reliable cornering to give you the mechanical toughness needed to stay pinned through every turn. It is a rugged internal design that keeps your drivetrain running perfectly in any environment.

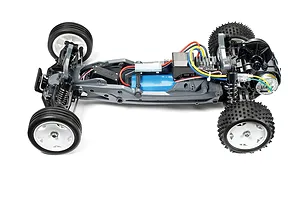

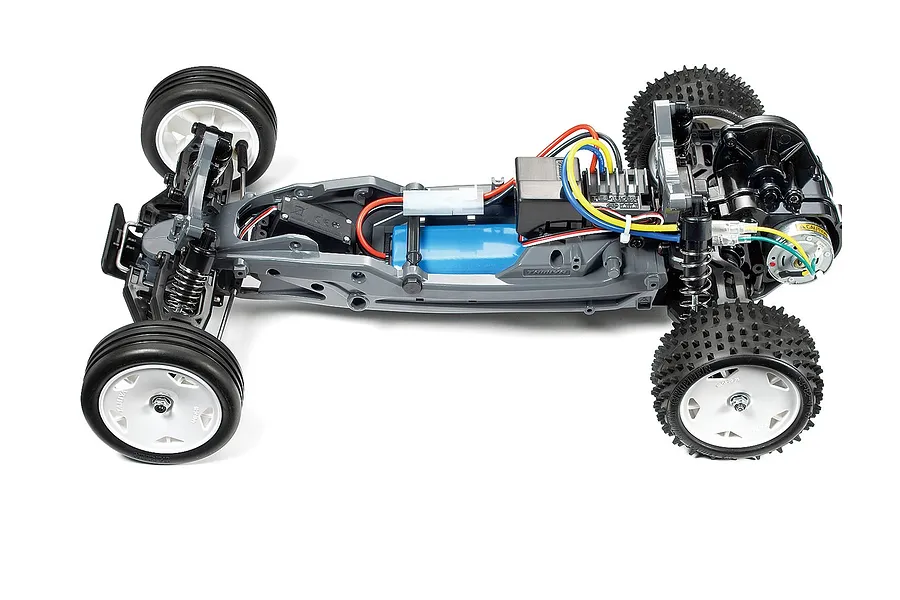

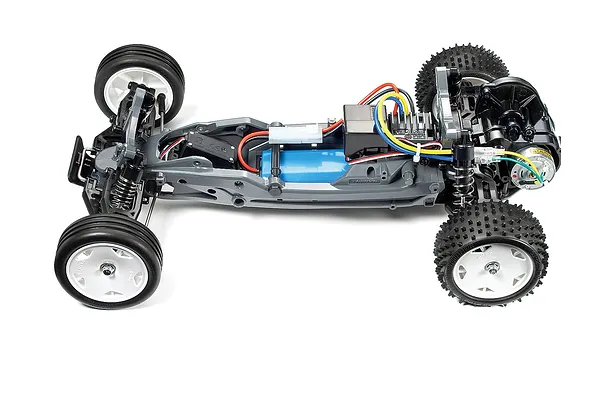

DT-03 Neo Fighter Buggy chassis overview

DT-03 Neo Fighter Buggy chassis overview

The slimline DT-03 monocoque chassis features a longitudinally-positioned battery and R/C equipment along the centerline for excellent balance.

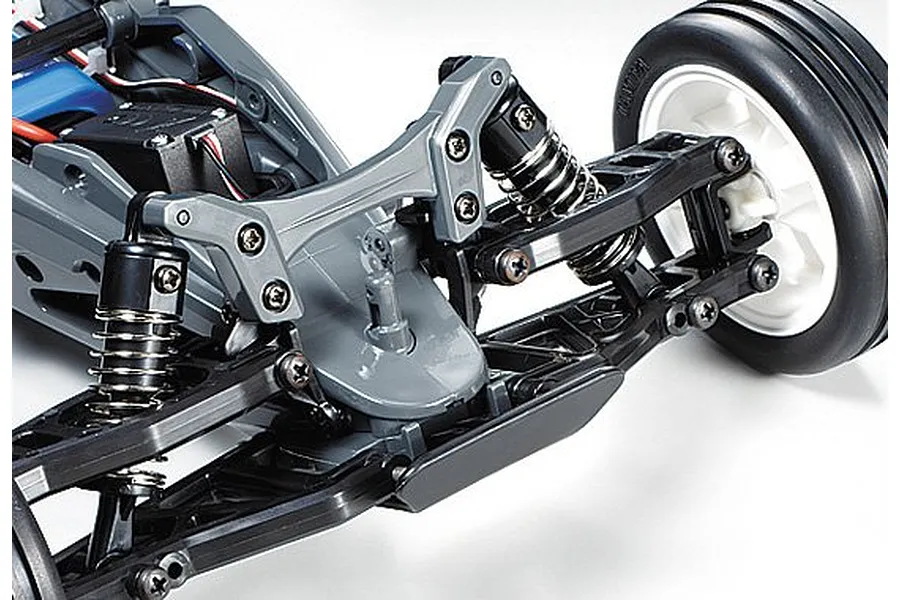

Front suspension arm angle detail

Front suspension arm angle detail

Front suspension arms are attached at a 25-degree angle to improve off-road ability.

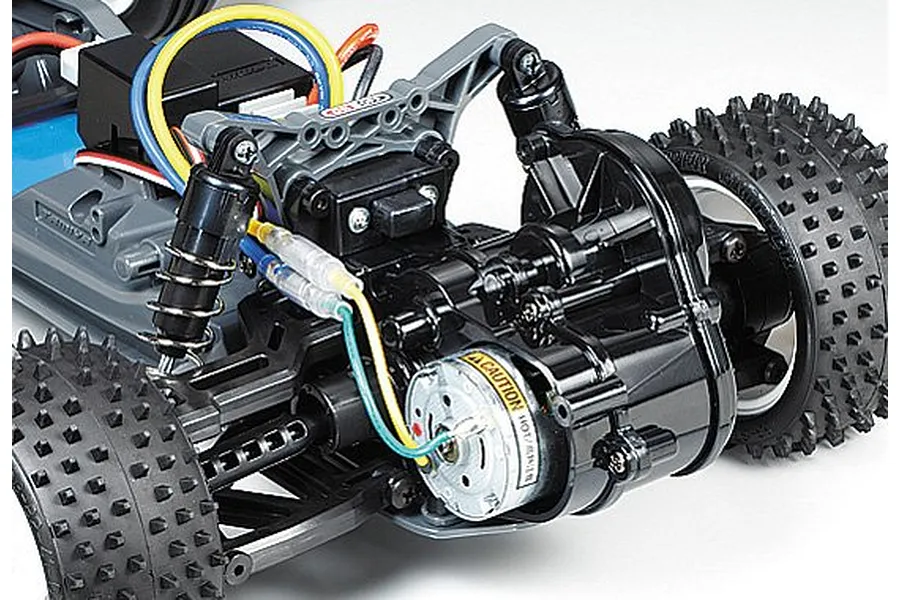

Sealed rear gearbox with differential

Sealed rear gearbox with differential

The rear-positioned gearbox is sealed to protect from dust and dirt, with a built-in differential gear offering smooth cornering.

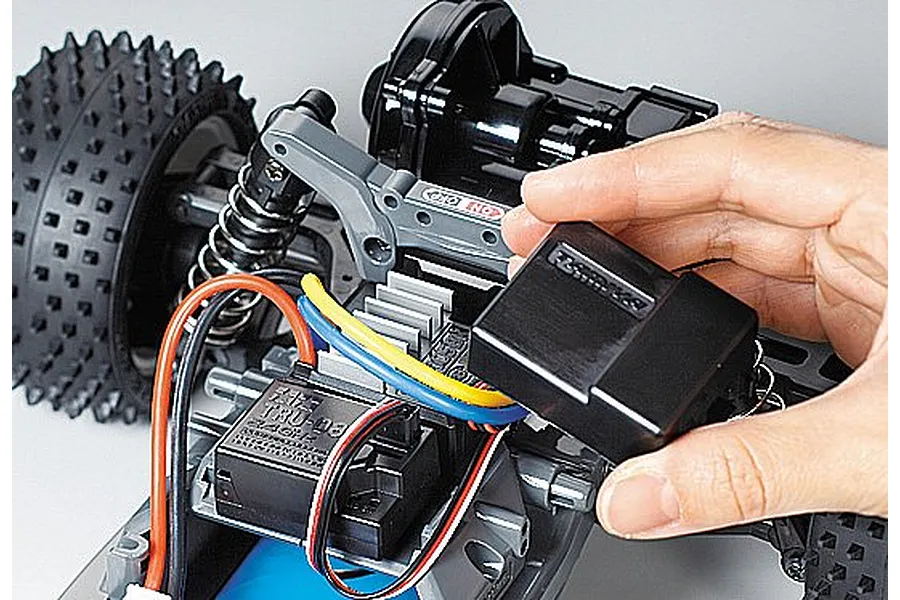

R/C equipment dust cover

R/C equipment dust cover

A dust cover protects the model's R/C equipment from sand and dust, helping prevent running trouble.

Polycarbonate body shell

Polycarbonate body shell

Paint the tough polycarbonate body and apply markings as you like to create your own cool racer.

Specifications

Wheelbase287mm
Tread (Front/Rear)221mm / 208mm
Tyre Width/Diameter27/80mm (Front), 41/86mm (Rear)
ChassisMonocoque Frame (DT-03)
DrivetrainRear Wheel 2WD
Differential3-Bevel Differentials
Steering2-Piece Steering Tie-Rod
SuspensionFront & Rear Double Wishbone with Friction Dampers
Gear Ratio9.28:1
MotorType 540
ESCNot Included

Dimensions

Length400mm
Width248mm
Height132mm

RC Car

Scale1/10
Power SourceElectric
Drivetrain2WD
Chassis TypeBuggy
CompletionKit
On/Off RoadOff Road
Skill LevelIntermediate
Max LiPo Power2S (7.4v)

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery IncludedIncluded battery type or if sold separately.Not Included
Battery ConnectorNot Included
Pinion Gear17T
